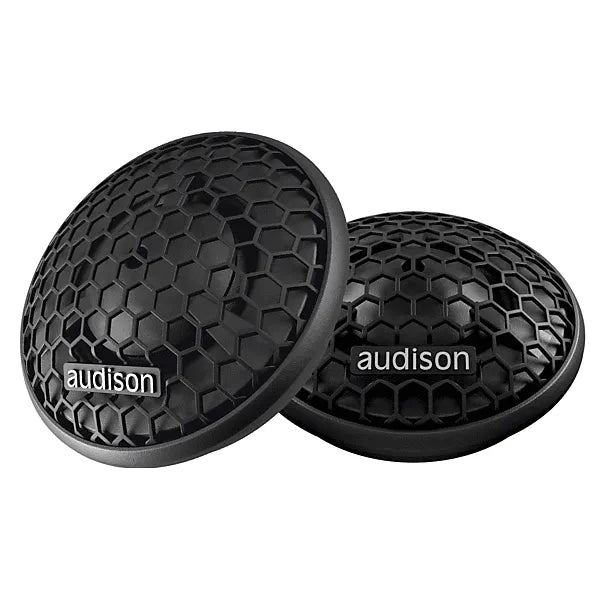

Audison AP 1 Prima Line 1" 26mm 150W Tweeter Speaker - Pair

SKU: AAP1
Regular price
$189.99

CALL TO ORDER & CHECK AVAILABILITY - (02) 4257-2636

Shipping information

We offer fast and reliable shipping options to ensure that your order arrives in a timely manner. Our dedicated team works diligently to process and ship your items as quickly as possible.

Here are some key points to note about our shipping policy:

Standard Shipping

  • Frankies offers a $15.95 flat rate for Australia-wide shipping, no matter how many items you order. Some larger or heavier items may incur an additional fee, which will be communicated to you when your order is processed.
  • While we endeavour to dispatch all orders promptly, please be advised that due to the current national fuel shortages in Australia and the resulting pressure on logistics networks, order processing and dispatch may take up to 7 business days. We are not liable for delays caused by third-party freight carriers or fuel-related logistical disruptions. By placing an order, you acknowledge that delivery timeframes may be extended beyond our standard estimates during this period.

Estimated delivery times:

  • WA, NT, and TAS: currently experiencing longer shipping times
  • Holiday periods (e.g. Christmas): deliveries may be delayed due to increased freight volumes

Express Shipping

  • Express shipping is available and calculated based on your delivery location, as well as the size and weight of your order. To receive an accurate quote, please contact our Albion Park Rail store and request an "express shipping quote." Our team will promptly assist with pricing and availability. Payment for express shipping can be securely arranged over the phone.

Share this product

Share Post Pin E-mail

Product features

Extremely Small-Sized Dedicated Passive Crossover!

Prima Line 1″ 150W Tweeter Speaker - Pair
The Audison AP 1 tweeter features a 26 mm diameter emission diaphragm, an acoustic lens designed to compensate for the frequency response within the 10kHz – 13kHz range, a Neodymium REN magnet, and an extremely small-sized dedicated passive crossover.

Features:

  • 26 mm diameter diaphragm combined with a wide-roll surround provides maximum efficiency and reduced resonance frequency.
  • Neodymium magnet with low carbon content plates, provides reduced size and more linear sound reproduction, even during the most demanding audio passages.
  • An acoustic lens designed to compensate for and fine-tune the in-car frequency response anomalies in the 10 kHz - 13 kHz bandwidth caused by restrictive OEM grilles in critical OEM placements.
  • Extremely compact dedicated passive crossover APCX TW supplied with the product, optimised for OEM Integration, featuring an attenuation switch (0 dB, +2 dB) to tune the in-car response according to different installation conditions.
  • Passive crossovers are supplied with "OEM Integration compliant" fast-on connectors. The ends, different in each of the two poles, eliminate any possible connection errors and speed up the required installation time.
  • A wide array of mounting accessories is supplied with the product, for high fitment flexibility in OEM Integration.
  • CCAW (Copper Clad Aluminium Wire) ultra-light ferrofluid cooled voice coil is wound on a Kapton former, for better heat dissipation.
  • The Dome profile and motor are optimised with FEM (Finite Element Method) simulation technology.
  • Developed with the KLIPPEL suite

Specifications:

  • Component: Tweeter
  • Size: 26mm (1")
  • Power Handling: 150W peak Hi-Pass Filtered 3.5kHz - 12 dB Oct.
  • Impedance: 4 Ohm
  • Frequency Response: 2k - 20kHz
  • Voice Coil: 20mm (0.8")
  • Mounting Diameter: 38.5mm
  • Mounting Depth: 8mm
  • Crossover: Included
  • Packaging Type: Giftbox
  • Weight: 0.10kg
