Audison AFM511B 1200W 5-Channel D-Class Fully Bridgeable DSP Amplifier (AF M5.11 BIT)

Allows You to Maximize the Acoustic Performances of Your Car Audio System!

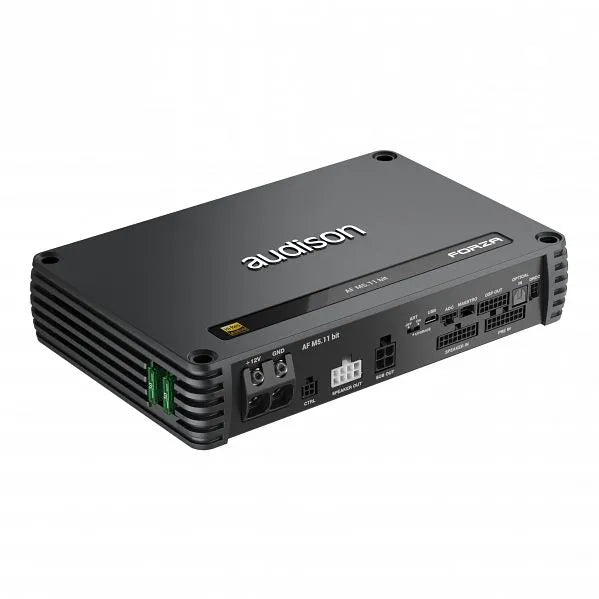

5-Channel DSP Amplifier (AF M5.11 BIT)
The AF M5.11 bit is an amplifier with integrated DSP, equipped with 4 high-power amplified channels settable in bridge mode, a dedicated SUB channel for even more power, and 6 pre-amplified outputs, to reach a total of 11 output channels. It features 8 analog inputs of PRE IN type (Lo-Level), 8 analog inputs of SPEAKER IN type (Hi-Level), and 1 S/PDIF digital optical input.

Through accessory modules it is possible to increase the number of inputs: F4IN - adds 4 analog SPEAKER IN input channels; F2O - adds 2 digital inputs: digital optical S/PDIF or digital coaxial S/PDIF, selectable by a dedicated switch on the module. Equipped with a high-performance 32-bit digital signal processor (DSP) clocked at 147 MHz and 24-bit AD and DA converters, it allows you to maximize the acoustic performances of your Car Audio system.

Each output channel features: an adjustable Graphic / Parametric equalizer with 15 poles; electronic crossover adjustable in 1 Hz steps, with Butterworth / Linkwitz / Bessel / Chebyshev / QLP filters and slopes from 6 to 48 dB; digital control of time delays. Each input channel features: an adjustable Parametric equalizer with 12 poles; and digital control of time delays.

The AF M5.11 bit is compatible with the remote controller DRC AC, which allows control of the main system functions (Master volume, Sub volume, source change, memory change, enable/disable Final tuning EQ) without using a PC. The AF M5.11 bit can be interfaced to any standard system, even on cars equipped with an integrated audio processor, thanks to the automatic de-equalization feature that analyses and provides a flat signal from the car audio source. The native Maestro port ensures the interfacing with devices equipped with the Maestro / ADC protocol, which makes this product unique in its category and ready to install also in those vehicles with the most advanced infotainment systems.

Features:

• Improved audio performance and power thanks to the latest generation of ADT (Audison D-Class) technology
• Unbeatable power/volume ratio up to 0.68 W RMS/cm³ reaching 82 percent efficiency
• Next-generation bit Drive software platform
• Hi-Res compatibility performance, with an extended audio band up to 40 kHz, made possible by DSP working operation at 24 bit/96 kHz
• Maximum versatility thanks to the possibility of using the bridging option for each pair of power outputs
• Up to 11 output channels (5 amplified, 6 optional pre-outs) controlled by the DSP to expand the system with other amplifiers
• 8 high/low-level inputs (and an optical Toslink digital input) support total connectivity even with the most complex OEM systems
• Extension card slot (additional 4 analog or 1 digital input)
• Electrical signal analysis for each input channel ensures proper integration and correction
• Acoustic analysis (with your USB microphone) integrates the response graph into the equalizer display. This ensures efficient tuning and great sound!
• Advanced signal routing options allow the technician to go beyond the predefined system definitions in the Configuration Wizard

Amplifier Tech Data:

• Channels: 5
• Class: D
• Power supply voltage/fuse: 11 - 15 VDC / 2 x 30A
• Operating power supply voltage: 6.5 - 17.5 VDC
• Idling current: 1.5 A
• Standby Current Draw: 1.5 A
• Consumption at 14.4 VDC, 2OHM, Max Musical Power: 53.4 A
• Remote IN: 4 -15 VDC (1 mA)
• Remote OUT: 6.5 -15 VDC (150 mA)
• ART - Automatic Remote Turn on/ off from OUTPUT BTL speakers: 1.5V DC
• Efficiency Rated Power: 80.5 percent

Amplifier Stage:

• Distortion - THD at 1 kHz, 4OHM, 70 percent Rated Power: 0.02 percent
• Bandwidth at -1.5 dB: 10 Hz - 42 kHz
• Damping factor at 1 kHz, 4OHM, 2 VRMS: 100 kHz , 4OHM, 2 VRMS SUB Channel): 140 | 1 kHz , 4OHM, 2 VRMS: 140
• S/N ratio (A-weighted at 1 V Input) Master Input: 98 dBA
• S/N ratio (A-weighted at 1 V Input) Optical Input: 105
• Total Power RMS: 1200 W
• Minimum load impedance: 2OHM
• Output Continuous Power (RMS) at14.4 VDC, 1 percent THD:
  5 Ch at 4OHM: 100 W x 4 + 400 W x 1
  5 Ch at 2OHM: 150 W x 4 + 600 W x 1
  3 Ch (Bridge 1/2; 3/4) at 4OHM: 300 W x 2 + 400 W x 1
  3 Ch (Bridge 1/2; 3/4) at 4OHM / 2OHM: 300 W x 2 + 600 W x 1
• Adjustable Crossover: Yes

CEA Specifications:

• Output power at 4OHM, 1 percent THD+N, 14.4 V: 85 W x 4 + 340 W x 1
• SN ratio (ref. 1W output): 78 dB

Inputs / Outputs:

• Pre-In Inputs: 0.6 - 6 VRMS (15 kOHM Imp.)
• Digital Input: Yes
• Pre Outputs: 6
• Hi Level Inputs: 8
• Low-Level Inputs: 8
• Speaker-In Inputs: 2.2 - 22 VRMS (5 OHM Imp.)
• Digital IN: 1 x Optical S/PDIF; Max 192 kHz / 24 bit + 1 x Optical/Coaxial S/PDIF with optional F2O card
• Sub Out (RCA Pre Out): 5V RMS

Digital Signal Processor:

• Audio DSP Converter: Analog Devices ADAU1467 automotive qualified audio processor. Processing at 96 kHz.Analog Devices 3 x ADAU1978 (4ch) and ADAU1966A (16ch) A/D and D/A converters (24 bit/192 kHz) providing very high-level performance
• Filter mode and slope:
  Linkwitz-Riley at 12/24/36/48 dB/Oct.
  Butterworth at 6/12/18/24/30/36/42/48 dB/Oct.
  Bessel at 6/12/18/24/30/36/42/48 dB/Oct.
  Chebyshev at 6/12/18/24/30/36/42/48 dB/Oct.
  QLP at 6 dB/Oct.
  Crossover frequency: 20 Hz - 20 kHz
• Phase control: 0 / 180, All-Pass filters
• Analog Input Equalizer (20 - 20k Hz): 12 Biquad + Delay
• Output Equalizer: Parametric/Graphic Biquad: 15 poles, 20 Hz - 20 kHz
• Time Alignment Distance: 0 - 510 cm / 0 - 200.8 inches
• Time Alignment Delay: 0 - 15 ms
• Input Output Real Time Audio Monitor: RTA

Control Connections:

• DRC Port: Input for DRC AC remote control (Optional)
• ADC Port: Manage other Audison devices that support this standard
• 1 Wire: Customizable functions (+ 12 V activated)
• 2 Wire: Customizable functions (+ 12 V activated)

General Requirements:

• PC connections: Micro USB 1.1 / 2.0 / 3.0 Compatible
• Software/PC requirements: Windows 10, Windows 11 (min. res. 1024 x 768
• Ambient operating temperature range: 0C to 55C
• Dimensions: 240 x 47 x 156 / 9.44 x 1.85 x 6.14
• Weight: 2.04kg
