Audison AFBMWRE3 T-Harness Suit BMW (AFBMW REAMP 3)
Click to open expanded view
AUDISON logo

In-Store Only

Audison AFBMWRE3 T-Harness Suit BMW (AFBMW REAMP 3)

SKU: AFBMWRE3
Price
$284.99

Not on our shelf right now. We order this one in from our supplier.

Available soon. Call or visit us in store. (02) 4257 2636

In store only. This product is sold through our Albion Park Rail and South Nowra stores. Contact us for a quote: email sales@frankiesautoelectrics.com.au or visit either store and our team will help you choose the right setup. Call Albion Park Rail on (02) 4257 2636 or South Nowra on (02) 4423 5254.

Make us your best offer

Tell us the price you have in mind and your postcode, and our team will reply by email. Sending an offer does not commit you or us to a sale.

Audison AFBMWRE3 T-Harness Suit BMW (AFBMW REAMP 3)
SKU: AFBMWRE3

Share this product

Share Post Pin E-mail

Product features

Provides the Ability to Install an Audison AF Bit Amplifier on BMW Vehicles Equipped With a RAM Module!

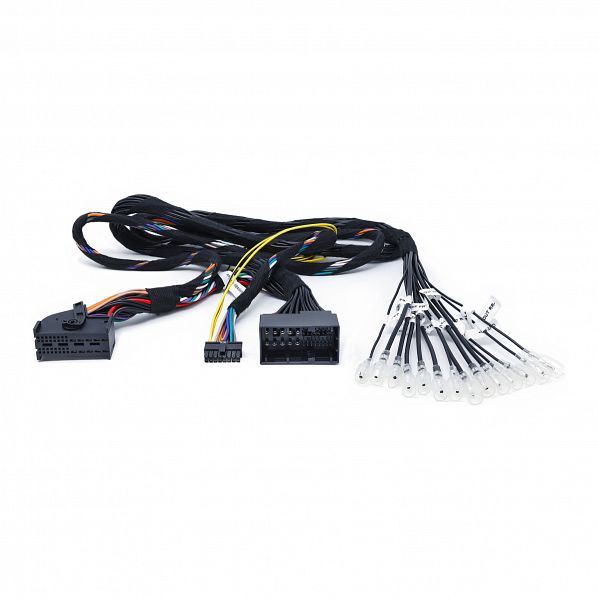

T-Harness (AFBMW REAMP 3)
This plug-and-play T-Harness provides the ability to install an Audison AF bit amplifier on BMW vehicles equipped with a RAM module. It is compatible with Standard and Hi-Fi sound systems. The OEM seven-channel amplifier is connected via a forty-two-pin multipolar connector. AFBMW ReAMP 3 allows AF Forza user to:

  • Retrieve the OEM source front mid/high, rear mid/high, under seat low-pass, and center signals;
  • Route the AF bit amplifier outputs to each of the OEM amplifier's seven channels: (Mid-Hi FL; Mid-Hi FR; WF FL; WF FR; RL; RR; Centre)
    The plug-and-play terminals enable the user to choose which AF bit output to connect to each of the seven channels of the OEM audio system
    It is also possible to bridge the outputs of the AF bit amplifier
  • Keep the OEM amplifier on.

The AFBMW ReAMP 3 can also be used with the Audison AP F IN ADP accessory (not included in the box) for a full plug-and-play connection to an AP F8.9-bit amplifier.

Features:

  • Compatibility with RAM module-equipped 676 Hi-Fi audio package and Audison AF bit amplifier
    The use of other products may require modifications and additional connections to the vehicle
    676 Hi-Fi systems use 2 Ohm woofers. Do not bridge two channels into a 2 Ohm load, since protection shutdown or amplifier damage may result. To use a bridged channel, the user needs to replace the OEM 2 Ohm woofers with Audison APBMW S8-4.2 4 Ohm woofers. Please, make sure to confirm proper bridge wiring.
    Use the Hi-level input configuration number 11 (2-way front - rear - centre) during the bit Drive Wizard configuration process. This is essential to properly route the input signal to the bit processor section.
  • Confirm proper application: APBMW ReAMP 1, APBMW ReAMP 2, and AFBMW ReAMP 3 use identical connectors, but with different pinouts. They are not interchangeable.

Specifications:

  • Suitable For: BMW Equipped With RAM Module
  • Plug & Play Harness: Yes
  • Weight: 0.06kg
