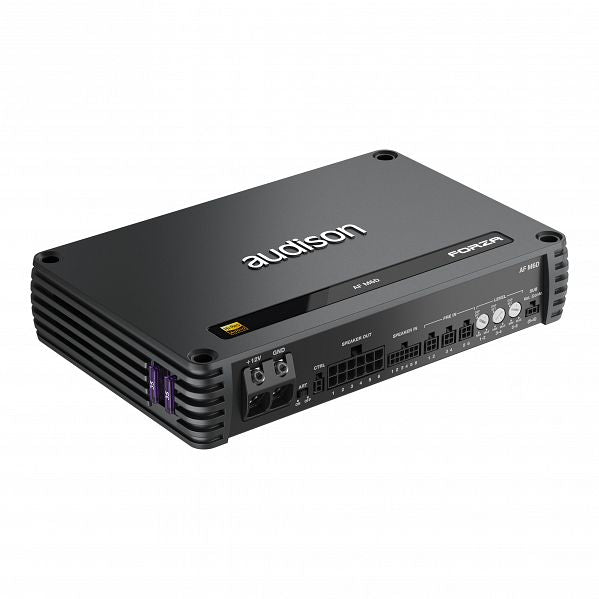

Audison AF M6D Forza Line 1320W D-Class 6CH Fully Bridgeable Amplifier
Click to open expanded view
AUDISON logo

In-Store Only

Audison AF M6D Forza Line 1320W D-Class 6CH Fully Bridgeable Amplifier

SKU: AFM6D
Price
$1,364.99
Shipping information

We offer fast and reliable shipping options to ensure that your order arrives in a timely manner. Our dedicated team works diligently to process and ship your items as quickly as possible.

Here are some key points to note about our shipping policy:

Standard Shipping

  • Frankies offers a $15.95 flat rate for Australia-wide shipping, no matter how many items you order. Some larger or heavier items may incur an additional fee, which will be communicated to you when your order is processed.
  • While we endeavour to dispatch all orders promptly, please be advised that due to the current national fuel shortages in Australia and the resulting pressure on logistics networks, order processing and dispatch may take up to 7 business days. We are not liable for delays caused by third-party freight carriers or fuel-related logistical disruptions. By placing an order, you acknowledge that delivery timeframes may be extended beyond our standard estimates during this period.

Estimated delivery times:

  • WA, NT, and TAS: currently experiencing longer shipping times
  • Holiday periods (e.g. Christmas): deliveries may be delayed due to increased freight volumes

Express Shipping

  • Express shipping is available and calculated based on your delivery location, as well as the size and weight of your order. To receive an accurate quote, please contact our Albion Park Rail store and request an "express shipping quote." Our team will promptly assist with pricing and availability. Payment for express shipping can be securely arranged over the phone.

Share this product

Share Post Pin E-mail

Product features

Perfect For Use With Systems Controlled & Managed by A Standalone Bit Processor!

Forza Line - Amplifier (AF M6D)
AF companion amplifiers are designed to add powerful amplifier channels to AF bit processor amplifiers. A plug-and-play signal input harness is included to make connection to AF bit amplifiers straightforward. AF companion amplifiers are also perfect for use with systems controlled and managed by a standalone bit processor, such as a bit One HD Virtuoso. AF companions have a straight wire architecture, without analogue preamp functions such as crossover filtering, and are intended for use with external processors.

AF M6D boasts four high-fidelity amplified channels 135Wx6 at 4 Ohm*, 220Wx6 at 2 Ohm* with the audiophile sound of the latest generation Audison D-Class technology. Higher switching frequencies, steeper filtering, and higher-tolerance components deliver sound above and beyond the expectation of Class D, in an amazingly compact package. The audio band is extended up to 40 kHz earning the coveted High-Resolution certification. Bridging channel pairs results in 440Wx3 at 4 Ohm*, guaranteeing flexible and powerful performance.

(*)Output Continuous Power (RMS) atb14.4 VDC, 1 Percent THD, all channels driven.

Features:

  • Improved audio performance and power thanks to the latest generation of ADT (Audison D-Class) technology
  • Unbeatable power/volume ratio up to 0.68 W RMS/cm reaching 83 Percent efficiency
  • Hi-Res compatibility performance, with an extended audio band up to 40 kHz
  • Maximum versatility thanks to the possibility of using the bridging option for each pair of power outputs

Specifications:

  • Channels: 6
  • Class: D-Class
  • Efficiency: 81 Percent
  • Hi-Level Input: Yes
  • Low-Level Input: Yes
  • Digital Input: No
  • Power Supply Voltage/Fuse: 11 - 15 VDC
  • Operating Power Supply Voltage: 6.5 - 17.5 VDC
  • Idling Current: 1 A
  • Idling Current When Off: 0.009 mA
  • Consumption @ 14.4 VDC, 2 Ohm, Max Musical Power: 60 A
  • Remote OUT: 6.5 - 15 VDC (150 mA)
  • Remote IN: 4 - 15 VDC (1 mA)
  • ART - Automatic Remote Turn ON/OFF From Output BTL Speakers (Selectable): 1.5 VDC
  • Distortion - THD @ 100 Hz, 4 OHM, 70 Percent Rated Power: 0.04 Percent
  • Bandwidth A (-3 dB, 2 VRMS, 4 OHM): 10 Hz - 42 kHz
  • S/N Ratio A (A-Weighted @ 1 V): 103 dBA
  • Input Sensitivity Pre-In: 0.6 - 6 VRMS
  • Input Sensitivity Speaker-In: 2.2 - 22 VRMS
  • Total Power RMS: 1320 W
  • Minimum Load Impedance: 6 Ch 2 Ohm, 3 Ch - (Bridge) 4 Ohm
  • Output Power (RMS) at 12.0 - 14.4 VDC, 1 Percent THD:
    6Ch at 4 OHM: 135 W x 6
    6Ch at 2 OHM: 220 W x 6
    3Ch (Bridge 1/2; 3/4; 5/6) at 4 Ohm: 400 W x 3
  • Adjustable Crossover: No
  • CEA Specifications:
    Output Power @ 4 Ohm, 1 Percent THD+N, 14.4 V: 130 W x 6
    SN Ratio (Ref. 1W Output): 80 dB
  • Input Type: Pre-In / Speaker-In
  • Remote Sub Volume: (-12 - +12) dB
  • Fuse: 2 x 35A
  • Dimensions:
    Dimension A: 240 mm
    Dimension B: 156 mm
    Dimension C: 47 mm
  • Weight: 1.95kg
