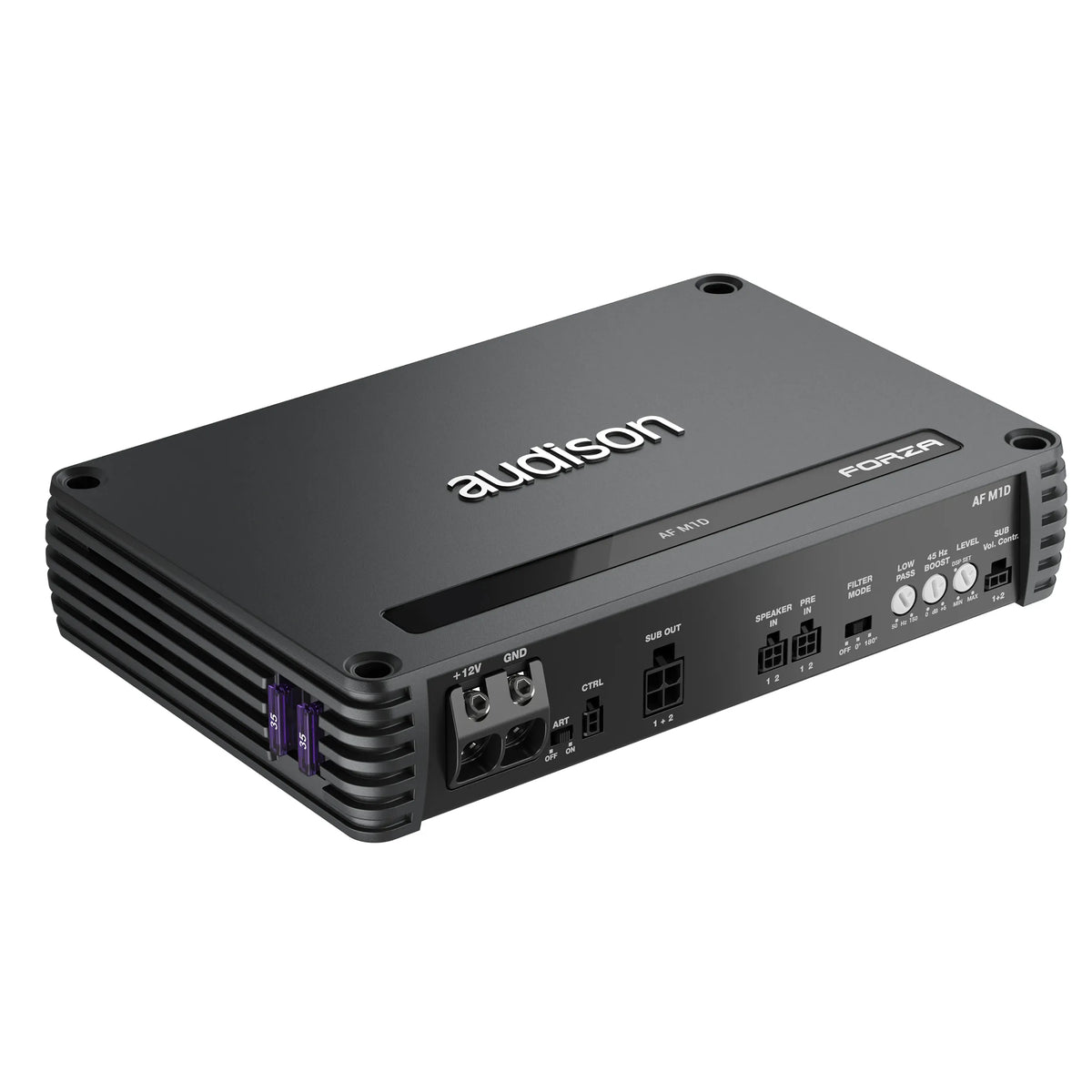

Audison AF M1D Forza Line 1200W 1-Channel Amplifier

Designed to Add Powerful Amplifier Channels to AF Bit Processor Amplifiers!

Forza Line Companion Amplifier
The AF companion amplifiers are designed to add powerful amplifier channels to AF bit processor amplifiers. A plug-and-play signal input harness is included to make connection to AF bit amplifiers straightforward. AF companion amplifiers are also perfect for use with systems controlled and managed by a standalone bit processor, such as a bit One HD Virtuoso. AF companions have a straight wire architecture, without analogue preamp functions such as crossover filtering, and are intended for use with external processors.

The Audison Forza Line AF M1D (Order Code AFM1D) boasts one high-fidelity amplified channel 600W @ 4ohm, 1000W @ 2ohm, and 1200W @1ohm with the audiophile sound of the latest generation Audison D-Class technology. Higher switching frequencies, steeper filtering, and higher-tolerance components deliver sound above and beyond the expectation of Class D – in an amazingly compact package!

Please Note: Optional Accessory Subwoofer volume controller available (Order Code VCR-S2)

Features:

• Improved audio performance and power thanks to the latest generation of ADT (Audison D-Class) technology
• Unbeatable power/volume ratio up to 0.68 W RMS/cm³ reaching 81% of efficiency
• Hi-Res compatibility performance, with an extended audio band up to 40 kHz
• Designed to be used by itself or as companion amplifiers for AF bit processor amplifiers, facilitating seamless integration and expanded channels.
• Universal Speaker Simulator technology on high-level inputs for maximum compatibility with any type of Head-Unit OEM Source
• Compact design ensures powerful sound without sacrificing valuable space in the vehicle.

Specifications:

• Channels: 1
• Class: D-Class
• Efficiency: 81%
• Hi-Level Input: Yes
• Low-Level Input: Yes
• Digital Input: No
• Power Supply Voltage/Fuse: 11 - 15V DC
• Operating Power Supply Voltage: 6.5 - 17.5V DC
• Idling Current: 1.3A
• Idling Current When Off: 0.005mA
• Consumption @ 14.4V DC, 1 Ohm, Max Musical Power: 65A
• Remote-OUT: 6.5 - 15V DC (150mA)
• Remote-IN: 4 - 15V DC (1mA)
• ART - Automatic Remote Turn ON/OFF From Output BTL Speakers (Selectable): 1.5V DC
• Distortion - THD+N @ 1 kHz, 4 Ohm, 7% Rated Power: 0.1%
• Bandwidth @ -3dB: 10Hz - 500Hz
• S/N Ratio A (A-Weighted @ 1V): 105dBA
• Input Sensitivity Pre-IN: 0.6 - 6V RMS
• Input Sensitivity Speaker-IN: 2.2 - 22V RMS
• Total Power RMS: 1200W
• Minimum Load Impedance: 1 Ohm
• Output Power (RMS) @ 14.4V DC, 1% THD:
  1Ch @ 4 Ohm: 600W
  1Ch @ 2 Ohm: 1000W
  1Ch @ 1 Ohm: 1200W
• Adjustable Crossover: No
• CEA Specifications:
  Output power at 4 Ohm, 1 Percent THD+N, 14.4 V: 600 W
  SN Ratio (Ref. 1W Output): 80.5dB
• Remote Sub Volume: (-12 ~ +12) dB
• Fuse: 2 x 35A
• Weight: 2.04kg
