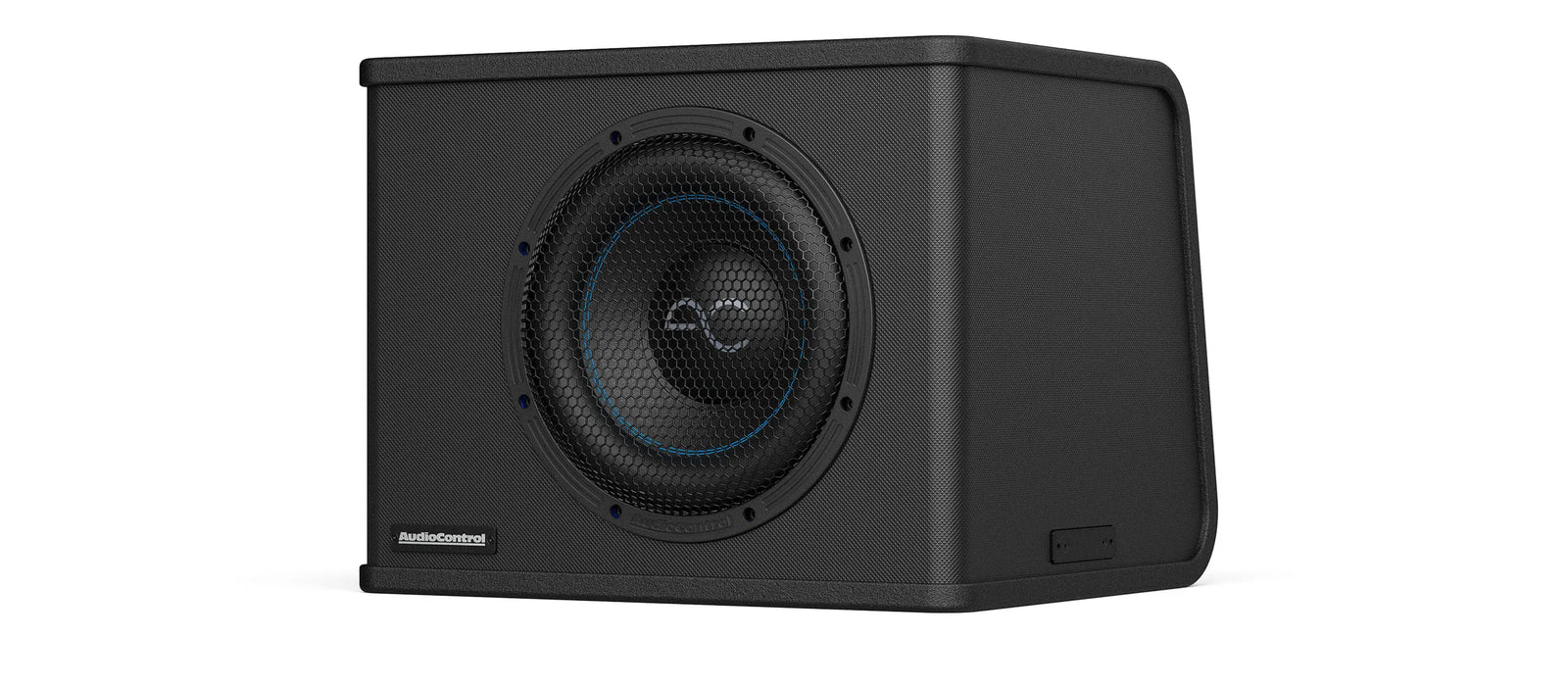

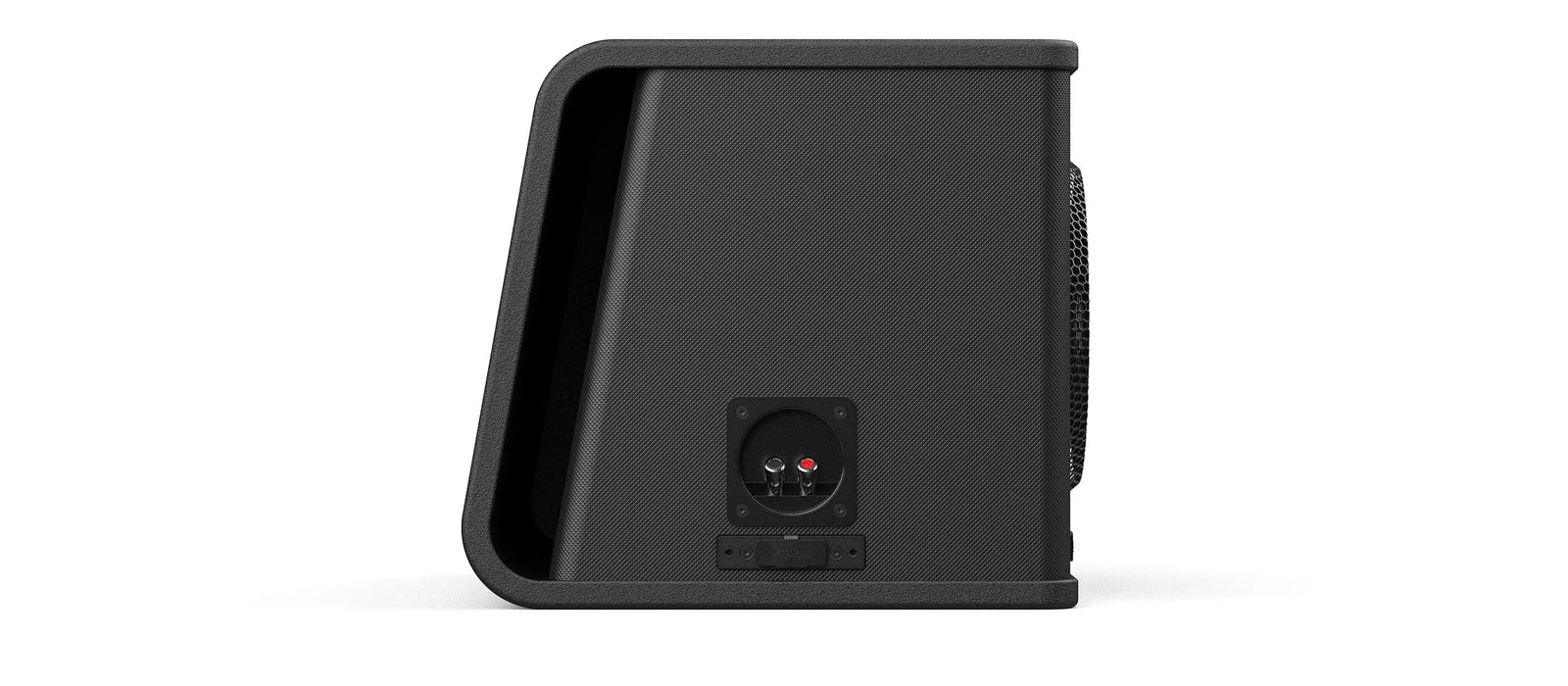

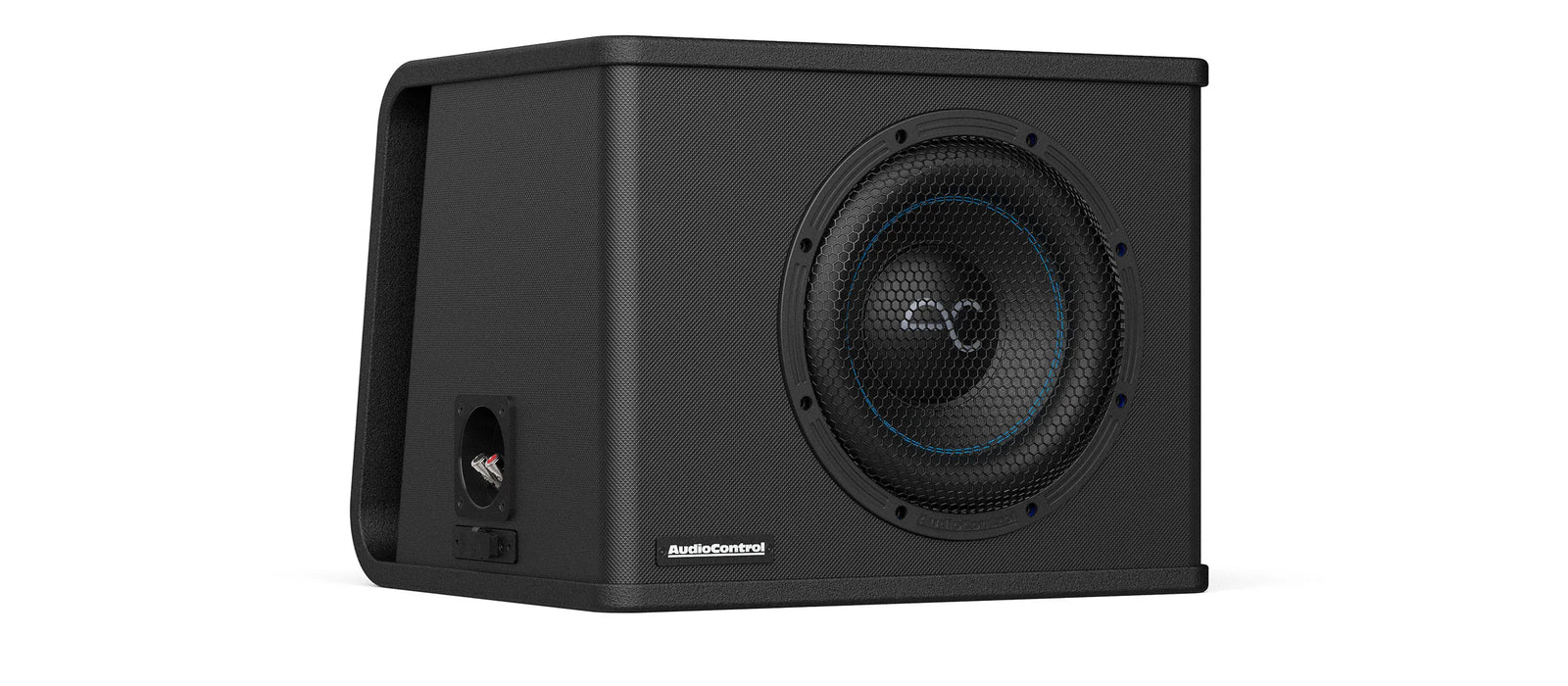

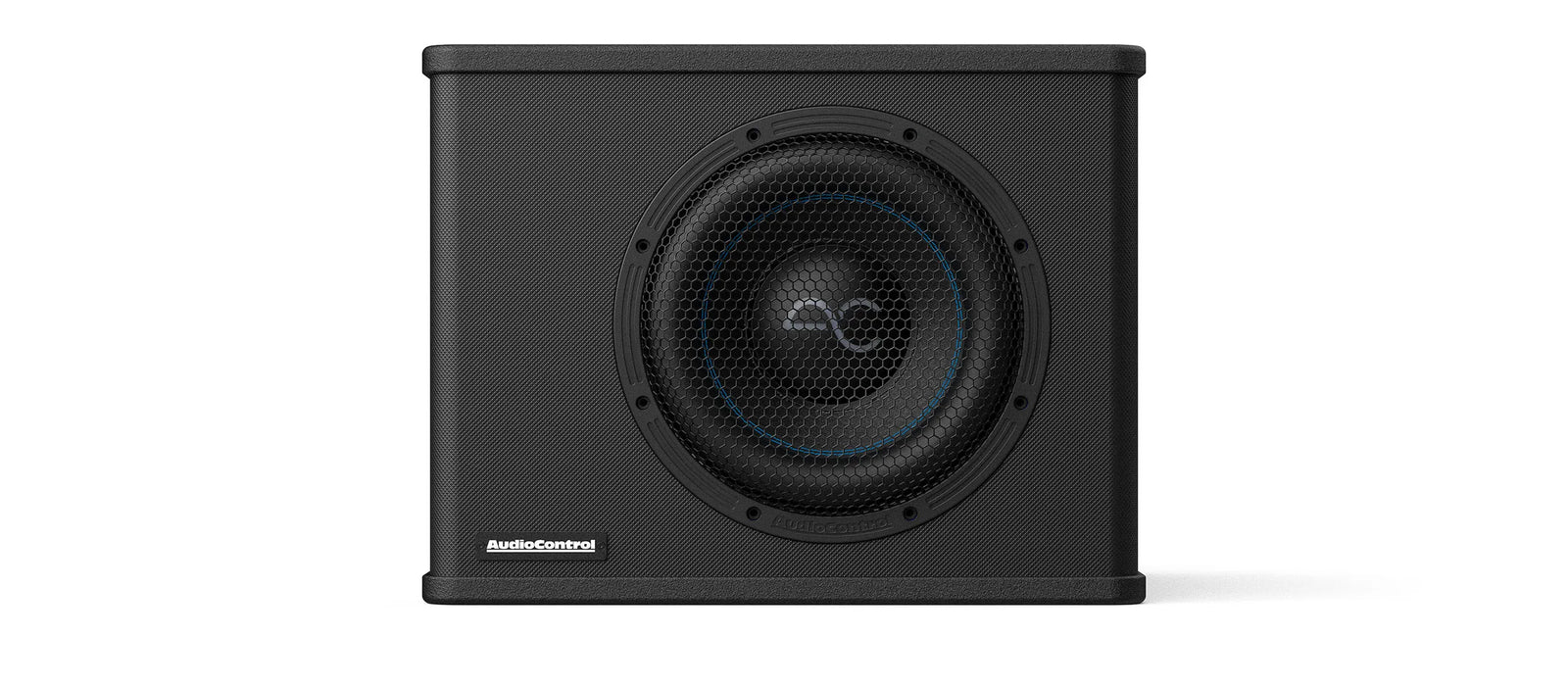

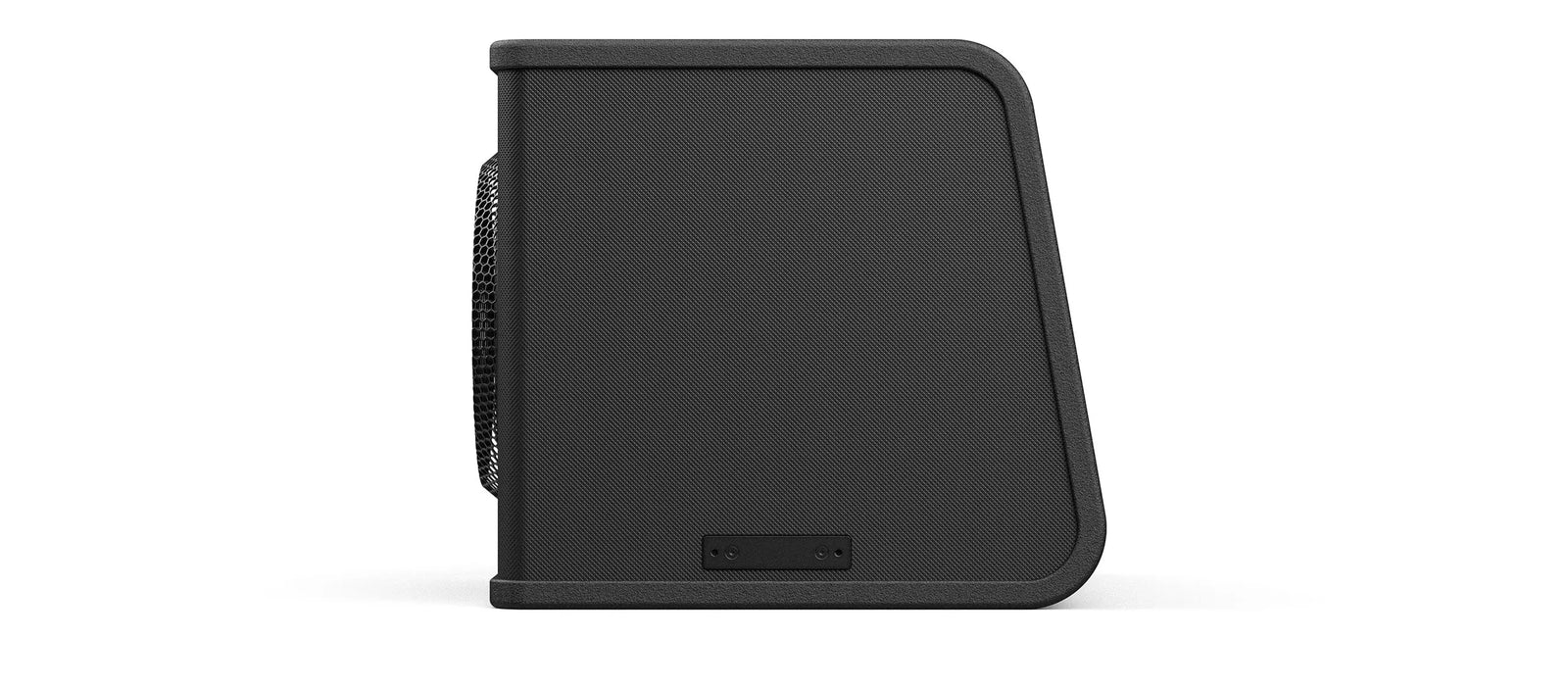

AudioControl SPK-V10 Spike Series 10" Vented Subwoofer Enclosure

AudioControl SPK-V10 Spike Series 10" Vented Subwoofer Enclosure | Premium Loaded Bass System

Spike Series 10-inch vented enclosure loaded with SPK-10S2 subwoofer, featuring high-density wood construction, marine-grade vinyl finish, and precision-tuned ported design for maximum bass output

Product Overview

The AudioControl SPK-V10 Spike Series represents the ultimate in premium loaded subwoofer enclosures, combining the high-performance SPK-10S2 Spike Series subwoofer with expertly engineered vented enclosure design for maximum bass output. Crafted with precision from high-density wood fiberboard and protected with Roadkill Armor coating and marine-grade vinyl wrapping, this vented enclosure delivers superior sound quality while withstanding harsh environmental conditions and protecting components against moisture damage.

AudioControl's commitment to audio excellence spans over 45 years, and the SPK-V10 exemplifies this dedication through meticulous engineering and premium construction. The dual front mounting baffle ensures optimal speaker placement for immersive and powerful audio experience, while internal support and bracing enhance performance and longevity. Precision-filled poly-fiber material provides controlled sound dispersion and tight, accurate bass response from the expertly tuned vented design.

Key Specifications

• Model: SPK-V10
• Subwoofer: SPK-10S2 Spike Series 10" driver
• Voice Coil Configuration: Single 2-ohm
• Power Handling: 500W RMS, 300W-700W range
• Frequency Response: 20-150 Hz
• Sensitivity: 82.3 dB
• Enclosure Type: Vented (ported) design
• Terminal Wire Acceptance: 12-8 gauge
• Weight: 43.95lbs

Features & Benefits

High-Quality Vented Design Excellence
The precision-tuned vented enclosure design maximizes bass output and extension, providing deeper low-frequency response and higher efficiency compared to sealed designs for maximum impact.

Element-Resistant Construction
Features high-density wood fiberboard construction with Roadkill Armor coating and marine-grade vinyl wrapping that withstands harsh environmental conditions and protects against moisture damage.

Premium Driver Integration
Houses the acclaimed SPK-10S2 Spike Series subwoofer with fiber matrix paper cone and mica coating, structurally rigid heavy-duty voice coil for exceptional bass reproduction.

Professional Installation Features
Includes optional quick-plug connector for convenience, sturdy powder-coated steel grille for protection, and versatile multi-secure mounting system with quick disconnect harness.

Optimized Acoustic Design
Internal support and bracing with precision-filled poly-fiber material enhance performance and provide controlled sound dispersion with tight, accurate bass response from the expertly tuned vented design.

Technical Specifications

• Enclosure Width (A): 17.91"
• Enclosure Height (B): 13.78"
• Enclosure Depth (top) (C): 12.91"
• Enclosure Depth (bottom) (D): 14.96"
• Final Impedance: 2 ohms
• Construction: High-density wood fiberboard
• Coating: Roadkill Armor with marine-grade vinyl wrap
• Internal Fill: Precision poly-fiber material
• Grille: Powder-coated steel protection grille
• Enclosure Tuning Frequency: 38 Hz
• F3 Frequency @-3dB: 30 Hz
• Subsonic Filter Setting: 29 Hz

Scope of Delivery

• SPK-V10 Loaded Vented Enclosure with SPK-10S2 Subwoofer
• Powder-Coated Steel Protection Grille
• Quick Disconnect Harness and Connector
• Multi-Secure Mounting Hardware
• Installation Manual
• Warranty Documentation

How It Works

Premium Vented Enclosure System – The SPK-V10 combines the SPK-10S2 Spike Series subwoofer with expertly tuned vented enclosure for maximum bass output and extension. The vented design provides enhanced efficiency and deeper bass response with F3 frequency at 30 Hz. Connect using standard speaker wire (12-8 gauge) or optional quick-plug connector for easy installation and removal.

Compatible With / Goes Well With

Installation Types: Trunk installations, custom enclosure locations, marine applications, high-output systems
Amplifier Compatibility: 300W-700W RMS amplifiers, 2-ohm stable amplifiers, AudioControl amplifiers
Vehicle Applications: Cars, trucks, SUVs, boats, UTVs requiring maximum bass output and extension
System Integration: High-performance audio systems, competition builds, audiophile installations

Frequently Asked Questions

What advantages does the vented design provide over sealed enclosures?

The vented design provides enhanced bass extension, higher efficiency, and maximum output capability. The precision-tuned port extends low-frequency response to 30 Hz while providing higher SPL output compared to sealed designs of similar size.

Is the SPK-V10 suitable for marine or outdoor vehicle applications?

Absolutely. The enclosure features marine-grade vinyl wrapping and Roadkill Armor coating that provides excellent protection against moisture, UV exposure, and harsh environmental conditions, making it ideal for boats, UTVs, and outdoor recreational vehicles.

What amplifier power is recommended for the SPK-V10?

The loaded enclosure performs optimally with amplifiers delivering 300-700W RMS at 2 ohms, with 500W RMS being the ideal power level. The 2-ohm final impedance ensures efficient power transfer from compatible amplifiers.

How does the vented enclosure design affect bass response?

The vented design provides enhanced bass extension and output with F3 response at 30 Hz, making it ideal for maximum impact and deep bass reproduction. The tuned port design maximizes efficiency and low-frequency extension.

What installation options does the multi-secure mounting system provide?

The multi-secure mounting system includes multiple mounting points and hardware options to secure the enclosure in various orientations and locations. The quick disconnect harness allows easy removal for servicing or temporary installations.

What is the recommended subsonic filter setting for the SPK-V10?

The recommended subsonic filter setting is 29 Hz to protect the driver from over-excursion below the enclosure's tuning frequency and ensure optimal performance and longevity.
