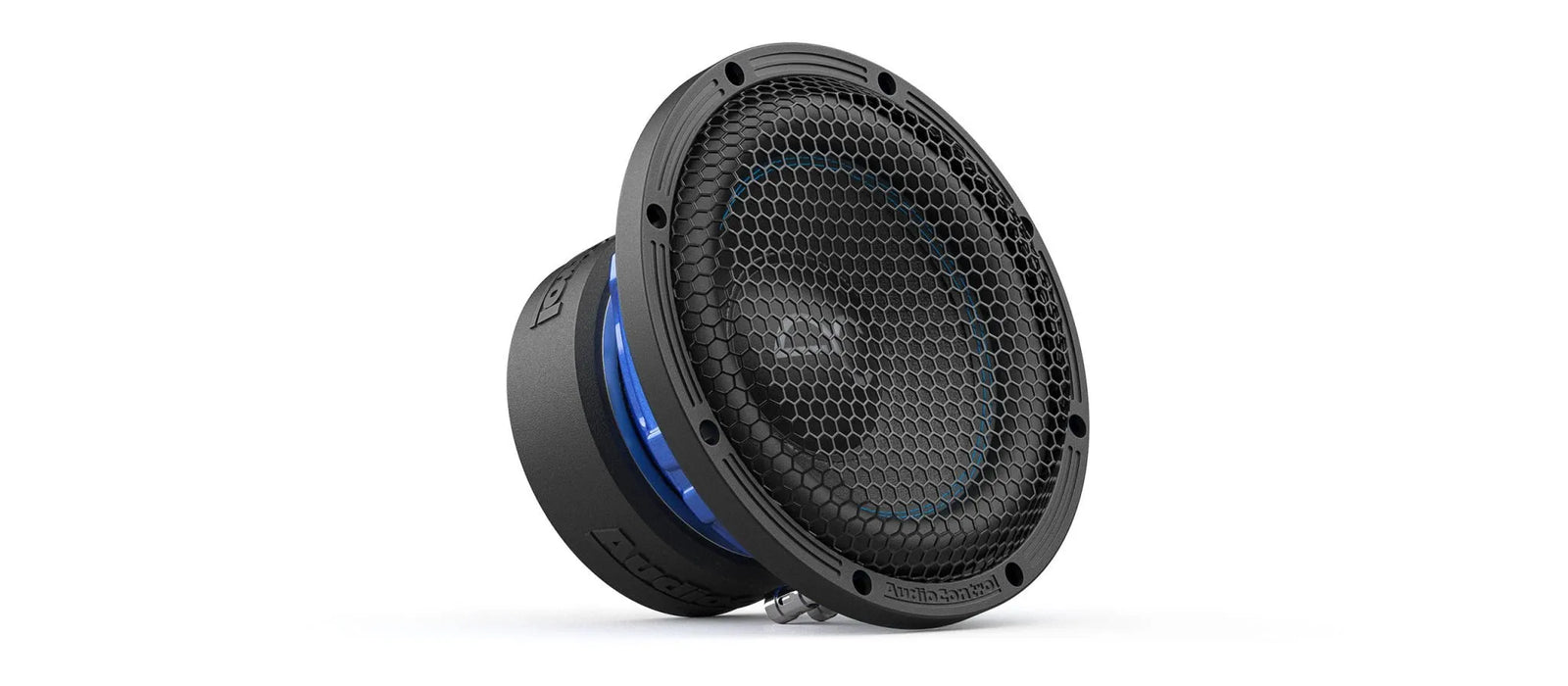

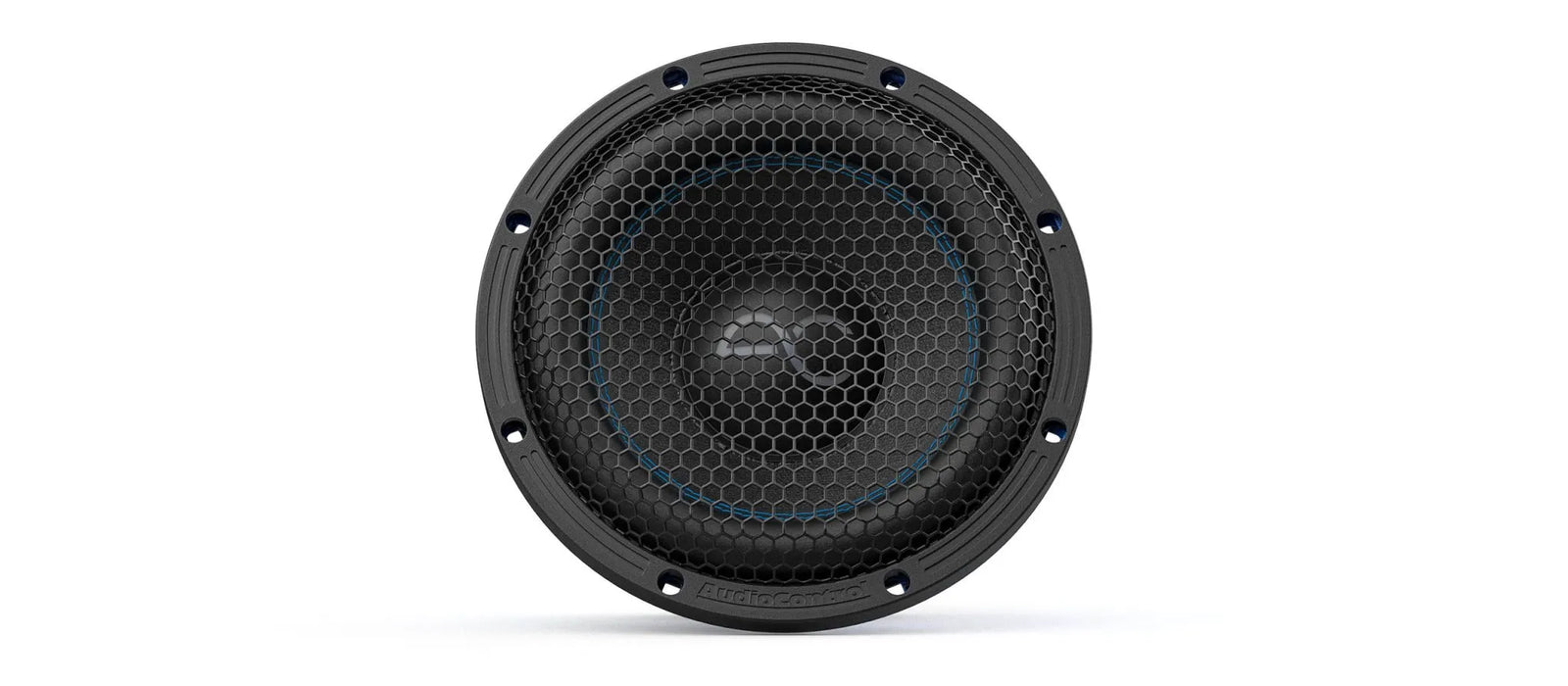

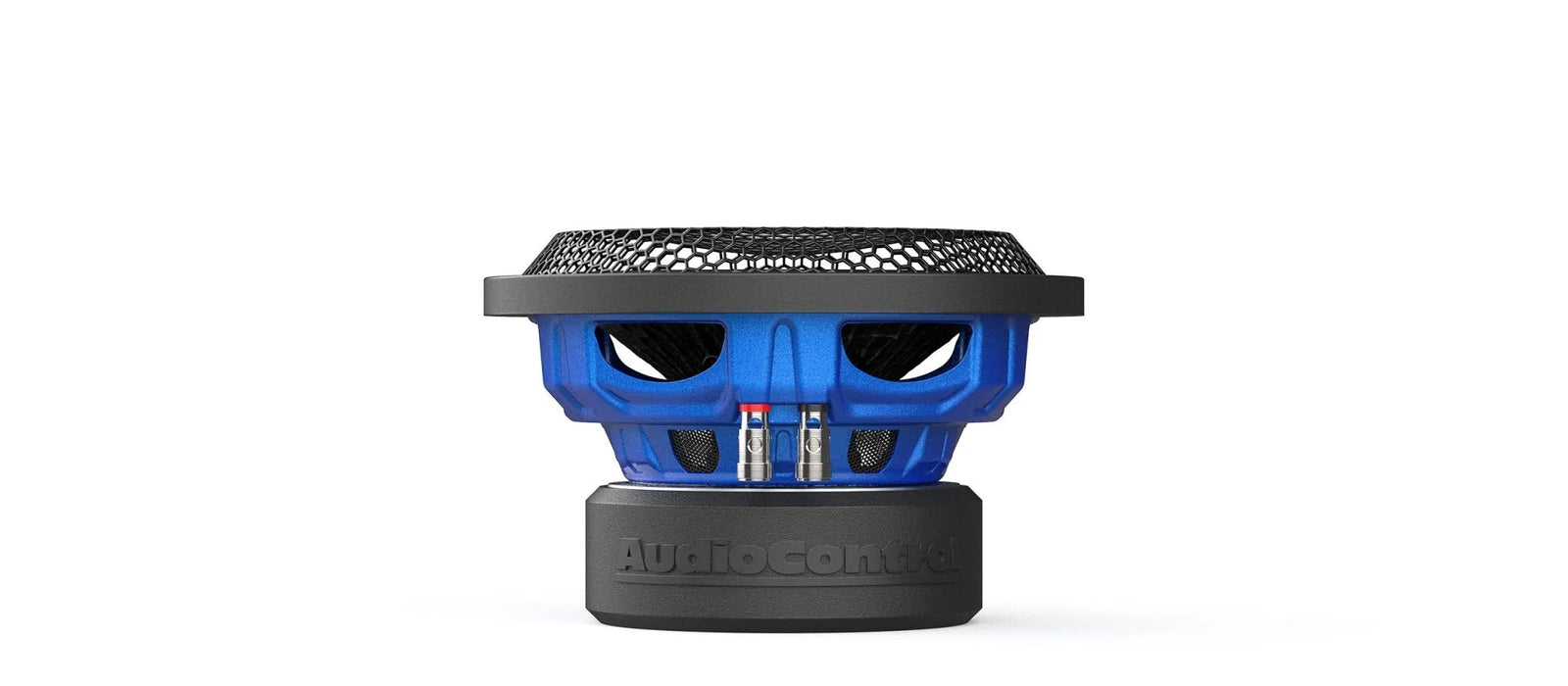

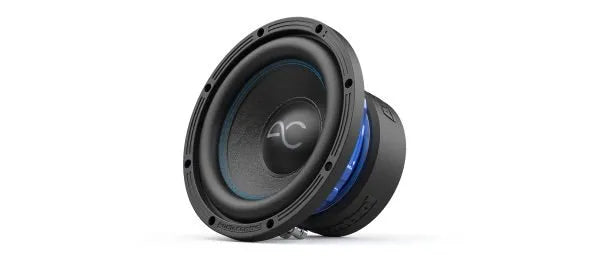

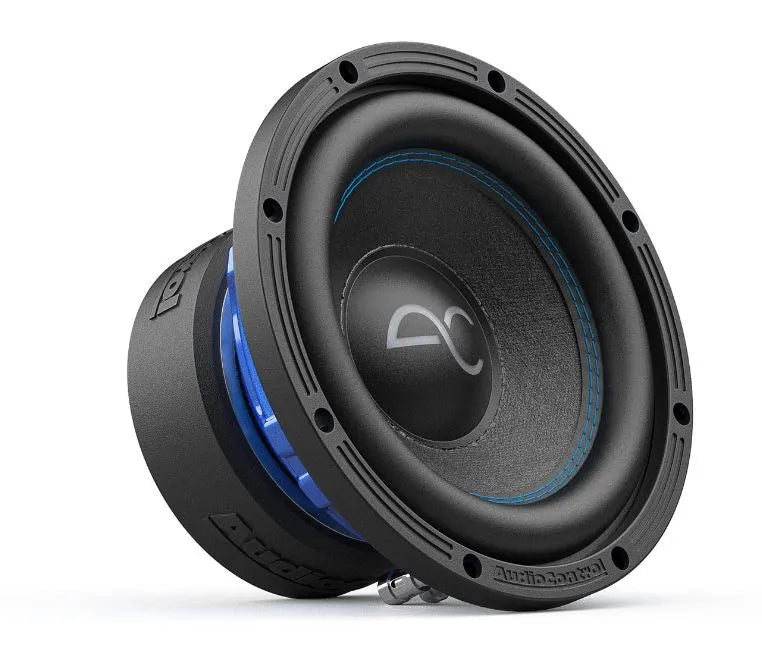

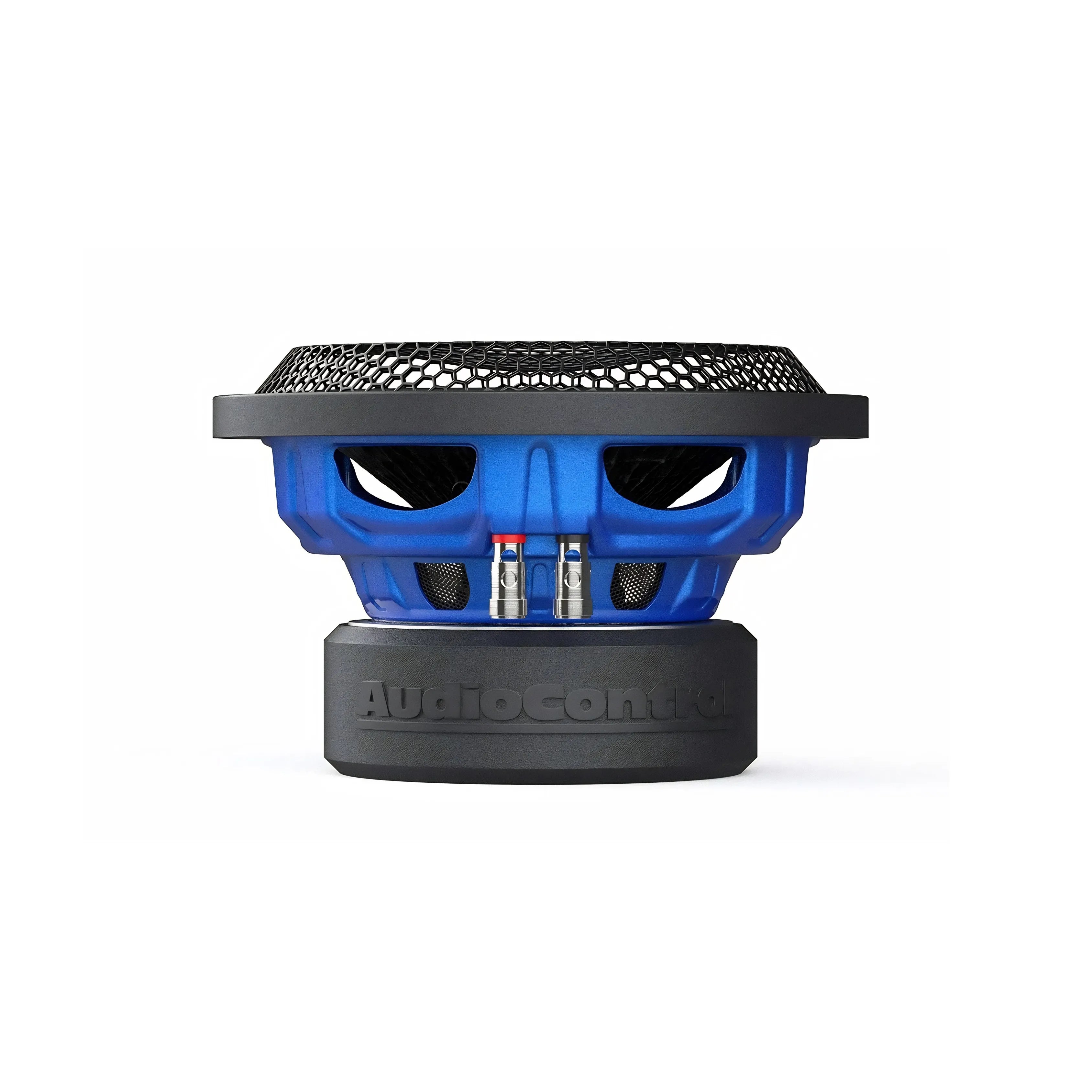

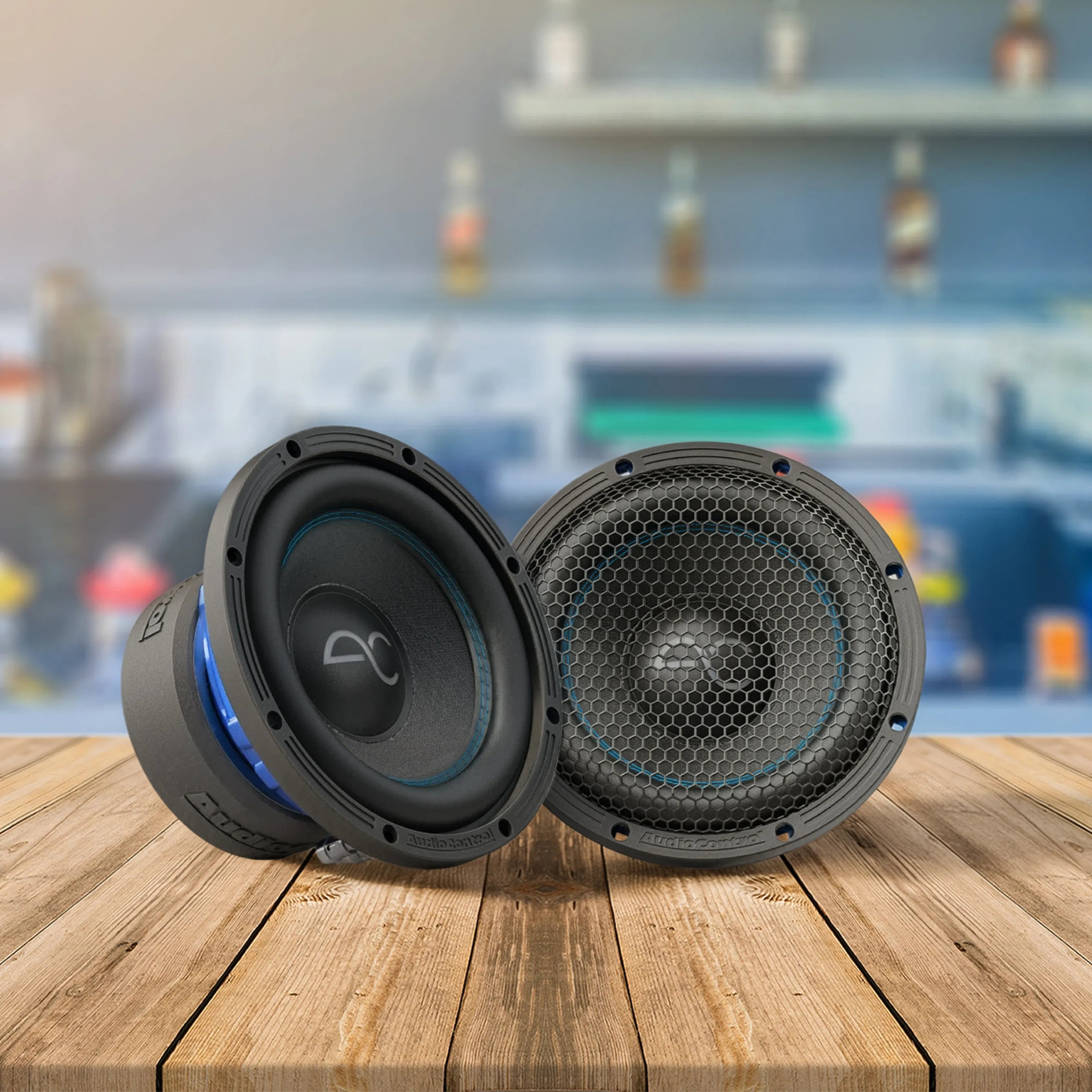

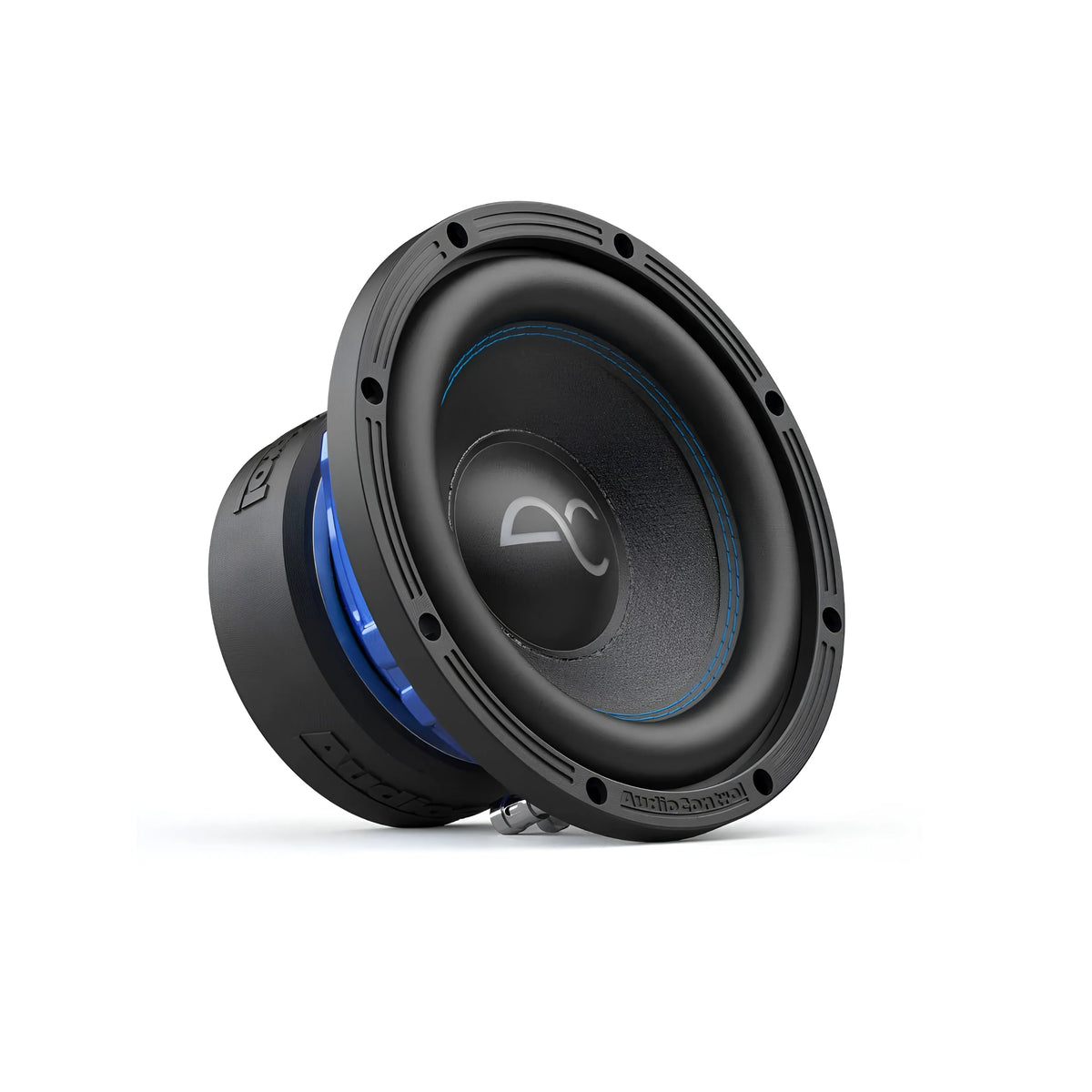

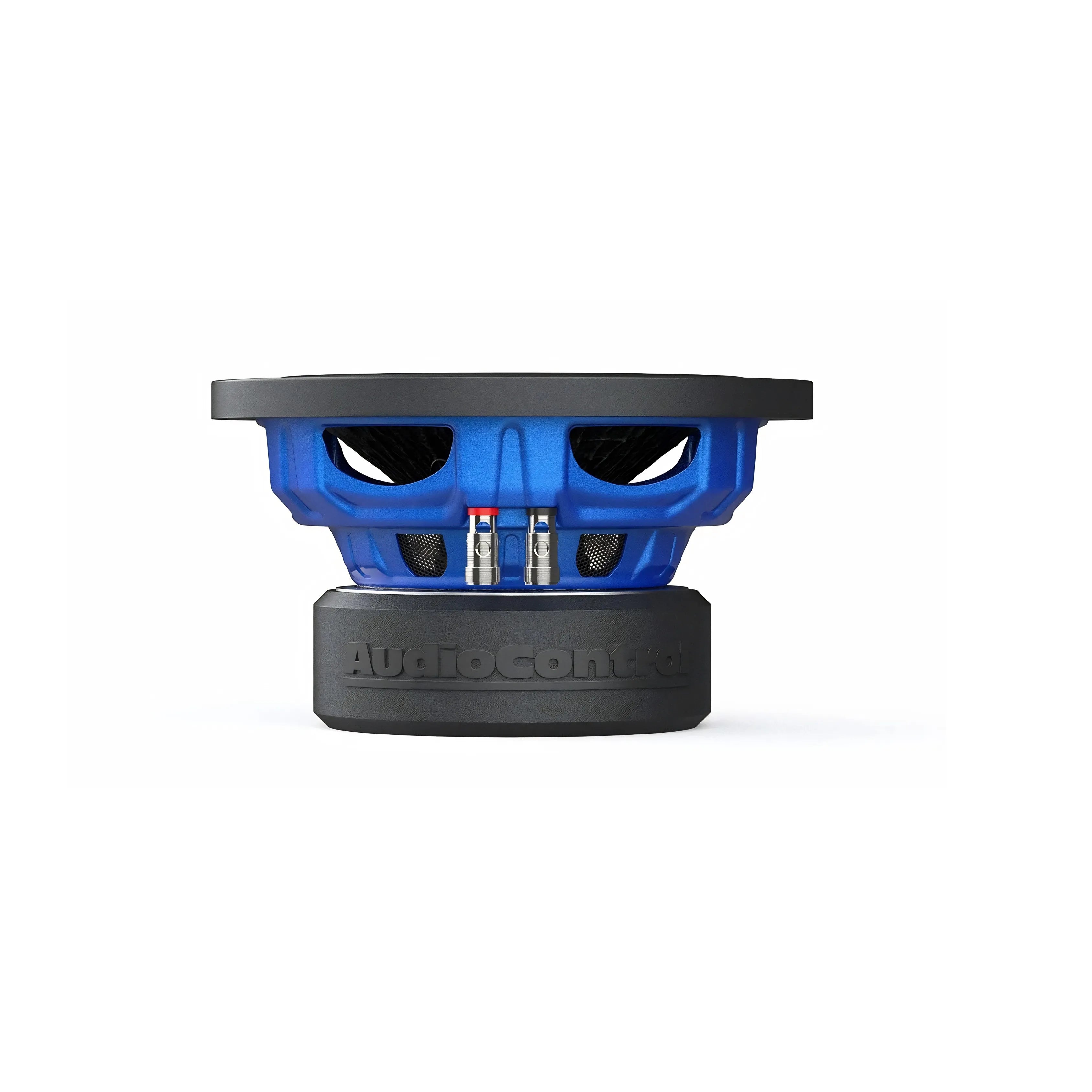

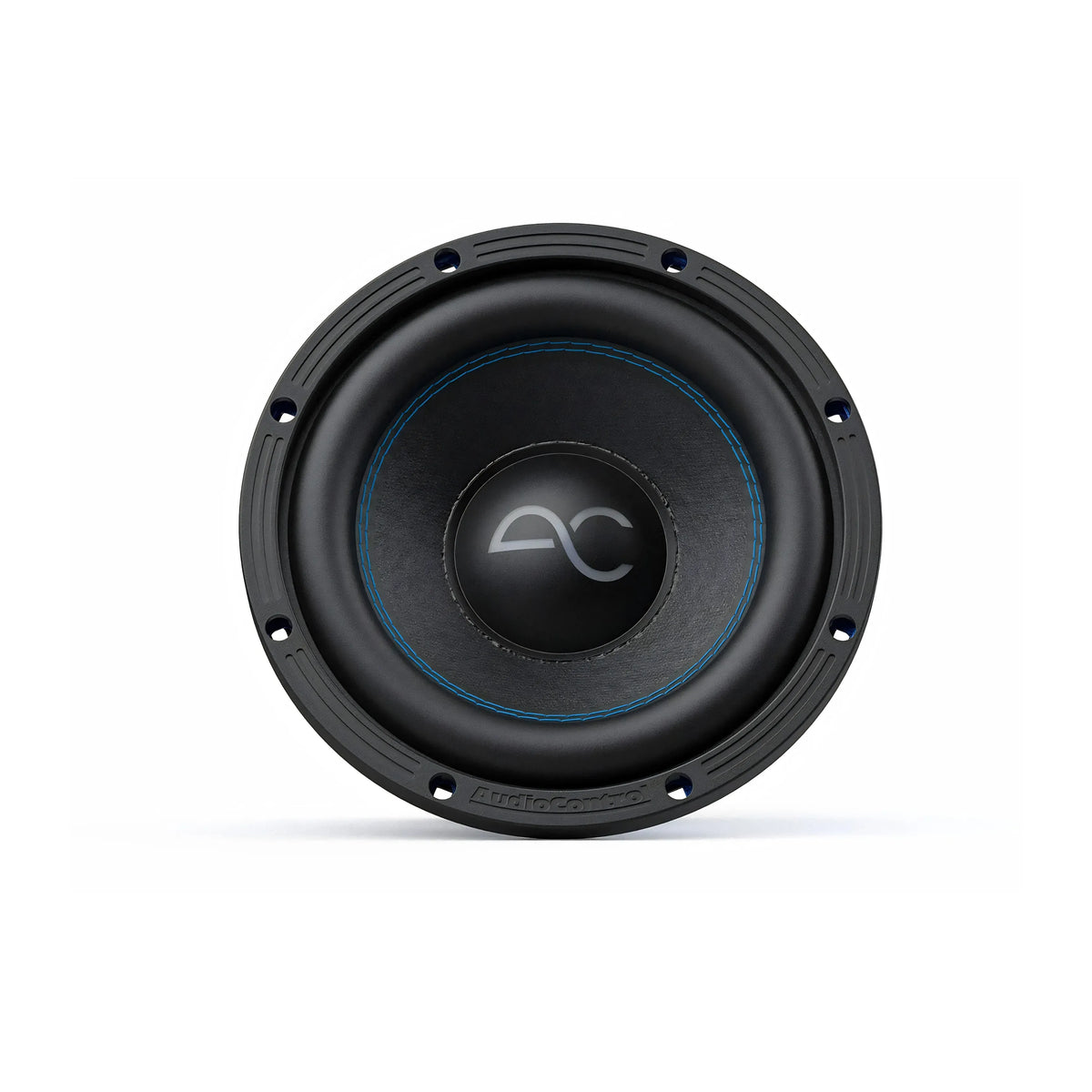

AudioControl SPK-10S4 Spike 10" Single 4-Ohm High Performance Subwoofer

AudioControl SPK-10S4 Spike 10" Single 4-Ohm High Performance Subwoofer | Ultimate Bass Excellence

Spike Series 10-inch single 4-ohm high performance subwoofer delivering ultra-low bass with 14mm linear excursion, fiber matrix paper cone with mica coating, and advanced dual damping system

Product Overview

The AudioControl SPK-10S4 Spike Series 10" subwoofer represents the ultimate in high-performance bass reproduction, engineered for enthusiasts who demand exceptional low-end response and power handling capabilities. This single 4-ohm subwoofer features advanced high excursion design with 14mm linear excursion (Xmax) for ultra-low bass extension, combined with fiber matrix paper cone construction and mica coating for superior acoustic performance and durability.

AudioControl has been helping people take their car audio to the next level for over 45 years, and the Spike Series continues this tradition with enhanced performance specifications. The 3-layer high temperature voice coil former handles serious power levels while maintaining distortion-free bass reproduction. The dual damping system ensures linear bass response across the entire frequency range, while the dual dust cap system provides enclosure compression control for optimal performance in various installation scenarios.

Key Specifications

• Model: SPK-10S4
• Woofer Size: 10" (273mm overall diameter)
• Voice Coil Configuration: Single 4-ohm
• Power Handling: 500W RMS, 300W-700W range
• Linear Excursion (Xmax): 14mm
• Frequency Response: 20-200 Hz
• Sensitivity: 83.7 dB (1W/1M)
• Cut-out Diameter: 9.25" (234mm)
• Mounting Depth: 5.32" (135mm)

Features & Benefits

High Excursion Design Excellence
The SPK-10S4 features exceptional 14mm linear excursion capability, delivering ultra-low bass extension and maximum output for immersive listening experiences that bring concert-level performance to your vehicle.

Advanced Cone Construction
Features fiber matrix paper cone with mica coating that provides superior acoustic properties, enhanced durability, and precise bass reproduction across the entire frequency spectrum.

Professional Power Handling
The 3-layer high temperature voice coil former handles up to 500W RMS power while maintaining clean, distortion-free bass reproduction even during extended high-power operation.

Dual Damping System Technology
Advanced dual damping system ensures linear bass reproduction and controlled cone movement, eliminating unwanted resonances and maintaining accuracy across all listening levels.

Efficient Motor Design
Heavy-duty motor design with dual dust cap system provides enclosure compression control and efficient power transfer while maintaining thermal stability during demanding performance conditions.

Technical Specifications

• Nominal Impedance: 4 ohms
• DC Resistance (Re): 3.2 ohms
• Resonance Frequency (Fs): 41.26 Hz
• Moving Mass (Mms): 148.2g
• Mechanical Compliance (Cms): 0.10mm/N
• Force Factor (BL): 13.7 T.m
• Total Q Factor (Qts): 0.58
• Volume Acoustic Compliance (Vas): 13.8L (0.49 cu ft)
• Displacement: 0.063 cu ft (1.8L)
• Voice Coil Diameter: 2.5" (63.5mm)
• Motor Diameter (with Cover): 6.41" (163mm)

Scope of Delivery

• SPK-10S4 Spike Series Subwoofer
• Removable Protection Grille
• Installation Manual
• Warranty Documentation

Enclosure Recommendations

Ported Enclosure Specifications:

• External Dimensions: 24"W × 13"H × 11.25"D
• Net Internal Volume: 1.01 ft³
• Tuning Frequency: 37 Hz
• F3 Response: 30 Hz
• Port Area: 17.25 inch²
• Port Inlet: 1.50"W × 11.50"H
• Port Length: 28.50"

Sealed Enclosure Specifications:

• External Dimensions: 20"W × 13"H × 11"D
• Net Internal Volume: 1.11 ft³
• Qtc: 0.705
• F3 Response: 46 Hz

How It Works

High Performance Bass System – The SPK-10S4 utilizes advanced high excursion design with 14mm linear excursion to move maximum air volume for ultra-low bass extension. The fiber matrix paper cone with mica coating provides superior acoustic properties while the dual damping system ensures linear response. The 3-layer voice coil former handles high power levels while maintaining thermal stability for consistent performance.

Compatible With / Goes Well With

Installation Types: Custom enclosures, ported boxes, sealed enclosures, competition installations
Amplifier Compatibility: 300W-700W RMS amplifiers, 4-ohm stable amplifiers, AudioControl amplifiers
Vehicle Applications: Cars, trucks, SUVs requiring high-performance bass reproduction
System Integration: High-end component systems, competition audio builds, audiophile installations

Frequently Asked Questions

What makes the AudioControl SPK-10S4 a high-performance subwoofer?

The SPK-10S4 features exceptional 14mm linear excursion, advanced fiber matrix paper cone with mica coating, dual damping system, and 500W RMS power handling capability, delivering ultra-low bass extension and superior performance compared to standard subwoofers.

How does the 14mm linear excursion benefit bass performance?

The exceptional 14mm Xmax allows the subwoofer to move significantly more air than typical drivers, resulting in deeper bass extension, higher output levels, and more impactful low-frequency reproduction for an immersive listening experience.

What amplifier power range works best with the SPK-10S4?

The subwoofer performs optimally with amplifiers delivering 300-700W RMS at 4 ohms, with 500W RMS being the ideal power level for maximum performance and longevity while maintaining clean bass reproduction.

How does the dual damping system improve performance?

The dual damping system provides superior cone control and linear bass reproduction by eliminating unwanted resonances and maintaining accurate response across all frequency ranges and power levels.

What enclosure type provides the best performance for the SPK-10S4?

For maximum bass extension, a ported enclosure (1.01 ft³ tuned to 37 Hz) provides F3 response to 30 Hz. For tighter, more controlled bass, a sealed enclosure (1.11 ft³) offers excellent performance with F3 response to 46 Hz.

Is the SPK-10S4 suitable for competition audio applications?

Yes, the high excursion design, exceptional power handling, and superior build quality make the SPK-10S4 an excellent choice for competition installations requiring maximum output and bass extension capabilities.
