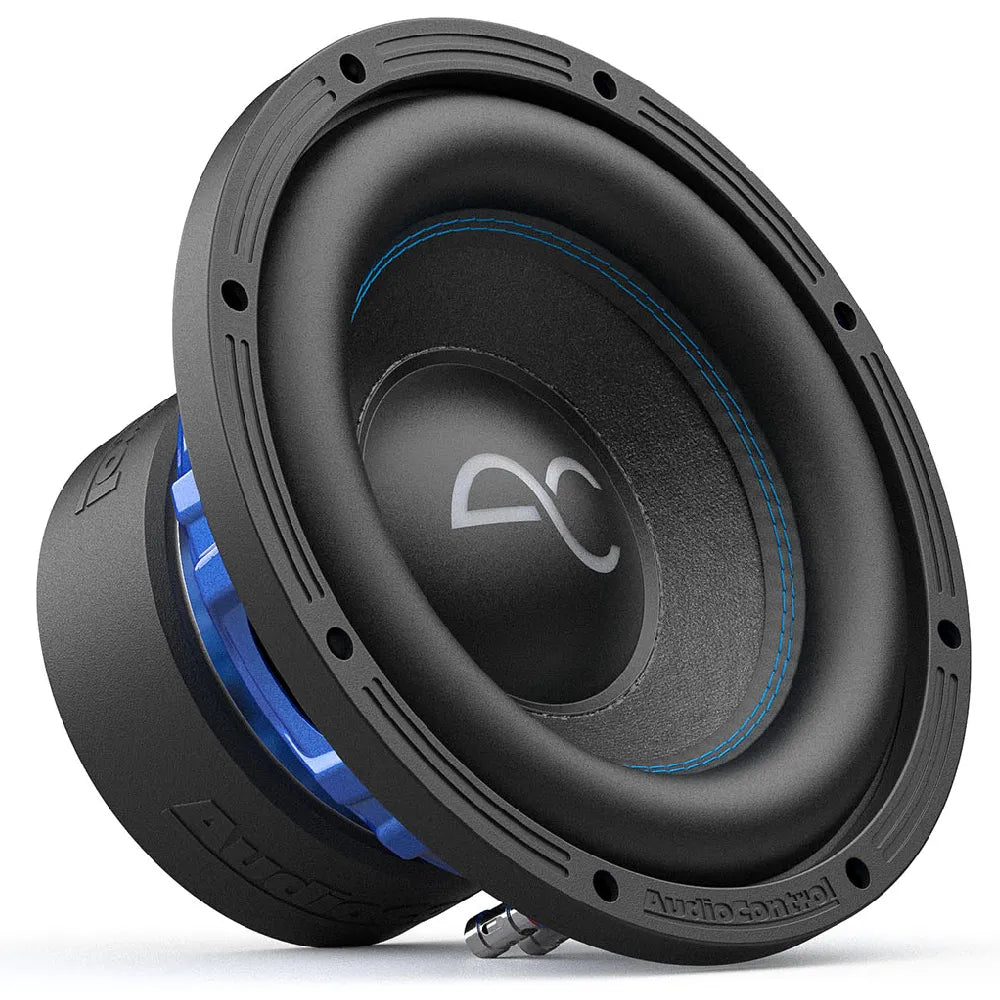

AudioControl SPK-10S2 Spike Series 10" 500W High-Performance Subwoofer

Load Up Your Trunk With Spike Series Subwoofers Today & Crank Up Your Listening Pleasure!

Spike Series 10" Single 2-Ohm High-Performance Subwoofer
Are you a music fan who loves that low-end rumble? If so, look no further than the Spike Series Subwoofers! For over 45 years, we’ve been helping people take their car audio to the next level – and our latest product line is sure to enhance any vehicle’s sound system. We are proud to present the ultimate in versatility and durability with AudioControl’s Spike Series Subwoofers. These high-performance subwoofers come in a variety of sizes and power ratings to suit your audio needs. No matter what type of music you enjoy, Spike will take your listening experience to the next level.

These subwoofers were designed to provide clear, precise bass for an immersive listening experience, so why wait? Load up your trunk with Spike Series Subwoofers today, and crank up your listening pleasure! Spike Series Subwoofers feature a 3-layer voice coil former to handle some serious power. That means you can turn up the volume and still enjoy heart-pounding bass that’s free from distortion. You won’t believe the sound produced by the fiber matrix paper cone with mica coating – it’s like having a concert in your vehicle! Each Spike subwoofer comes with a protective grille to keep it safe from damage, so you can enjoy your journey with peace of mind.

Features:

• High Excursion Design for Ultra-Low Bass
• Fiber Matrix Paper Cone with Mica Coating
• 3-Layer High Temp Voice Coil Former
• Dual Damping System for Linear Bass Reproduction
• Dual Dust Cap System for Enclosure Compression Control
• Efficient Heavy-Duty Motor Design
• Removable Subwoofer Grille Included

Specifications:

• Nominal Impedance (Z): 2 Ohms
• DC Resistance (Re): 1.6 Ohms
• Resonance Frequency (Fs): 38.4879Hz
• Piston Area (SD): 0.0314 m2
• Force Factor (BL): 11.0788 T.m
• Mechanical Q Factor (QMS): 6.1223
• Electrical Q Factor (QES): 0.6341
• Total Q Factor (QTS): 0.5746
• Sensitivity 1W/M (SPL): 82.2488
• Mechanical Comp (CMS): 0.0850 mm/N
• Moving Mass (MMS): 201.1450g
• Linear Excursion (XMAX): 14mm
• Volume Acoustic Comp (VAS): 11.7161 Ltr. / 0.4137 Cu Ft.
• Reference Efficiency (NO.): 0.1011% RMS
• Power (Pe): 500W
• Frequency Response 20 - 200Hz
• Voice Coil Diameter 2.5" / 63.5mm
• Displacement 0.0626 Cu Ft. / 1.771 Ltr.

Dimensions:

• Overall Dimensions: 10.748" (273mm)
• Cut Out Diameter: 9.25" (234mm)
• Mounting Depth: 5.32" (135 mm)
• Mounting Height (Without Grille): 0.59" (15mm)
• Mounting Height (With Grille): 1.30" (33mm)
• Motor Diameter WIth Cover: 6.41" (163mm)

Ported Enclosure:

• External Dimensions: 24.00″ (W) × 13.00″ (H) × 11.25″ (D)
• Net Internal Volume: 1.01 Ft3
• Total Internal Volume: 1.36 Ft3
• Gross External Volume: 2.03 Ft3
• Material Thickness: 0.75″
• Tuning Frequency: 37Hz
• Port Area” 17.25 Inch2
• Port Inlet: 1.50″ (W)× 11.50″ (H)
• Port Length: 28.50″
• F3: 30Hz

Sealed Enclosure:

• External Dimensions: 20.00″ (W) × 13.00″ (H) × 11.00″ (D)
• Net Internal Volume: 1.11 Ft3
• Total Internal Volume: 1.17 Ft3
• Gross External Volume: 1.66 Ft3
• Material Thickness: 0.75″
• F3: 45.96Hz
• QTC: 0.705
