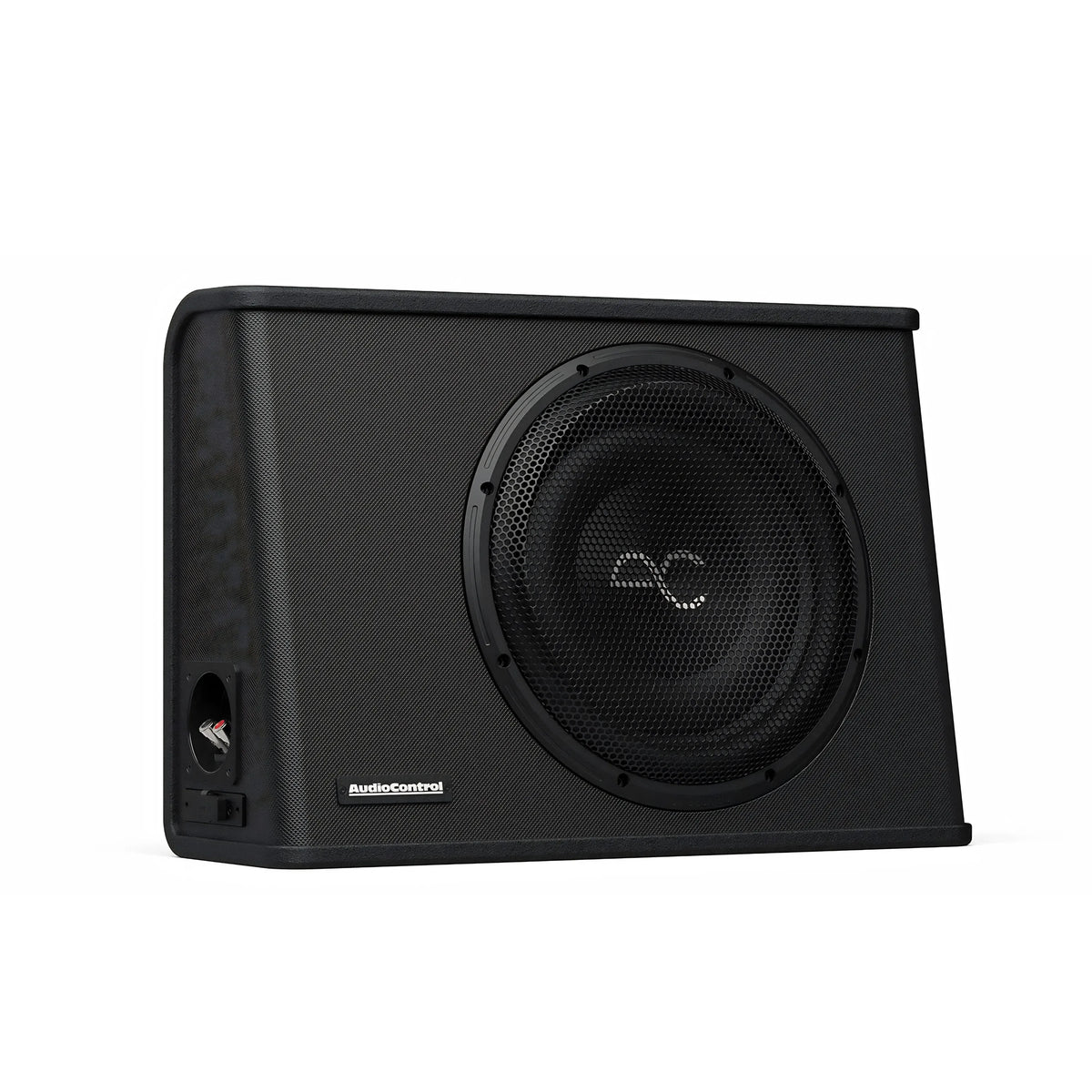

AudioControl SPC-W12 Space 12" Sealed Wedge Subwoofer Enclosure

AudioControl SPC-W12 Space 12" Sealed Wedge Subwoofer Enclosure | Premium Loaded Bass System

Space Series 12-inch sealed wedge enclosure loaded with SPC-12S2 subwoofer, featuring weather-resistant construction, marine-grade vinyl finish, and versatile wedge design for multiple installation locations

Product Overview

The AudioControl SPC-W12 Space Series represents the ultimate in premium loaded subwoofer enclosures, combining the acclaimed SPC-12S2 shallow mount subwoofer with expertly engineered wedge-shaped enclosure design. Crafted with precision from high-density wood fiberboard and protected with Roadkill Armor coating and marine-grade vinyl wrapping, this sealed enclosure delivers superior sound quality while withstanding any weather conditions and protecting components against moisture damage.

AudioControl's commitment to audio excellence spans over 45 years, and the SPC-W12 exemplifies this dedication through meticulous engineering and premium construction. The wedge-shaped design fits a variety of installation locations while the dual front mounting baffle ensures optimal speaker placement for immersive and powerful audio experience. Internal support enhances performance and longevity, while poly-fiber fill material provides controlled sound dispersion and tight, accurate bass response.

Key Specifications

• Model: SPC-W12
• Subwoofer: SPC-12S2 Space Series 12" driver
• Voice Coil Configuration: Single 2-ohm
• Power Handling: 400W RMS, 200W-600W range
• Frequency Response: 20-150 Hz
• Sensitivity: 87.4 dB
• Enclosure Type: Sealed wedge design
• Terminal Wire Acceptance: 12-8 gauge
• Weight: 28.25lbs (12.70kg)

Features & Benefits

Wedge Shape Design Excellence
The versatile wedge-shaped profile allows installation in multiple locations where traditional rectangular enclosures won't fit, maximizing placement flexibility while optimizing interior space utilization.

Element-Resistant Construction
Features high-density wood fiberboard construction with Roadkill Armor coating and marine-grade vinyl wrapping that withstands harsh environmental conditions and protects against moisture damage.

Premium Driver Integration
Houses the acclaimed SPC-12S2 Space Series subwoofer with fiber matrix injection molded polypropylene cone and structurally rigid heavy-duty voice coil for exceptional bass reproduction.

Professional Installation Features
Includes optional quick-plug connector for convenience, sturdy powder-coated steel grille for protection, and versatile multi-secure mounting system with quick disconnect harness.

Optimized Acoustic Design
Internal support structure and poly-fiber fill material enhance performance and provide controlled sound dispersion with tight, accurate bass response from the sealed enclosure design.

Technical Specifications

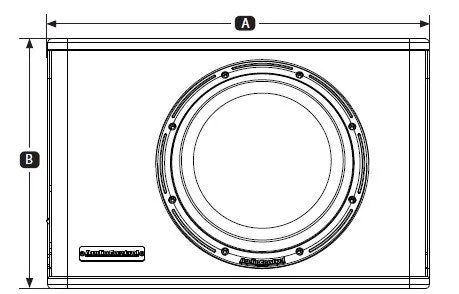

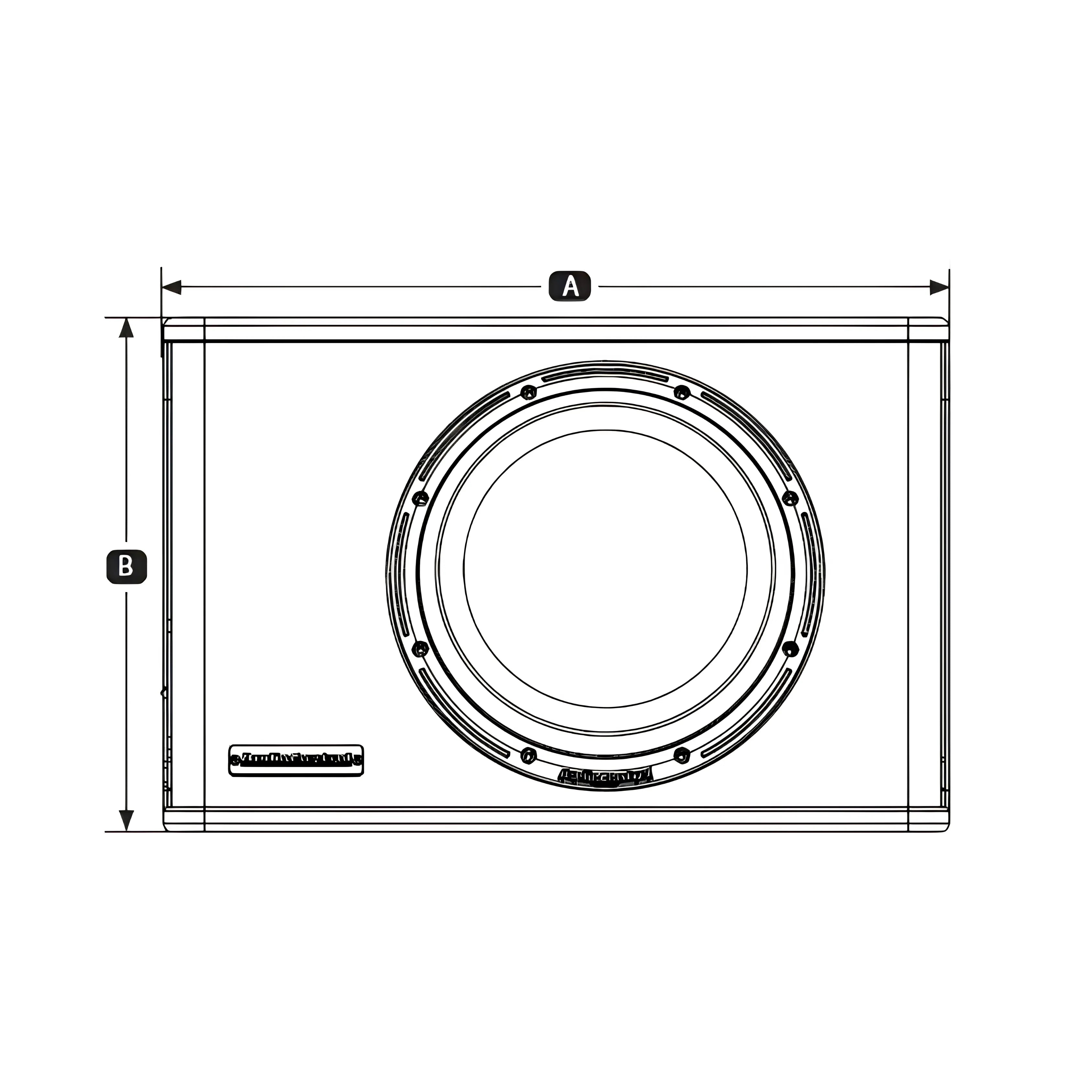

• Enclosure Width (A): 21.14" (53.66cm)
• Enclosure Height (B): 14.61" (37.10cm)

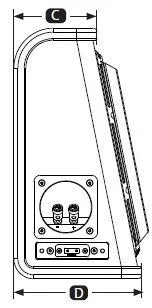

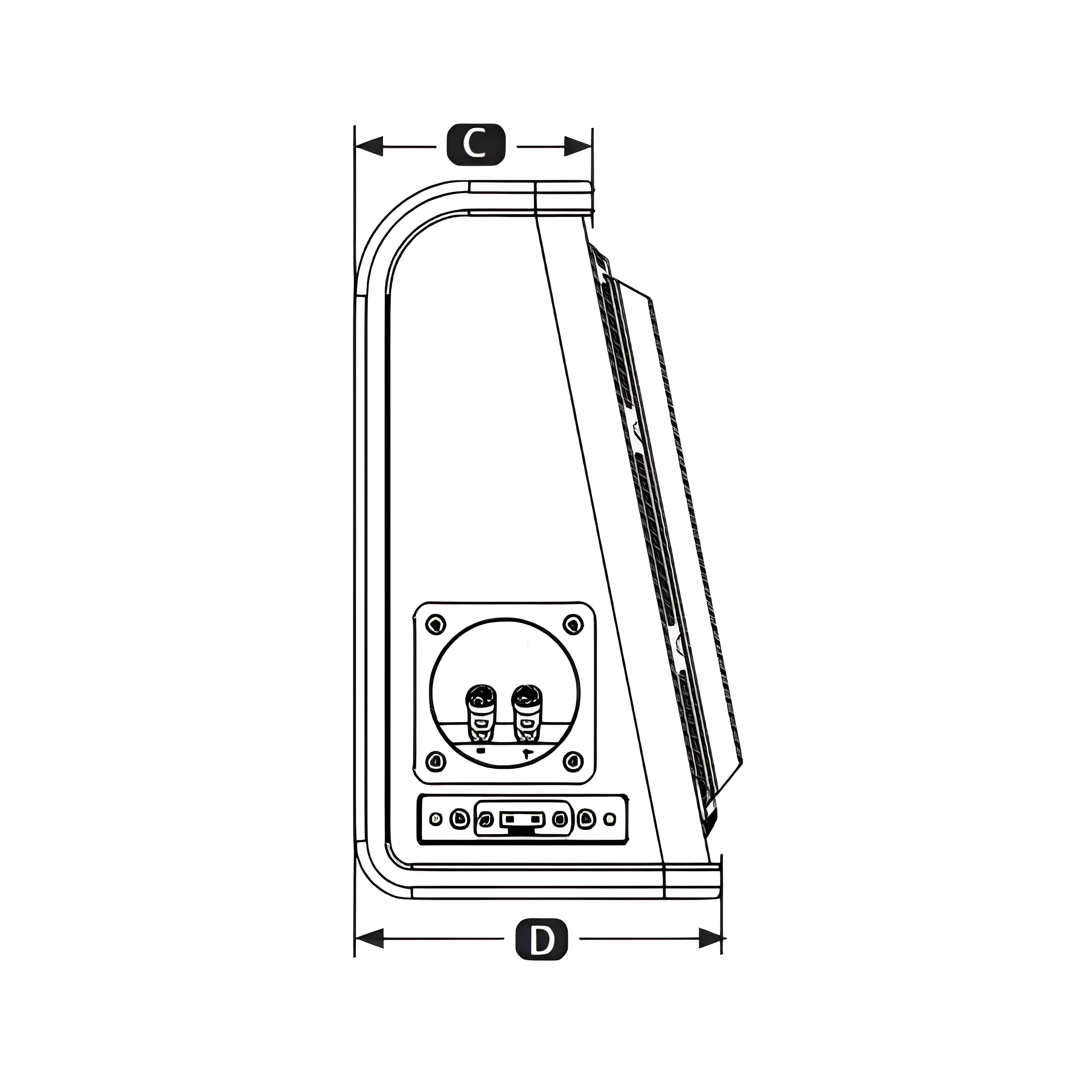

• Enclosure Depth (top) (C): 4.49" (11.40cm)
• Enclosure Depth (bottom) (D): 7" (17.78cm)
• Final Impedance: 2 ohms
• Construction: High-density wood fiberboard
• Coating: Roadkill Armor with marine-grade vinyl wrap
• Internal Fill: Poly-fiber material
• Grille: Powder-coated steel protection grille
• Mounting: Multi-secure mounting system

Scope of Delivery

• SPC-W12 Loaded Wedge Enclosure with SPC-12S2 Subwoofer
• Powder-Coated Steel Protection Grille
• Quick Disconnect Harness and Connector
• Multi-Secure Mounting Hardware
• Installation Manual
• Warranty Documentation

How It Works

Premium Loaded Enclosure System – The SPC-W12 combines the SPC-12S2 Space Series subwoofer with expertly tuned sealed wedge enclosure for optimal bass performance. The wedge shape allows flexible installation in tight spaces while the sealed design provides tight, controlled bass response. Connect using standard speaker wire (12-8 gauge) or optional quick-plug connector for easy installation and removal.

Compatible With / Goes Well With

Installation Types: Under-seat mounting, trunk installations, behind-panel mounting, custom enclosure locations
Amplifier Compatibility: 200W-600W RMS amplifiers, 2-ohm stable amplifiers, AudioControl amplifiers
Vehicle Applications: Cars, trucks, SUVs, boats, UTVs requiring space-efficient bass solution
System Integration: Component speaker systems, full-range audio upgrades, multi-subwoofer configurations

Frequently Asked Questions

What makes the wedge shape design advantageous for installations?

The wedge-shaped profile allows the enclosure to fit in locations where traditional rectangular boxes won't work, such as behind seats, in trunk corners, or custom installations where space tapers. This maximizes placement flexibility while maintaining optimal acoustic performance.

Is the SPC-W12 suitable for marine or outdoor vehicle applications?

Absolutely. The enclosure features marine-grade vinyl wrapping and Roadkill Armor coating that provides excellent protection against moisture, UV exposure, and harsh environmental conditions, making it ideal for boats, UTVs, and outdoor recreational vehicles.

What amplifier power is recommended for the SPC-W12?

The loaded enclosure performs optimally with amplifiers delivering 200-600W RMS at 2 ohms, with 400W RMS being the ideal power level. The 2-ohm final impedance ensures efficient power transfer from compatible amplifiers.

How does the sealed enclosure design affect bass response?

The sealed design provides tight, controlled bass with excellent transient response and accurate reproduction. While it may not extend as low as ported designs, it offers superior control and musicality, making it ideal for various music genres.

What installation options does the multi-secure mounting system provide?

The multi-secure mounting system includes multiple mounting points and hardware options to secure the enclosure in various orientations and locations. The quick disconnect harness allows easy removal for servicing or temporary installations.

Can I connect the SPC-W12 without the quick-plug connector?

Yes, the enclosure accepts standard 12-8 gauge speaker wire connections through traditional binding posts. The optional quick-plug connector provides convenience for frequent installation and removal but isn't required for operation.
