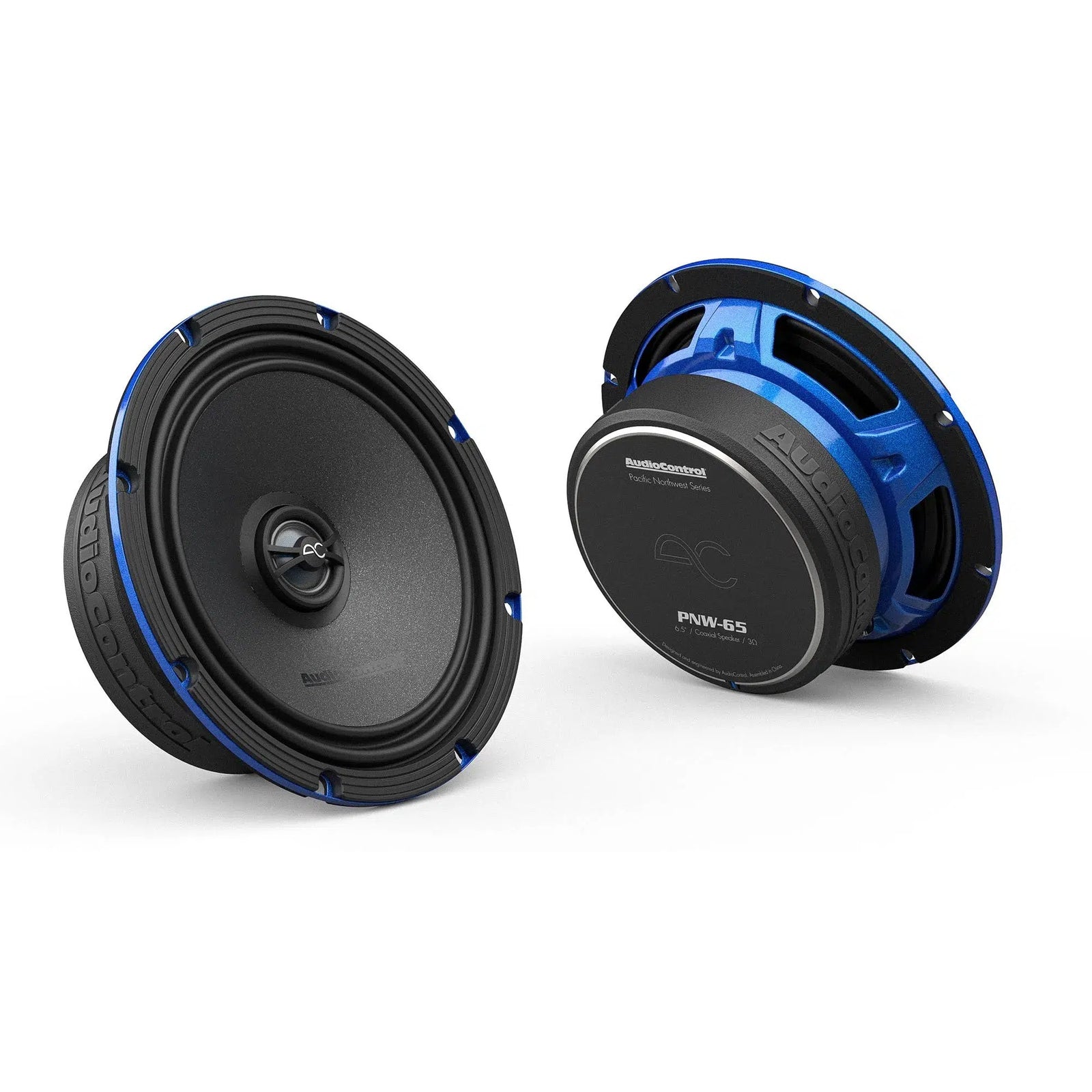

AudioControl PNW-65 PNW Series 6.5″ High-Fidelity Coaxial Speakers

Meticulously Designed & Engineered With High-Quality Components For A Premium, Hi-Fi Audio Experience!

PNW Series 6.5″ High-Fidelity Coaxial Speakers
AudioControl has over 45 years of experience engineering top-quality audio components. Buckle up and get ready to embark on a wild new auditory adventure with AudioControl’s PNW speakers! Experience the vibrant landscapes of the Pacific Northwest through your music when you combine AudioControl’s legendary amplifiers with the new PNW series of speakers. Trust us, you’ve never heard a sound quite like this before. The PNW line features an edge-enhanced steel frame for ultimate structural strength, a black anodized voice coil former for superior heat dissipation, and a linear double-roll surround for precise cone movement. Plus, the rigid poly mica-coated cone optimizes sound reproduction.

Worried about installation? Don’t be! Our speaker sets come with high-quality mounting hardware, so you can enjoy your new sound system hassle-free. The tweeter’s point source design even aligns the output of both drivers perfectly, resulting in better speaker alignment for amazing sound quality. Looking for the full package? Pair PNW with our Spike or Space series subwoofers for the ultimate in-vehicle listening experience. All of these features add up to a line of speakers that are not only impressive on paper but are sure to impress you with their detail, clarity, and volume every time you drive.

Features:

• Edge-enhanced steel frame for added structural strength.
• Black anodized voice coil former for superior heat dissipation.
• Linear double-roll surround for precision cone movement.
• Complex FEA-designed high-efficiency motor.
• Rigid poly mica-coated cone for optimized sound reproduction.
• Rear-dampened hybrid silk dome tweeter for extended frequency response.
• Concentric point source design for a seamless transition from midrange to tweeter.
• Sonic diffuser and radiant collar for better off-axis frequency response.
• High-quality mounting hardware included.

Specifications:

• Size: 6.5" (165mm)
• Type: Coaxial Speakers
• Crossover Type: Butterworth
• DC Resistance (Re): 2.30-Ohm
• Filter Type: HP
• System Frequency (Fs) Response: 60 - 20kHz
• XO Frequency: 5250Hz
• Slope (Octave): -6dB
• Tweeter Voice Coil Diameter: 20mm
• Midrange Voice Coil Diameter: 35mm
• Woofer Size (W/O Grille): 6.5" (166mm)
• Woofer Mounting Depth: 2.36" (60mm)
• Power Rating: 50 – 100W (75W RMS Ideal)
• Voice Coil Configuration: 2.3-Ohm
• Weight: 5.17kg

Dimensions:

• Overall Diameter (W/O Grille): 6.5" (166mm)
• Cut Out Diameter: 5.59" (142mm)
• Mounting Depth: 2.36" (60mm)
• Height (W/O Grille): 0.20" (5.20mm)
• Height (With Grille): 0.86" (22mm)
• Motor Diameter (With Cover): 4.6" (117mm)
• Grille Overall Diameter: 7.05" (179mm)
