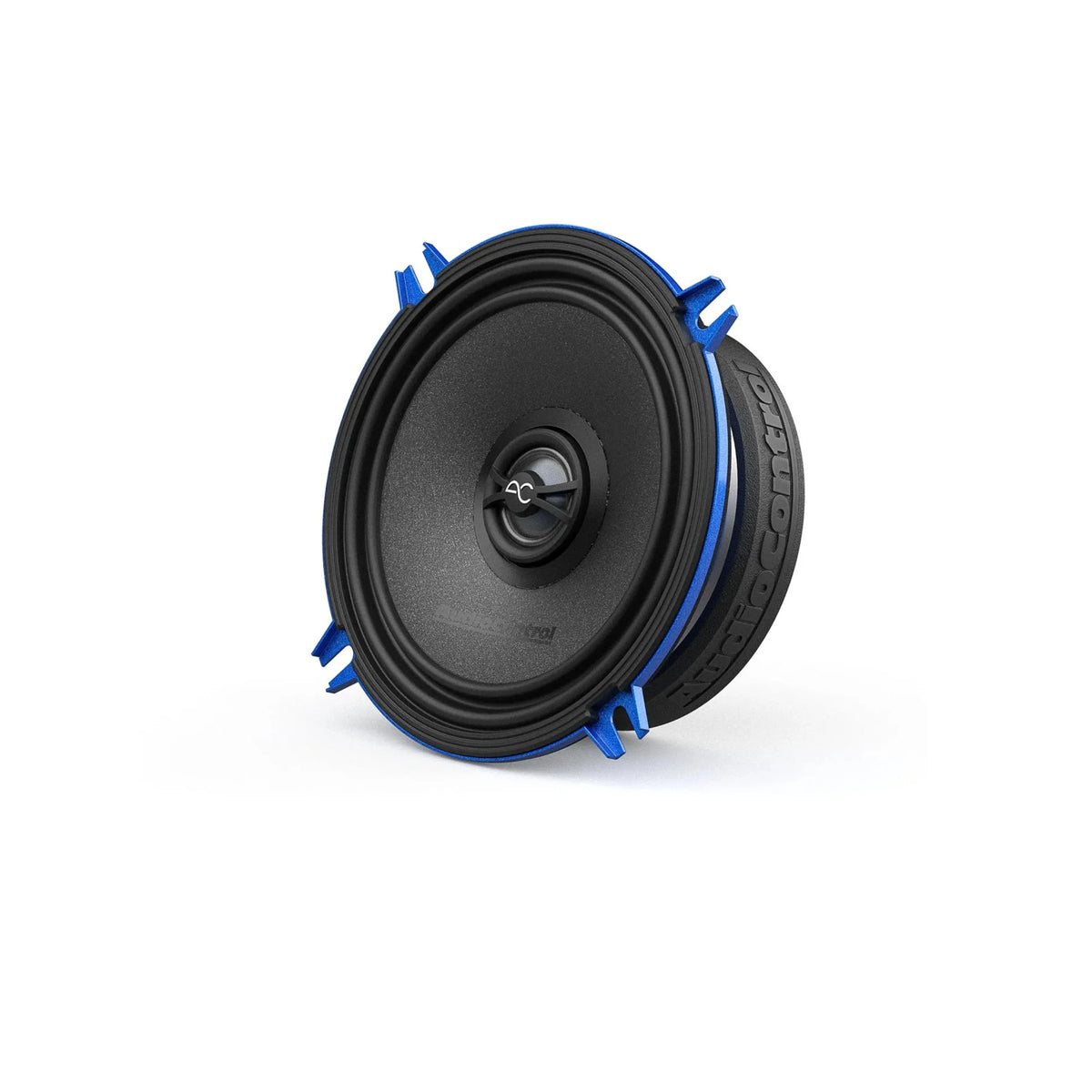

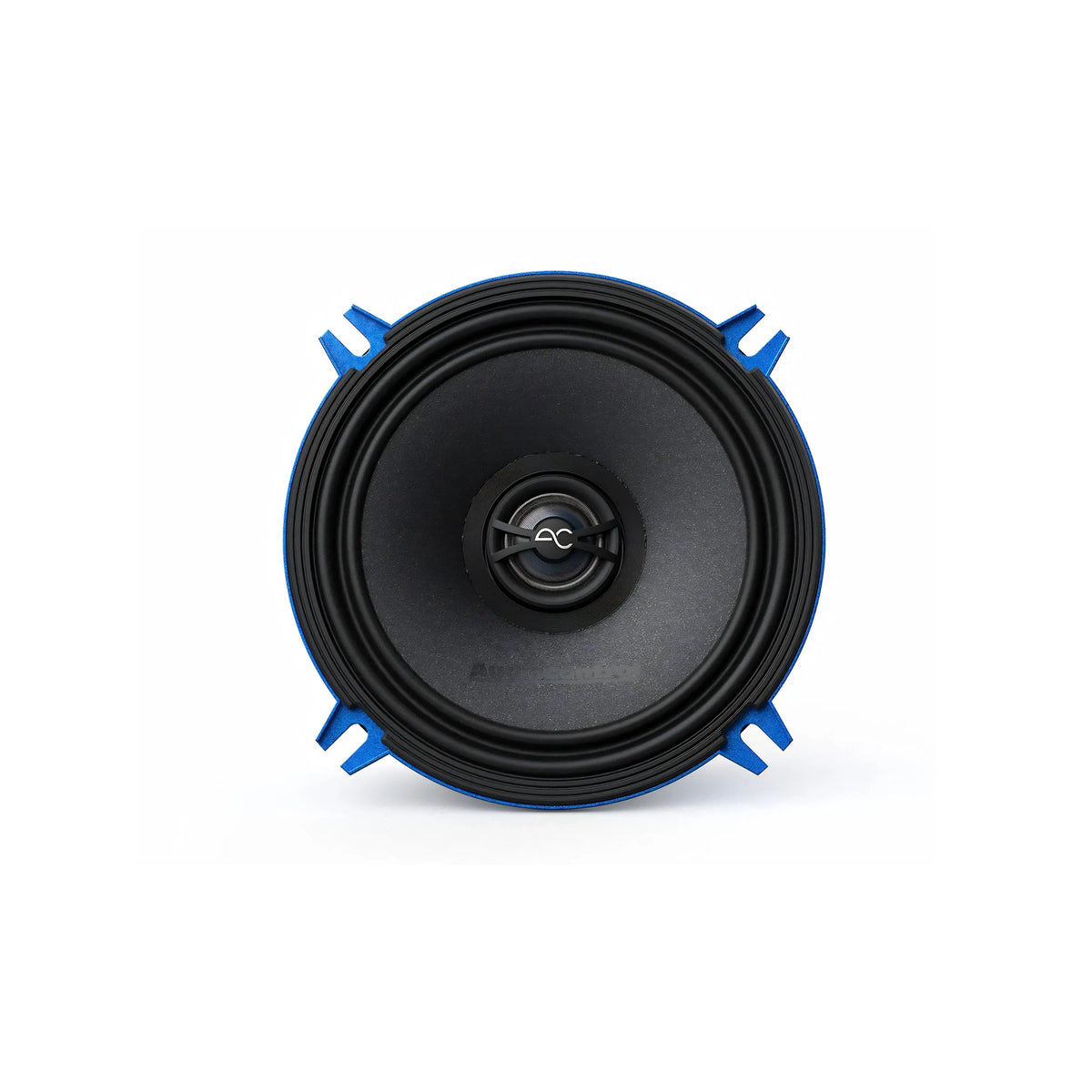

AudioControl PNW-525 - PNW 5.25″ High-Fidelity Coaxial Speaker

AudioControl PNW-525 - PNW 5.25″ High-Fidelity Coaxial Speaker | Premium Full-Range Performance

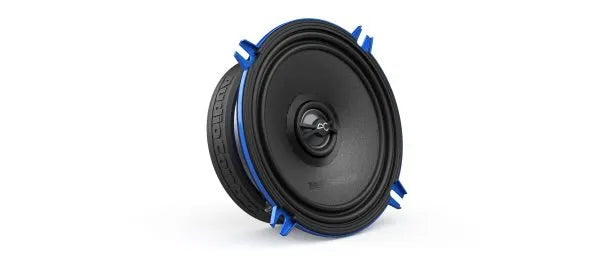

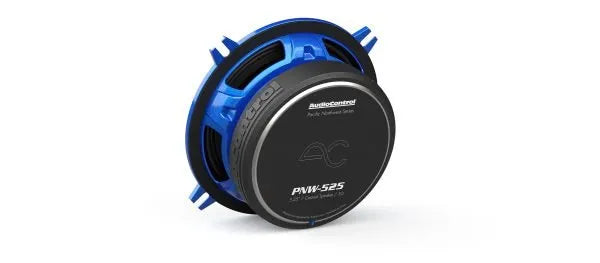

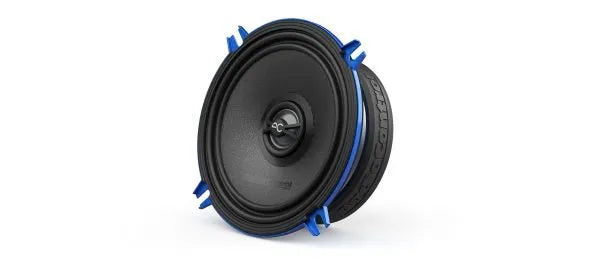

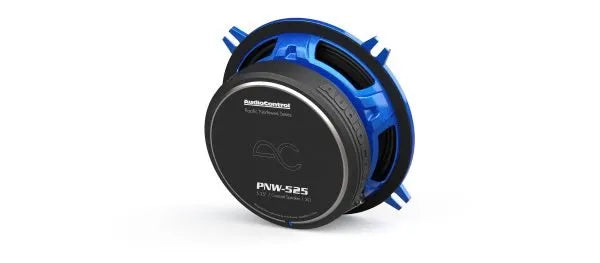

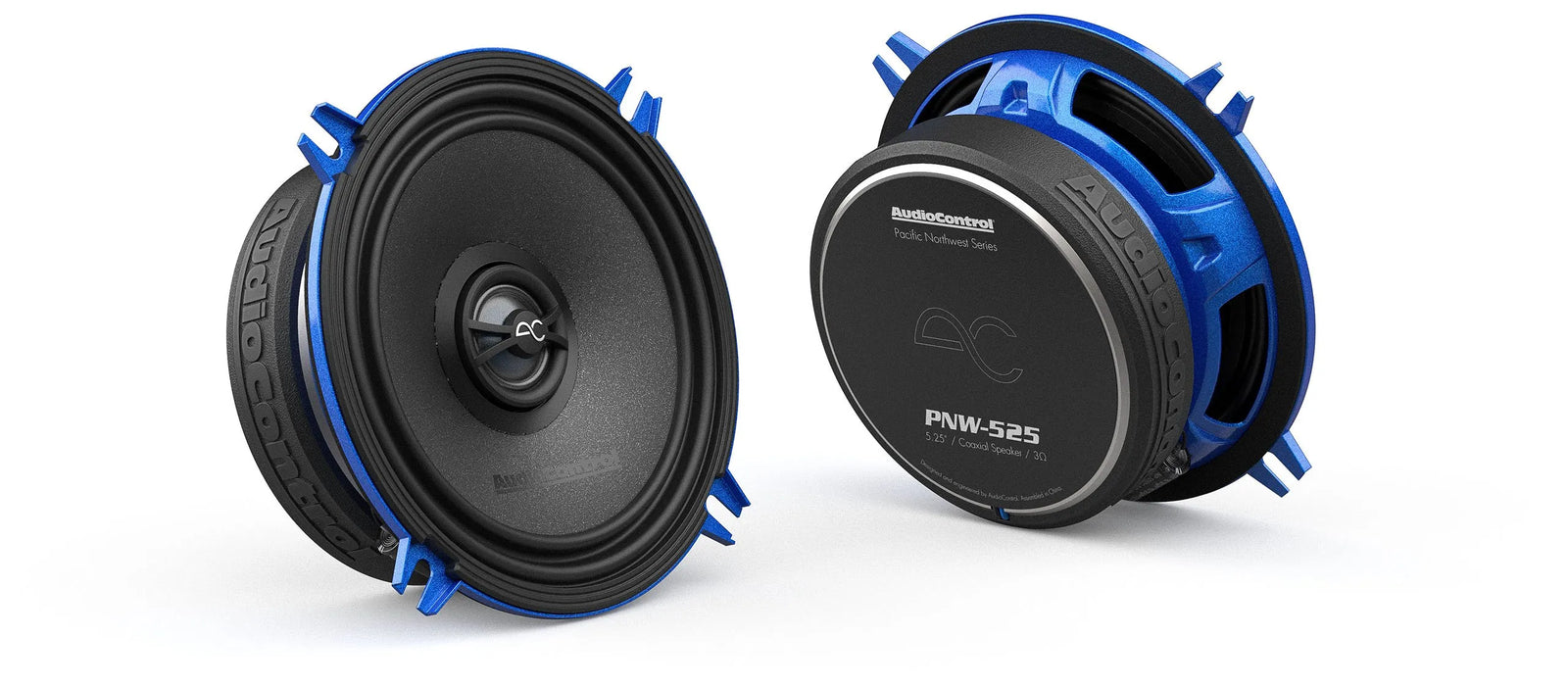

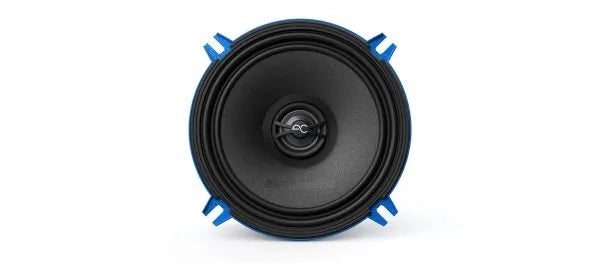

Professional 5.25-inch high-fidelity coaxial speaker with concentric point source design, 35mm voice coil, and rear dampened hybrid silk dome tweeter delivering premium full-range performance with superior dynamic range

Product Overview

The AudioControl PNW-525 delivers premium full-range performance through expertly engineered 5.25-inch coaxial speaker designed specifically for installations demanding superior audio reproduction with maximum dynamic range and output capability. This professional coaxial speaker features concentric point source design that aligns the output of both drivers perfectly for superior imaging, rigid poly mica-coated cone for optimized sound reproduction, and rear dampened hybrid silk dome tweeter with 20mm voice coil for extended frequency response (75-20kHz), providing exceptional output levels with 35mm midrange voice coil and 50W RMS power handling, featuring edge-enhanced steel frame construction and complex FEA-designed high-efficiency motor that ensures detailed, clear audio reproduction when paired with AudioControl's legendary amplifiers.

What Makes This Speaker Special

• Premium Concentric Point Source Design – Features 20mm tweeter voice coil mounted concentrically within the 5.25-inch woofer for perfect driver alignment, creating seamless transition from midrange to tweeter with superior imaging and maximum dynamic range capability
• Enhanced Voice Coil System – 35mm midrange voice coil diameter provides superior power handling and reduced distortion compared to smaller drivers, while 20mm tweeter voice coil ensures extended high-frequency response and improved efficiency for premium performance
• Professional Grade Construction – Edge-enhanced steel frame provides ultimate structural strength while black anodized voice coil former ensures superior heat dissipation, combined with linear double-roll surround for precision cone movement and enhanced power handling capability
• Optimized Crossover Design – Butterworth crossover at 5250Hz (lower than smaller models) provides optimal frequency division for the larger driver, ensuring smooth midrange-to-tweeter transition while maximizing the woofer's natural response characteristics

Technical Specs

• Driver Size: 5.25 inches nominal diameter
• System Frequency Response: 75-20kHz for premium full-range coverage
• Power Handling: 25-75 watts (50W RMS ideal)
• Voice Coil Configuration: 2.6 ohms DC resistance
• Tweeter Voice Coil: 20mm diameter for enhanced high-frequency performance
• Midrange Voice Coil: 35mm diameter for superior power handling
• Crossover: Butterworth high-pass filter at 5250Hz, -6dB/octave slope
• Frame Construction: Edge-enhanced steel frame for structural strength
• Cone Material: Rigid poly mica-coated cone for optimized sound reproduction
• Tweeter: Rear dampened hybrid silk dome for extended frequency response
• Design: Concentric point source for perfect driver alignment
• Surround: Linear double-roll design for precision cone movement
• Voice Coil Former: Black anodized for superior heat dissipation
• Motor Design: Complex FEA-designed high-efficiency motor
• Overall Diameter: 5.23"/133mm (without grille)
• Cutout Diameter: 3.60"/91.5mm (verify compatibility for 5.25" applications)

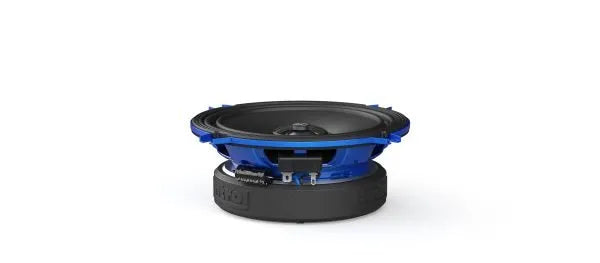

• Mounting Depth: 1.66"/42.2mm

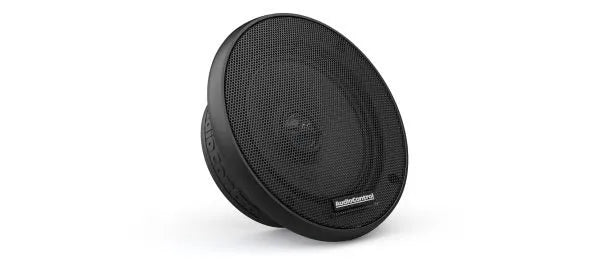

• Grille Diameter: 5.40"/137mm
• Height: 0.16"/4.1mm (without grille), 0.64"/16.5mm (with grille)

Frequently Asked Questions

How does this 5.25-inch model compare to the smaller PNW speakers?

The PNW-525 provides the largest voice coil (35mm midrange, 20mm tweeter) for superior power handling and dynamic range, while the lower crossover point (5250Hz) optimizes the larger driver's natural response characteristics for premium performance.

What makes this the premium model in the PNW coaxial range?

The PNW-525 features the largest voice coils in the series, enhanced tweeter design, and optimized crossover frequency specifically tuned for 5.25-inch driver characteristics, delivering maximum dynamic range and output capability.

What power amplifier is recommended for optimal performance?

The speaker handles 25-75 watts with 50W RMS being ideal. The larger voice coils can handle the upper power range more effectively than smaller models, making it suitable for higher-power AudioControl amplifiers.

Is this compatible with standard 5.25-inch mounting locations?

Please verify cutout requirements as dimensions shown may need confirmation for 5.25-inch applications. The mounting depth of 1.66" should accommodate most standard installations.

How does the crossover frequency benefit this larger driver?

The 5250Hz crossover (vs 5900Hz on smaller models) is optimized for the 5.25-inch driver's natural response, allowing more midrange content through the woofer while maintaining smooth tweeter integration.

What's the advantage of the larger voice coils?

The 35mm midrange and 20mm tweeter voice coils provide superior power handling, reduced distortion, better heat dissipation, and enhanced dynamic range compared to smaller voice coil designs.

How It Works

Professional Premium Coaxial System – Install the PNW-525 in appropriate 5.25-inch locations (verify cutout requirements) using the included mounting hardware. Connect to an amplifier capable of 25-75 watts for optimal performance. The concentric point source design with enhanced voice coils eliminates phase issues while the optimized 5250Hz crossover ensures seamless frequency transition. The larger voice coils and premium construction deliver superior full-range reproduction from 75Hz to 20kHz with maximum dynamic capability.

Compatible With / Goes Well With

System Integration: Premium full-range installations, high-output systems, front stage applications requiring maximum dynamic range

Amplifier Compatibility: AudioControl amplifiers, high-power amplifiers rated 25-75 watts, premium audio systems

Subwoofer Pairing: AudioControl Spike or Space series subwoofers for complete frequency coverage and enhanced system performance

Professional Installation: Premium vehicle installations, high-end car audio systems, applications requiring maximum coaxial performance
