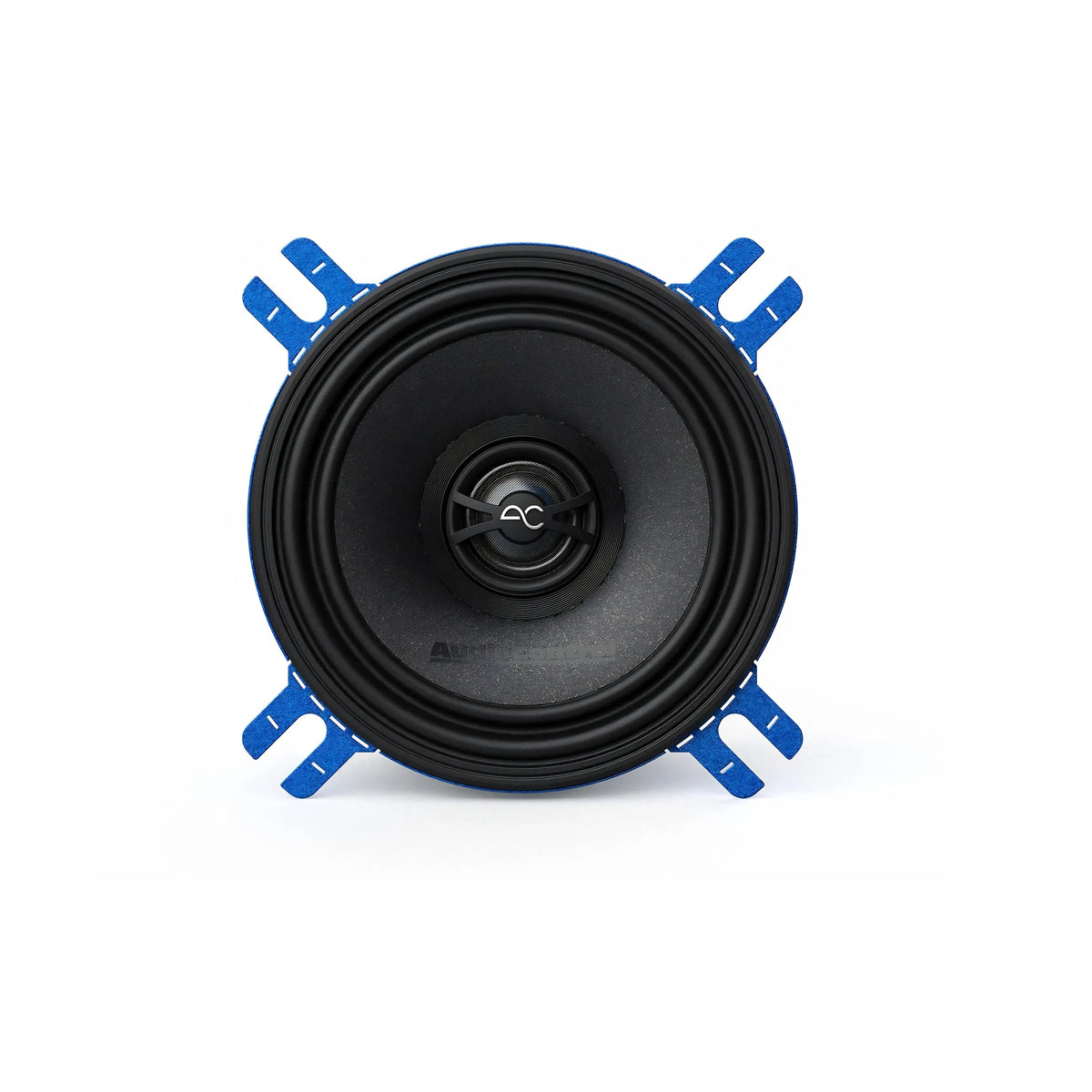

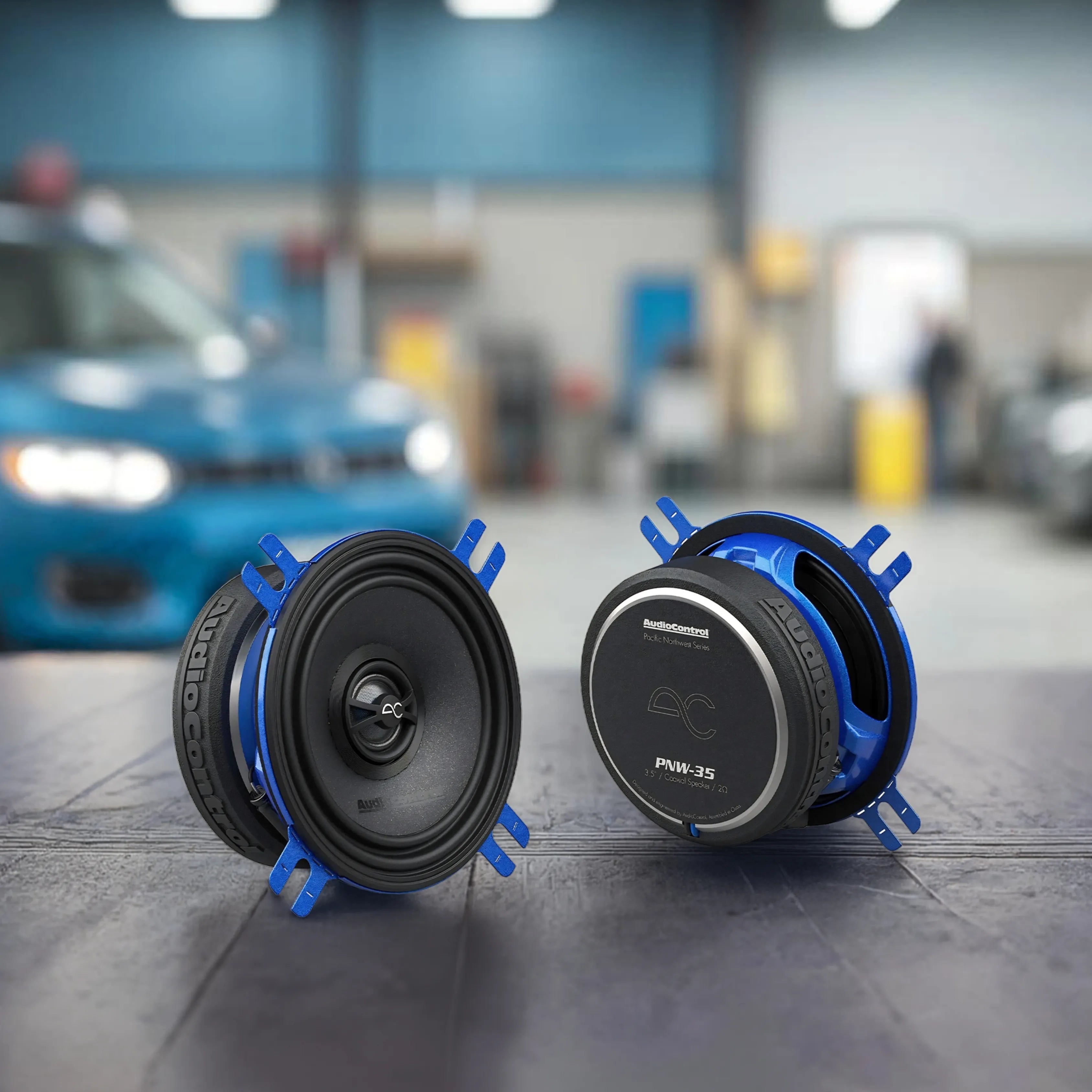

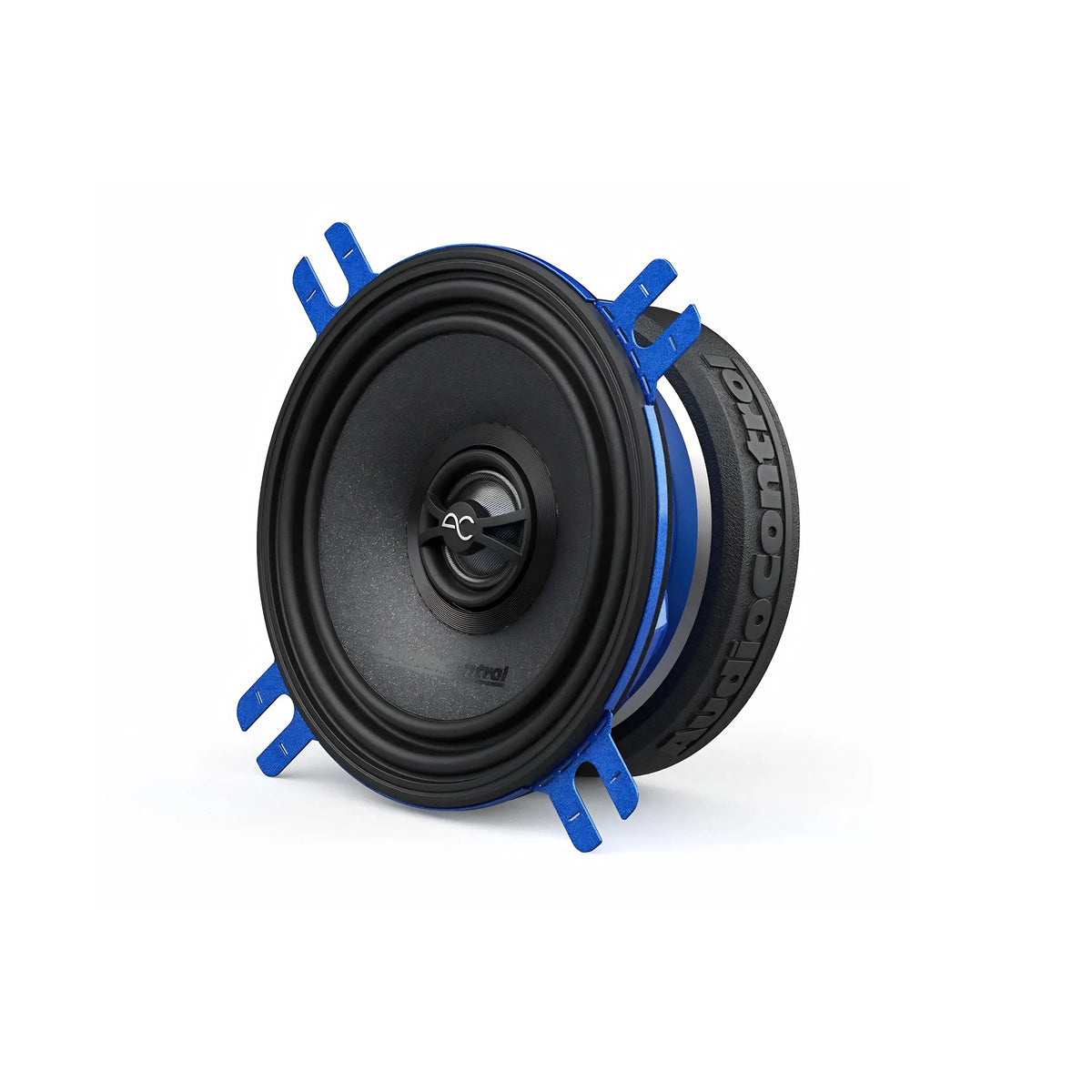

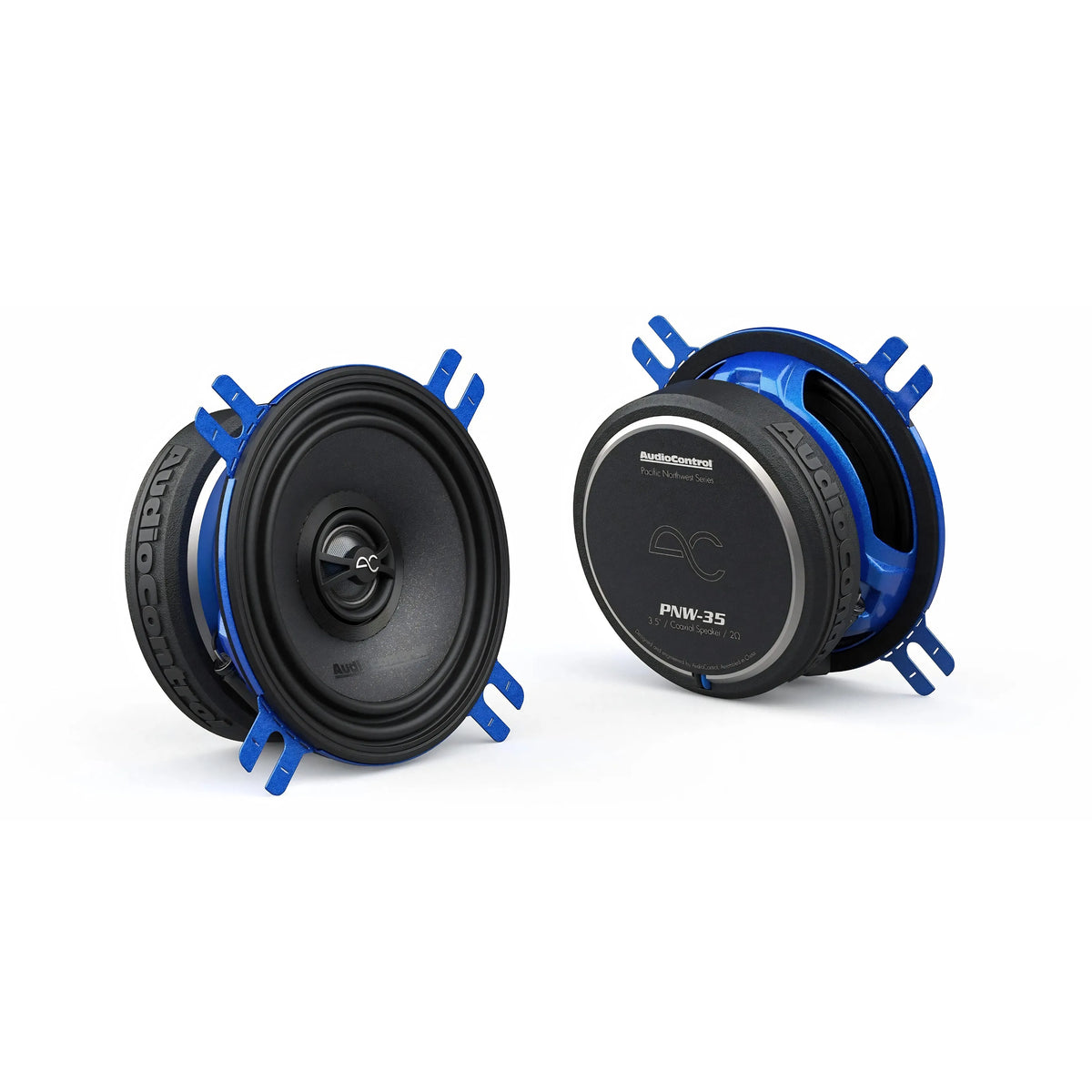

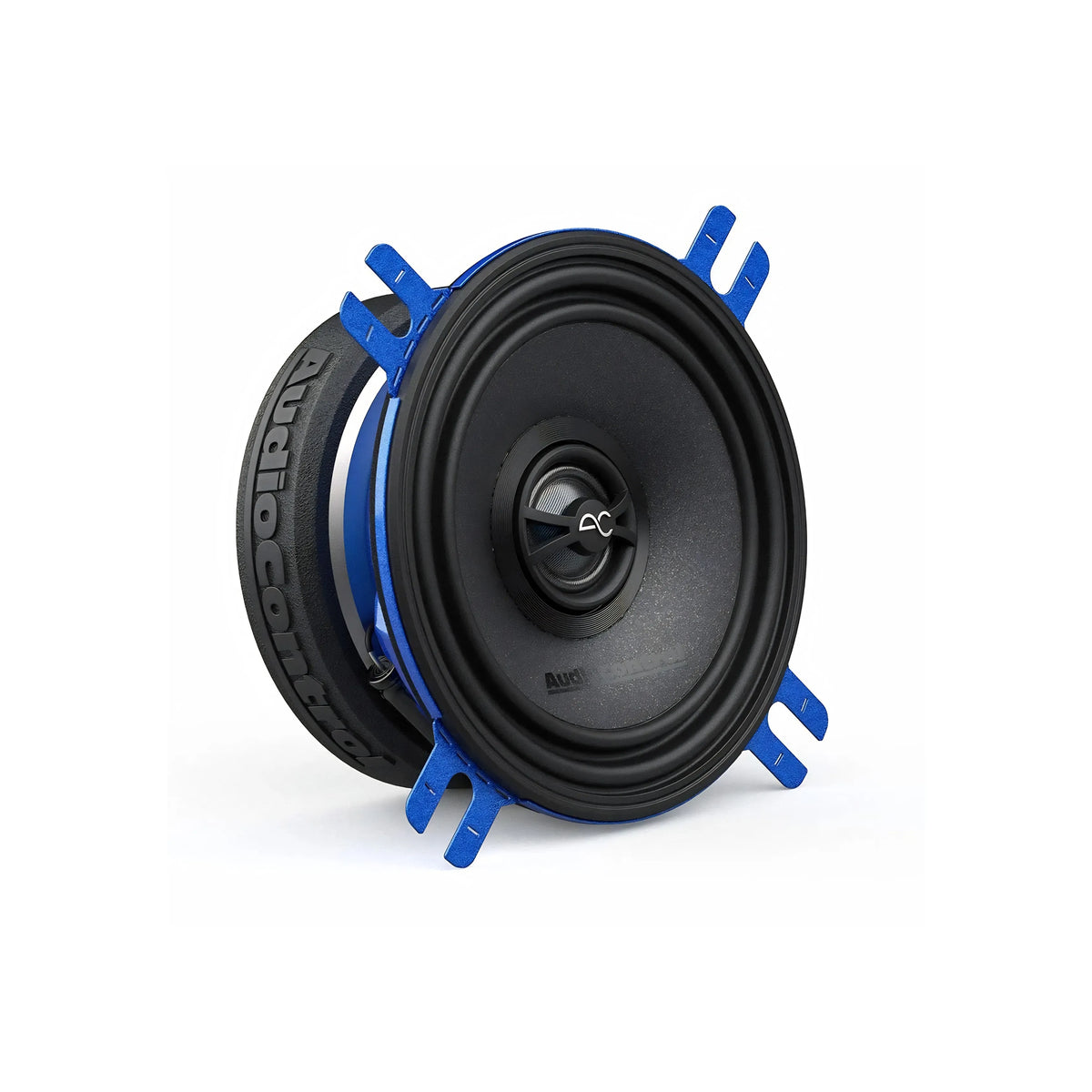

Professional 3.5-inch high-fidelity coaxial speaker with concentric point source design, rear dampened hybrid silk dome tweeter, and rigid poly mica-coated cone for exceptional full-range performance in compact installations

Product Overview

The AudioControl PNW-35 delivers exceptional high-fidelity performance through expertly engineered 3.5-inch coaxial speaker designed specifically for compact installations requiring full-range audio reproduction. This professional coaxial speaker features concentric point source design that aligns the output of both drivers perfectly for superior imaging, rigid poly mica-coated cone for optimized sound reproduction, and rear dampened hybrid silk dome tweeter for extended frequency response (90-20kHz), providing 25W RMS power handling with edge-enhanced steel frame construction and complex FEA-designed high-efficiency motor that ensures detailed, clear audio reproduction when paired with AudioControl's legendary amplifiers.

What Makes This Speaker Special

• Concentric Point Source Design – Features tweeter mounted concentrically within the woofer for perfect driver alignment, creating seamless transition from midrange to tweeter with superior imaging and phase coherence compared to traditional coaxial designs
• High-Fidelity Component Construction – Rigid poly mica-coated cone optimizes sound reproduction while rear dampened hybrid silk dome tweeter with sonic diffuser and radiant collar provides extended frequency response and better off-axis performance for exceptional audio quality
• Advanced Engineering Design – Edge-enhanced steel frame provides ultimate structural strength while black anodized voice coil former ensures superior heat dissipation, combined with linear double-roll surround for precision cone movement and consistent performance
• Professional Installation Ready – Includes high-quality mounting hardware with compact dimensions (3.0" cutout, 1.55" mounting depth) for versatile installation in locations where space is limited but high-fidelity full-range performance is required

Technical Specs

• Driver Size: 3.5 inches (overall diameter with bracket: 4.44"/113mm)
• System Frequency Response: 90-20kHz for full-range coverage
• Power Handling: 15-50 watts (25W RMS ideal)
• Voice Coil Configuration: 1.75 ohms DC resistance
• Tweeter Voice Coil: 13mm diameter
• Midrange Voice Coil: 25mm diameter
• Crossover: Butterworth high-pass filter at 5900Hz, -6dB/octave slope
• Frame Construction: Edge-enhanced steel frame for structural strength
• Cone Material: Rigid poly mica-coated cone for optimized sound reproduction
• Tweeter: Rear dampened hybrid silk dome for extended frequency response
• Design: Concentric point source for perfect driver alignment
• Surround: Linear double-roll design for precision cone movement
• Voice Coil Former: Black anodized for superior heat dissipation
• Motor Design: Complex FEA-designed high-efficiency motor
• Cutout Diameter: 3.0"/76.5mm
• Mounting Depth: 1.55"/39.5mm
• Motor Diameter: 2.96"/75.4mm
• Grille: No speaker grille applicable for PNW-35

Frequently Asked Questions

What makes this coaxial speaker different from traditional designs?

The PNW-35 features concentric point source design where the tweeter is mounted concentrically within the woofer, creating perfect driver alignment for superior imaging and seamless frequency transition compared to offset tweeter designs.

What frequency range does this coaxial speaker cover?

The speaker provides full-range coverage from 90Hz to 20kHz with a crossover at 5900Hz, making it suitable as a complete speaker solution without requiring additional drivers for most applications.

What power amplifier do I need for optimal performance?

The speaker handles 15-50 watts with 25W RMS being the ideal power level. It pairs perfectly with AudioControl amplifiers designed for high-fidelity applications.

Does this speaker require a grille?

No, the PNW-35 is designed without a speaker grille. The concentric design and construction are intended for direct exposure in the installation environment.

What size opening do I need for installation?

The cutout diameter is 3.0"/76.5mm with a mounting depth of 1.55"/39.5mm, making it suitable for standard 3.5-inch speaker locations with adequate clearance.

How does this integrate with other AudioControl components?

The PNW-35 works excellently as a standalone full-range solution or can be paired with AudioControl Spike or Space series subwoofers for enhanced low-frequency extension in complete system installations.

How It Works

Professional Concentric Integration System – Install the PNW-35 in standard 3.5-inch locations using the included mounting hardware. Connect to an amplifier capable of 15-50 watts for optimal performance. The concentric point source design eliminates phase issues between drivers while the Butterworth crossover at 5900Hz ensures seamless frequency transition. The poly mica cone and hybrid silk dome tweeter deliver exceptional full-range reproduction from 90Hz to 20kHz.

Compatible With / Goes Well With

System Integration: Standalone full-range installations, compact audio systems requiring high-fidelity performance

Amplifier Compatibility: AudioControl amplifiers, high-fidelity amplifiers rated 15-50 watts

Subwoofer Pairing: AudioControl Spike or Space series subwoofers for complete frequency coverage

Professional Installation: Compact vehicle installations, dashboard applications, high-end car audio systems where space is limited
