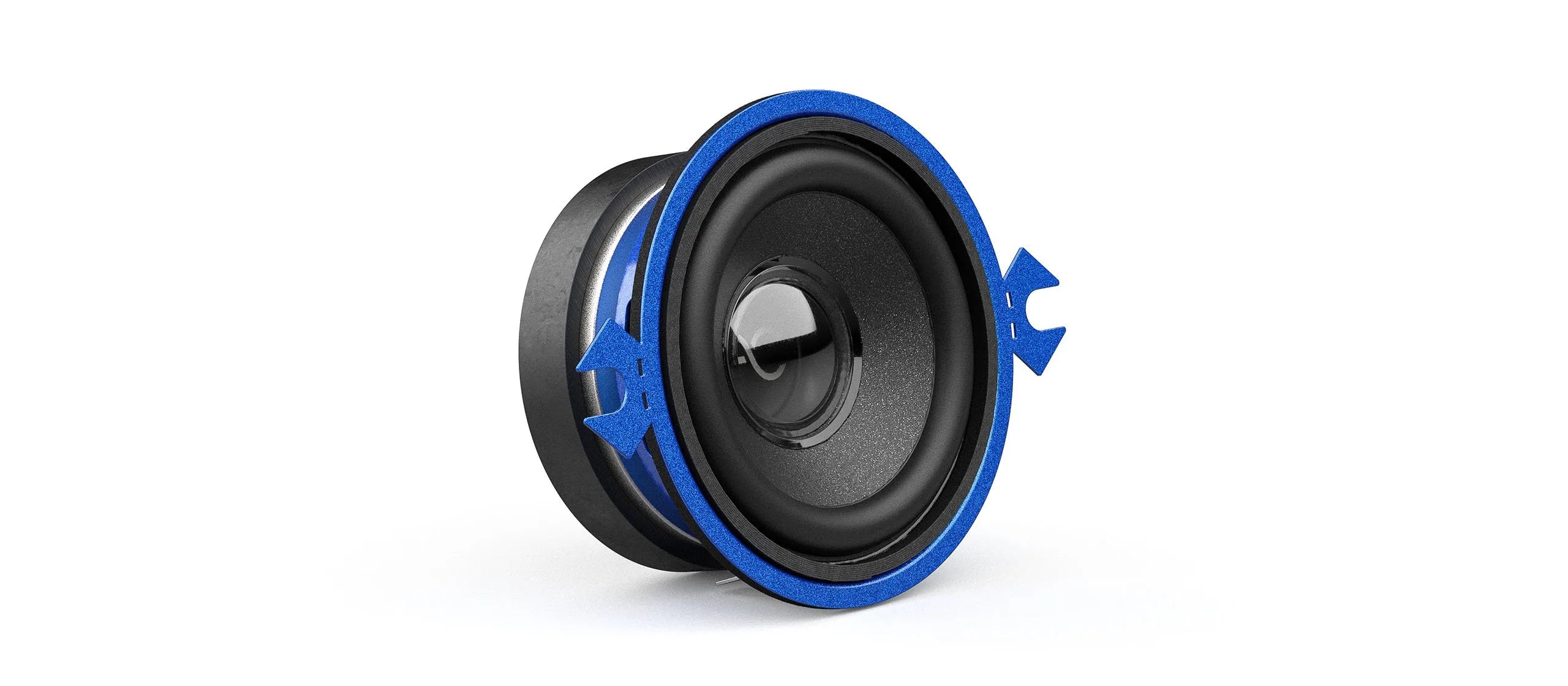

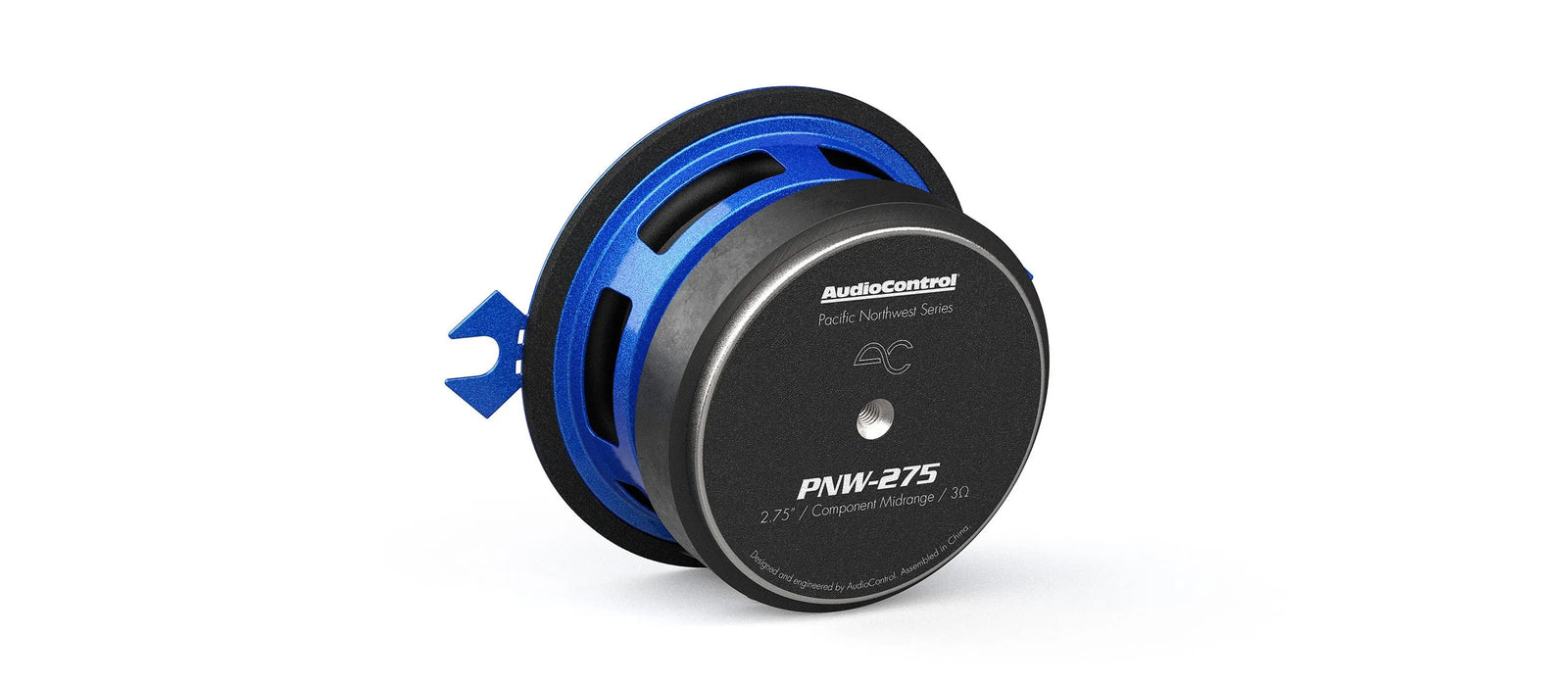

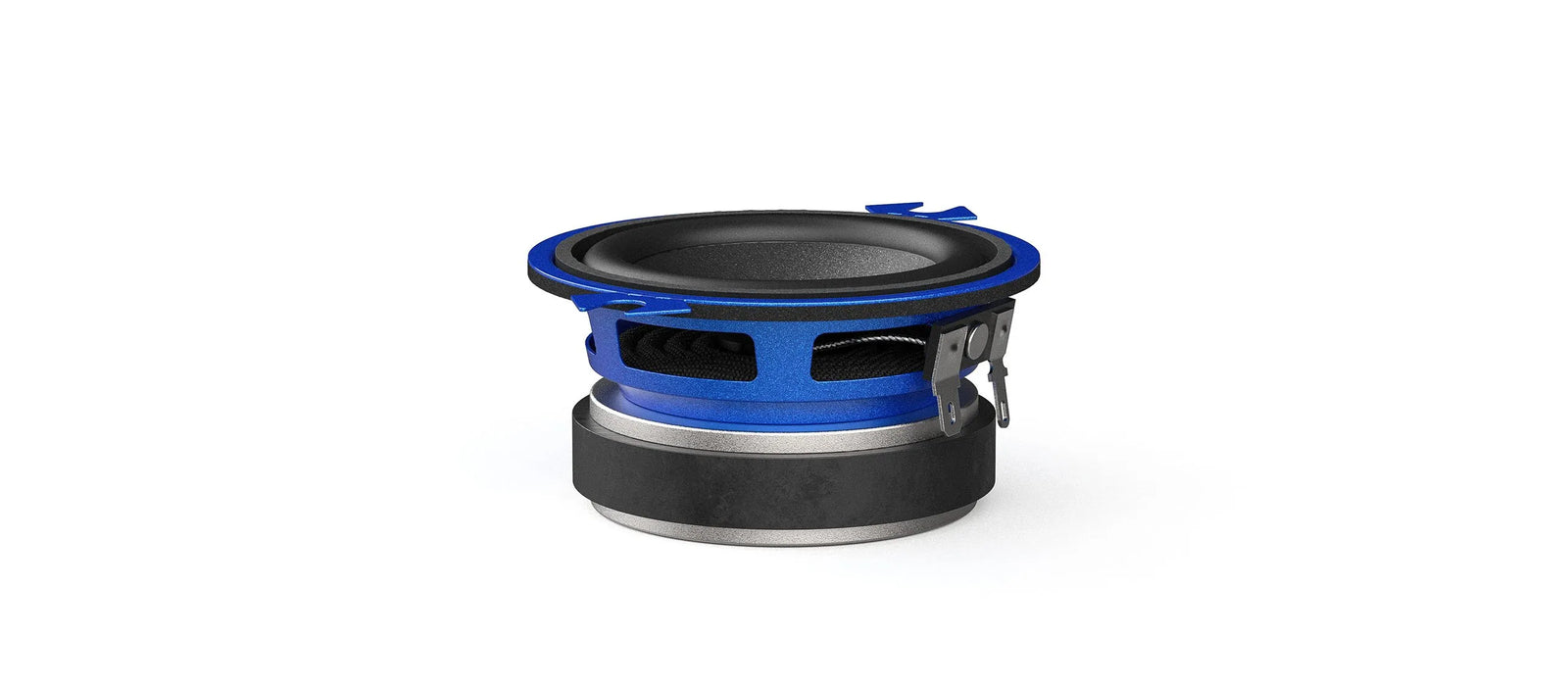

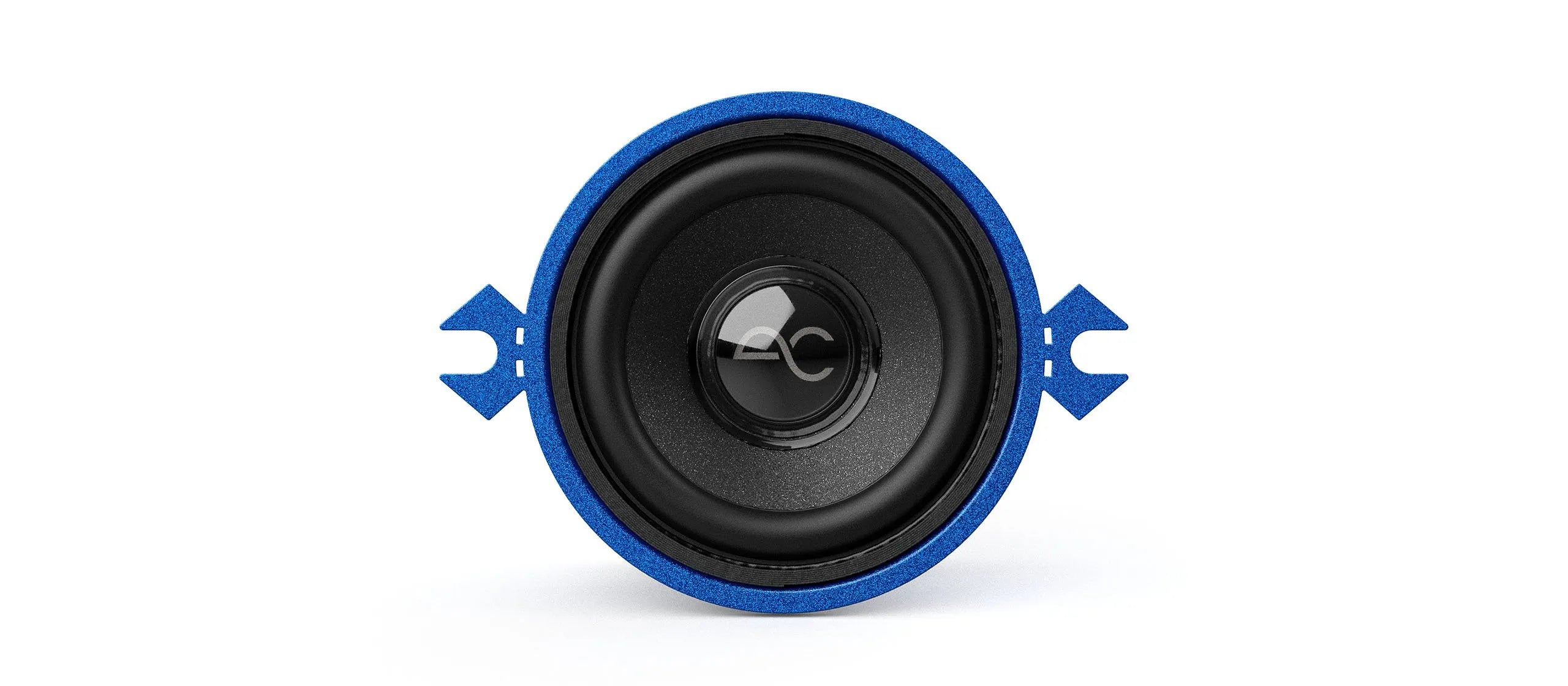

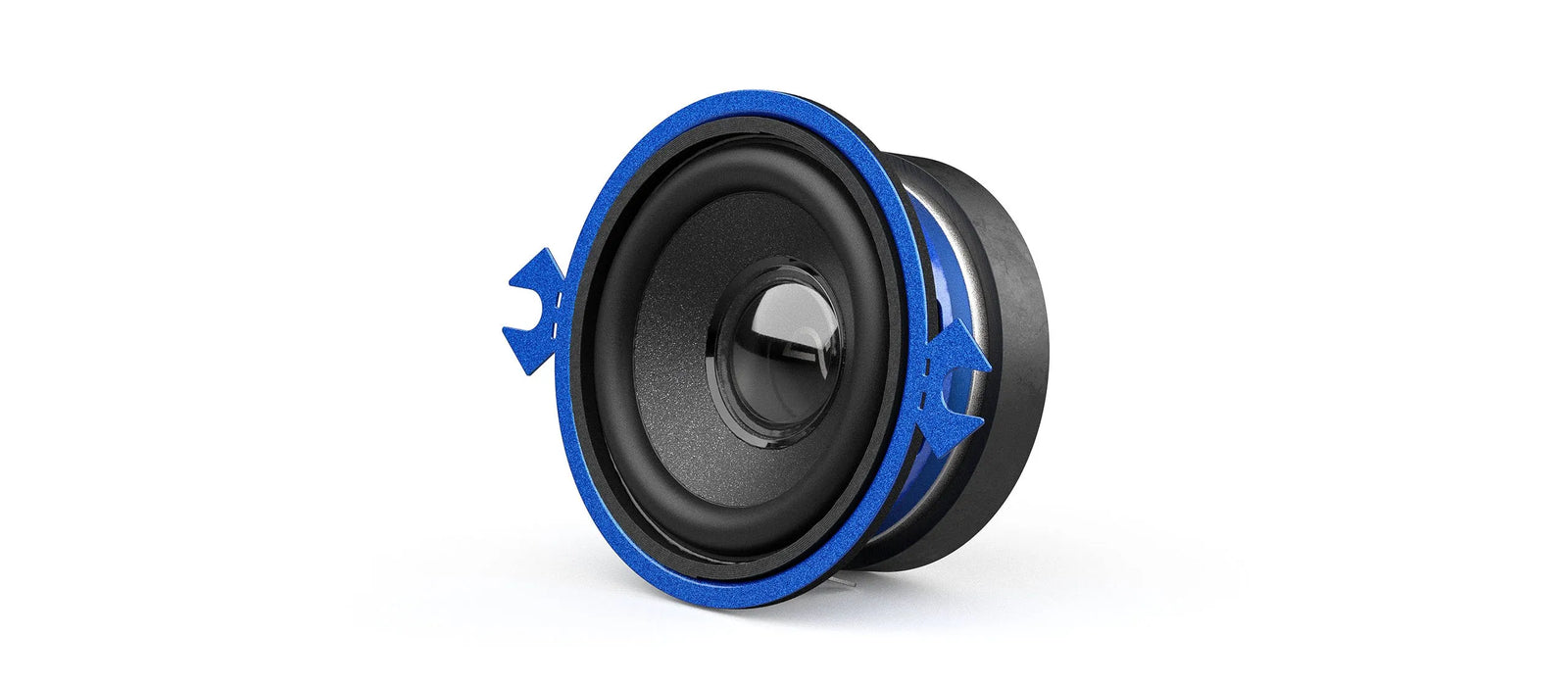

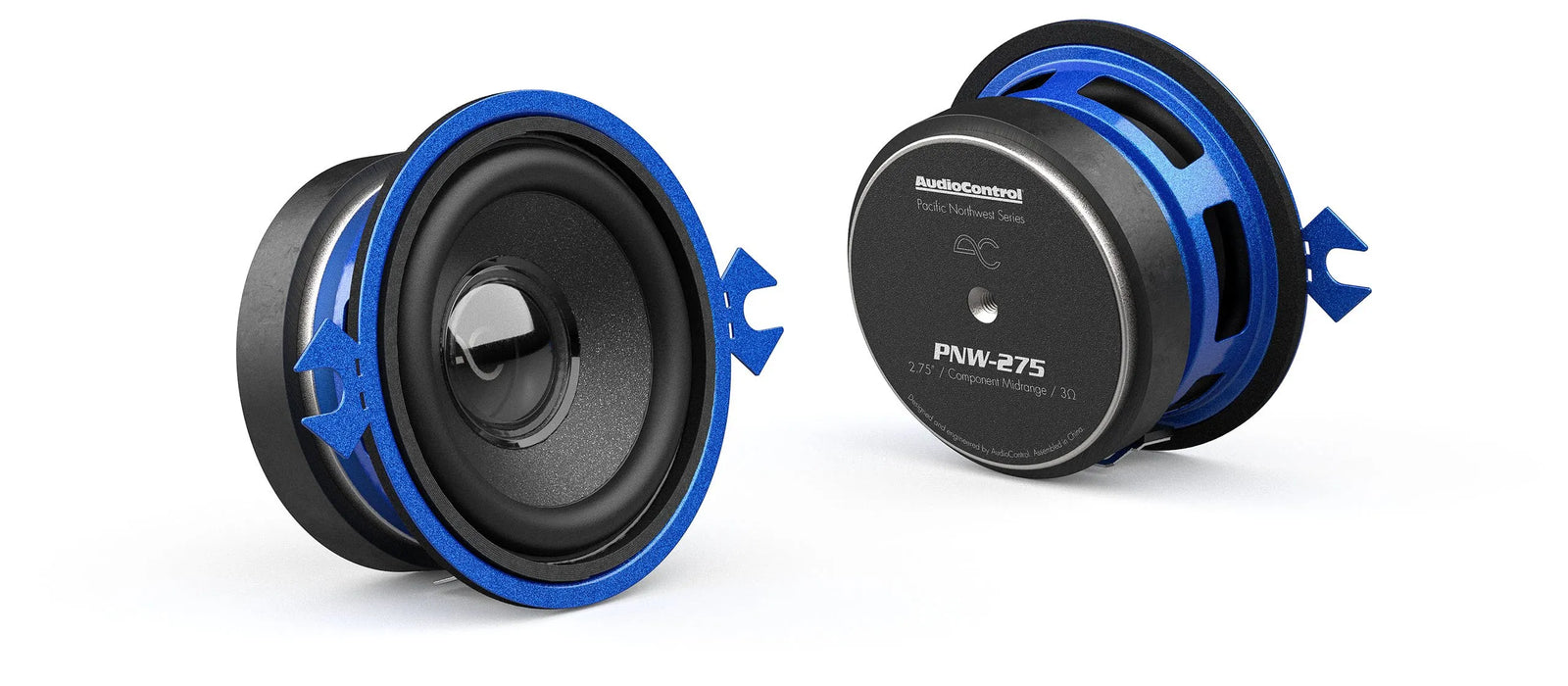

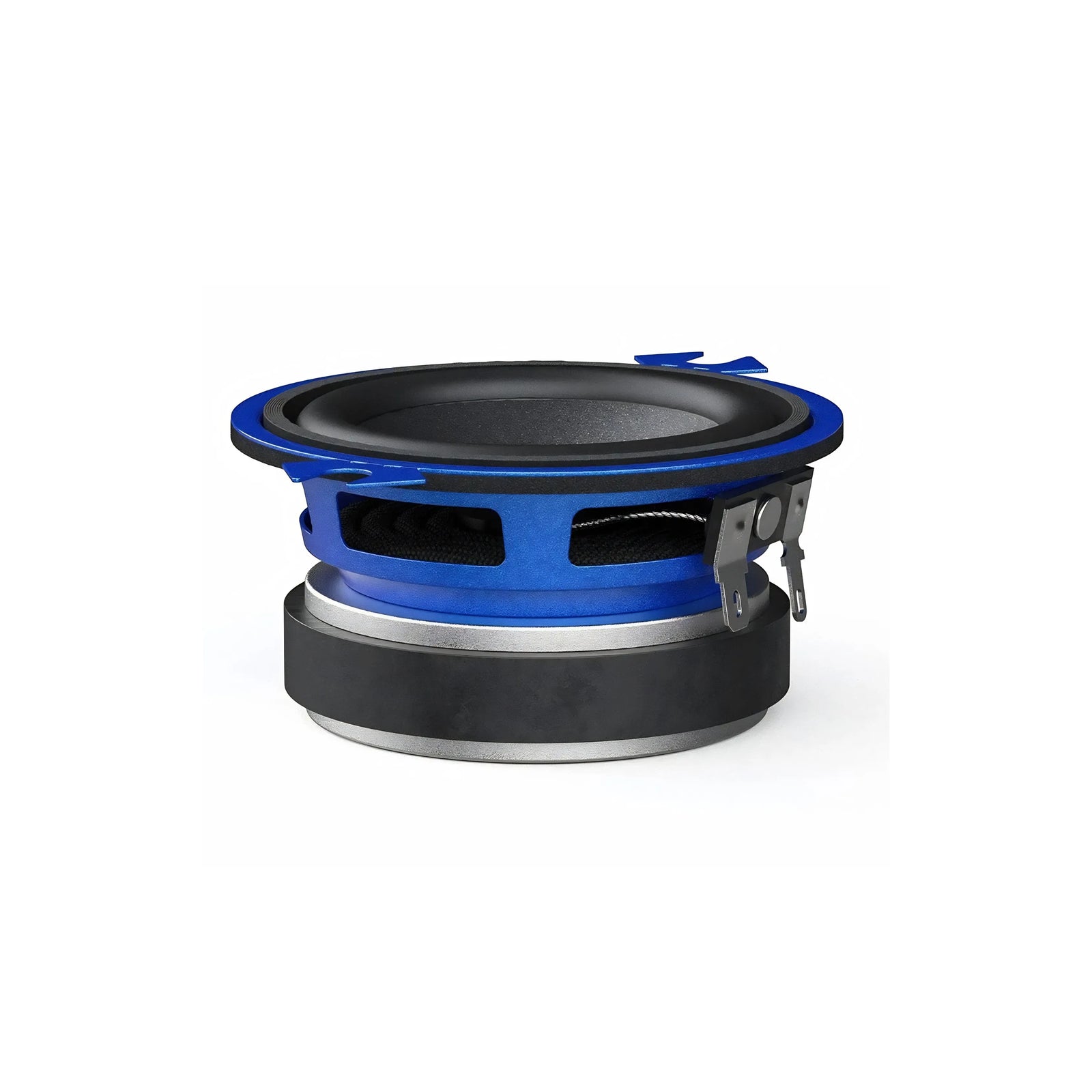

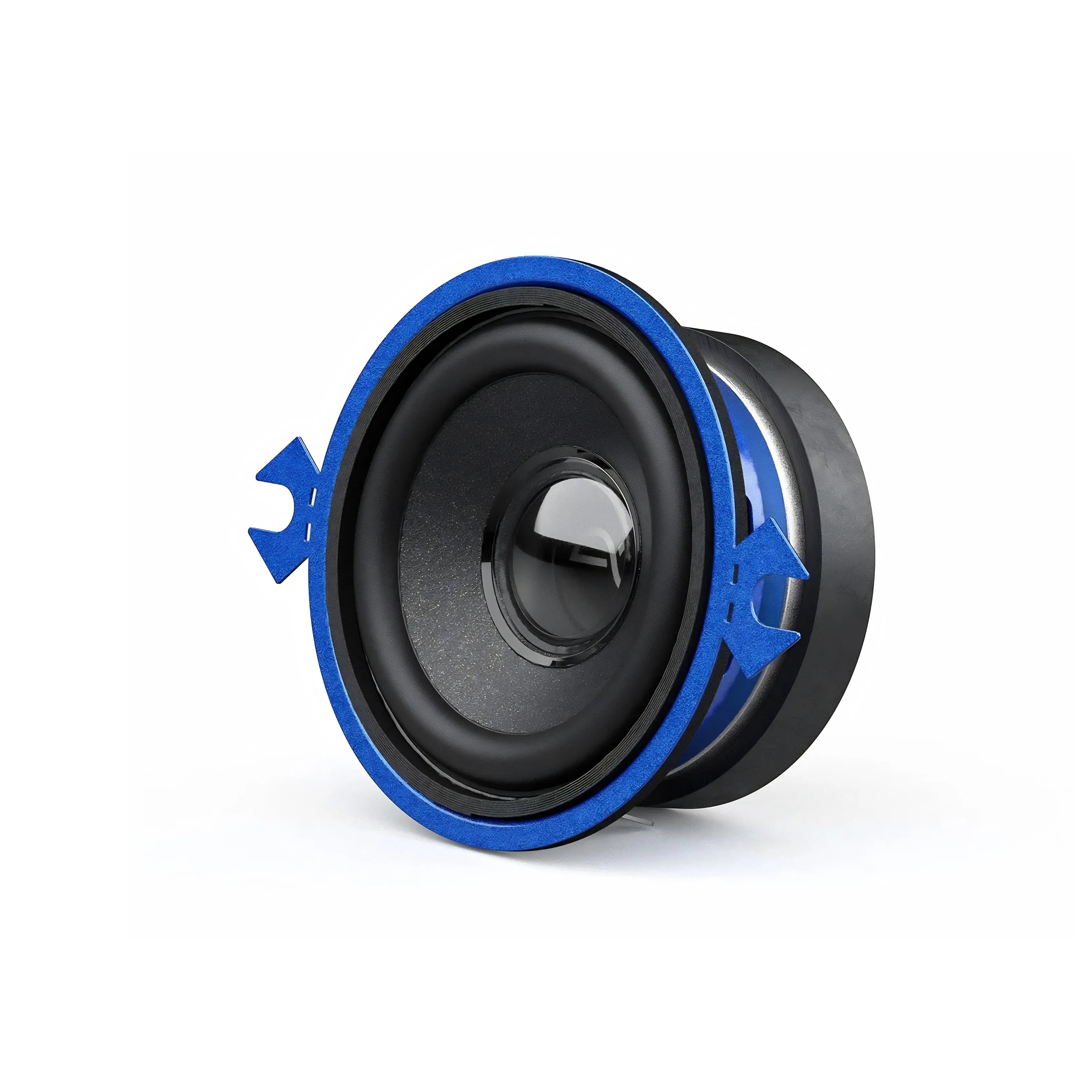

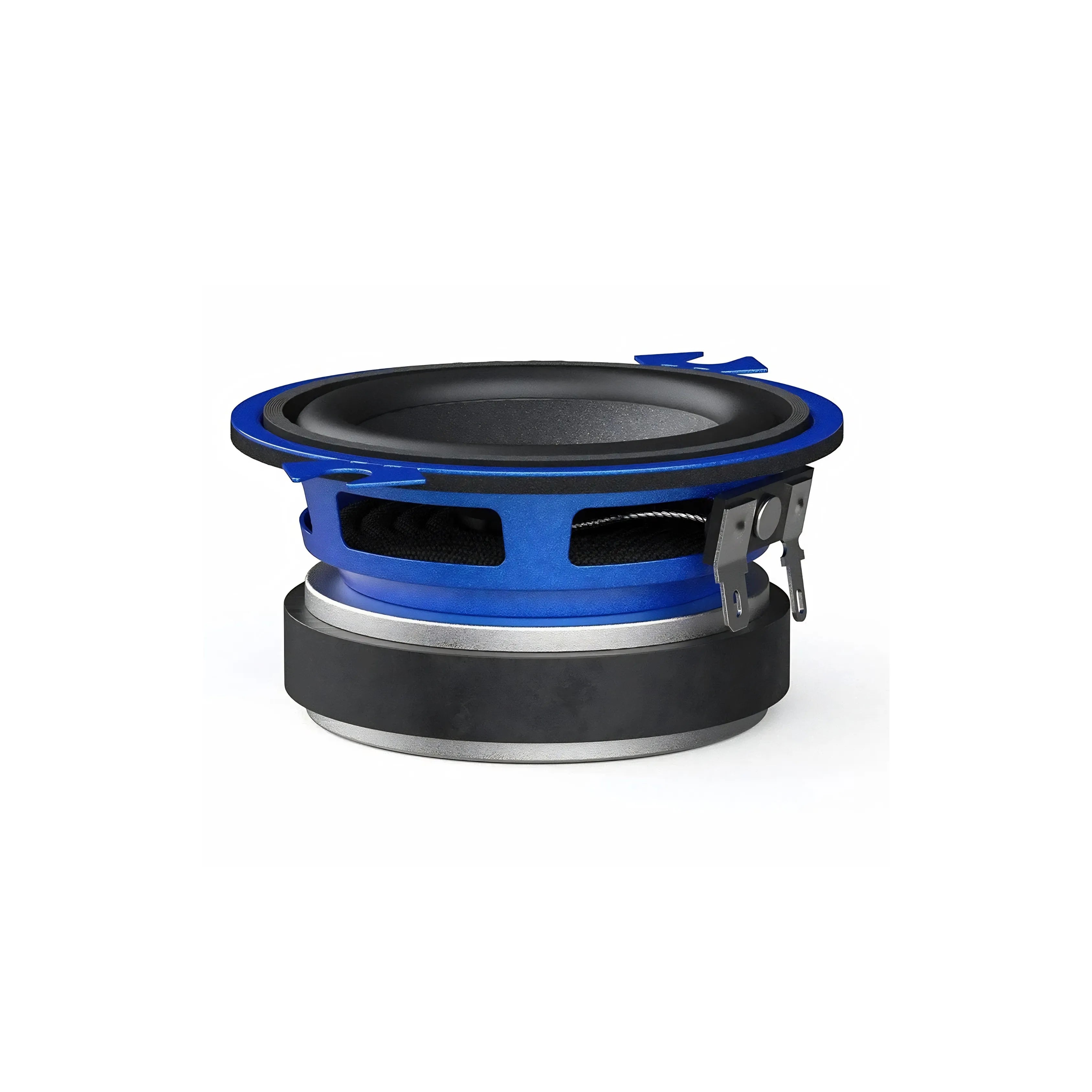

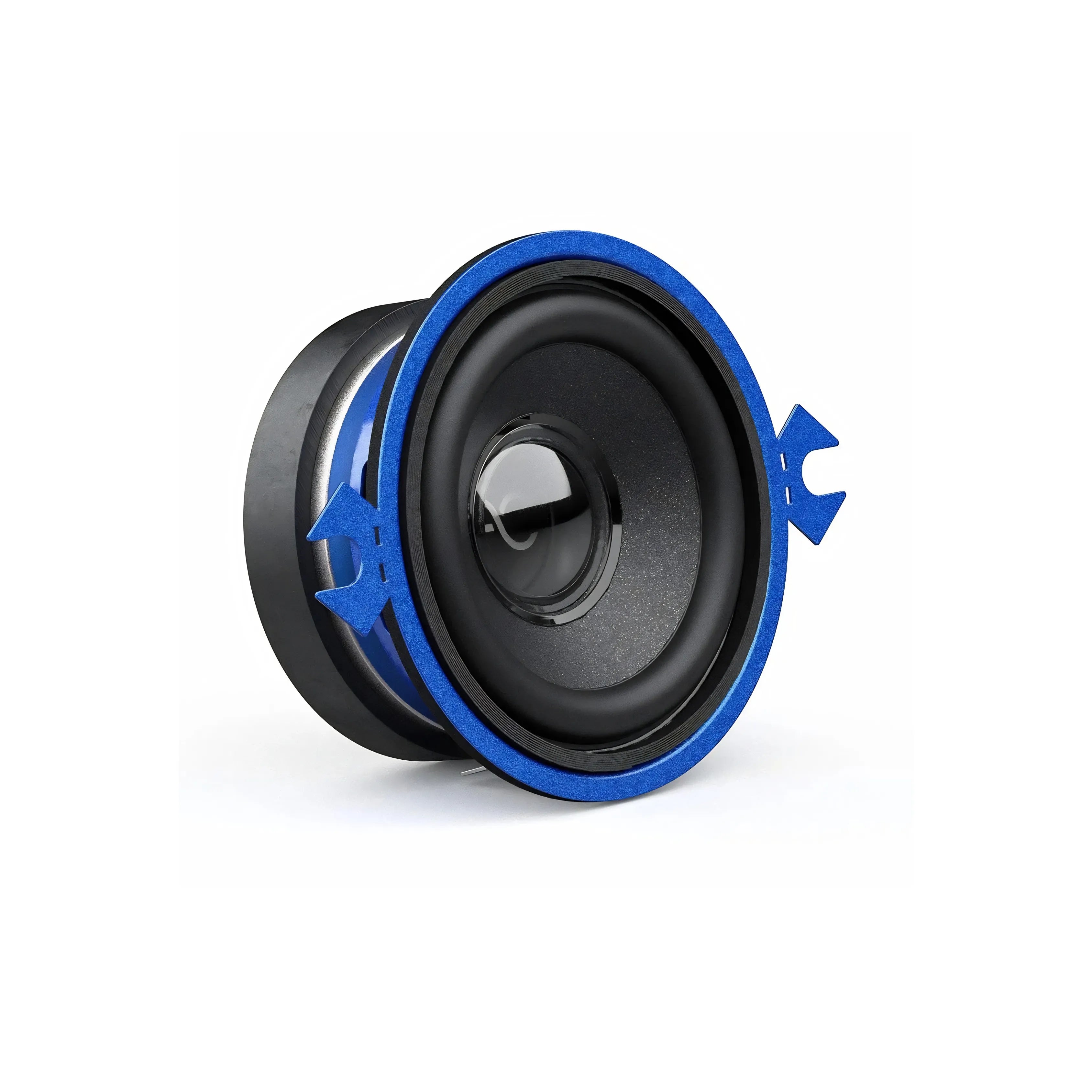

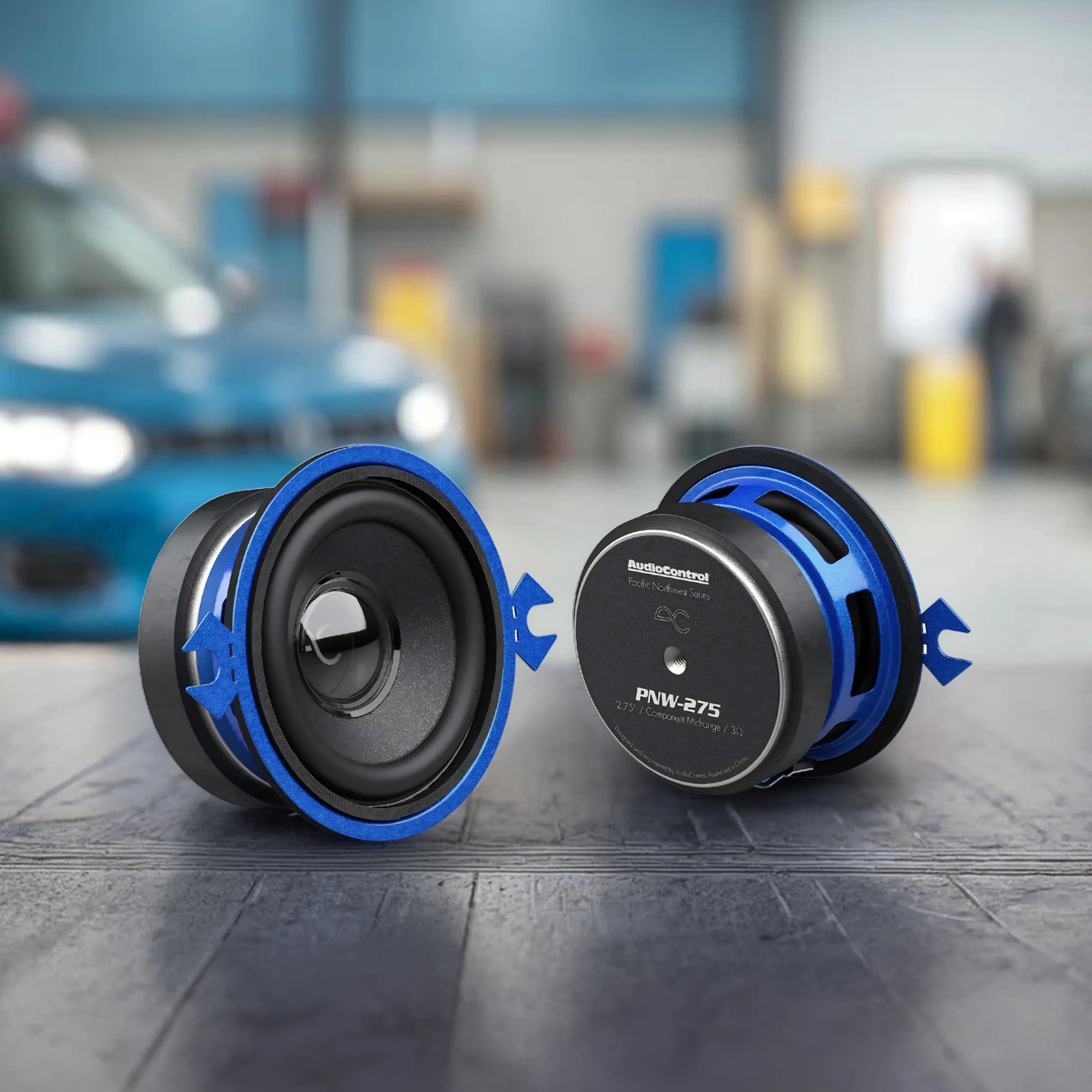

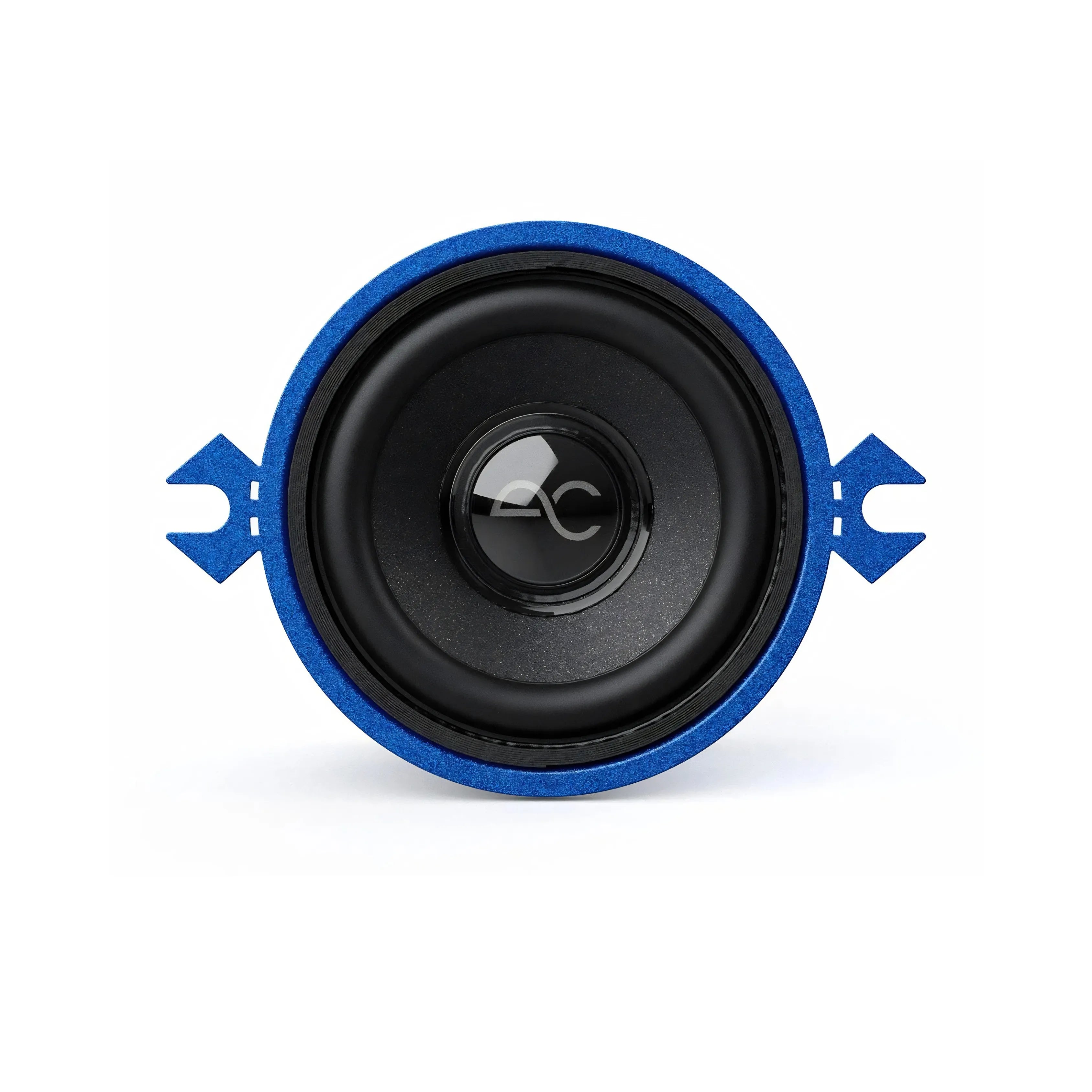

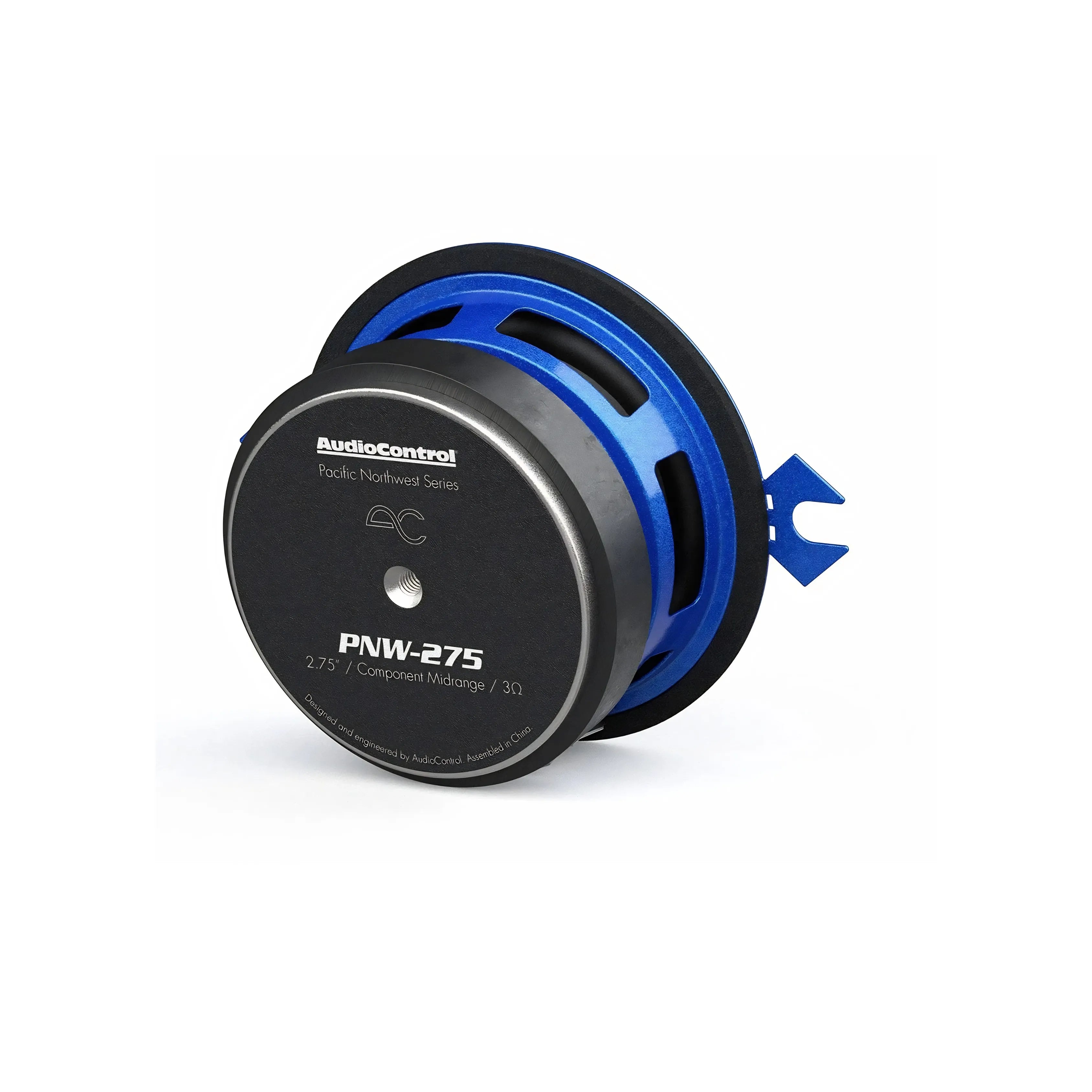

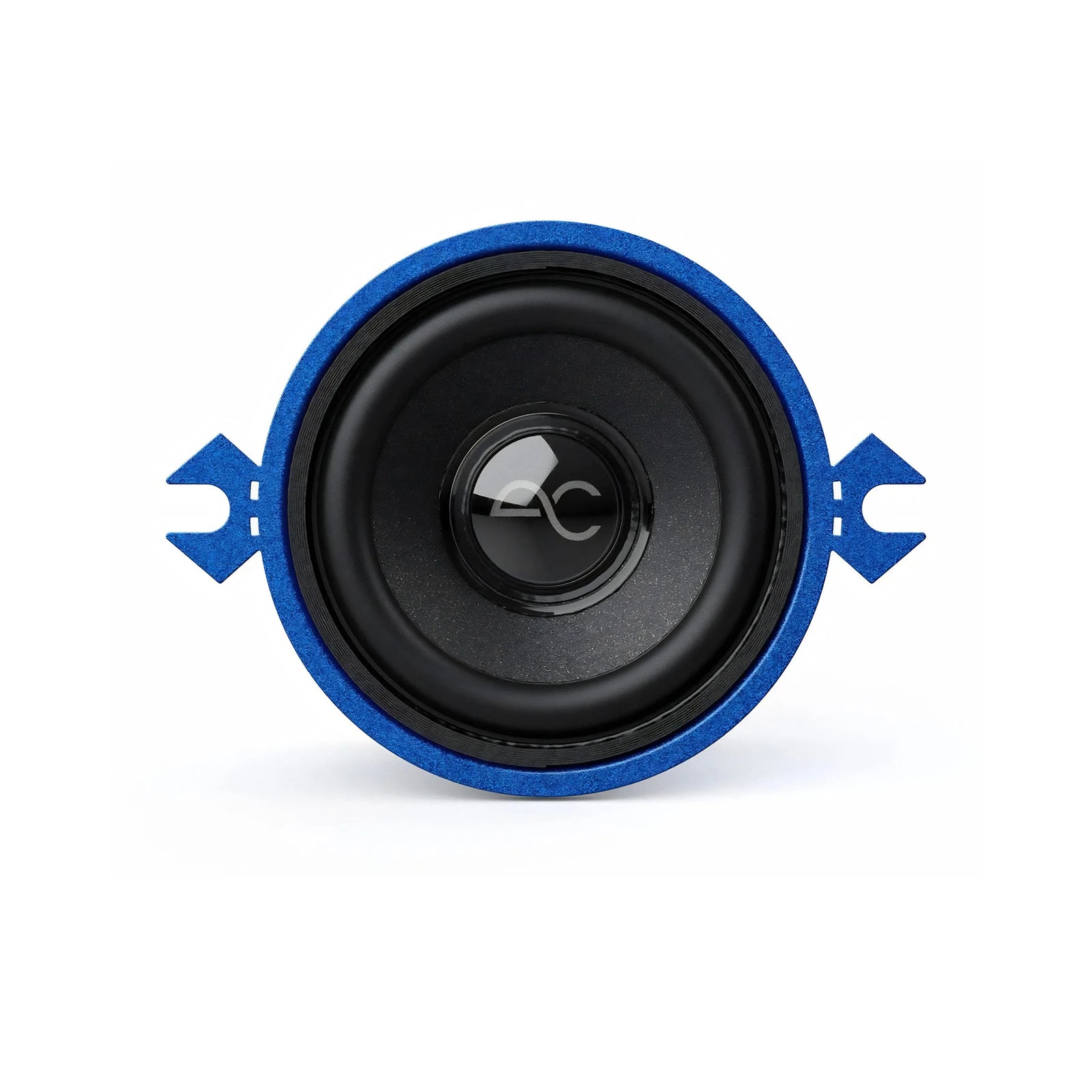

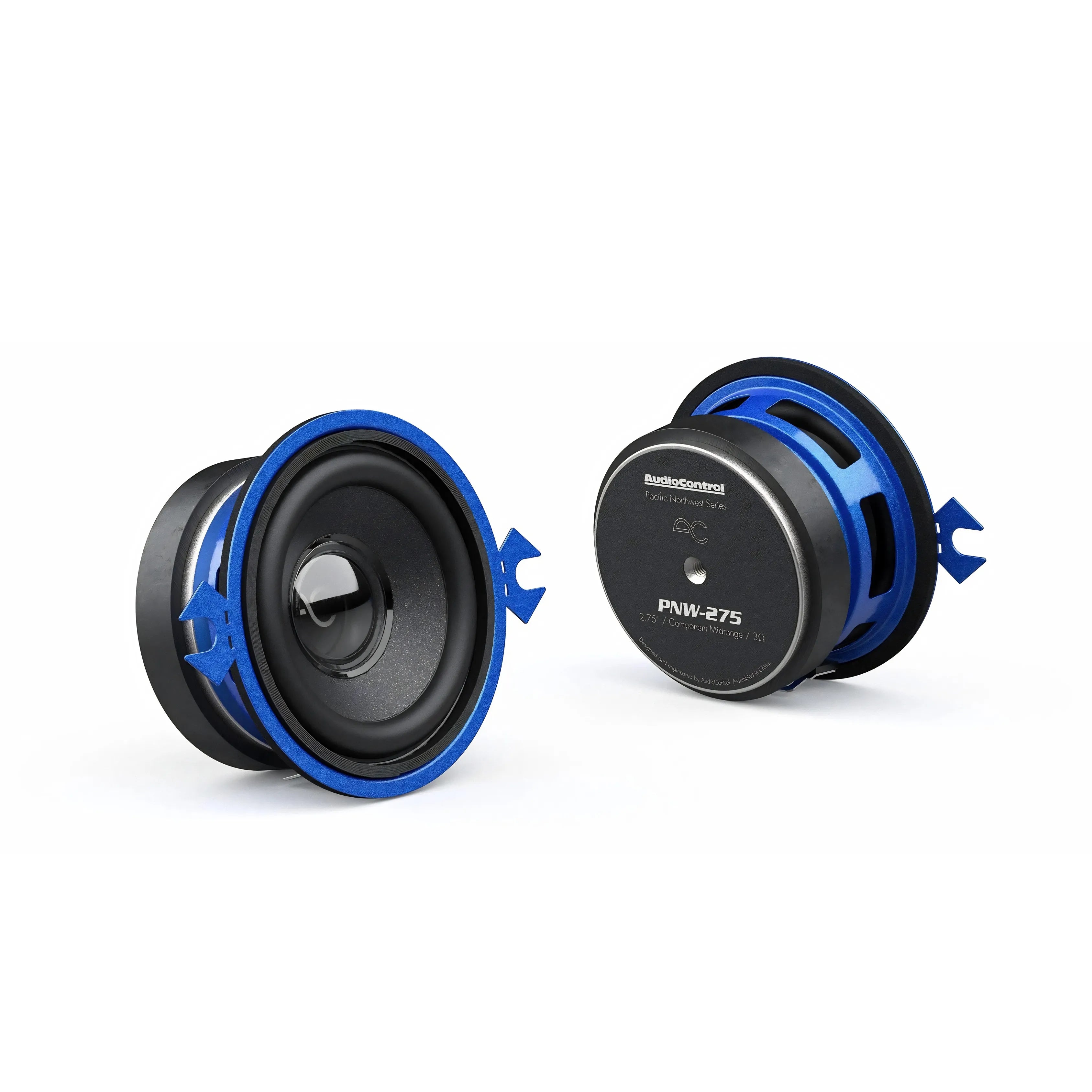

Professional 2.75-inch component midrange speaker with edge-enhanced steel frame, rigid poly mica-coated cone, and linear double-roll surround for optimized sound reproduction in dedicated midrange applications

Product Overview

The AudioControl PNW-275 delivers precision midrange performance through expertly engineered 2.75-inch component speaker designed specifically for dedicated midrange applications in high-quality audio systems. This professional midrange speaker features edge-enhanced steel frame for ultimate structural strength, rigid poly mica-coated cone for optimized sound reproduction, and black anodized voice coil former for superior heat dissipation, providing 200-4kHz frequency range with 25W RMS power handling and complex FEA-designed high-efficiency motor construction that ensures detailed, clear midrange reproduction when paired with AudioControl's legendary amplifiers and PNW series components.

What Makes This Speaker Special

• Advanced Midrange Construction – Features edge-enhanced steel frame for ultimate structural strength combined with rigid poly mica-coated cone that optimizes sound reproduction in the critical midrange frequencies (200-4kHz) for exceptional vocal clarity and instrumental detail
• Superior Heat Management Design – Black anodized voice coil former provides superior heat dissipation while the 20mm voice coil diameter and complex FEA-designed high-efficiency motor ensure consistent performance under demanding conditions with minimal thermal compression
• Precision Engineering Components – Linear double-roll surround enables precision cone movement for accurate frequency response, while the Butterworth crossover design with -6dB slope at 250Hz provides seamless integration with other system components
• Professional Installation Ready – Includes high-quality mounting hardware with compact dimensions (2.63" cutout, 1.37" mounting depth) for versatile installation options in vehicles requiring dedicated midrange performance enhancement

Technical Specs

• Driver Size: 2.75 inches (overall diameter without bracket: 2.83"/72mm)
• Frequency Range: 200-4kHz bandpass, system response 100-20kHz
• Power Handling: 15-50 watts (25W RMS ideal)
• Voice Coil: 20mm diameter, 2.45 ohms DC resistance
• Crossover: Butterworth high-pass filter at 250Hz, -6dB/octave slope
• Frame Construction: Edge-enhanced steel frame for structural strength
• Cone Material: Rigid poly mica-coated cone for optimized sound reproduction
• Surround: Linear double-roll design for precision cone movement
• Voice Coil Former: Black anodized for superior heat dissipation
• Motor Design: Complex FEA-designed high-efficiency motor
• Cutout Diameter: 2.63"/67mm
• Mounting Depth: 1.37"/35mm
• Overall Dimensions: 3.74"/95mm diameter

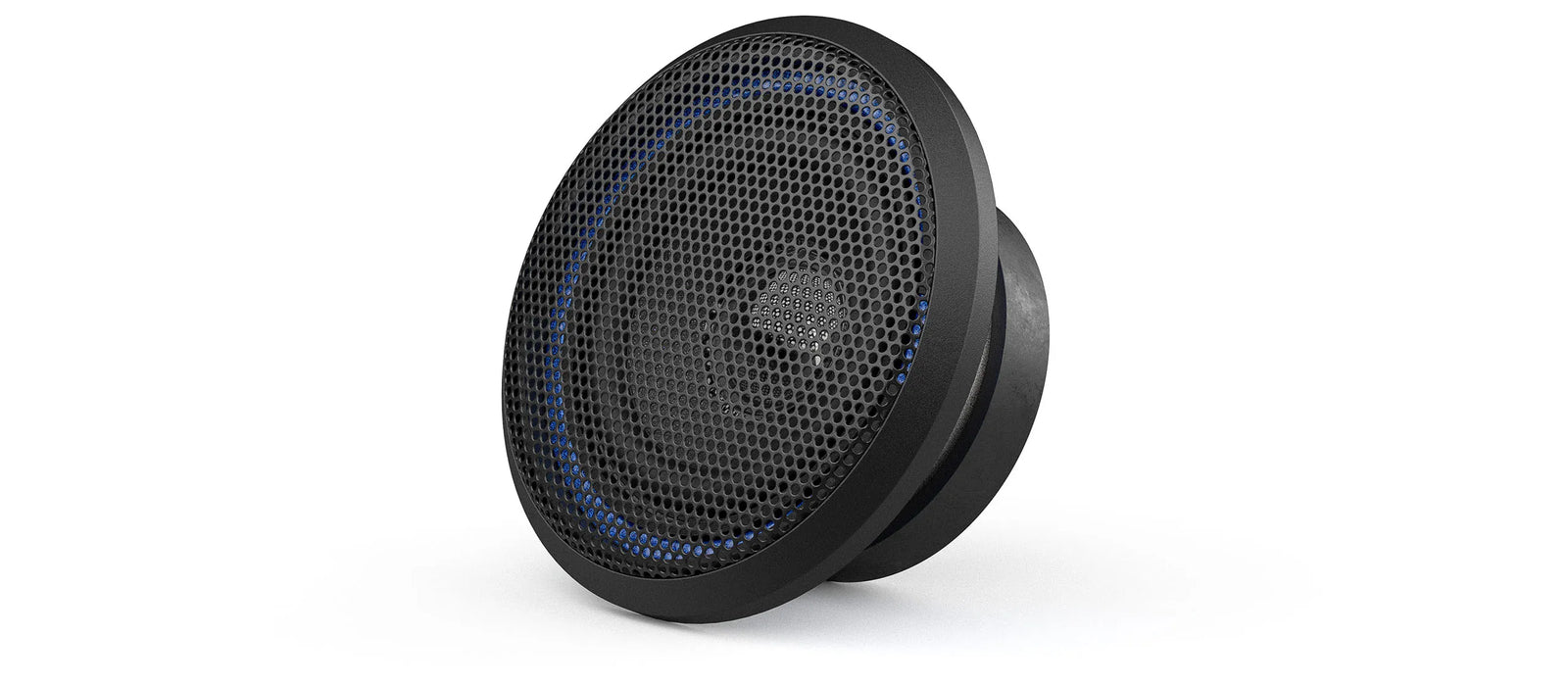

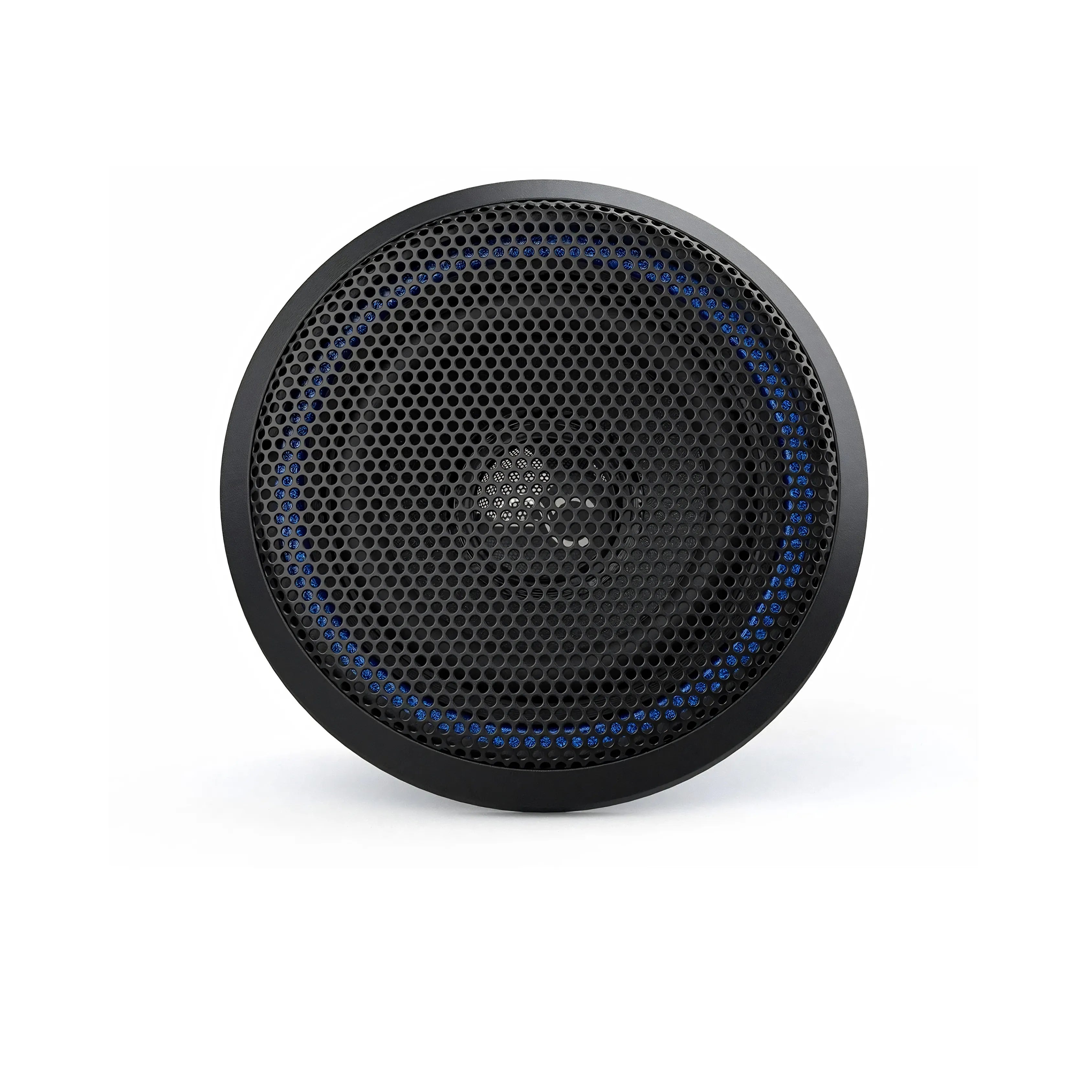

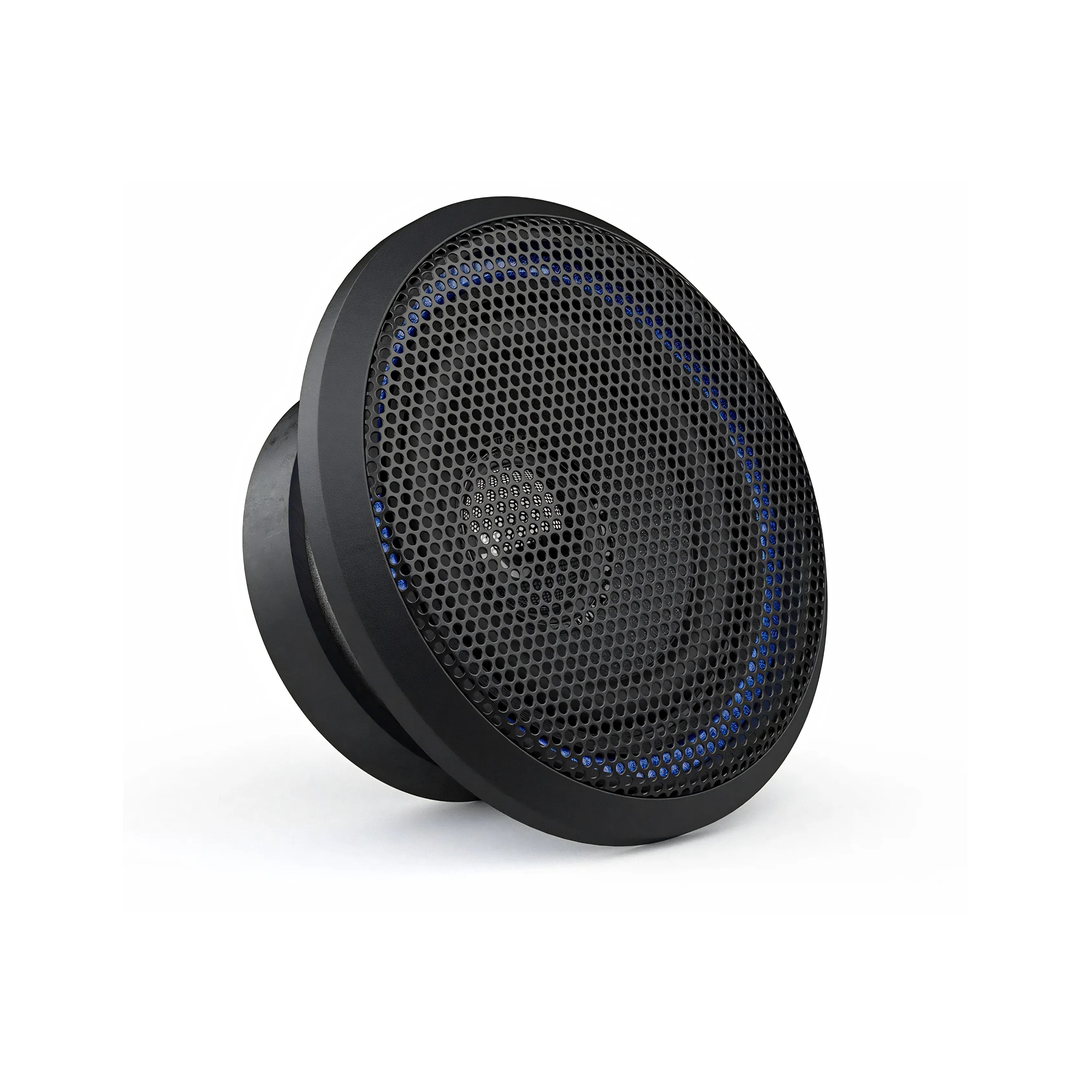

• Grille Diameter: 3.42"/87mm
• Mounting Hardware: High-quality hardware included

Frequently Asked Questions

What frequency range does this midrange speaker cover?

The PNW-275 operates in the 200-4kHz bandpass range with a system frequency response of 100-20kHz, providing excellent coverage of critical midrange frequencies including vocals and most instrumental content.

What power amplifier do I need for optimal performance?

The speaker handles 15-50 watts with 25W RMS being the ideal power level. It pairs perfectly with AudioControl amplifiers designed for component system applications.

Can this be used as a standalone speaker?

No, this is a dedicated midrange component designed to work as part of a multi-way component system, typically paired with tweeters and woofers or subwoofers for complete frequency coverage.

What size opening do I need to install this speaker?

The cutout diameter is 2.63"/67mm with a mounting depth of 1.37"/35mm, making it suitable for locations where space is limited but dedicated midrange performance is required.

How does this integrate with other PNW series components?

The PNW-275 is designed to work seamlessly with other PNW series speakers and pairs excellently with AudioControl Spike or Space series subwoofers for complete system integration.

What makes the poly mica cone construction special?

The rigid poly mica-coated cone provides excellent damping characteristics and optimal sound reproduction in the midrange frequencies, reducing unwanted resonances while maintaining clarity and detail.

How It Works

Professional Component Integration System – Install the PNW-275 in a dedicated midrange location using the included mounting hardware. Connect to an amplifier capable of 15-50 watts with appropriate crossover settings. The Butterworth high-pass filter at 250Hz integrates with system crossovers while the 200-4kHz bandpass range provides critical midrange reproduction. The FEA-designed motor and poly mica cone deliver precise sound reproduction for vocals and instrumental detail.

Compatible With / Goes Well With

System Integration: AudioControl PNW series component systems, multi-way speaker installations

Amplifier Compatibility: AudioControl amplifiers, component system amplifiers rated 15-50 watts

Subwoofer Pairing: AudioControl Spike or Space series subwoofers for complete frequency coverage

Professional Installation: Custom component system installations, high-end car audio systems, audiophile installations
