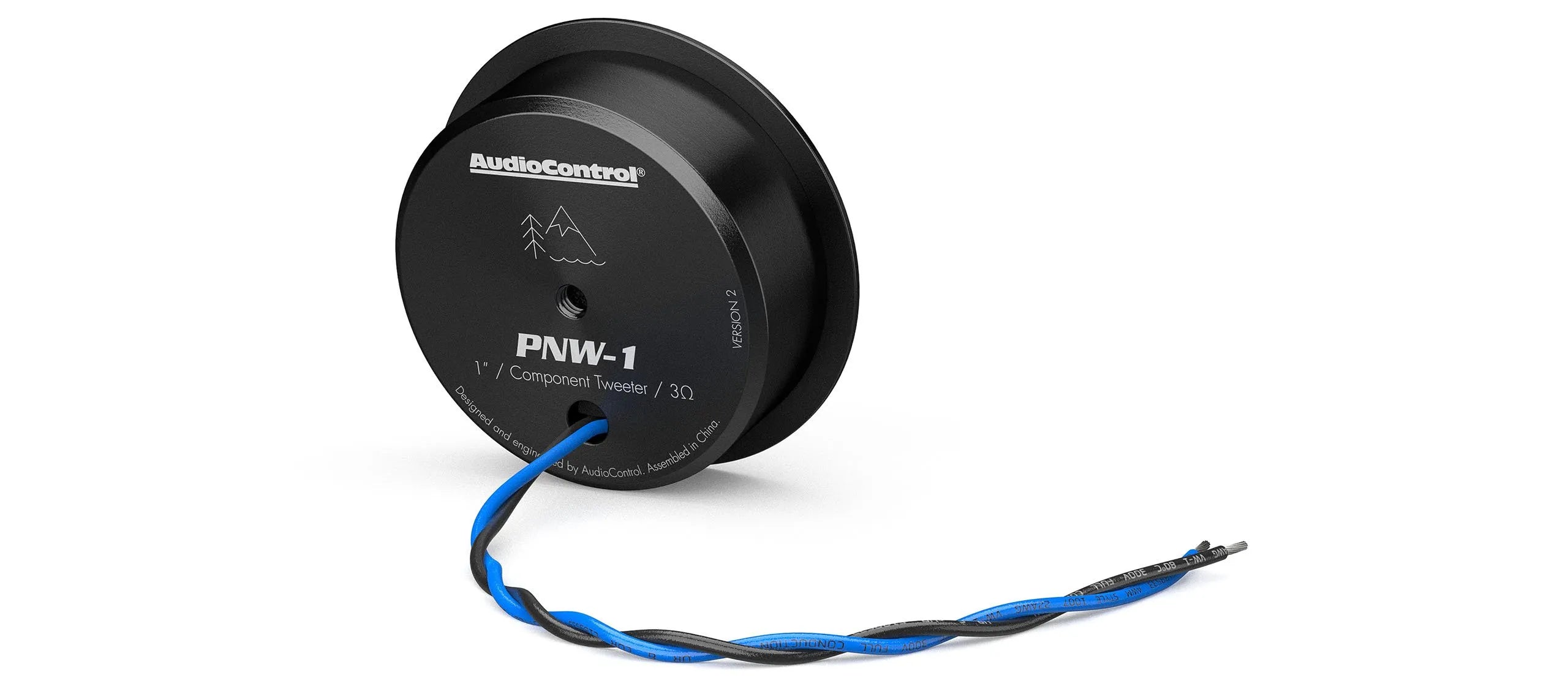

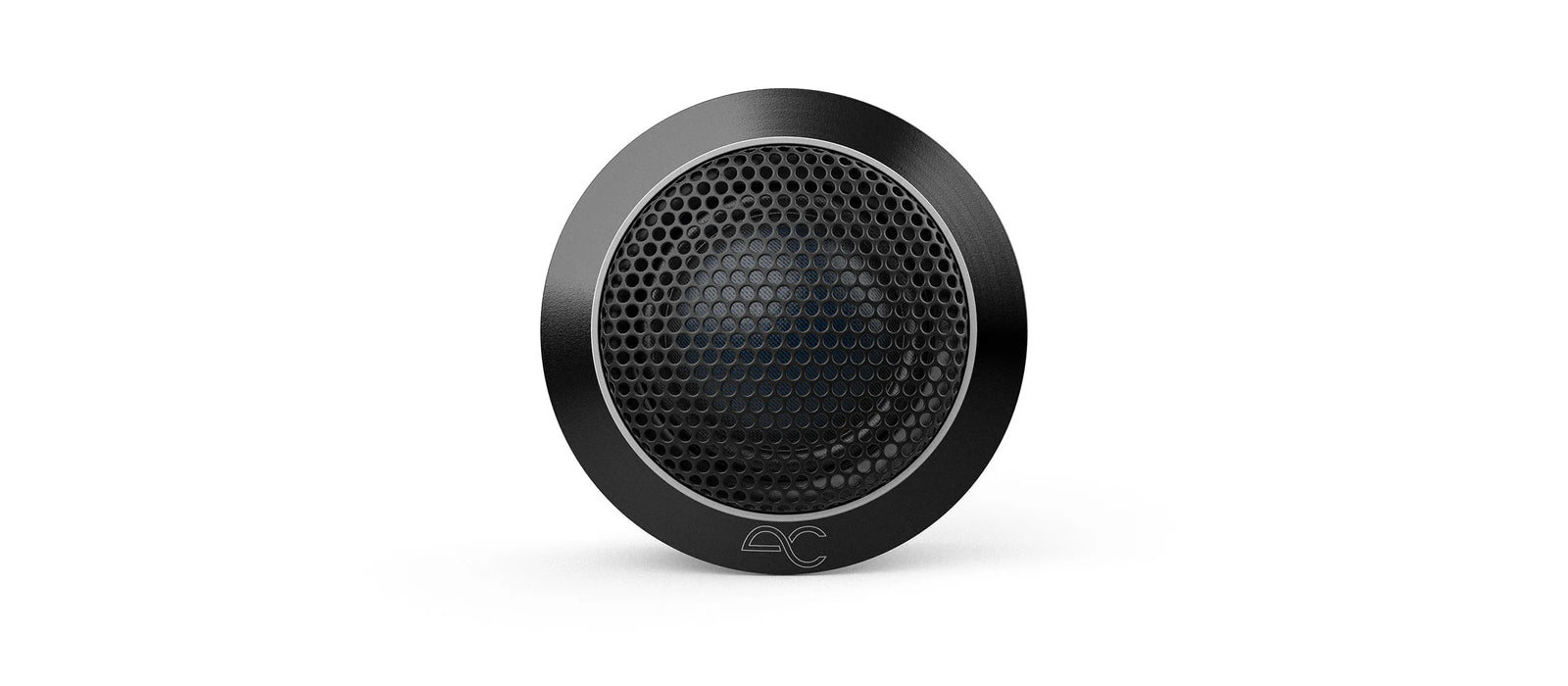

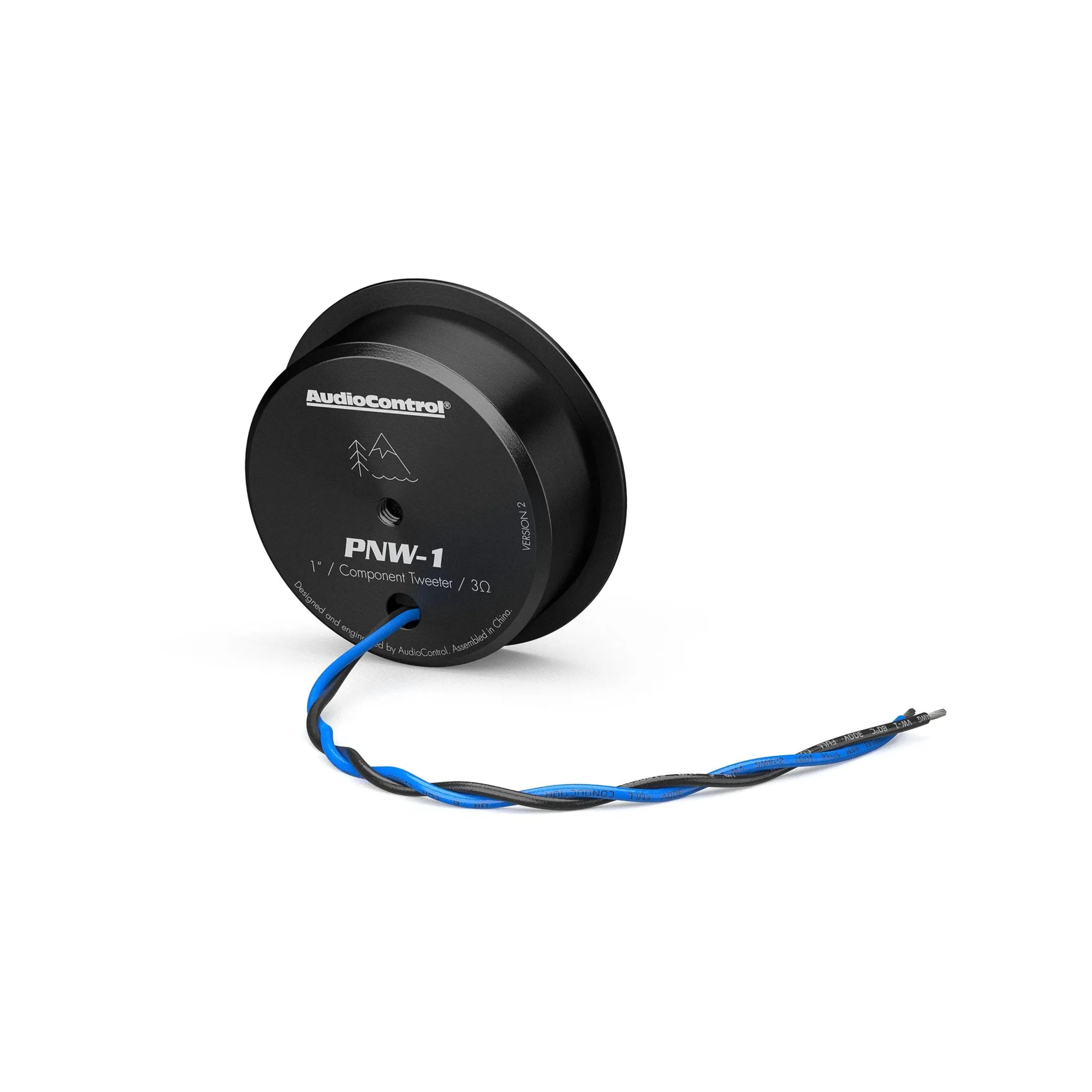

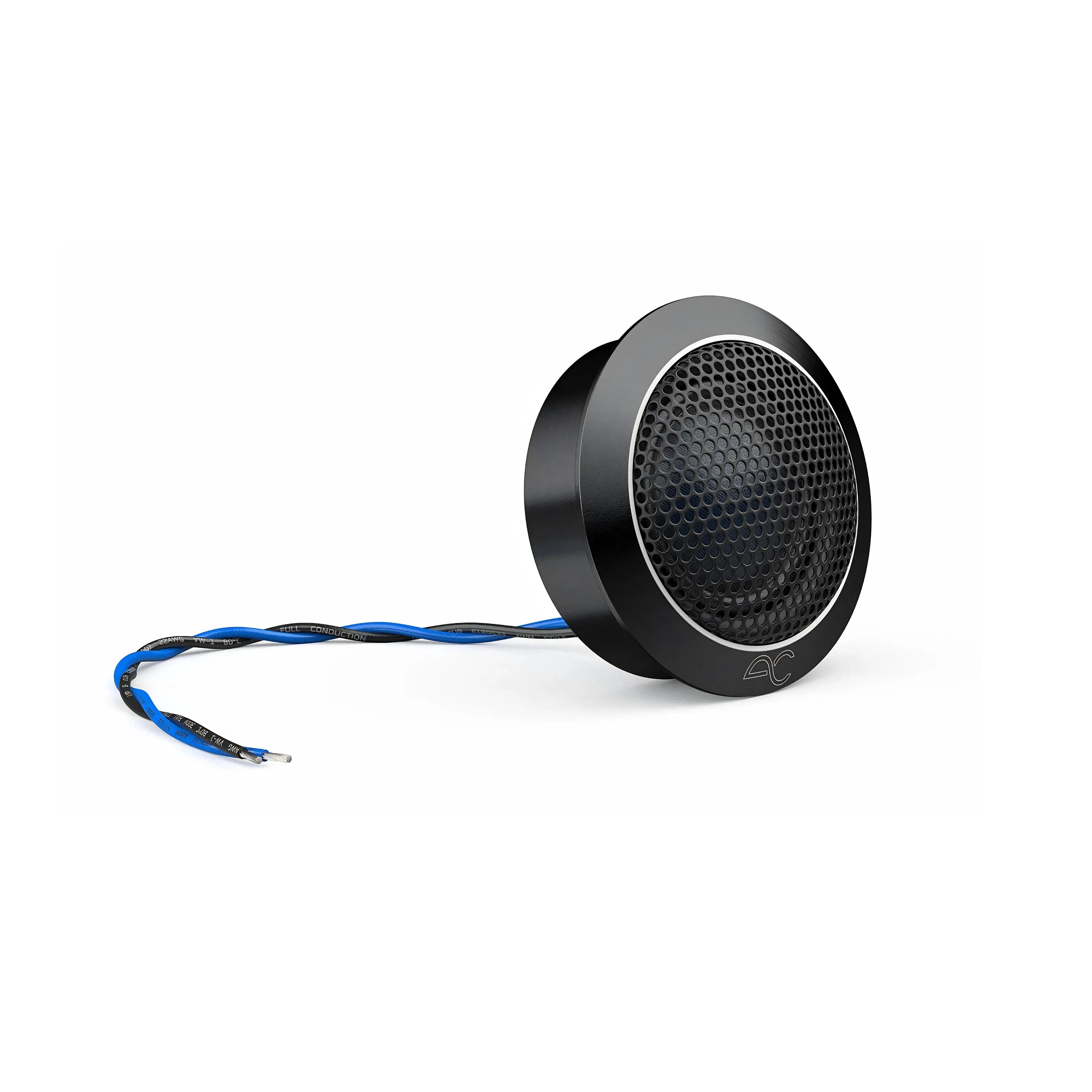

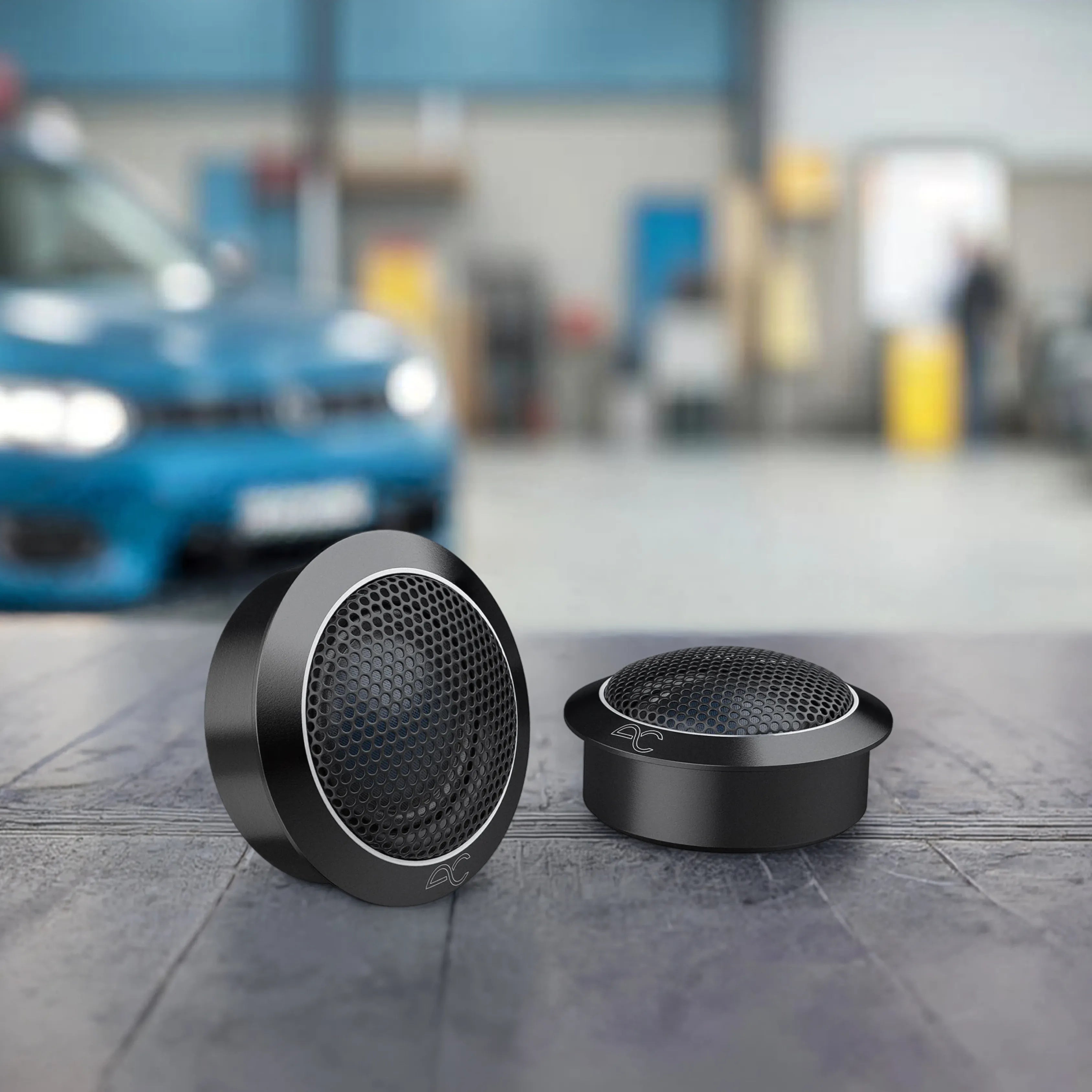

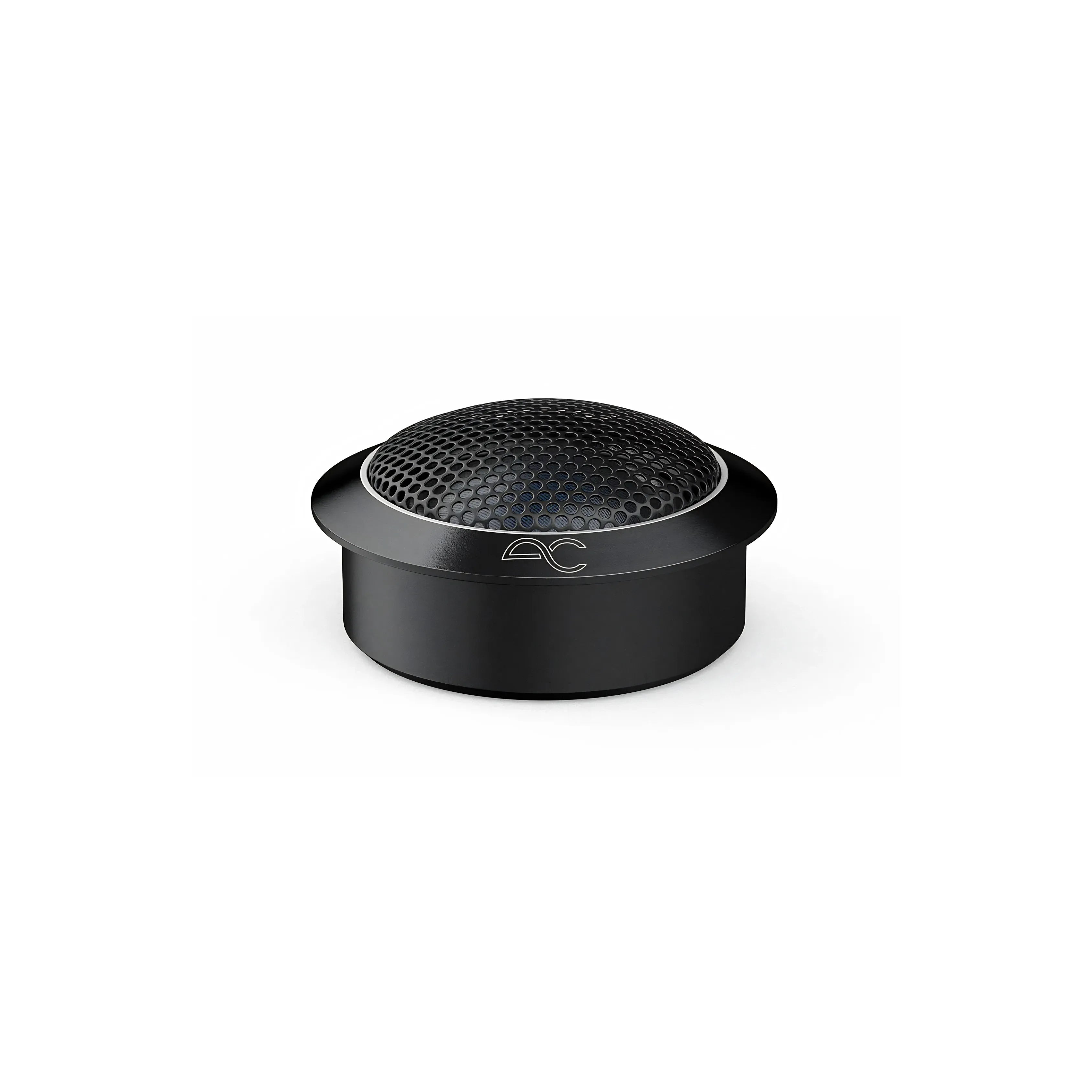

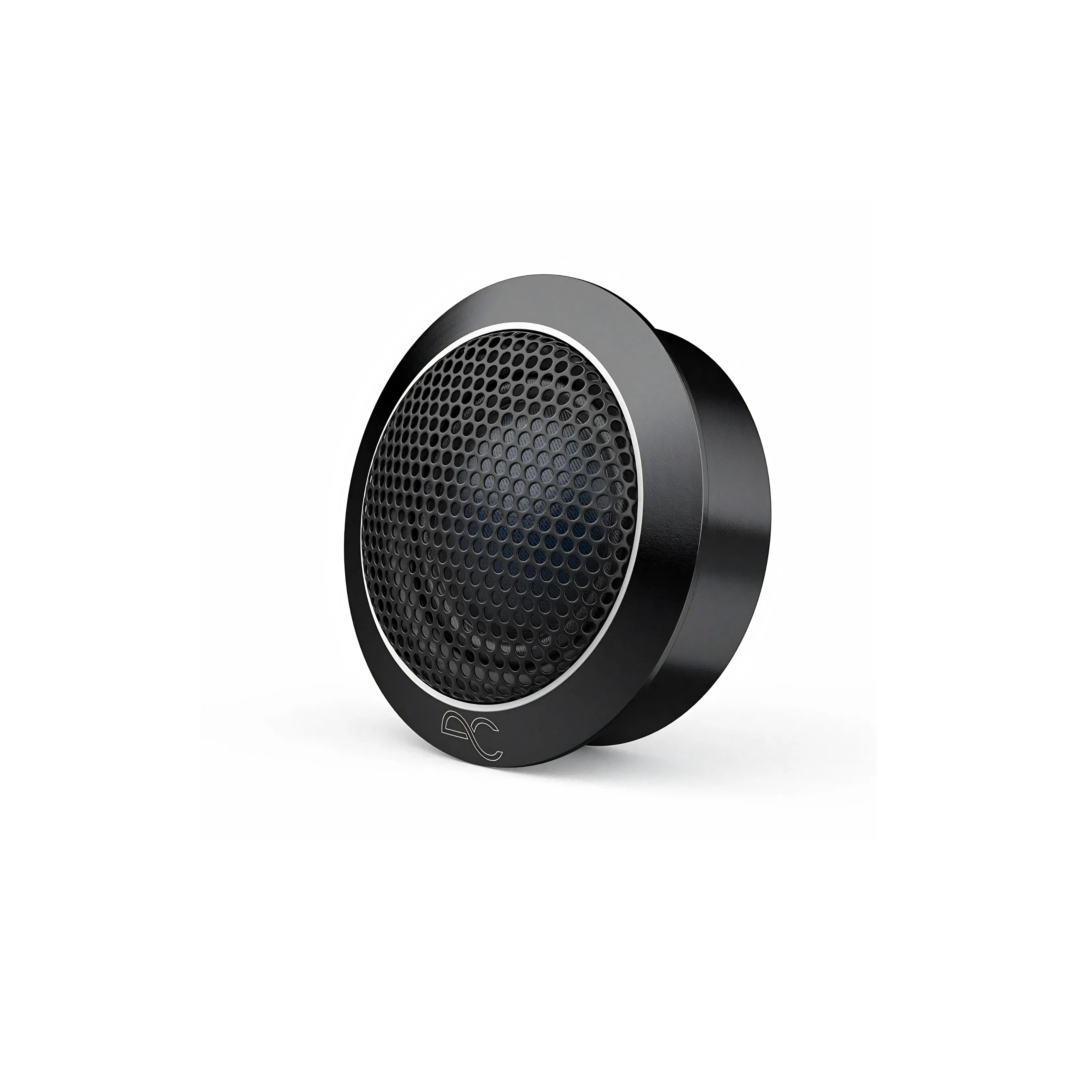

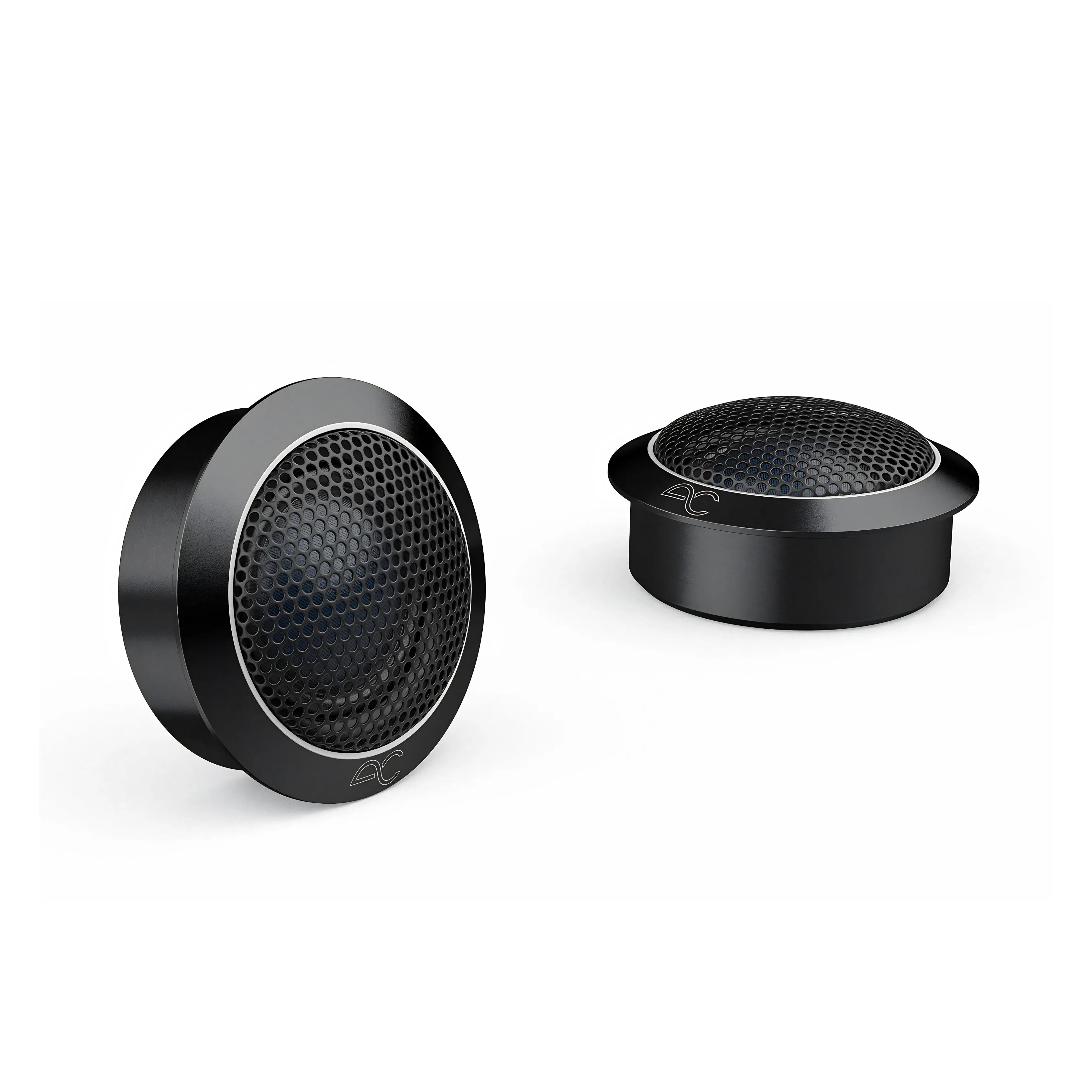

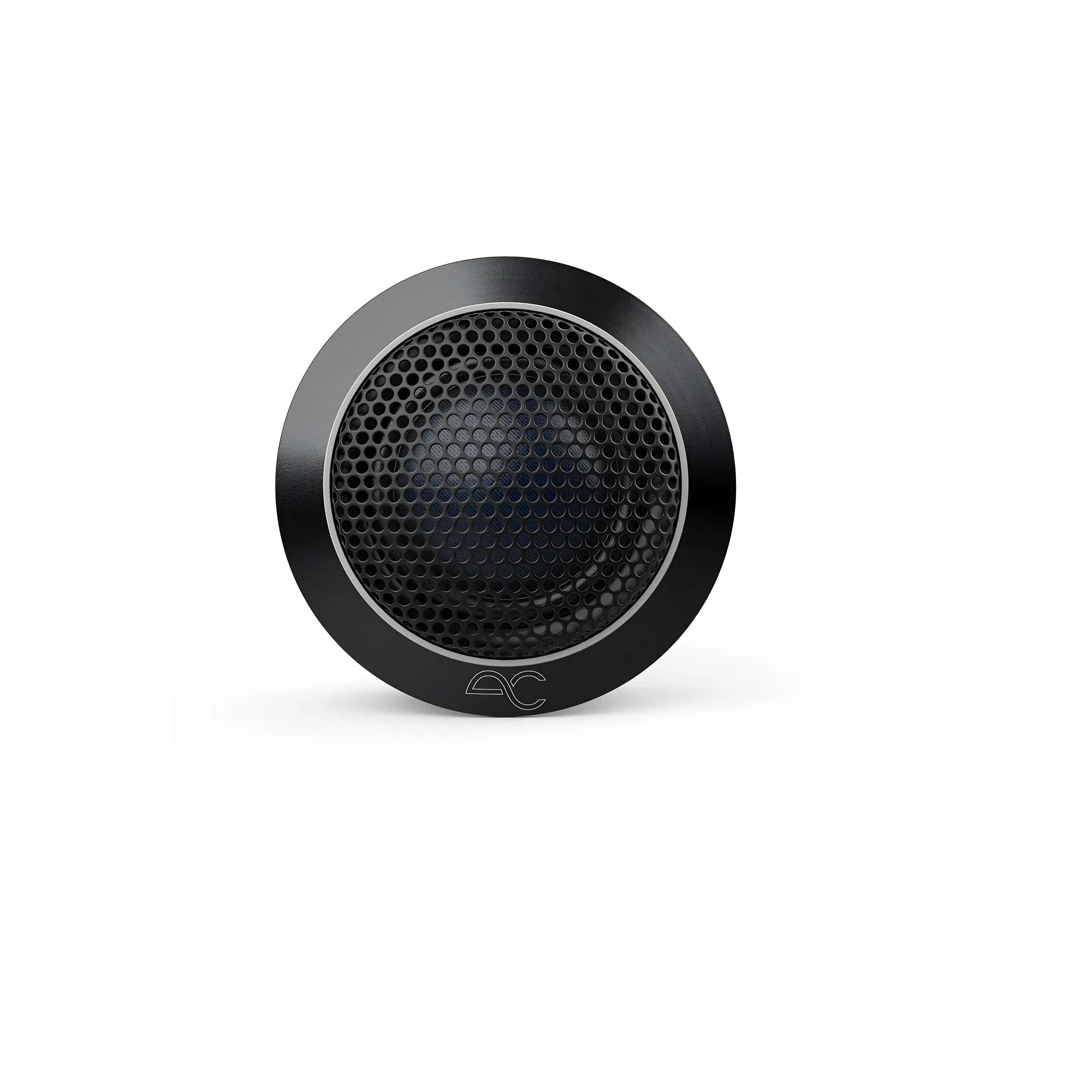

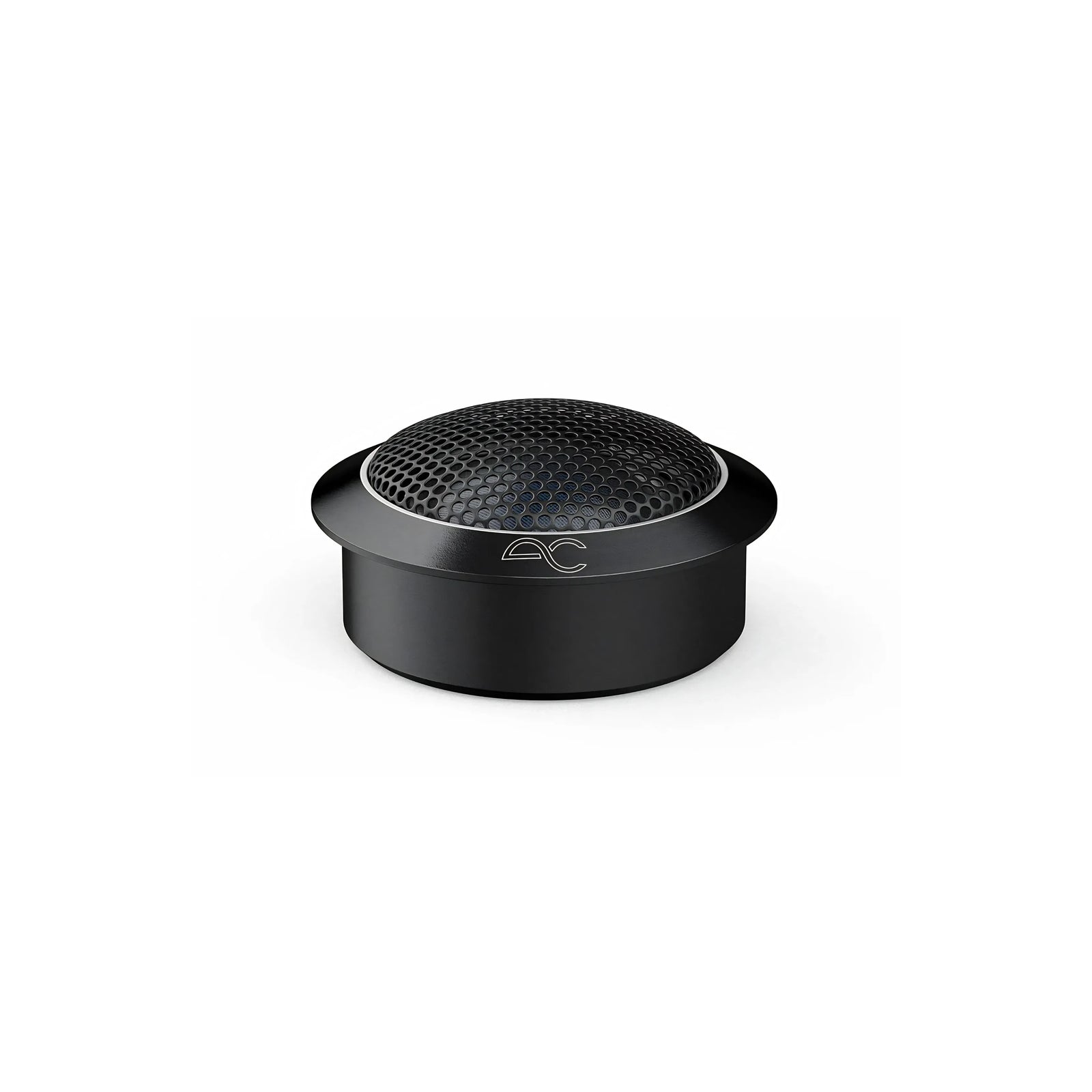

AudioControl PNW-1 - PNW High Fidelity Tweeters | Precision High-Frequency Performance

SKU: PNW1
Regular price
$249

CALL TO ORDER & CHECK AVAILABILITY - (02) 4257-2636


Product features

AudioControl PNW-1 - PNW High Fidelity Tweeters | Precision High-Frequency Performance

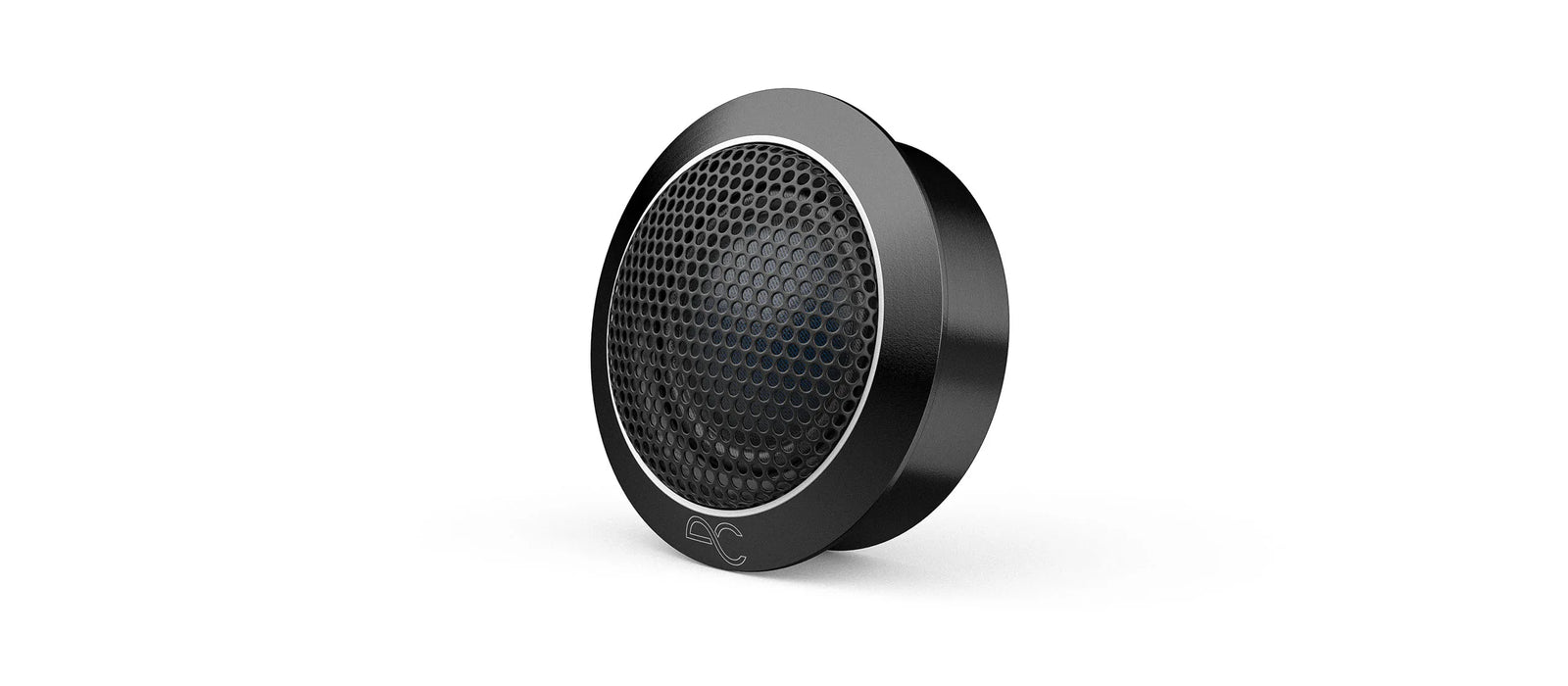

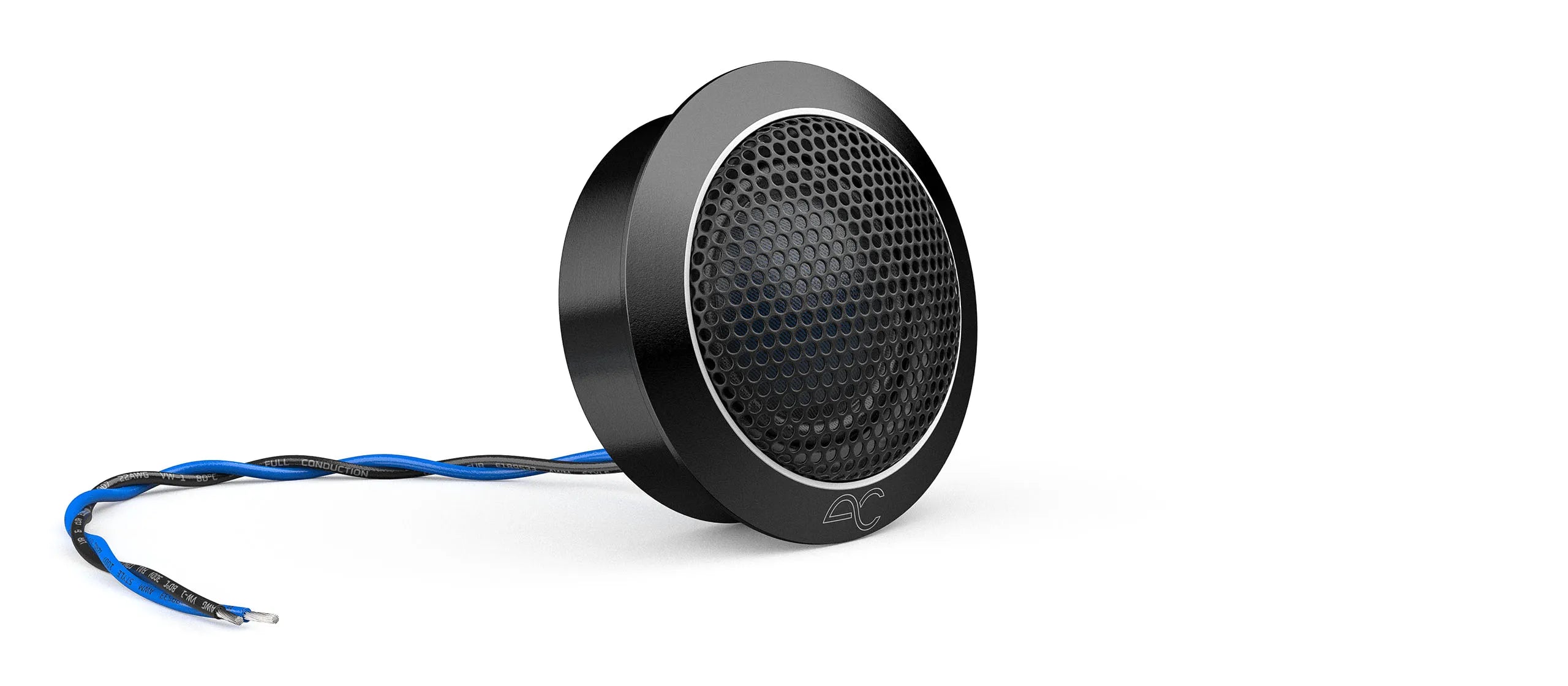

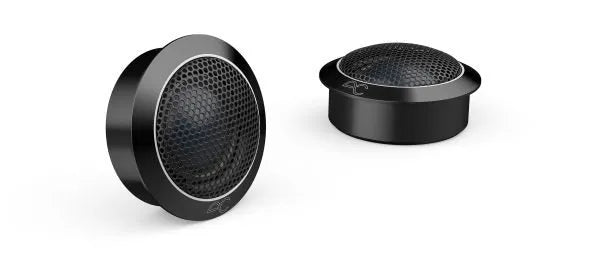

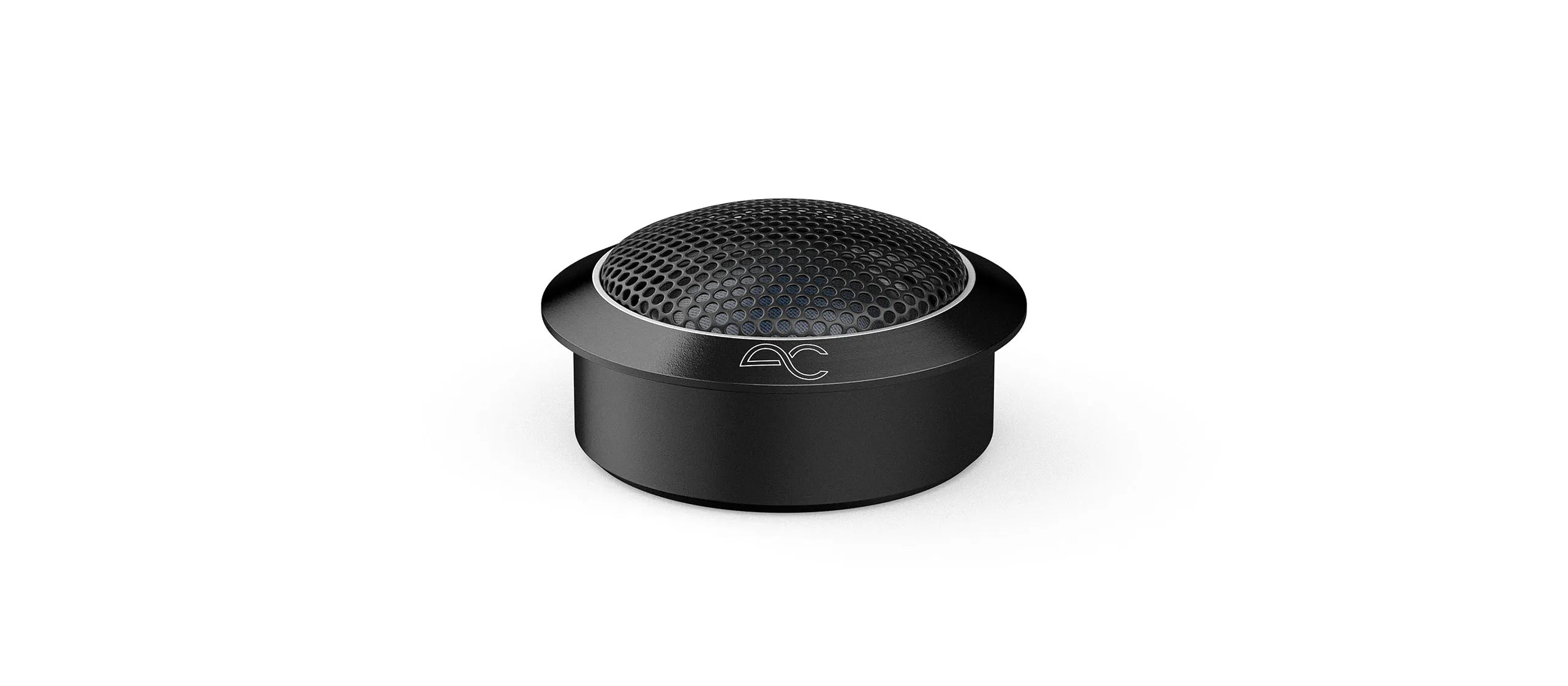

Professional high-fidelity tweeters with hybrid silk dome diaphragm, precision machined aluminum housing, and neodymium magnet delivering accurate sound reproduction for premium audio system upgrades

Product Overview

The AudioControl PNW-1 delivers precision high-frequency performance through expertly engineered high-fidelity tweeters designed specifically for premium audio system upgrades and PNW speaker system integration. These professional tweeters feature hybrid silk dome diaphragm for accurate sound reproduction without distortion, precision machined aluminum housing with embedded sonic damping pad, and neodymium magnet for enhanced efficiency and compact design, providing 1kHz-20kHz frequency response with detachable assembly for OE applications and included in-line high-pass filters that ensure optimal frequency distribution while minimizing distortion when paired with AudioControl's PNW speaker lineup.

What Makes These Tweeters Special

  • High-Fidelity Silk Dome Technology – Features hybrid silk dome diaphragm specifically designed for accurate sound reproduction without distortion, delivering extended frequency response (1kHz-20kHz) with smooth, natural high-frequency reproduction ideal for audiophile applications
  • Precision Engineering Construction – Precision machined aluminum housing provides superior durability and acoustic performance, while embedded sonic damping pad improves audio performance by reducing unwanted resonances and reflections for cleaner sound
  • Advanced Neodymium Motor Design – Neodymium magnet provides enhanced efficiency and compact design with 25mm voice coil diameter, enabling higher output levels while maintaining minimal installation footprint for versatile mounting options

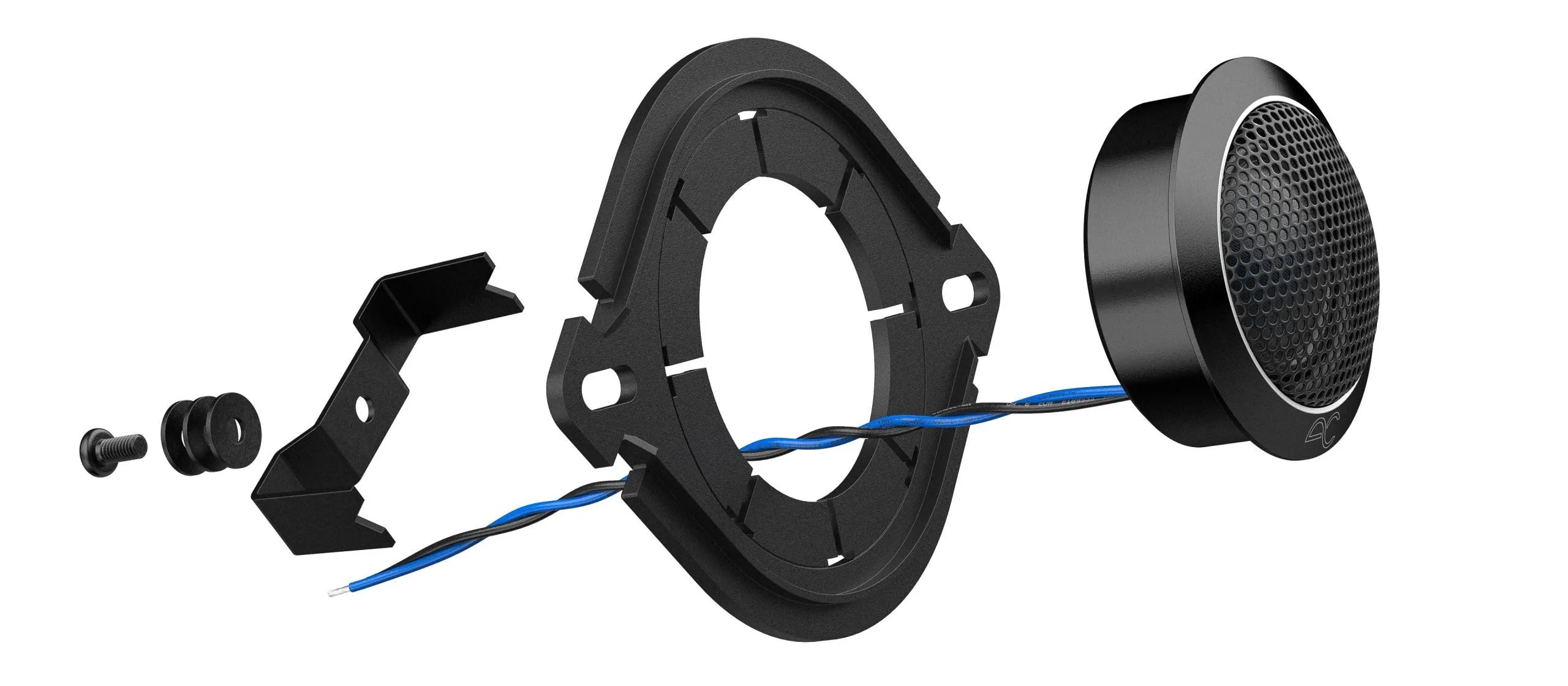

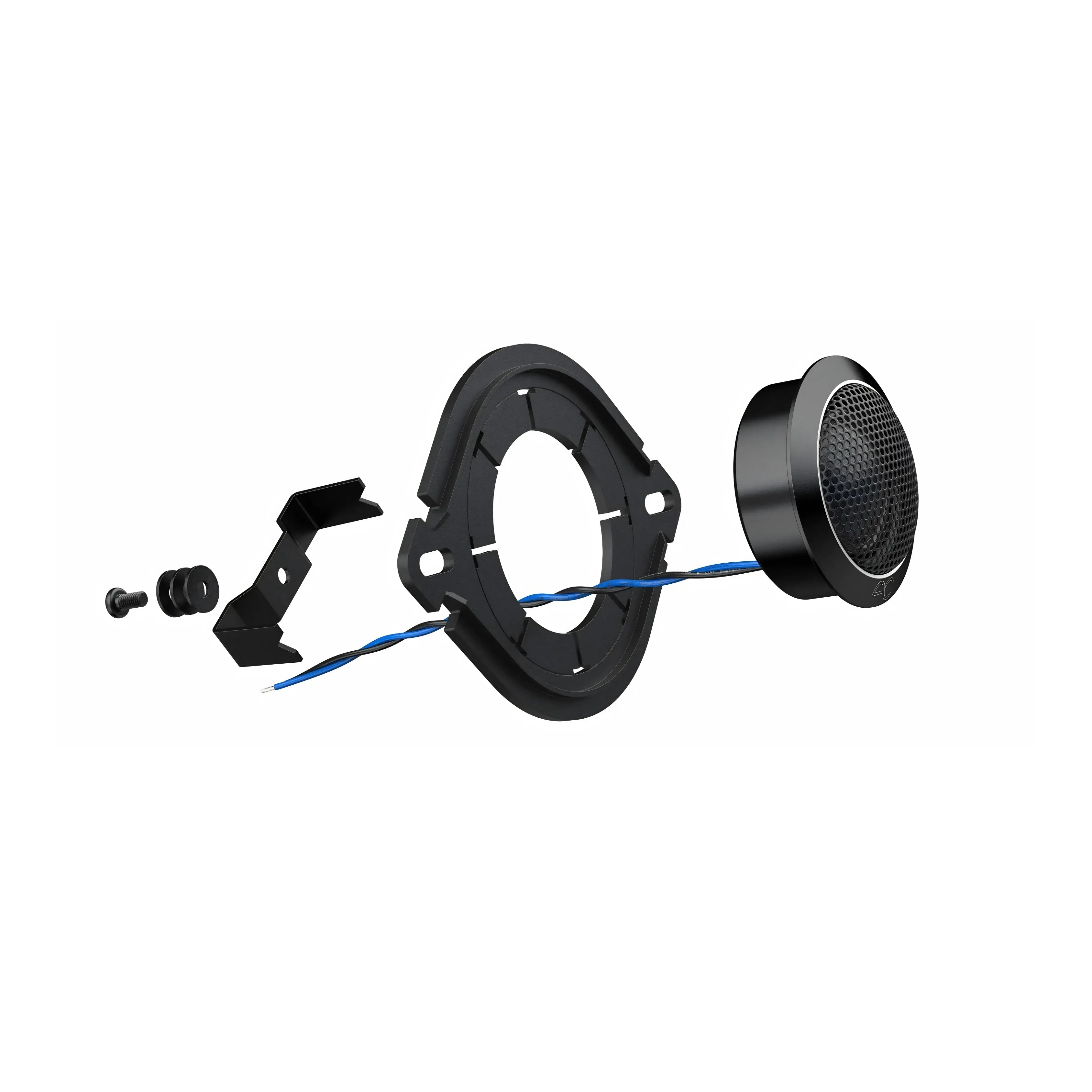

  • Professional Installation System – Detachable assembly design accommodates OE applications with multiple mounting accessories included for easy installation, plus in-line high-pass filters ensure only desired frequencies reach the tweeter for optimal sound and minimal distortion

Technical Specs

  • Tweeter Type: High-fidelity silk dome with hybrid design
  • Frequency Response: 1kHz-20kHz for extended high-frequency reproduction
  • Voice Coil Diameter: 25mm for enhanced efficiency
  • DC Resistance: 2.3 ohms
  • Nominal Impedance: 3 ohms
  • Resonance Frequency: 1.621kHz
  • Mechanical Q Factor: 6.92
  • Electrical Q Factor: 2.3091
  • Total Q Factor: 1.7314
  • Magnet Type: Neodymium for enhanced efficiency and compact design
  • Housing: Precision machined aluminum construction
  • Diaphragm: High-fidelity silk dome for accurate reproduction
  • Damping: Embedded sonic damping pad for improved performance

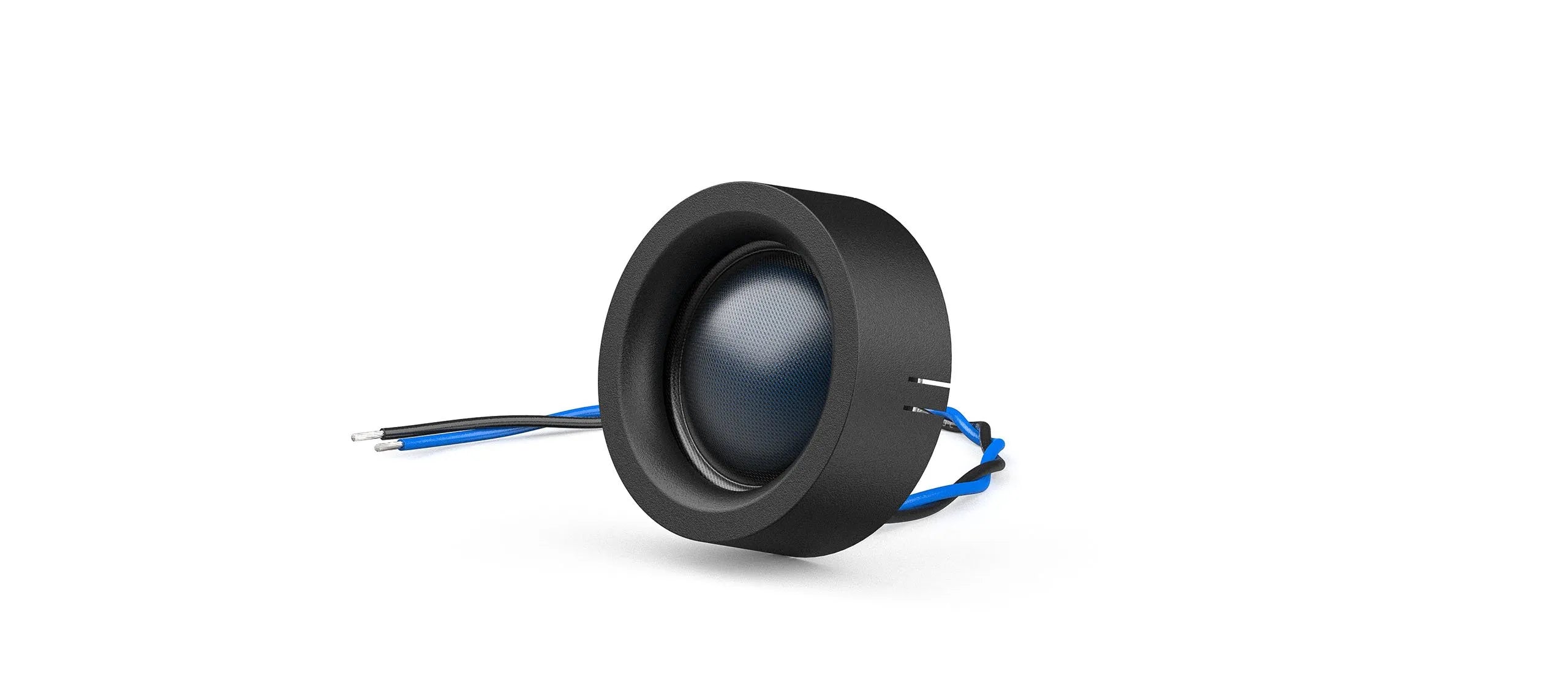

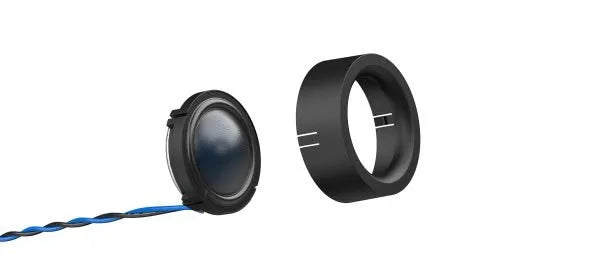

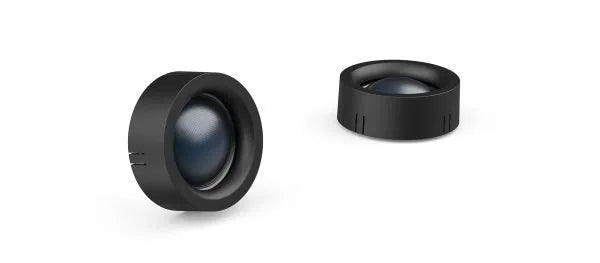

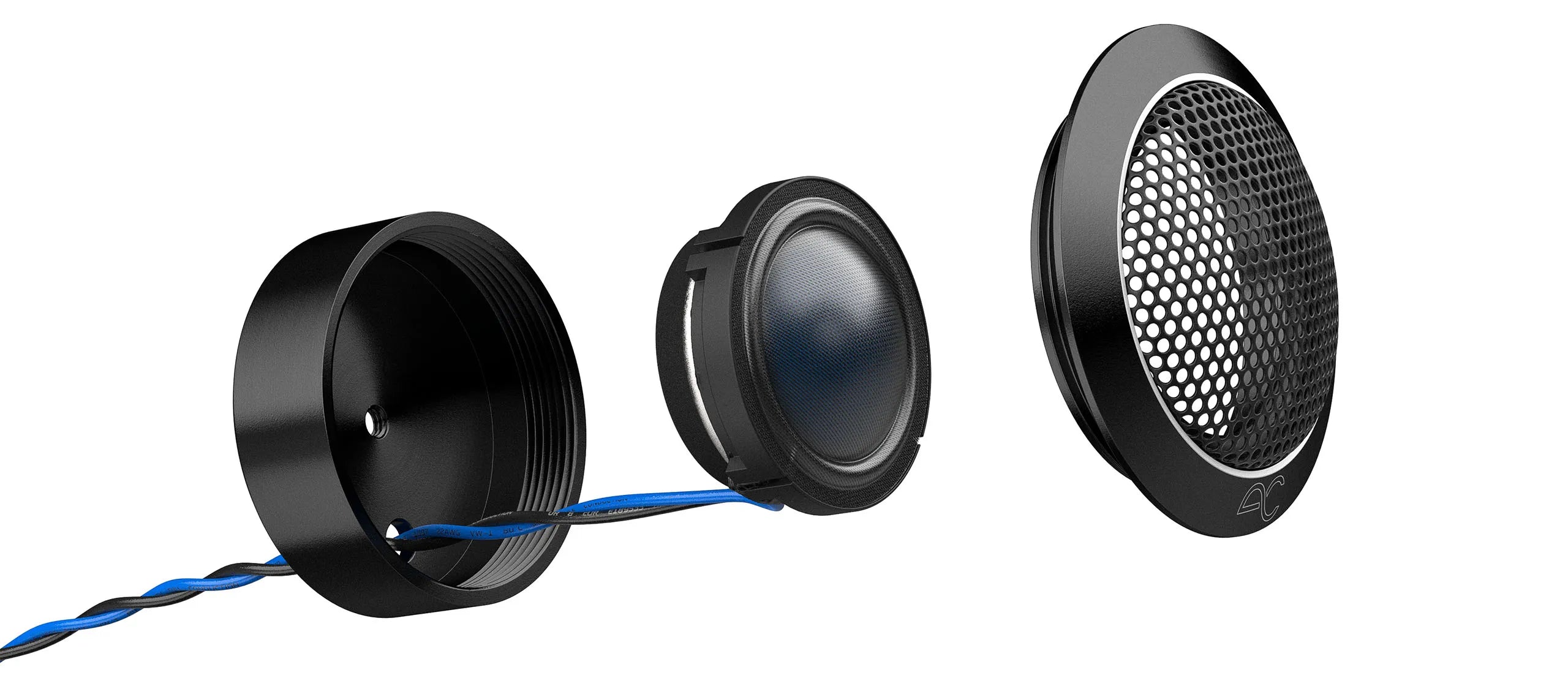

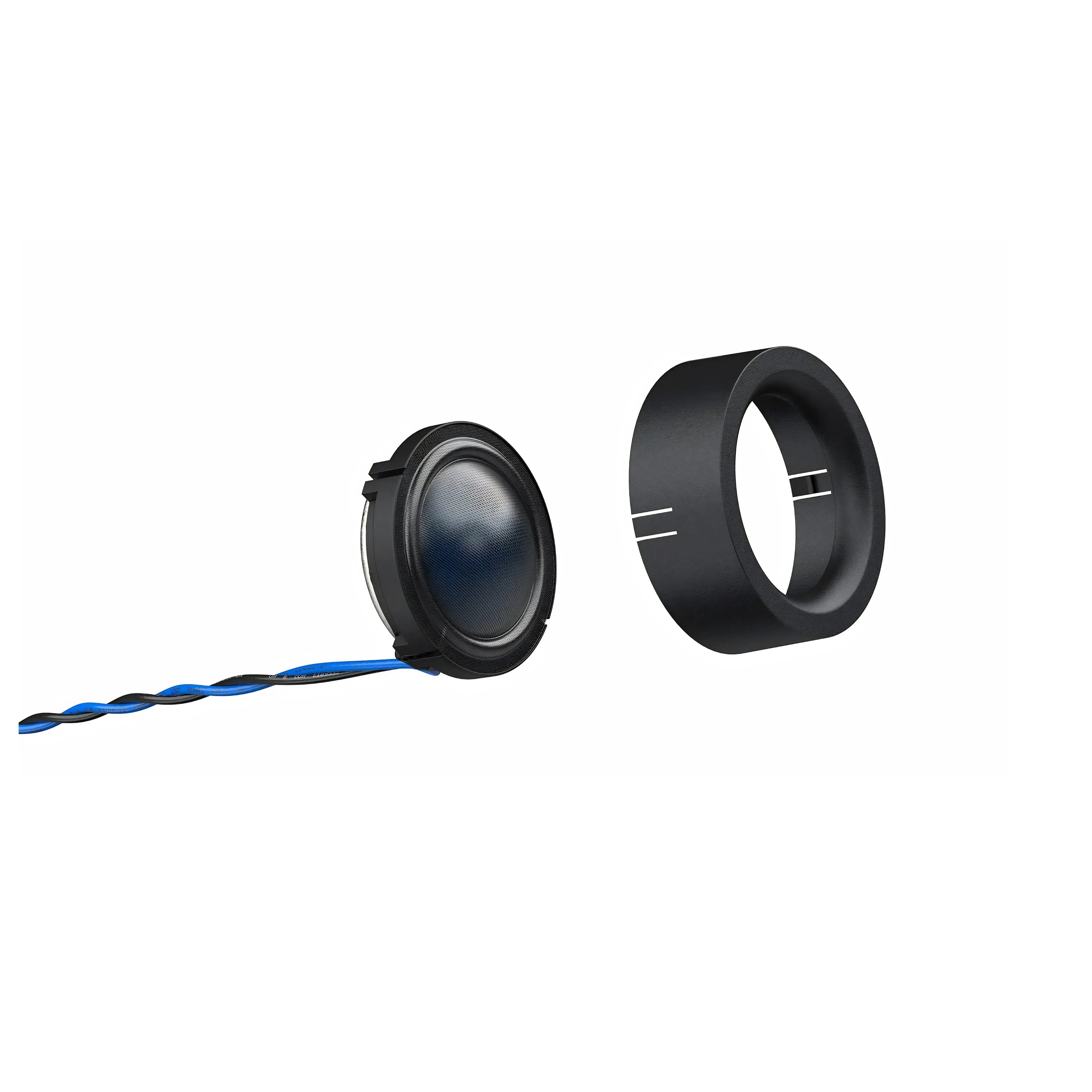

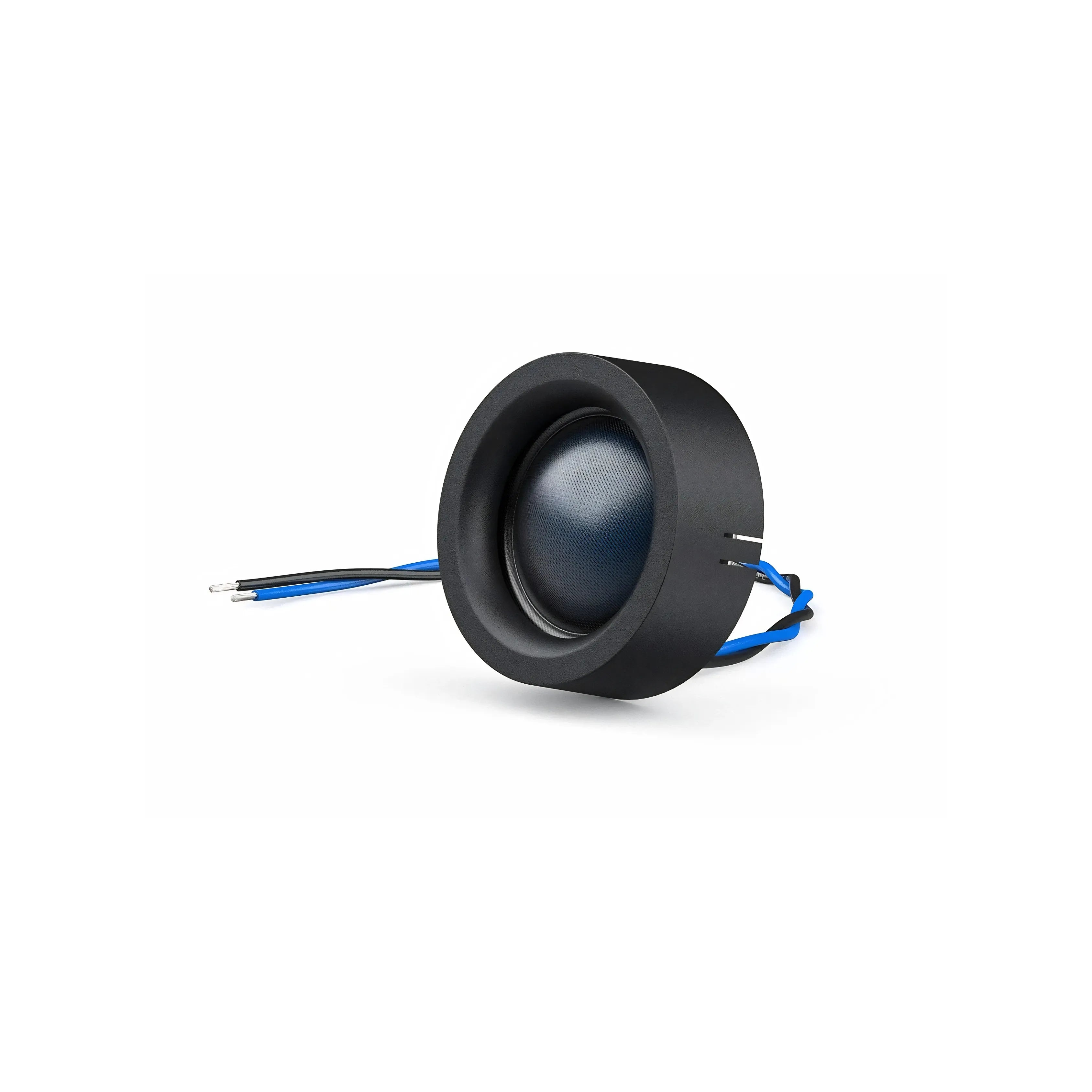

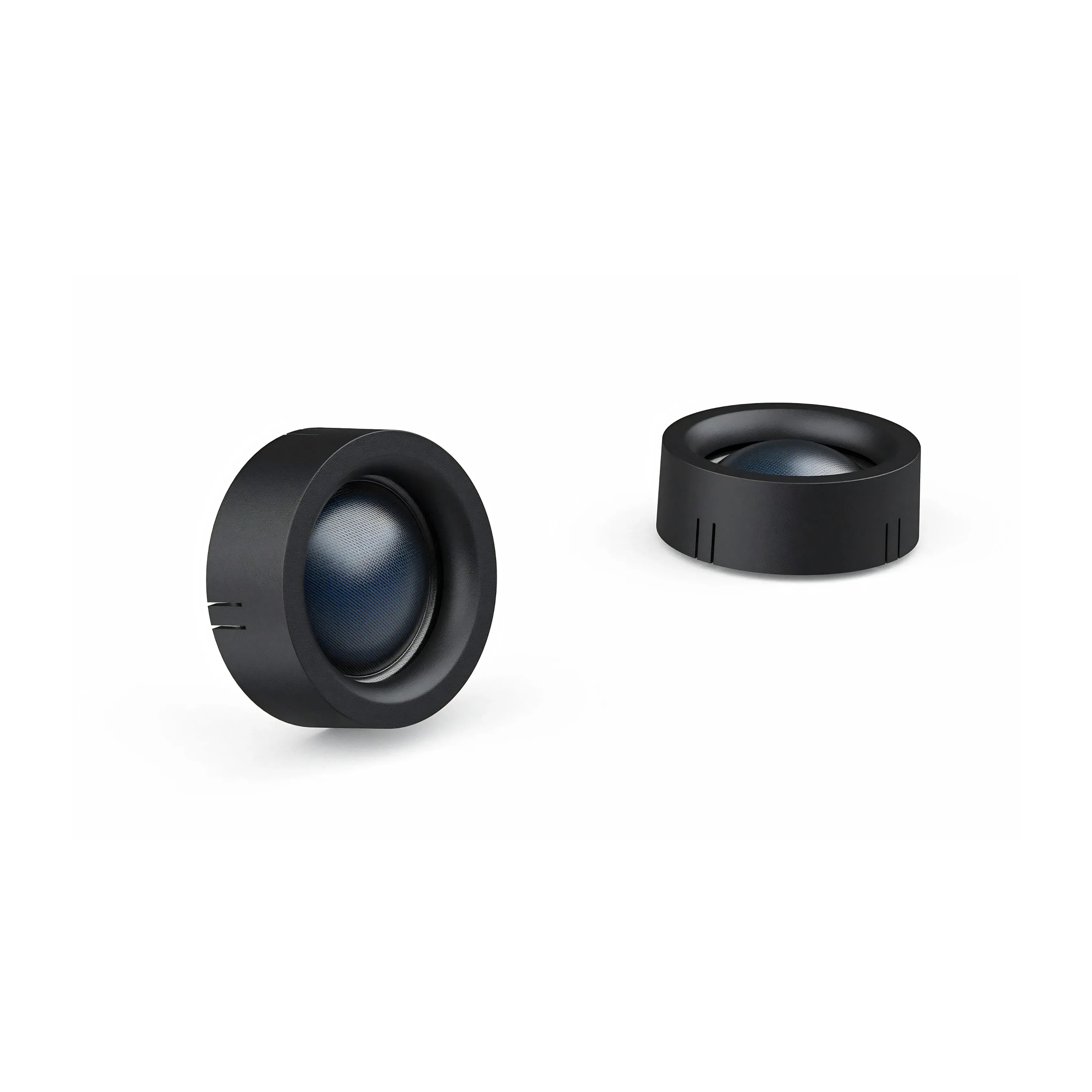

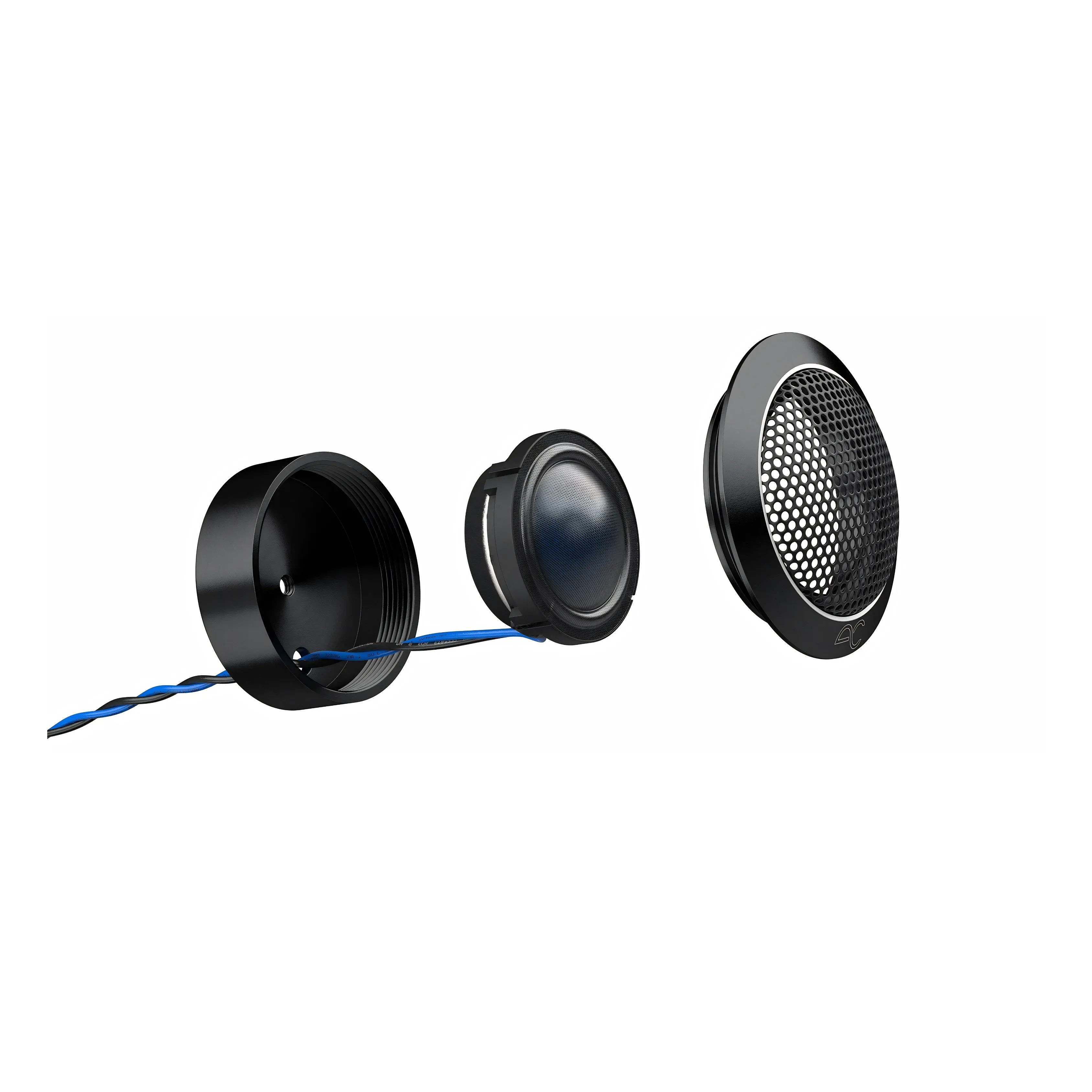

  • Assembly: Detachable design for OE applications
  • Overall Diameter: 2.13"/54mm (with grille)
  • Cutout Diameter: 1.85"/47mm
  • Mounting Depth: 0.63"/16mm
  • Crossover: 1st Order Butterworth, 3.5kHz high-pass, -6dB/octave slope

Frequently Asked Questions

What makes these tweeters compatible with PNW speakers?

The PNW-1 tweeters are specifically designed to pair with any AudioControl PNW speaker lineup, providing matched frequency response, impedance characteristics, and acoustic performance for seamless system integration.

What is included with the tweeter installation?

Each tweeter includes detachable housing assembly, multiple mounting accessories for various applications, and in-line high-pass filters (3.5kHz, -6dB slope) to ensure optimal frequency distribution.

How does the silk dome design benefit sound quality?

The hybrid silk dome diaphragm provides smooth, natural high-frequency reproduction with accurate sound reproduction and minimal distortion, superior to metal dome designs in terms of listening fatigue and musicality.

What mounting options are available?

The detachable assembly design with multiple mounting accessories accommodates various installation requirements including OE applications, custom mounting locations, and retrofit installations.

Do I need external crossovers with these tweeters?

In-line high-pass filters are included (1st Order Butterworth at 3.5kHz), but for optimal performance in component systems, dedicated external crossovers may provide superior results depending on the application.

What amplifier power is suitable for these tweeters?

The tweeters are designed to work with the power levels appropriate for PNW speaker systems, typically handling the high-frequency portion of 25-100+ watts depending on the paired woofer and system configuration.

How It Works

Professional High-Frequency Integration System – Install the PNW-1 tweeters in optimal high-frequency locations using the included mounting accessories (0.63" mounting depth required). Connect through the included in-line high-pass filters or dedicated crossover network. The neodymium magnet and silk dome diaphragm deliver accurate high-frequency reproduction from 1kHz-20kHz while the precision aluminum housing and sonic damping ensure clean, distortion-free performance.

Compatible With / Goes Well With

System Integration: AudioControl PNW speaker systems, component speaker installations, premium audio system upgrades

Speaker Compatibility: All AudioControl PNW series speakers, custom component systems requiring high-quality tweeters

Installation Applications: OE replacement applications, custom installations, audiophile system upgrades

Professional Services: Authorized AudioControl dealers, component system specialists, custom audio installation professionals
