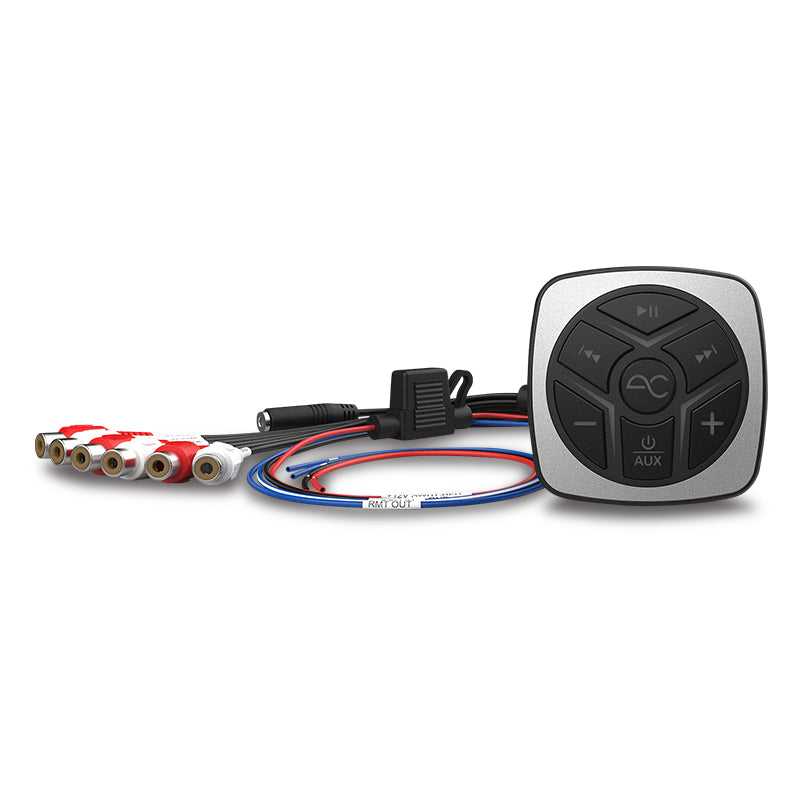

AudioControl ACX-BT3 ACX All Weather Bluetooth Controller/Streamer

The AudioControl ACX-BT3 is the ultimate solution for giving your audio system bluetooth connectivity and 3-Zones of control.

All Weather Bluetooth® Streamer

The ACX-BT3 is an all-weather Bluetooth® receiver and 3-zone controller designed for the rigors of marine and powersports applications.

Beyond an ordinary Bluetooth® receiver, the ACX-BT3 features three stereo RCA outputs and is a zone controller, providing quick access to volume control over 3 separate zones at the touch of a button. With the added flexibility of an auxiliary input, the ACX-BT3 is the perfect solution as a primary or secondary source for any audio system. aptX™ HD support coupled with robust 4 Vrms outputs provides the best possible audio quality.

Integrated mounting holes allow for easy custom installation to a dashboard, or other flat panel in a car, side-by-side, boat, or vehicle of your choice. And the all-weather ACX-BT3 is IPX6 rated against splashes, wind and spray, ensuring your music will play on wherever your next adventure takes you.

Multiple Installation Options

The ACX-BT3’s multiple outputs make it one of the best Bluetooth streaming units on the market with its flexibility of 3x stereo RCA outputs and remote trigger.

• Connect to Front, Rear, and Subwoofer Amplifier(s) – Adjust each level directly! Fantastic in hod-rods, muscle cars or vehicles where you don’t want a standard 1DIN or 2DIN radio/receiver.
• Connect to multiple amplifiers for zone volume adjustment – Great for motorhomes and boats!

Many Installation Options

The ACX-BT3 can be installed in many different locations. With it’s 51mm body, it can be installed in place of a aftermarket 52mm Gauge found in many boats, powersport vehicles, muscle cars and others.

It can easily be installed into trim panels and with its removable silver panel you can even customize and paint the surround to suit your installation.

Features:

• High Definition Low-Latency Audio Streaming
• aptX TM HD Support
• 24 bit / 48 kHz Audio Streaming from Devices with aptX Codec
• IPX6 rated enclosure
• Built in fuse

Outputs:

• Dual Line Level RCA (6CH STEREO)
• Nominal Output Level: 4Vrms

Performance:

• Maximum Data Rate: 3Mbps (typical 1.6 Mbps)
• Operating Range: 10+ Meters (depending on environment)
• Current Draw: 100mA
• Fuse Rating: 2A

Specifications:

• RCA Pre-Outs: 6 Channel Stereo
• Remote Turn On Feature: YES
• RCA Output Voltage: 4Vrms
• Dimensions: (enclosure): 2.51″L x 2.51″L x 3.17″D

Whats In The Box?

• Bluetooth Adaptor
• Mounting Screws
• Warranty
