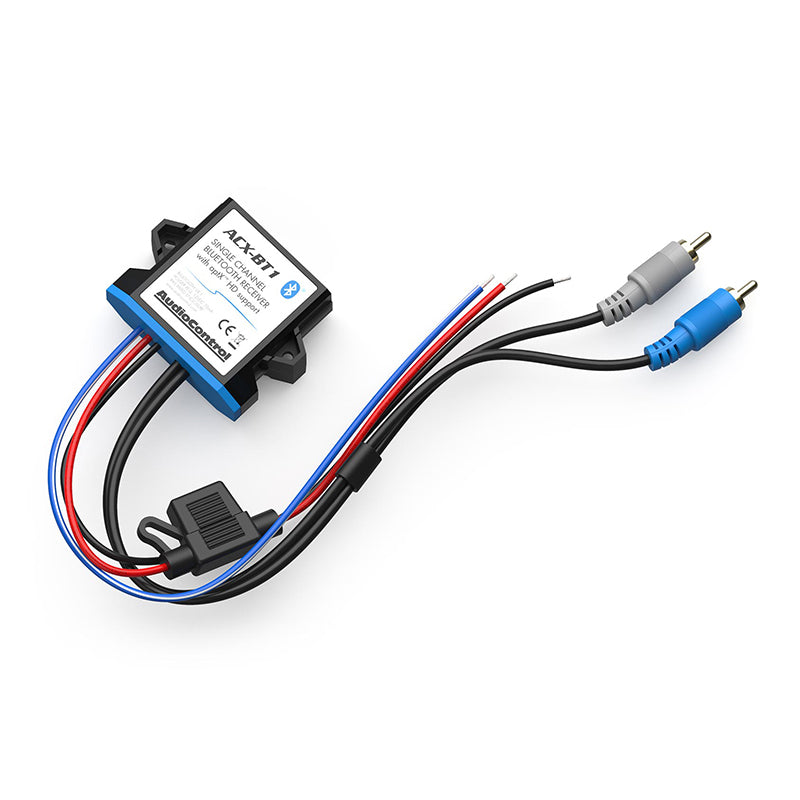

AudioControl ACX-BT1 ACX All Weather Bluetooth Streamer

The Ultimate Solution for Giving Your Audio System Bluetooth Connectivity

All Weather Bluetooth® Streamer
The AudioControl ACX-BT1 is the ultimate solution for giving your audio system Bluetooth connectivity. The ACX-BT1 features the latest Bluetooth 4.1 and aptX HD support, delivering 24-bit clarity, lower noise, faster initial connection and more reliable streaming from a greater distance.

The ACX-BT1 is IPX5 rated for marine and motorsports applications, so it will withstand the rigors of all-weather conditions, including as a standalone (no head unit) solution common to side-by-sides, jet skis and more.

Installers will appreciate the unique remote turn-on output circuit that triggers downstream amplifier(s) only when audio is being played over the Bluetooth connection.

Features:

• High Definition Low-Latency Audio Streaming
• aptXTM HD Support
• 24 Bit / 48 kHz Audio Streaming from Devices with aptX Codec
• IPX5 Rated Enclosure
• Built-In Fuse

Specifications:

• Outputs:

  • 2Ch Stereo: Dual Line Level RCA
  • Nominal Output Level: 1.5Vrms
• Performance:
  • Maximum Data Rate: 3Mbps (Typical 1.6 Mbps)
  • Operating Range: 10+ Meters (Depending on Environment)
  • Current Draw: 35mA
  • Fuse Rating: 2A

• Compatibility Information:

  • RCA Pre-Outs: 2 Channel Stereo
  • Remote Turn On Feature: Yes
  • RCA Output Voltage: 1.5 Vrms
  • Dimensions: 2.0”L x 2.5”W x 0.7”H

What's in The Box:

• Bluetooth Adaptor
• Warranty
