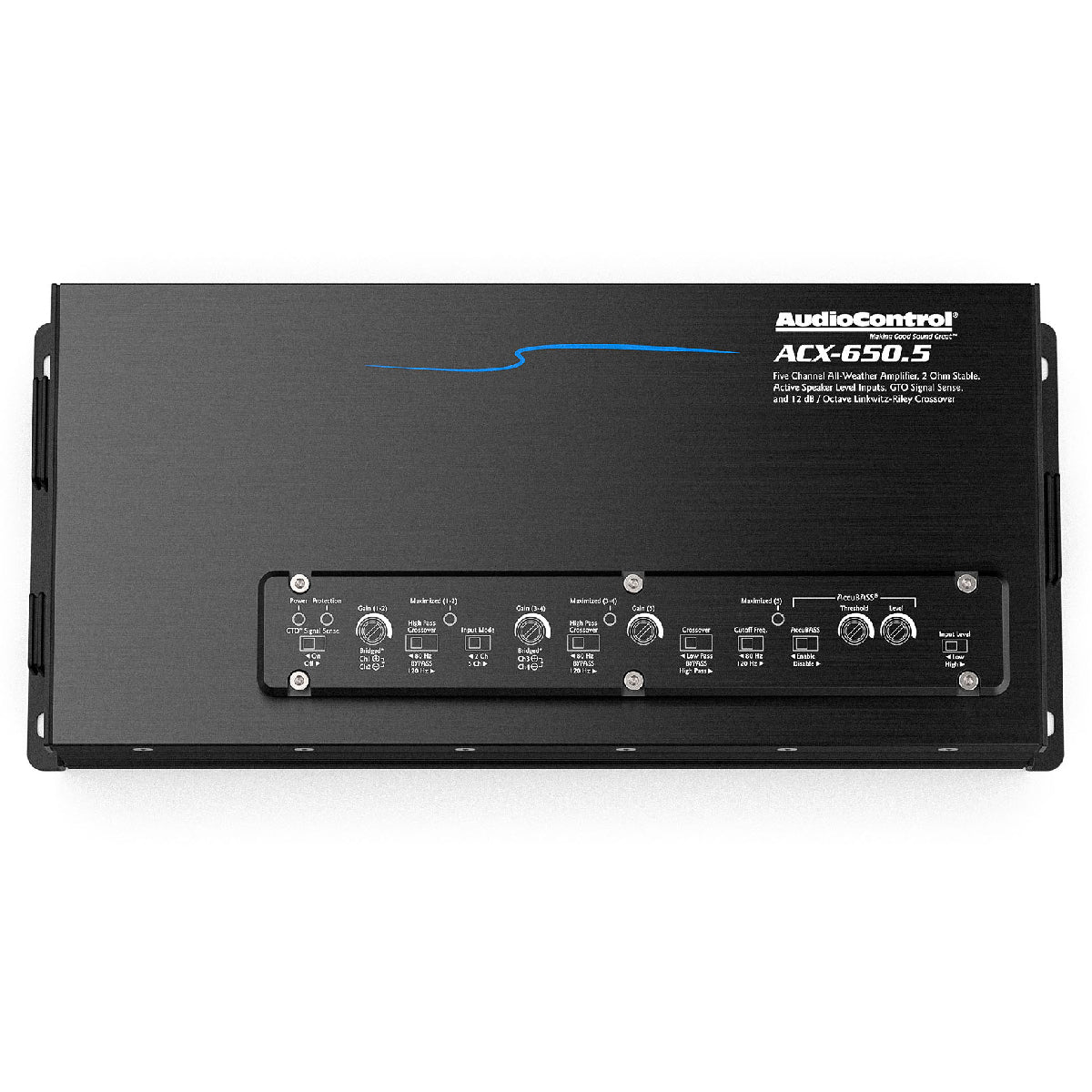

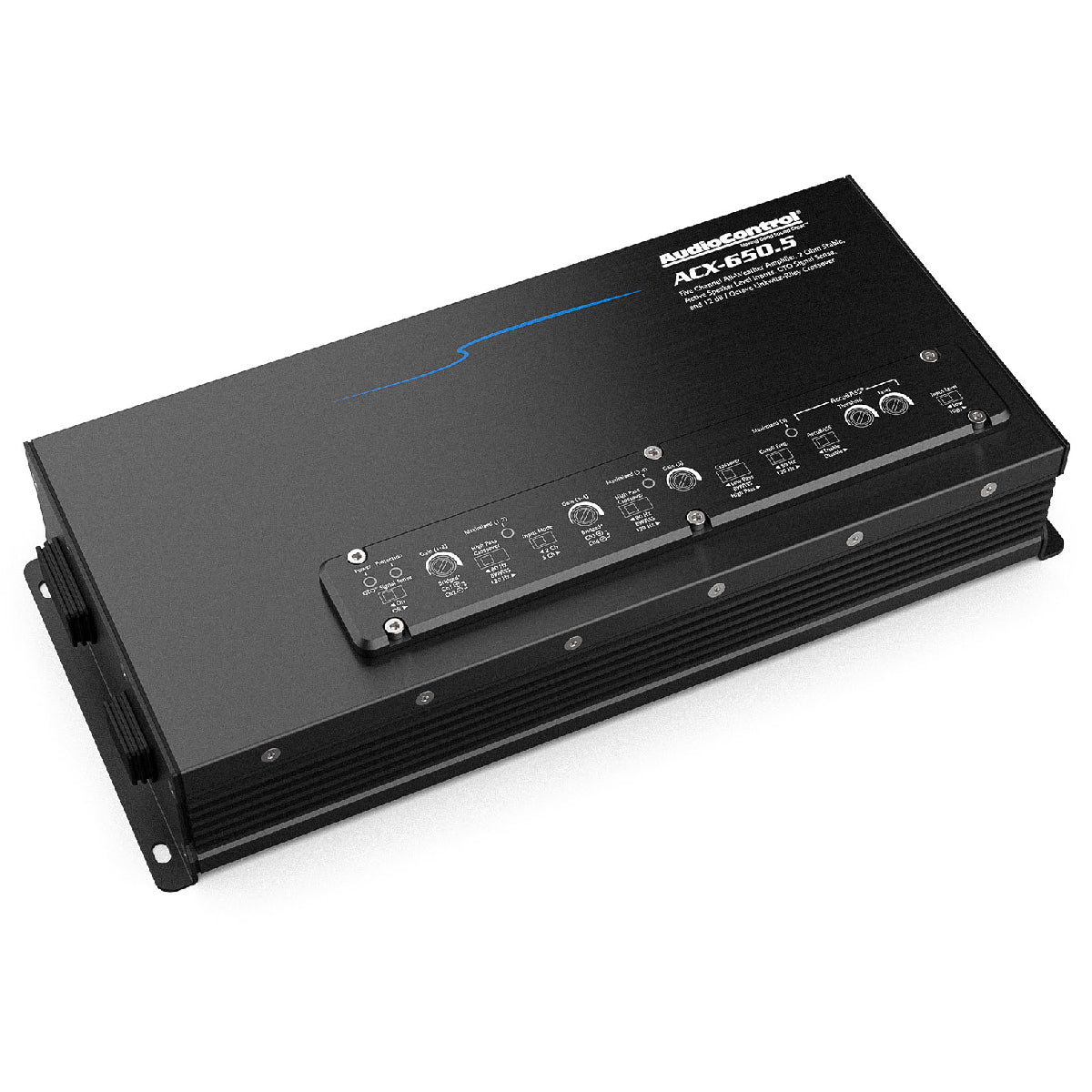

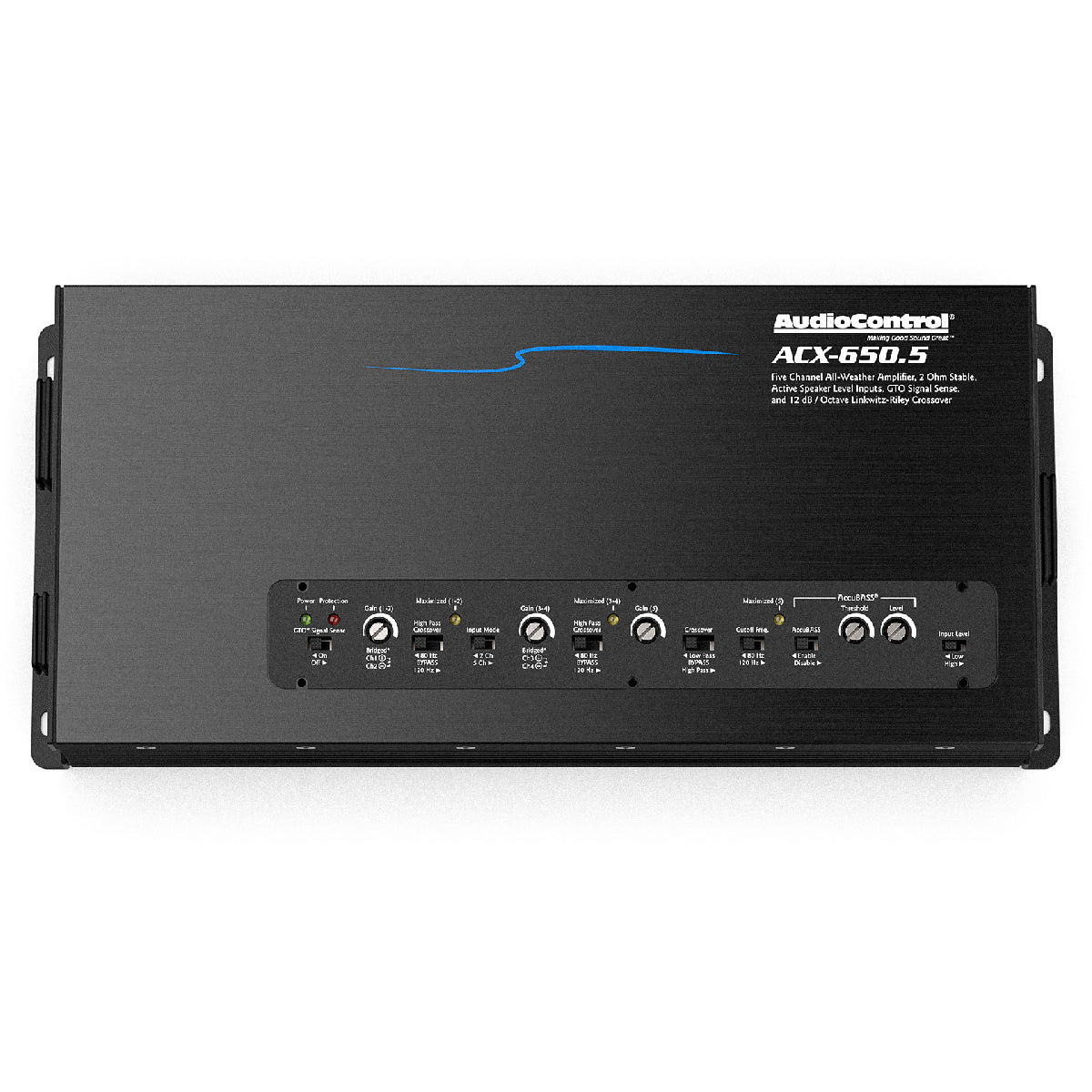

AudioControl ACX-650.5 ACX Series 5-Channel Powersports/Marine Amplifier

All-Weather Amplifier the Perfect Solution For Your Next Adventure!

All Weather 5-Channel Amplifier

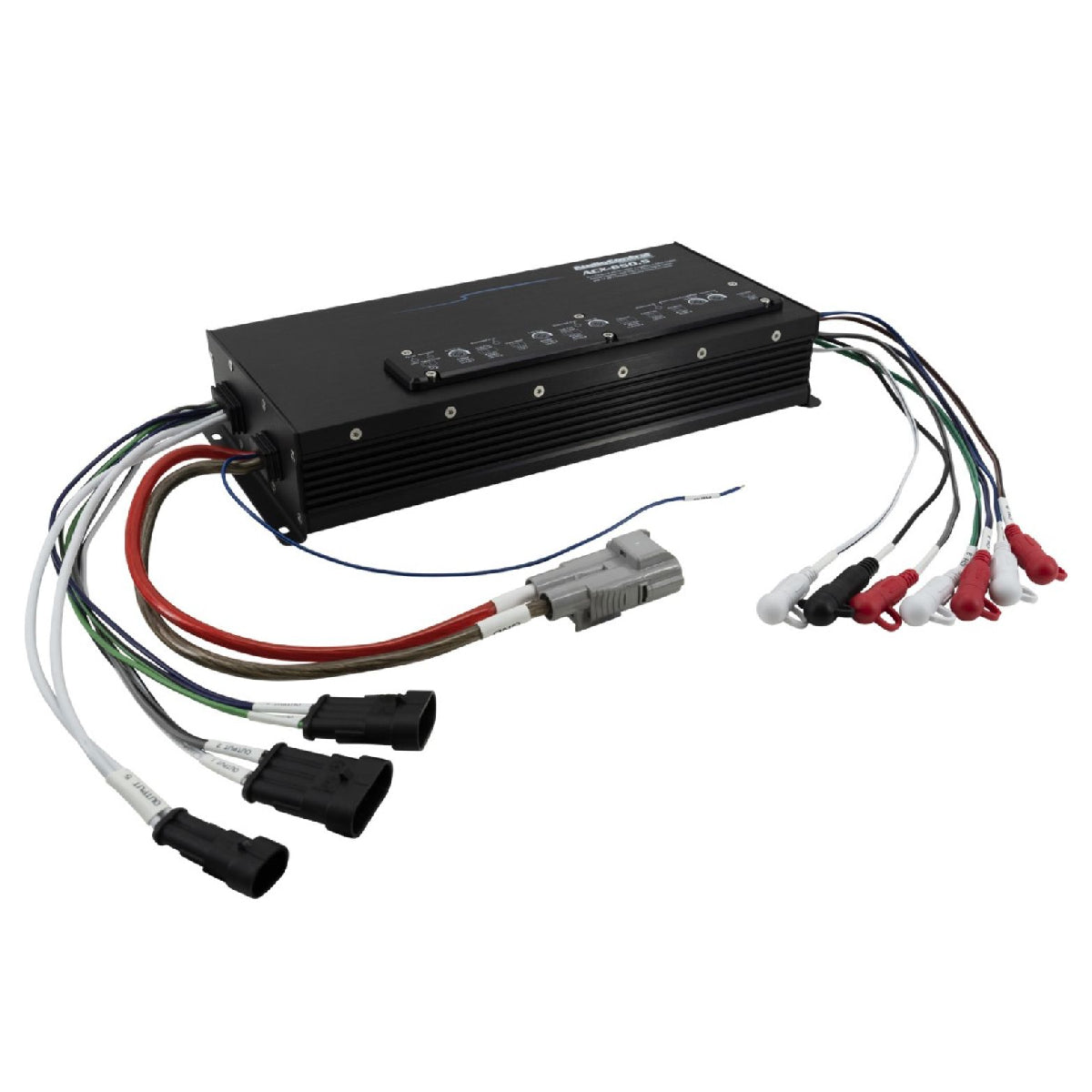

AudioControl’s ACX-650.5 all-weather amplifier delivers honest power levels to the sound system in your boat, UTV, motorcycle, and more. The ACX-650.5 will ensure your open-air speakers deliver plenty of punch and clarity, all day long. Installer-friendly, heavy gauge quick-connect wiring makes installation quick and painless, making the ACX-650.5 all-weather amplifier the perfect solution for your next adventure.

Features:

• 4 x 50 Watts @ 4 Ohms, 1 x 200 Watts @ 4 Ohms
• 4 x 75 Watts @ 2 Ohms, 1 x 350 Watts @ 2 Ohms
• 2 x 150 Watts @ 4 Ohms, Bridged Mono
• IPX6 Rated
• AccuBASS® bass Management
• GTOTM Signal Sense
• High & Low Input Modes
• Linkwitz-Riley Crossover

Specifications:

• Inputs:
  Preamp/Speaker Level Inputs: 6
  Input Voltage Low: 500mV – 6V RMS
  Input Voltage Range High: 1V RMS – 12V RMS
• Outputs:
  Rated Continuous (RMS) Power @ 14.4V:
  4Ω – 50W x 4 + 200W x 1
  2Ω – 75W x 4 + 350W x 1
  Bridged 4Ω – 150W x 2
• Performance:
  Frequency Response: 26Hz – 22kHz
  Signal-To-Noise: 102dBA, Ref. 50W @ 4Ω
  THD+N: < 0.05%
  Crossover: 12dB/Octave Linkwitz-Riley, 80Hz, 120Hz, Bypass
  IP Rating: IPX6
• General:
  Recommended Fuse Rating: 30A
• Weights & Dimensions:
  Dimensions: 11.97″ (W) x 5.31″ (D) x 2.36″ (H)
  Weight: 2.63kg
