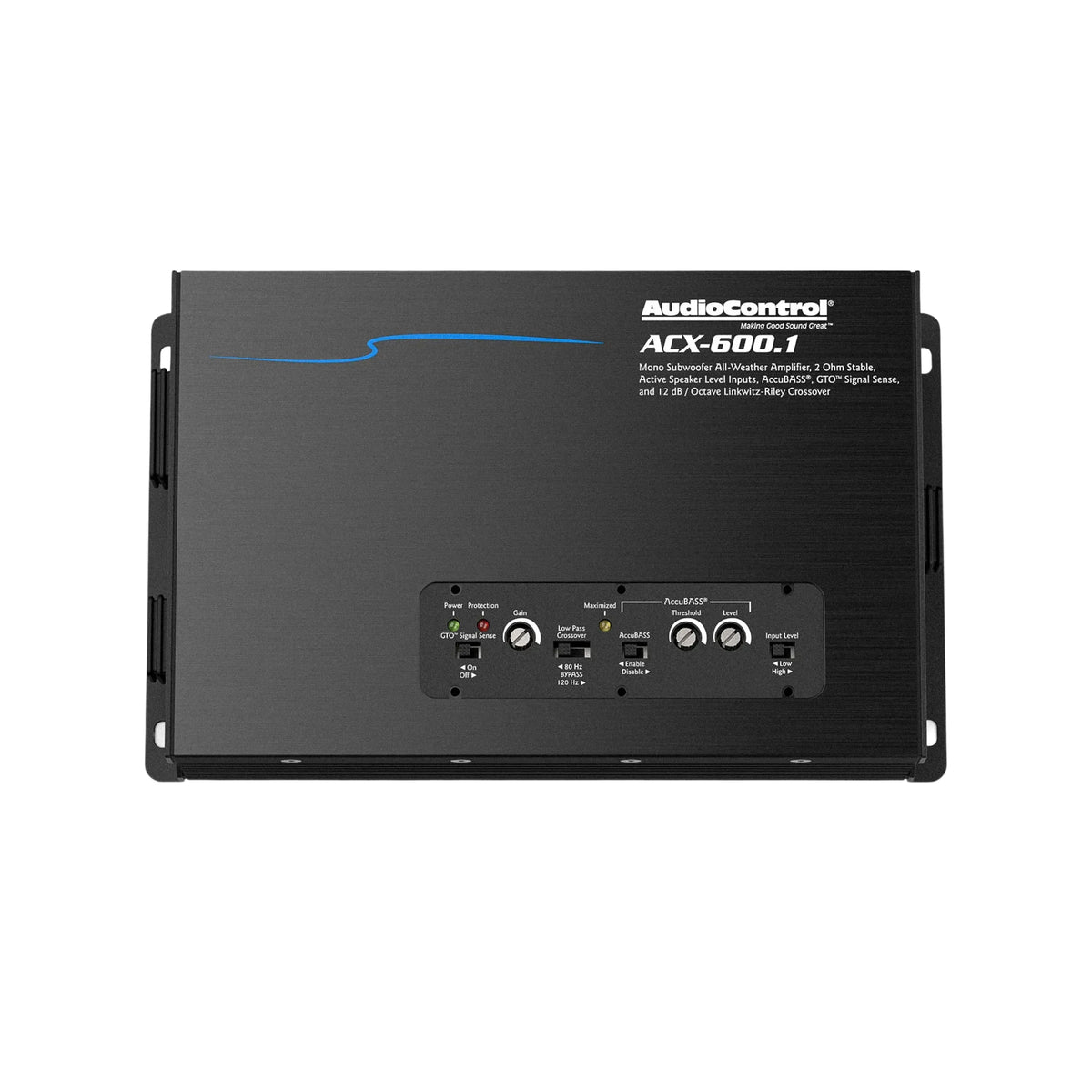

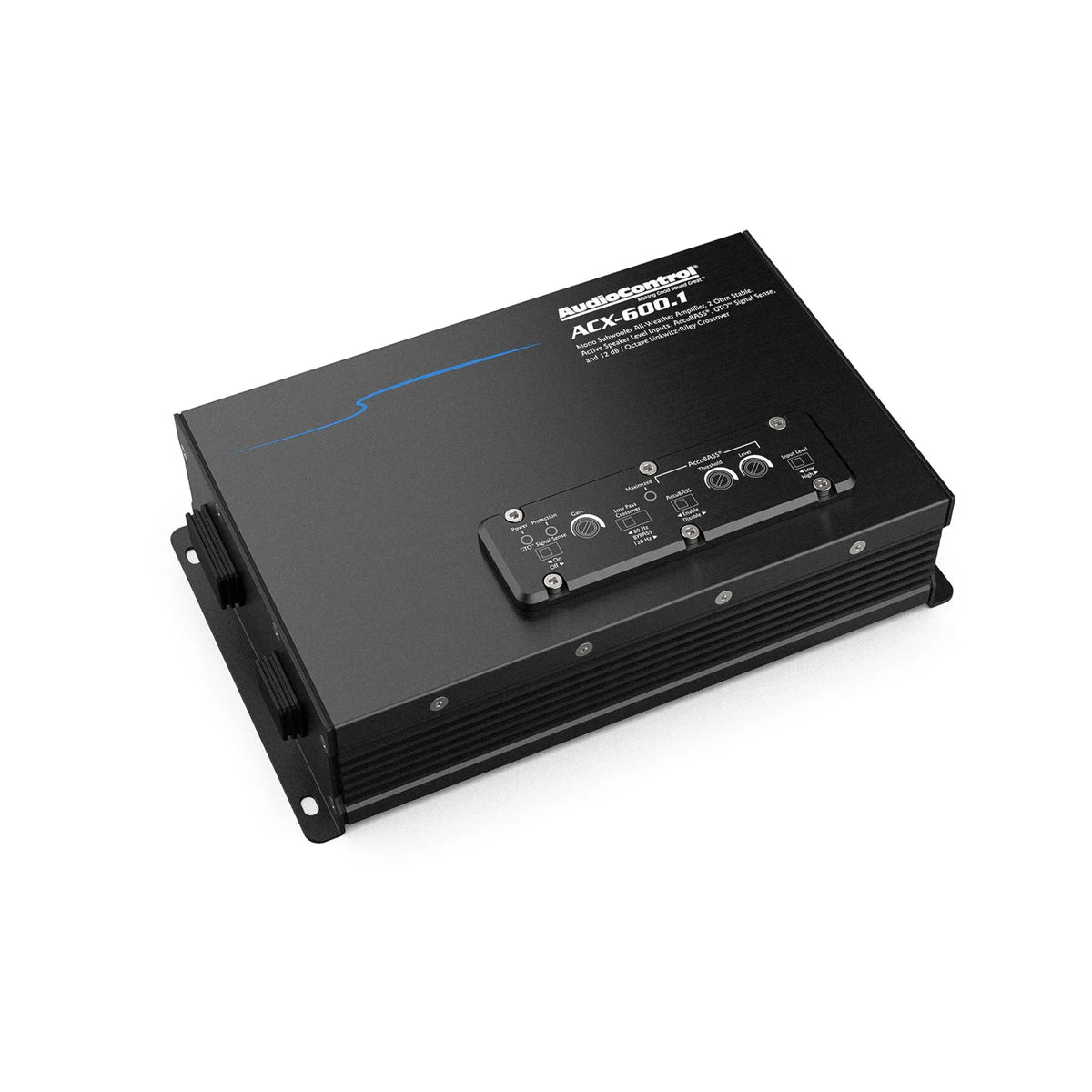

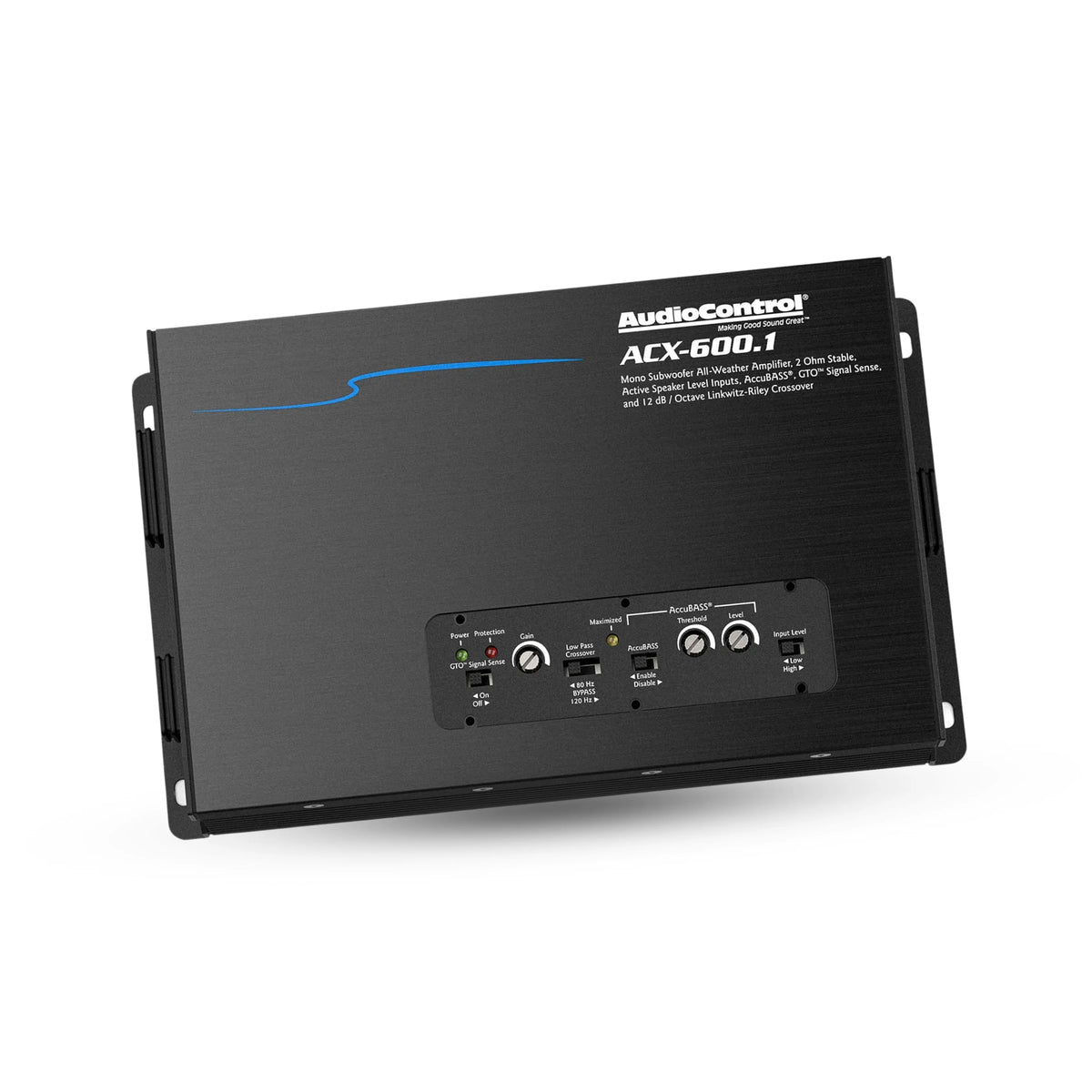

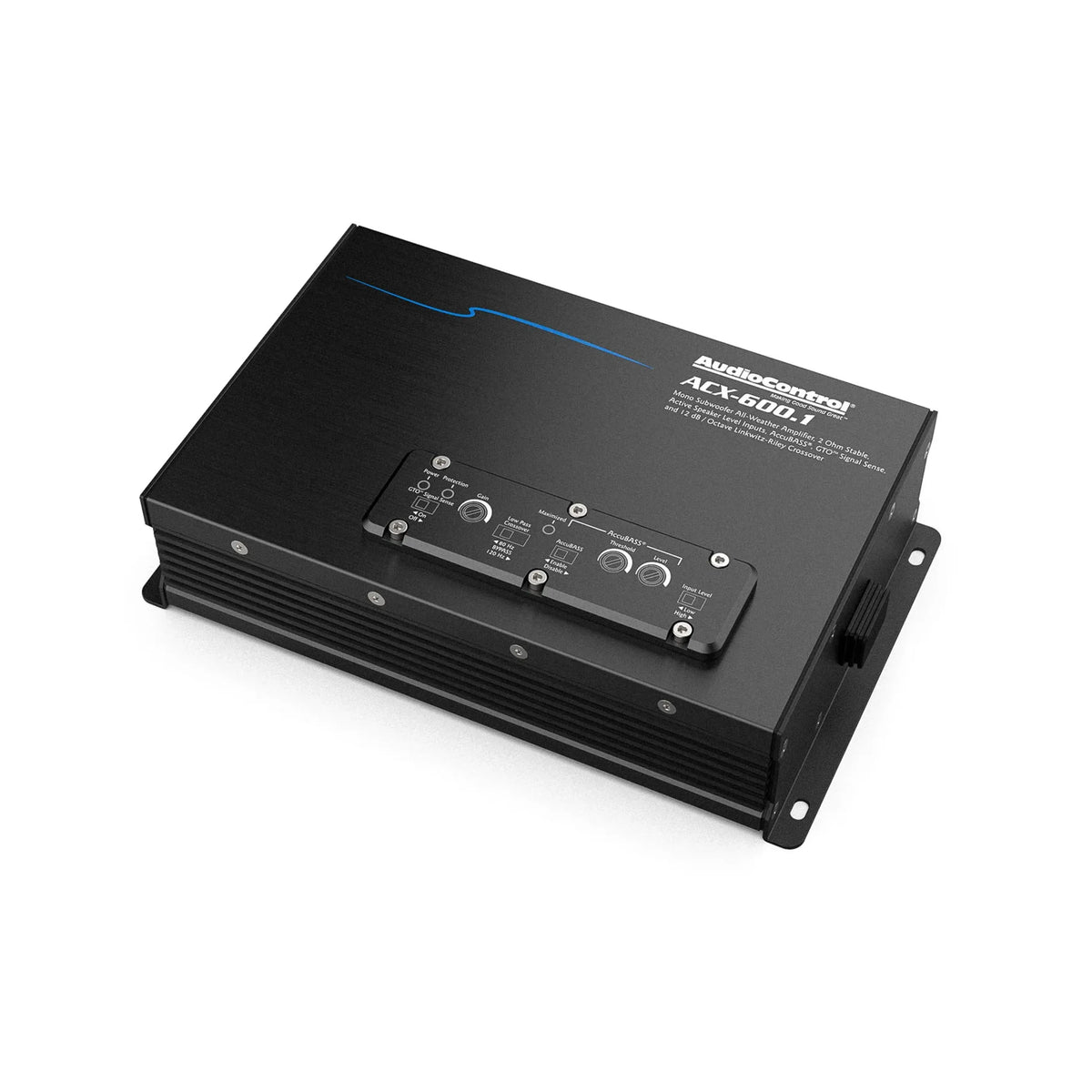

AudioControl ACX-600.1 - ACX Series Mono Channel Amplifier

AudioControl ACX-600.1 - ACX Series Mono Channel Amplifier | All-Weather Marine Performance

Professional IPX6-rated monoblock amplifier delivering 600 watts of honest power for marine, UTV, motorcycle, and open-air applications with advanced bass management technology

Product Overview

The AudioControl ACX-600.1 delivers exceptional all-weather performance through precision-engineered monoblock amplifier designed specifically for boats, UTVs, motorcycles, and open-air vehicle applications. This professional marine-grade amplifier provides 600 watts at 2 ohms with IPX6 weather rating, featuring AccuBASS® bass management technology and installer-friendly heavy gauge quick-connect wiring that ensures reliable power delivery and clarity for subwoofers and speakers in demanding outdoor environments with bulletproof 5-year warranty protection.

What Makes This Amplifier Special

• All-Weather IPX6 Construction – Features professional IPX6 rating for superior weather resistance in marine, motorcycle, and open-air applications, ensuring reliable operation in harsh outdoor conditions while maintaining consistent power delivery and audio quality
• AccuBASS® Bass Management Technology – Advanced bass management system optimizes subwoofer performance with precise control and clarity, combined with Linkwitz-Riley crossover design (80Hz/120Hz/Bypass) for professional-grade audio tuning and system integration
• Honest Power Delivery System – Delivers genuine 600 watts RMS at 2 ohms and 350 watts RMS at 4 ohms at 14.4V, ensuring reliable power output with minimal distortion (< 0.05% THD+N) for consistent performance in demanding applications
• Installer-Friendly Design – Heavy gauge quick-connect wiring system with GTO™ Signal Sense technology simplifies installation process, featuring high and low input modes with flexible input voltage ranges for professional integration across various vehicle types

Technical Specs

• Power Output: 600W RMS @ 2Ω, 350W RMS @ 4Ω (at 14.4V)
• Channels: 1 channel monoblock configuration
• Weather Rating: IPX6 certified for all-weather applications
• Input Configuration: 2 preamp/speaker level inputs
• Input Voltage Range: Low: 500mV-6Vrms, High: 1Vrms-12Vrms
• Frequency Response: 26Hz - 22kHz for full-range capability
• Signal to Noise Ratio: 102dBA (Reference 50W @ 4Ω)
• Total Harmonic Distortion: < 0.05% THD+N
• Crossover: 12dB/octave Linkwitz-Riley, 80Hz/120Hz/Bypass selectable
• Recommended Fuse Rating: 60A for proper circuit protection
• Dimensions: 8.89"W x 5.31"D x 2.36"H
• Weight: 4.45 lbs (2.02 kg)
• Features: AccuBASS® bass management, GTO™ Signal Sense
• Warranty: 5-year bulletproof warranty (authorized dealer installation required)

Frequently Asked Questions

What makes this amplifier suitable for marine and outdoor applications?

The ACX-600.1 features IPX6 weather rating, providing superior resistance to water spray and harsh outdoor conditions. This makes it ideal for boats, UTVs, motorcycles, and other open-air applications where traditional amplifiers would fail.

What is AccuBASS® bass management technology?

AccuBASS® is AudioControl's proprietary bass management system that optimizes subwoofer performance by maintaining consistent bass response and preventing distortion, ensuring clear and powerful low-frequency reproduction in challenging acoustic environments.

Can this amplifier work with both high and low-level inputs?

Yes, the ACX-600.1 features both high and low input modes with flexible voltage ranges (Low: 500mV-6Vrms, High: 1Vrms-12Vrms), allowing connection to various source units including factory systems and aftermarket headunits.

What is the GTO™ Signal Sense feature?

GTO™ (Good To Go) Signal Sense automatically turns the amplifier on when it detects an input signal and turns it off when the signal stops, eliminating the need for a separate remote turn-on wire in many installations.

Is professional installation required for the warranty?

Yes, the 5-year bulletproof warranty requires installation by an authorized AudioControl dealer to ensure proper setup and optimal performance in demanding applications.

What crossover options are available?

The amplifier features selectable Linkwitz-Riley crossover settings at 80Hz, 120Hz, or Bypass, allowing precise tuning for different subwoofer and system configurations.

How It Works

Professional All-Weather Power System – Connect the ACX-600.1 using the heavy gauge quick-connect wiring system to your power source and audio inputs. The GTO™ Signal Sense automatically manages power on/off cycles while AccuBASS® technology optimizes bass response. The IPX6-rated construction ensures reliable operation in marine and outdoor environments while delivering honest 600W power to your subwoofers with minimal distortion.

Compatible With / Goes Well With

Application Types: Marine audio systems, UTV sound systems, motorcycle audio, open-air vehicle applications

Speaker Compatibility: Subwoofers rated 2-4 ohms, marine-grade speakers designed for outdoor use

System Integration: Factory and aftermarket source units, marine headunits, powersports audio systems

Professional Installation: Authorized AudioControl dealers, marine audio specialists, powersports installation experts
