AudioControl ACX-300.1 ACX Series Mono Channel Amplifier
Click to open expanded view
AUDIOCONTROL logo

Call to order

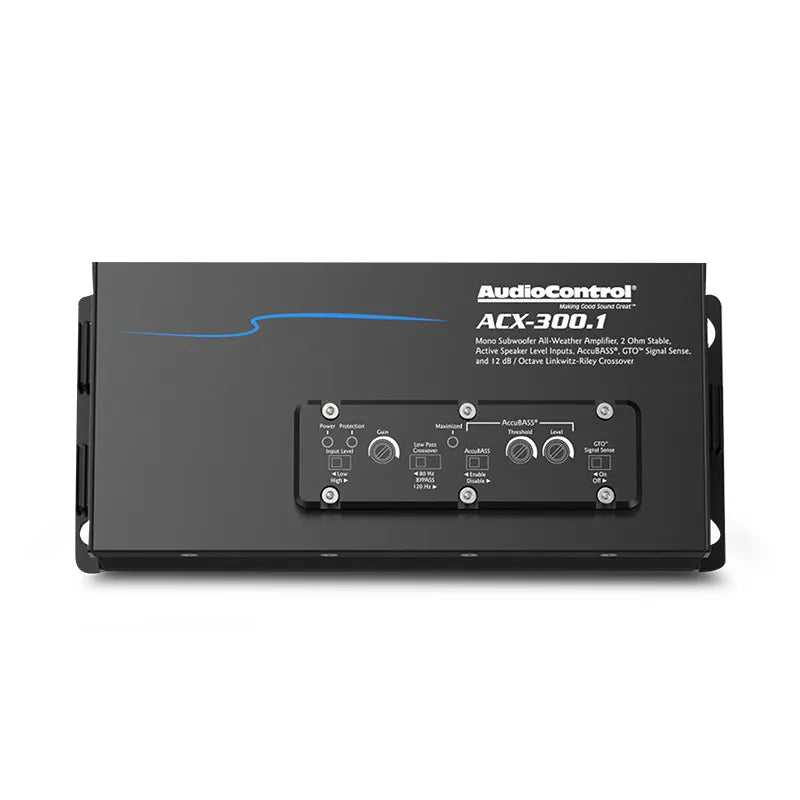

AudioControl ACX-300.1 ACX Series Mono Channel Amplifier

SKU: ACX3001
Regular price
$749

CALL TO ORDER & CHECK AVAILABILITY - (02) 4257-2636

Shipping information

We offer fast and reliable shipping options to ensure that your order arrives in a timely manner. Our dedicated team works diligently to process and ship your items as quickly as possible.

Here are some key points to note about our shipping policy:

Standard Shipping

  • Frankies offers a $15.95 flat rate for Australia-wide shipping, no matter how many items you order. Some larger or heavier items may incur an additional fee, which will be communicated to you when your order is processed.
  • While we endeavour to dispatch all orders promptly, please be advised that due to the current national fuel shortages in Australia and the resulting pressure on logistics networks, order processing and dispatch may take up to 7 business days. We are not liable for delays caused by third-party freight carriers or fuel-related logistical disruptions. By placing an order, you acknowledge that delivery timeframes may be extended beyond our standard estimates during this period.

Estimated delivery times:

  • WA, NT, and TAS: currently experiencing longer shipping times
  • Holiday periods (e.g. Christmas): deliveries may be delayed due to increased freight volumes

Express Shipping

  • Express shipping is available and calculated based on your delivery location, as well as the size and weight of your order. To receive an accurate quote, please contact our Albion Park Rail store and request an "express shipping quote." Our team will promptly assist with pricing and availability. Payment for express shipping can be securely arranged over the phone.

Share this product

Share Post Pin E-mail

Product features

AudioControl’s ACX-300.1 All-Weather Amplifier Delivers Honest Power Levels to The Sound System in Your Boat, UTV, Motorcycle & More!

Small Foot Print
Trying to find room for an amplifier in your vehicle is always a task, especially in small vehicles. AudioControl’s range of ACX Amplifiers are designed for this exact reason. Don’t let extreme conditions get in the way of rocking out to your favourite sound track on your next overland or seagoing adventure. Designed to withstand the elements, these small footprint amplifiers are the perfect solution for your next adventure.

Big On Power
Don’t let the small size of the ACX Amplifiers fool you. They may be small but the ACX-300.1 packs a punch with conservative 175w RMS at 4 ohm and 300w RMS at 2 ohm, enough to power a subwoofer or two with ease. Featuring the same technology and design of its larger brother the AudioControl LC Series, the ACX Series offer smooth, clean and detailed audio output to keep any audiophile happy.

Outdoor Proof Connections
Unlike regular amplifiers, the AudioControl ACX Series amplifiers feature waterproof quick connect style connections and a solid aluminum extrusion construction. Sealed tight from the elements, these ACX amplifiers feature a IPX6 rating great for use with Marine and off road applications without loss of audio quality.

Control At Your Fingertips
Control your subwoofer bass level with ease using the optional ACR-1 Bass controller, compatible with the ACX-300.1 Monoblock amplifier thanks to the ACR port (Available Separately)

Specifications:

  • Inputs
    • Preamp Inputs: 2 Balanced
    • Preamp Input Voltage Range: 500 mV – 6 Vrms
    • Speaker Level Inputs: 2
    • Speaker Level Input Voltage Range: 1 V – 12 Vrms
  • Outputs
    Rated Continuous (RMS) Power at 14.4V:
    • 4 Ω – 175 W x 1 RMS
    • 2 Ω – 300 W x 1 RMS
  • Performance
    • Frequency Response: 26 Hz – 22 kHz
    • Signal to Noise: 102 dBA, Ref 175 W @ 4 Ohm
    • THD+N: < 0.05%
    • IPX Rating: IPX6
    • Crossover: 12 dB/octave Linkwitz-Riley, 80 Hz, 120 Hz, Bypass

Important Product Compatibility Information:

  • Rated Continuous (RMS) Power @ 14.4v: 4Ω – 175 W RMS / 2Ω – 300 W RMS
  • High level Input Voltage: 12 V rms (120 Watts Per Channel)
  • Input Channels: 2 Channel RCA + 2 Channel High Level
  • RCA Pre-Outs: NONE
  • Remote Turn On Feature: YES
  • Total Harmonic Distortion Rating: < 0.05%
  • Crossover Frequency: Selectable 80Hz / 120Hz / Bypass
  • Crossover Type: Independent 12 dB Linkwitz-Riley Crossovers
  • Dimensions: 9.0″W x 3.875″D x 2.25″H

What's In The Box:

  • Mono Amplifier (Attached 12″ Power/Ground/Input/Output Harnesses)
  • 7″ Power & Ground Harness (10 Ga.)
  • 7″ Speaker Output Harness
  • 16.5′ ACR-1 Remote Level Control Cable With a RJ-14 Plug on One End & A Male 3.5mm Plug on Other End (ACR-1 Remote Level Control Not Included)
  • Power & Ground Connector (Empty)
  • 2 Crimp-On Terminals for Power & Ground Harness
  • Harness Locking Pin
  • 2 Rubber Grommets
  • Four 3/4″ Screws
  • Quickstart guide
