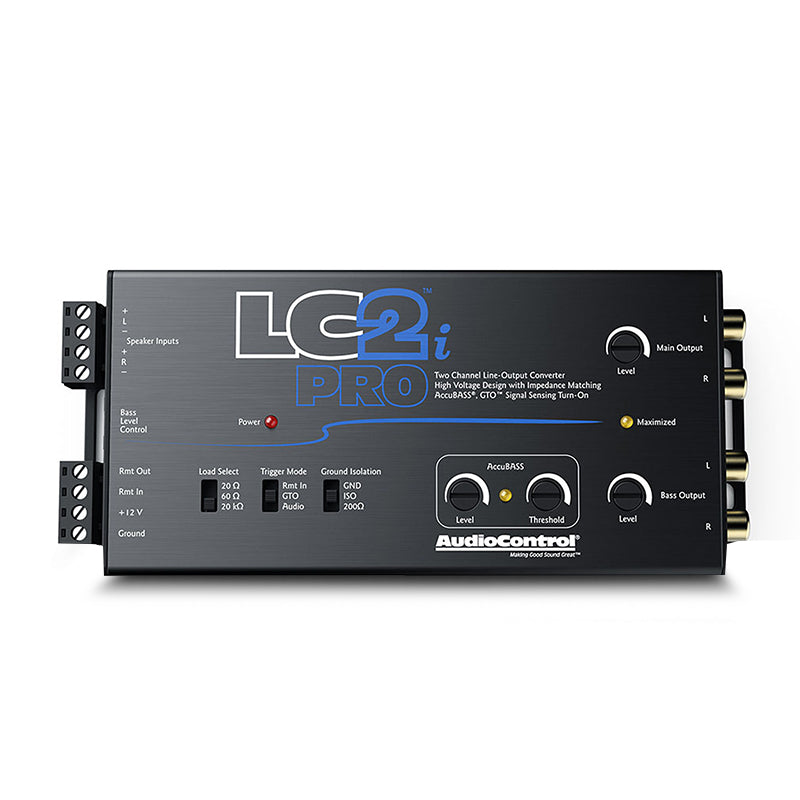

AudioControl AC-LC2i PRO Line Out Converter with AccuBASS

The AC-LC2i PRO lets you add amplifiers to a factory stereo. It takes speaker level signal, up to 400 W per channel, and turns it into a clean line level output.

AccuBASS restores the bass that many factory systems roll off as the volume goes up. The ACR-1 remote bass control is included. Turn on is by GTO signal sense, audio sense or a 12 V remote lead, and load selection switches suit different factory systems.

Want it fitted? Book in at Albion Park Rail (02) 4257 2636 or South Nowra (02) 4423 5254.

Specifications

• Type: 2 channel line out converter
• Input: speaker level, up to 400 W per channel
• Bass: AccuBASS
• Remote: ACR-1 bass control, included
• Turn on: GTO signal sense, audio sense or 12 V remote
• Load: selectable 20, 60 or 20k ohms
• Maximum speaker level input: 40V RMS (400W) on the 20k ohm setting
• Outputs: 2 channel main and 2 channel bass, up to 9.5V RMS
• Ground isolation switch
• Current draw: 200mA, 1A fuse recommended
• Size: about 175 x 76 x 25 mm including connectors

In the box

• LC2i PRO line output converter
• ACR-1 dash remote
• 6m (20 foot) phone cable for the remote
• Speaker and power connectors
• Manual

FAQ

What is the AudioControl AC-LC2i PRO?

A line out converter that adds amps to a factory stereo, with AccuBASS and the ACR-1 remote included.

Is the bass knob included?

Yes. The ACR-1 remote comes in the box.

Will it suit my car?

Send us your make, model and year, or call either store, and we will check it against your setup before you order.

Will it work with a fussy factory system?

That is what the load switches are for. Pick 20, 60 or 20k ohms to suit the factory amplifier, and it will sit happily on systems that reject a basic converter.

How does it turn my amplifiers on?

By GTO signal sense, audio sense or a 12V remote input, so you can often skip running a turn on wire.
