AudioControl AC-SA4140i Portable RTA Test & Measurement Microphone iOS

High-SPLiO Test & Measurement Microphone

Portable RTA Microphone iOS

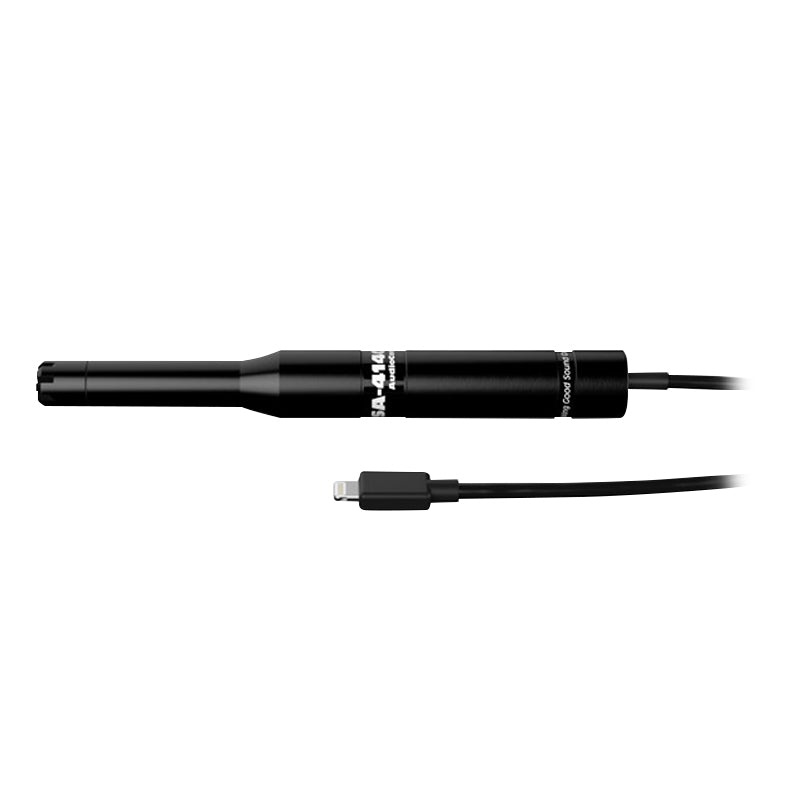

The AudioControl SA-4140i SPL is a calibrated, full range, Omni-directional test and measurement microphone for direct connection to iOS devices running iOS 6.1 or later. Using the AudioControl Mobile Tools app, you will be able to analyze the acoustics of any environment with high resolution and precision, using the processing power of your iPhone®, iPod® touch or iPad®. SA-4140i SPL makes set up of any sound processor a breeze, too, letting you see the acoustical spectrum and take action!

SA-4140i SPL features increased max SPL handling – up to 140 dB SPL. With its built-in audio output, the SA-4140i SPL is also perfect for iPhone 7. Keep your iOS device charged during extending use by connecting the included AC adapter to the built-in charging jack.

Specifications:

• Frequency Response: 20Hz – 20kHz ±3dB
• Gain Ranges: 27dBA – 105dBA; 48dBA – 120dBA
• Polar Pattern: Ominidirectional
• Power Consumption: <50mA
• Connector: Lightning

Dimension:

• Tip Diameter: 13mm (.5")
• Length: 145mm ( 5.7")

Compatibility:

• iPhone 5, iPhone 5C, iPhone 5S
• iPhone 6, iPhone 6 Plus
• iPod Touch 5th Generation
• iPad Mini, iPad Mini 2, iPad Mini 3
• iPad Air, iPad Air 2
• iPad 4th Generation

What's In The Box:

• SA-4100i
• Clip
• Wind Screen
• Manual
