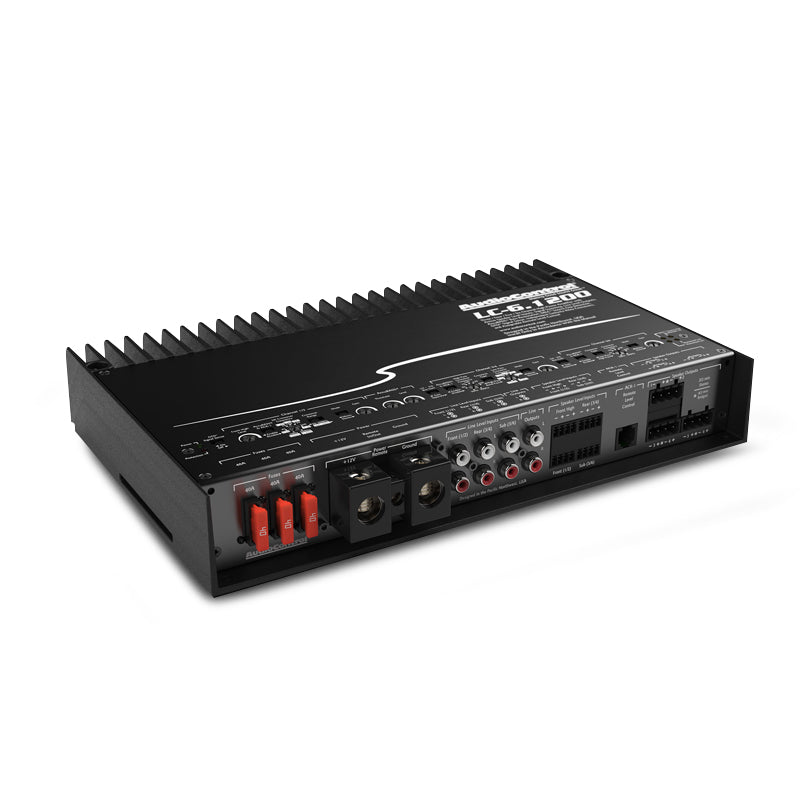

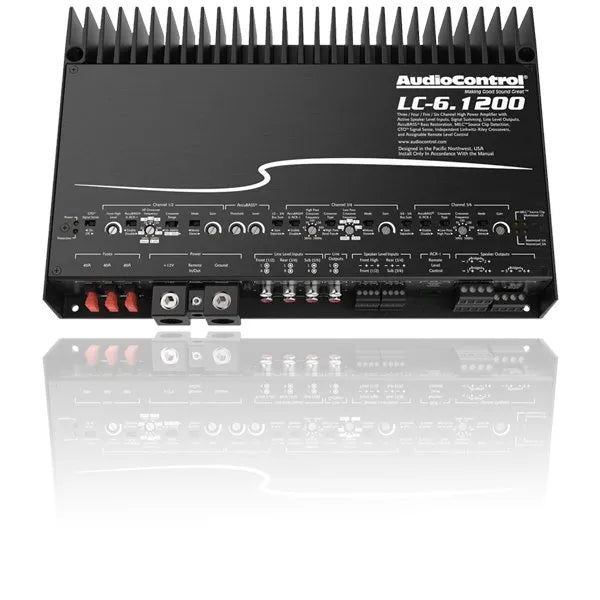

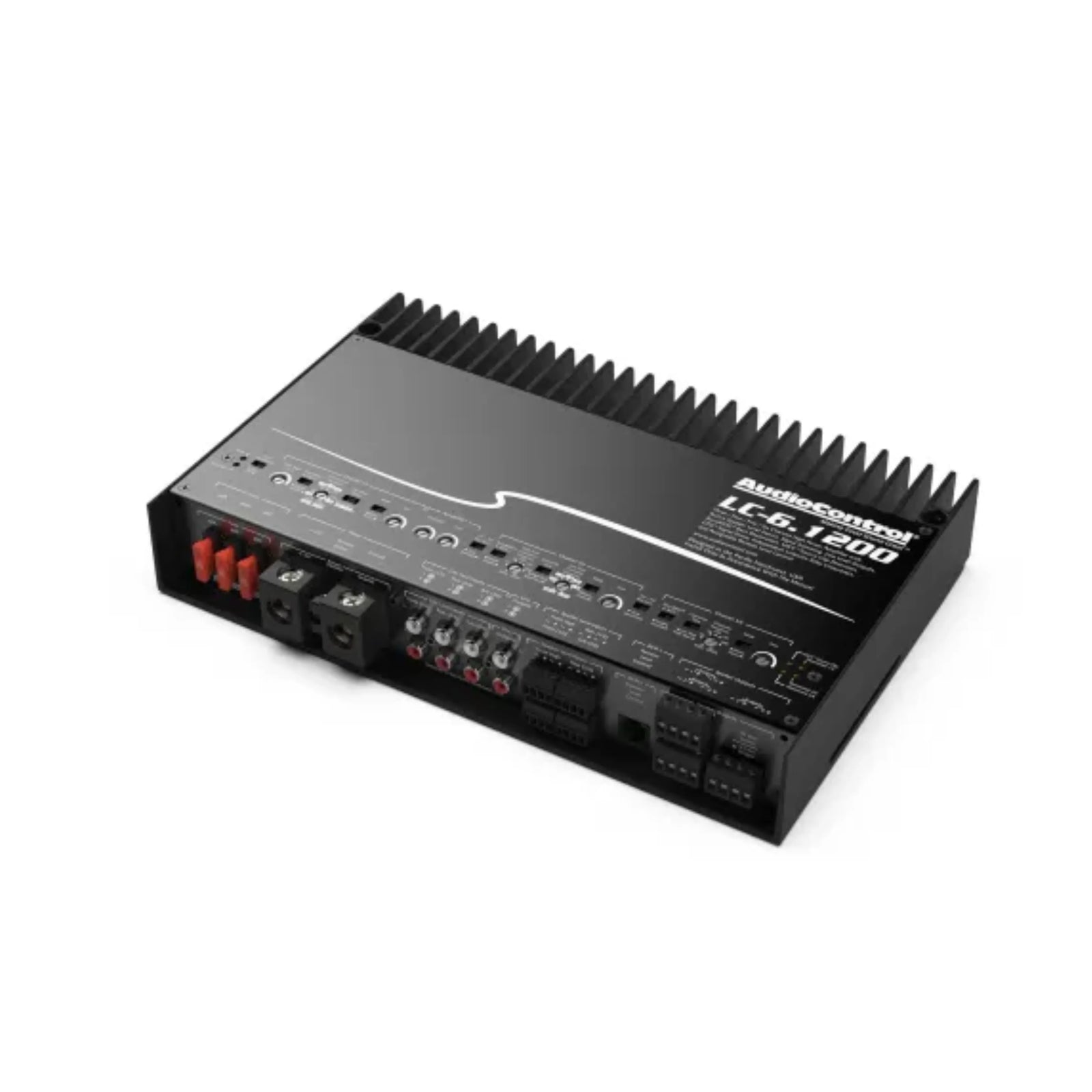

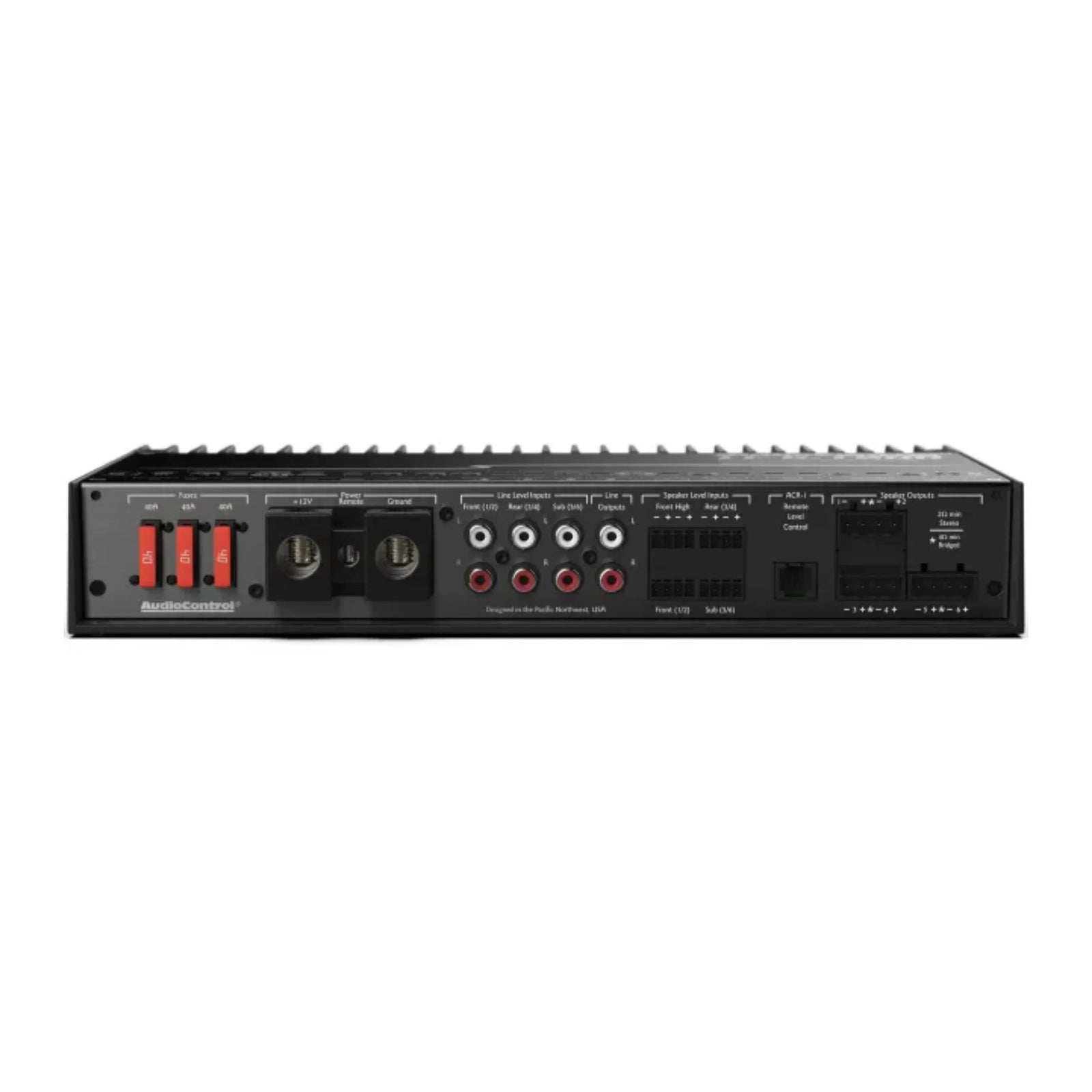

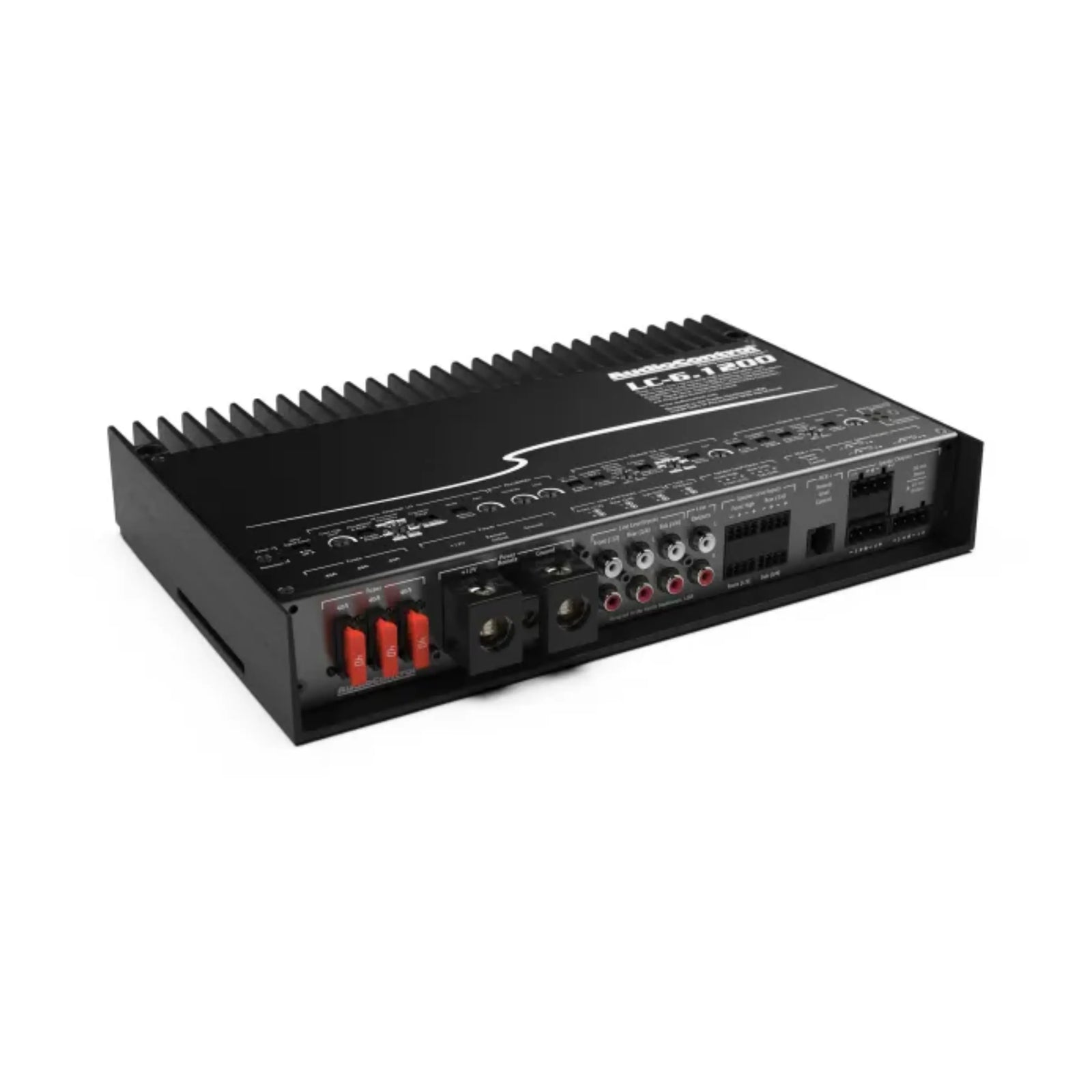

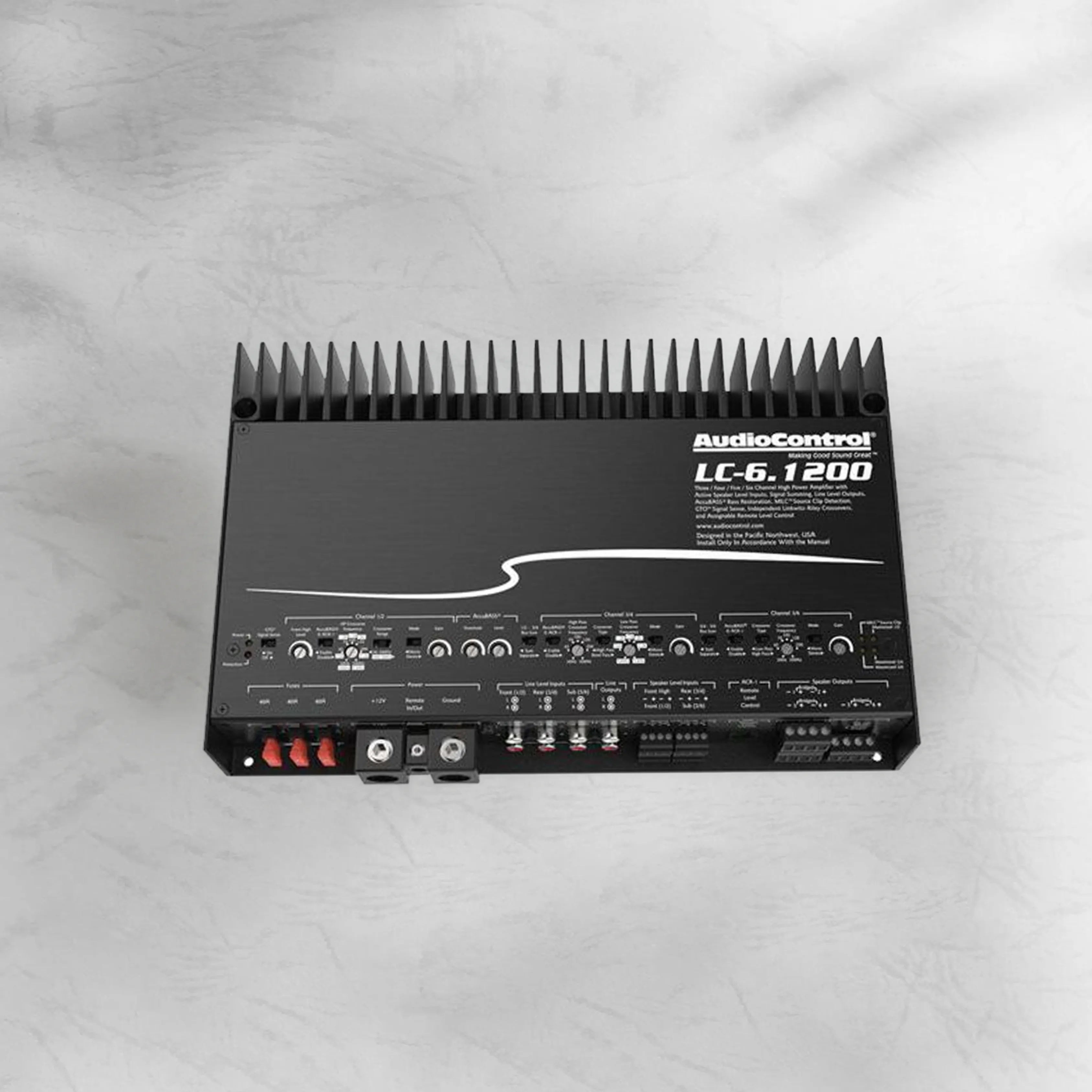

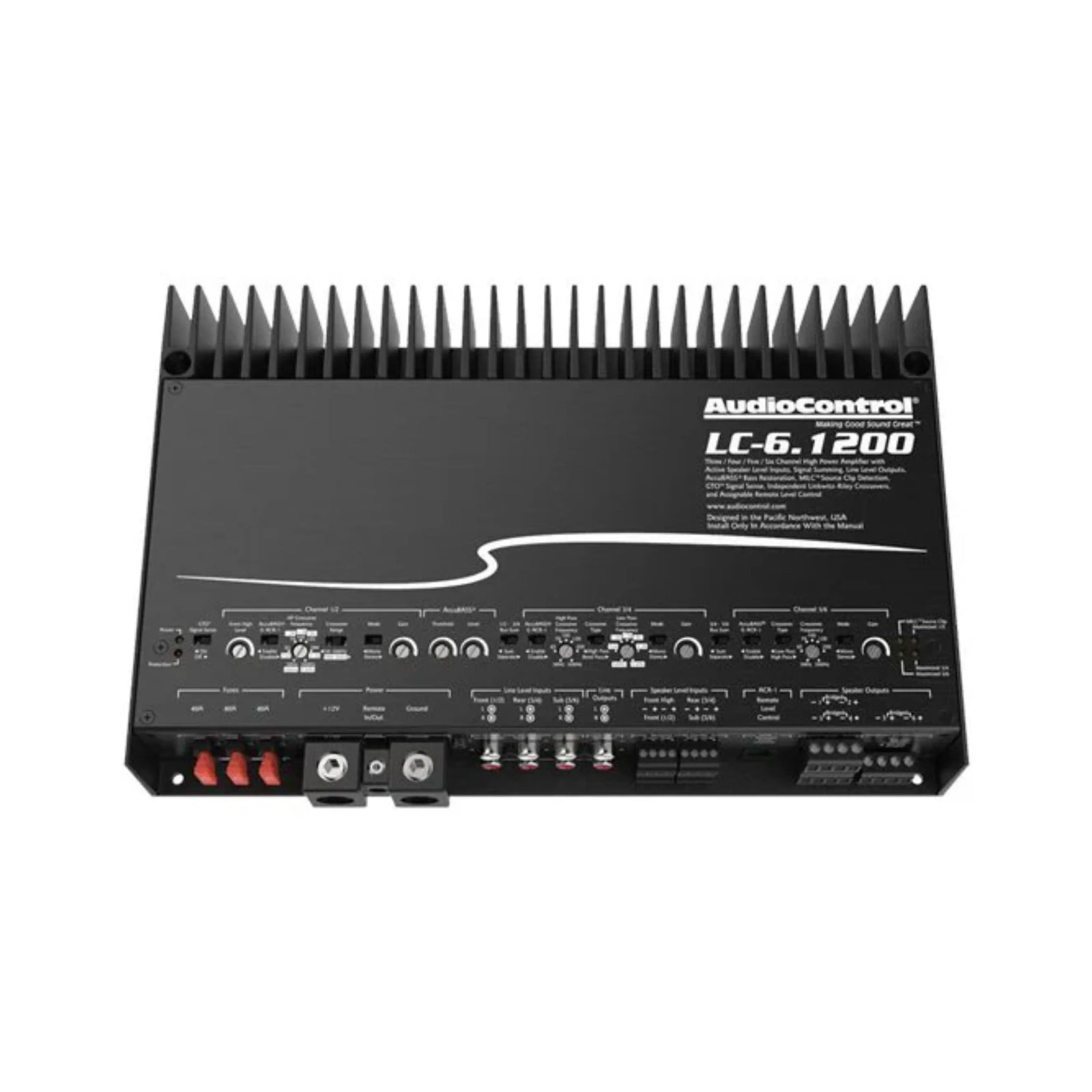

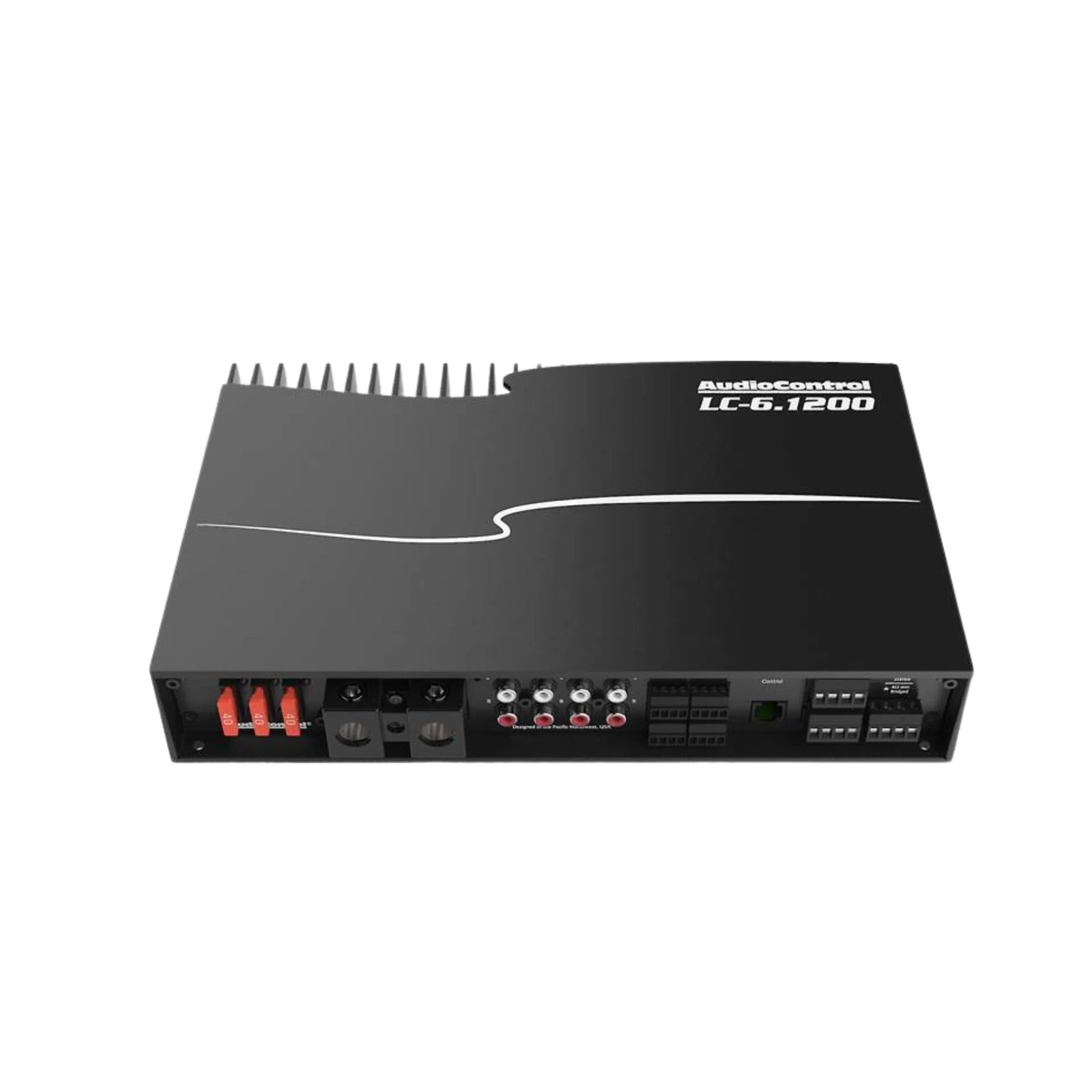

AudioControl AC-LC-6.1200 6-Channel LC Series Amplifier

AudioControl AC-LC-6.1200 - LC Series 6 Channel Amplifier | Ultimate Flexibility Solution

High-power 6-channel amplifier with advanced OEM integration featuring 8 active speaker-level inputs, 3-way Linkwitz-Riley crossover network, and AccuBASS processing for the most flexible multi-channel installation solution

Product Overview

The AudioControl AC-LC-6.1200 delivers ultimate installation flexibility through precision-engineered LC Series amplifier building from the successful LC-4.800 design with expanded capabilities for complex audio systems. This professional 6-channel amplifier features eight active speaker level inputs with summing capability and intuitive 3-way Linkwitz-Riley crossover network for seamless factory source unit integration, delivering 200 watts per channel at 2 ohms with patented AccuBASS® processing that compensates for factory bass roll-off, MILC™ source clip detection, and configurable 6/5/4/3/2 channel operation with solid one-piece aluminum chassis construction for professional installation applications.

What Makes This Amplifier Special

• Ultimate Installation Flexibility – Configurable as 6/5/4/3/2 channel amplifier with eight active speaker-level inputs and summing capability, providing the most flexible multi-channel solution for complex OEM integration and custom installation requirements
• Advanced 3-Way Crossover Network – Features intuitive 3-way independent Linkwitz-Riley alignment crossovers adjustable from 30Hz to 5000Hz, enabling precise frequency management for front, rear, and subwoofer channels in complete system installations
• Enhanced OEM Integration System – Eight summable speaker-level inputs (vs. 6 on LC-4.800) with patented AccuBASS® processing and MILC™ source clip detection provide superior factory system integration with maximum bass performance restoration
• Professional Multi-Channel Power – Delivers 200W x 6 channels at 2 ohms with bridging capability, 6 balanced preamp inputs, 2 assignable preamp outputs, and PFM subsonic filter for comprehensive system control and professional installation standards

Technical Specs

• Power Output: 125W x 6 @ 4Ω, 200W x 6 @ 2Ω, 400W @ 4Ω bridged (at 14.4V)
• Channel Configuration: Configurable as 6/5/4/3/2 channel amplifier with bridging capability
• Preamp Inputs: 6 balanced inputs with 250mV-8Vrms range
• Speaker Level Inputs: 8 active inputs with summing, 3V-40Vrms range
• Preamp Outputs: 2 assignable outputs with 8.5V RMS maximum
• Frequency Response: 10Hz-30kHz for full-range capability
• Signal to Noise Ratio: 102dBA (Reference 200W @ 2Ω)
• Total Harmonic Distortion: < 0.01% THD+N
• Crossover: 3-way independent 12dB Linkwitz-Riley, adjustable 30Hz-300Hz (note: some sources indicate up to 5000Hz)
• High Level Input Capacity: 40V (400W) per channel maximum
• Processing Features: AccuBASS® bass restoration, MILC™ source clip detection, PFM subsonic filter
• Remote Control: Optional ACR-1 assignable remote control compatible
• Power Requirements: Minimum 3 AWG power/ground wire, 3 x 40A fuse rating
• Dimensions: 12"W x 8.0"D x 2.1"H
• Weight: 7.2 lbs (3.3kg)
• Construction: Solid one-piece aluminum chassis

Frequently Asked Questions

What makes this the most flexible 6-channel amplifier on the market?

The LC-6.1200 can be configured as 6/5/4/3/2 channel amplifier with 8 active speaker-level inputs, 3-way crossover network, and multiple bridging options, providing unmatched flexibility for any installation requirement from simple upgrades to complex custom systems.

How does the 3-way crossover network benefit my installation?

The 3-way Linkwitz-Riley crossover system (30Hz-5000Hz) allows precise frequency management for front speakers, rear speakers, and subwoofers from a single amplifier, eliminating the need for external crossovers or multiple amplifiers.

What's the difference between this and the LC-4.800?

The LC-6.1200 adds 2 additional channels, expands to 8 speaker-level inputs (vs. 6), includes 3-way crossovers (vs. standard), and provides enhanced MILC™ source clip detection for superior performance in complex installations.

How do the 8 speaker-level inputs improve OEM integration?

Eight active inputs with summing allow connection to more factory speaker outputs, providing better signal capture from complex OEM systems while AccuBASS® processing restores natural bass response lost in factory systems.

Can I use this amplifier for a complete system installation?

Yes, the 6-channel configuration with 3-way crossovers can power front speakers, rear speakers, and subwoofers in a complete system installation, eliminating the need for multiple amplifiers while maintaining precise control over each section.

What is MILC™ source clip detection?

MILC™ (Maximum Input Level Control) with source clip detection prevents distortion from overdriven factory sources, automatically managing input levels to maintain clean amplifier operation regardless of source unit output variations.

How It Works

Professional Multi-Channel Integration System – Connect factory speaker outputs to the eight active speaker-level inputs for comprehensive signal processing. Configure the amplifier for your desired channel count and set up the 3-way Linkwitz-Riley crossovers for front, rear, and subwoofer frequency management. AccuBASS® processing automatically compensates for factory bass roll-off while MILC™ technology prevents source clipping for clean, powerful multi-channel amplification.

Compatible With / Goes Well With

Source Integration: Complex factory source units, premium OEM systems, aftermarket headunits requiring multi-channel processing

Speaker Compatibility: Complete speaker systems, component sets, subwoofers, multi-driver installations

System Applications: Complete system upgrades, complex OEM integrations, custom multi-zone installations, premium vehicle audio systems

Professional Installation: Authorized AudioControl dealers, advanced OEM integration specialists, custom installation professionals
