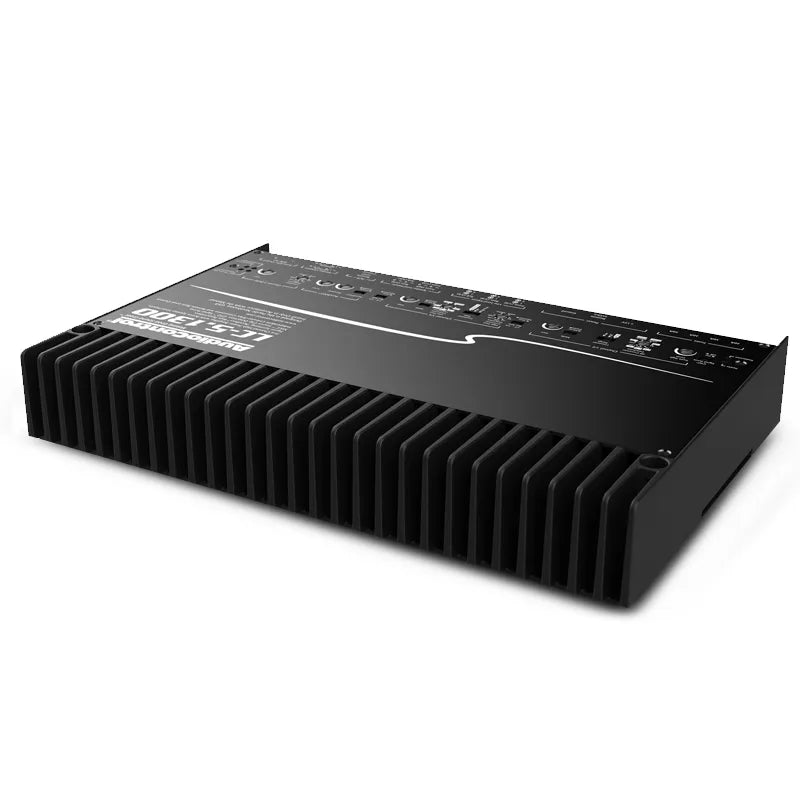

AudioControl AC-LC-5.1300 LC Series 5 Channel Amplifier

“Making Good Sound Great” Is Our Passion at AudioControl & That Legacy Continues with The LC-5.1300 Multi-Channel Amplifier

Maximum Sound Quality
The LC-5.1300 brings five channels of sonic purity and unprecedented levels of power to a complete range of multi-channel and subwoofer amplifiers from AudioControl.

Featuring eight active speaker level inputs, six line level inputs, the LC-5.1300 is packed with intuitive setup controls for high-pass, band-pass, and low-pass filters, automatic and selectable signal summing, and AccuBASS.

Integrate seamlessly with your OEM or aftermarket sound system with this single-amp solution, which will transform your audio with impressive power levels delivered to your speakers and subs. Add the optional ACR-1 remote for level control.

Big On Output
With a long heritage of home audio, AudioControl's 5 Channel Matrix Amplifier offers some serious grunt matched with amazing sound quality. Thanks to its efficient Class-D topology, the LC-5.1300 offers full 20Hz to 20kHz audio range with a warm, clean and detailed sound like you would find in the AudioControl home theatre range.

With up to 200 Watts RMS per channel and over 400w Bridged, this packs a serious punch with its 4 channels of output and with upto 500w @ 2ohm for a subwoofer, this is a great all in one solution!

The Input You Need
Integrating an amplifier into the factory audio system of many vehicles can be confusing and scary. Dealing with many input channels, active and passive speaker options and high powered outputs makes your basic line out converter not an option.

With 8 Channels of high level input accepting up-to 400 watts per channel using the same technology found in our LC range of interfaces, the LC-5.1300 makes easy work of taking all of these signals and giving you the smooth full range output you want.

Using an aftermarket headunit? We've got you covered with 6 channels of low level RCA input for direct control of each channel.

Get That BASS!
Using patented technology, each AudioControl LC-5.1300 includes the AccuBASS processor system.

Ever fitted an amplifier to a factory system and found the bass lacking the punch you wanted? Designed to correct bass removed from the factory audio system to protect the factory speakers, AccuBASS processing is an adjustable feature that gives your new audio system rock solid bass response that you wanted.

Complete Control
Featuring eight active speaker level inputs with summing, coupled with an intuitive Linkwitz-Riley crossover network, the LC-5.1300 can be easily integrated with most factory installed source units. The patented AccuBASS® circuit compensates for factory bass roll-off and provides maximum bass performance.

All of this can easily be adjusted using the precision indented rotary pot controls and high quality switches at the top of the amplifier for easy setup and control.

Control At Your Fingertips
Control your subwoofer bass level with ease using the optional ACR-1 Bass controller, compatible with the LC-5.1300 5 Channel amplifier thanks to the ACR port. (Available Separately)

Plug & Play Your Audio Away
With our wide range of Plug and Play harnesses, you can get the right connection, save time on installation and get the professional finish.

Available for A Select Wide Range of Makes & Models Including:

• Audi
• BMW
• Citroen
• Ford
• Holden
• Honda
• Hyundai
• GM
• KIA
• Mazda
• Skoda
• Subaru
• Toyota
• Volkswagen & More!

(Available Separately. Please Check Compatibility)

Specifications:

• Inputs:
  • Preamp Inputs: 6 Balanced
  • Preamp Input Voltage Range: 500 mV – 6 Vrms
  • Speaker Level Inputs: 8
  • Speaker Level Input Voltage Range: 3 V – 40 Vrms
• Outputs:
  • Rated Continuous (RMS) Power at 14.4V:
  • 4 Ω – 100 W x4 RMS (CH1-4)
  • 2 Ω – 200 W x4 RMS (CH1-4)
  • 4 Ω – 400 W RMS BRIDGED (CH1-4)
  • 4 Ω – 300 W RMS (CH5)
  • 2 Ω – 500 W RMS (CH5)
• Performance:
  • Frequency Response: 22 Hz – 22 kHz
  • Signal to Noise: 102 dBA, Ref 200 W @ 2 Ohm
  • THD+N: < 0.1%
  • Power / Ground Wire Gauge: 3 AWG wire
  • Fuse Rating: 4x 40 A
  • Crossover: 3-way Linkwitz-Riley, Adjustable From 30 Hz – 300 Hz

Compatibility Information:

• Rated Continuous (RMS) Power @ 14.4v: 4 Ω – 100 W x 4 RMS / 2 Ω – 200 W x 4 RMS / 4 Ω – 400 W Bridged RMS (Channels 1 – 4), Subwoofer Channel – 300W @ 4Ω / 500W @ 2Ω
• High level Input Voltage: 40v (400 Watts) Per Channel
• Input Channels: 6 Channel RCA + 8 Channel High Level
• Remote Turn On Feature: Yes
• Total Harmonic Distortion Rating: 0.01%
• Crossover Frequency: 3-Way Linkwitz-Riley, Adjustable From 30 Hz – 5000 Hz
• Crossover Type: Independent 12 dB Linkwitz-Riley Crossovers
• Dimensions: 12.0"W x 8.0"D x 2.1"H
