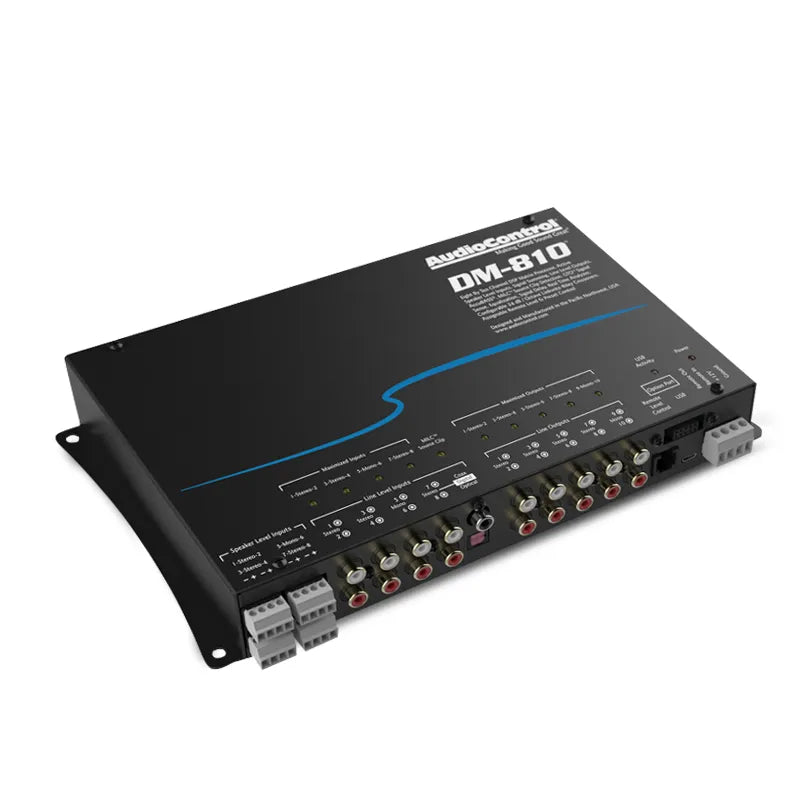

AudioControl AC-DM810 D Series Eight By Ten Channel Digital Sound Processor

“Making Good Sound Great”

D Series Eight By Ten Channel DSP
The powerful DM-810 processor allows users to truly optimize the performance of their audio system, regardless of whether they are using a factory or aftermarket source, and to truly achieve the goal of “Making Good Sound Great”.

These highly versatile Digital Signal processors are equipped with key features, such as active speaker level inputs, line-level, and digital audio inputs, providing up to 10 channels of output. AudioControl’s smart user interface contains the power of AudioControl processing through a flexible PC interface packed full of features in a simple layout. Configure signal summing, 30 bands of equalization, signal time-alignment, input delay and phase correction, plus AudioControl proprietary features like AccuBASS®, GTO Signal Sense, and MILC as well as integrated input and output RTA’s.

The built-in Option Port on the DM-810 is the future of car audio and will allow hi-res streaming directly into the DSP. It also opens up future proprietary connections for additional inputs, controllers, and interface solutions.

Designed to be the ultimate in sound quality and enhanced audio performance, the DM-810 is our latest AudioControl processor that sets a new standard for sound and what can be achieved in-car audio systems.

Features:

• Smart User Interface Software Included.
• Input & Output RTA For Precise & Informed Tuning.
• GTO TM Signal Sensing
• MILC TM Clip Detection
• AccuBASS®
• Signal Summing
• Signal Delay
• 12 & 24 dB/Octave Crossovers
• 30 Band Equalizer
• Optional ACR-3 Remote For Preset Recall & Level Control.
• Optional AC-BT24 Bluetooth Audio Streaming & Remote Control Device.
• Bulletproof 5-Year Warranty (When Installed By An Authorized AudioControl Dealer)

Specifications:

• Input Channels: 8 Channel RCA + 8 Channel High Level
• RCA Pre-Outs: 10-Channel Stereo
• Remote Turn-on Feature: Yes
• Recommended Fuse Size: 3 Amp
• Total Harmonic Distortion Rating: 0.01%
• RCA Output Voltage: 0v - 10v Voltage
• Dimensions: 10.5” (W) x 5.7” (D) x 1.6” (H)

Package Contents:

• DM-810
• Power and Speaker Connectors
• Manual
• Warranty
