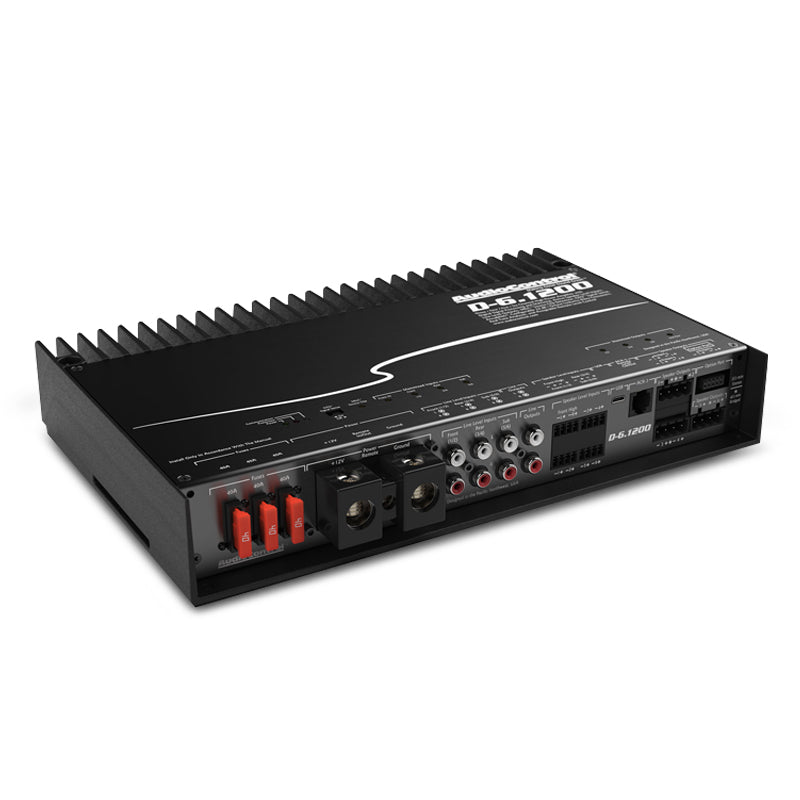

AudioControl AC-D6.1200 D Series 6-Channel DSP Amplifier

AudioControl D Series 6-Channel DSP Amplifier: Provides Unprecedented Power & Tuning Flexibility

6-Channel DSP Matrix Amplifier With AccuBASS®
AudioControl has paired our award-winning amplifier technology with our powerful Matrix DSP into the D-6.1200. This single-unit solution provides unprecedented power and tuning flexibility when you require audio perfection from your factory or aftermarket sound system.

The D-6.1200 features active speaker level inputs, line-level inputs and outputs plus, using AudioControl’s DM Smart DSP app gives you complete control over all features including 30 bands of equalization, signal delay, input delay, polarity and AudioControl proprietary features like AccuBASS®, GTOTM Signal Sense, and MILCTMplus integrated input and output RTA’s.

The built-in Option Port on the D-6.1200 is the future of car audio and will allow hi-res streaming directly into the DSP. It also opens up future proprietary connections for additional inputs, controllers and interface solutions. Perfect for OEM integration and aftermarket builds, the D-6.1200 packs power and intelligent flexibility into one beautiful cast aluminium chassis.

AudioControl AC-D6.1200 Features:

• Built-In DSP
• Configurable As 6/5/4/3 Channel Amplifier
• 6 x 200 Watts @ 2 Ohms
• 6 x 125 Watts @ 4 Ohms
• 400 Watts @ 4 Ohms Bridged
• AccuBASS® Processing
• MILCTM Maximum Input Level Control (Patent Pending)
• GTOTM Signal Sense
• Active Speaker-Level Inputs (8-Channels) For OEM Integration.
• 6 Preamp Inputs
• 2 Assignable Preamp Outputs
• Solid One-Piece Aluminum Chassis
• Input & Output RTA For Precise & Informed Tuning.
• Input & Output Delay
• 12 and 24 dB/Octave Linkwitz-Riley Crossovers.
• 30 Band Equalizer
• Optional ACR-3 Remote For Preset Recall & Level Control.
• Optional AC-BT24 Bluetooth Streamer/Programmer.
• DM Smart DSP App Available In Downloads For Mac/PC.

AudioControl AC-D6.1200 Specifications:

• DSP Built-In: Yes
• Rated Continuous (RMS) Power @ 14.4v: 4Ω – 125W x 6 RMS / 2Ω – 200W x 6 RMS / 4Ω – 400W Bridged RMS
• High-level Input Voltage: 40v (400 Watts) Per Channel
• Input Channels: 6 Channel RCA + 8 Channel High Level
• RCA Pre-Outs: 2 Channel Stereo
• Remote Turn On Feature: Yes
• Total Harmonic Distortion Rating: 0.01%
• Crossover Type: 12 & 24 dB/Octave Linkwitz-Riley
• Dimensions: 9″W x 7.95″D x 2.1″H

What's In The Box:

• D-6.1200
• Speaker Connectors
• Fuses
• Manual
• Warranty
