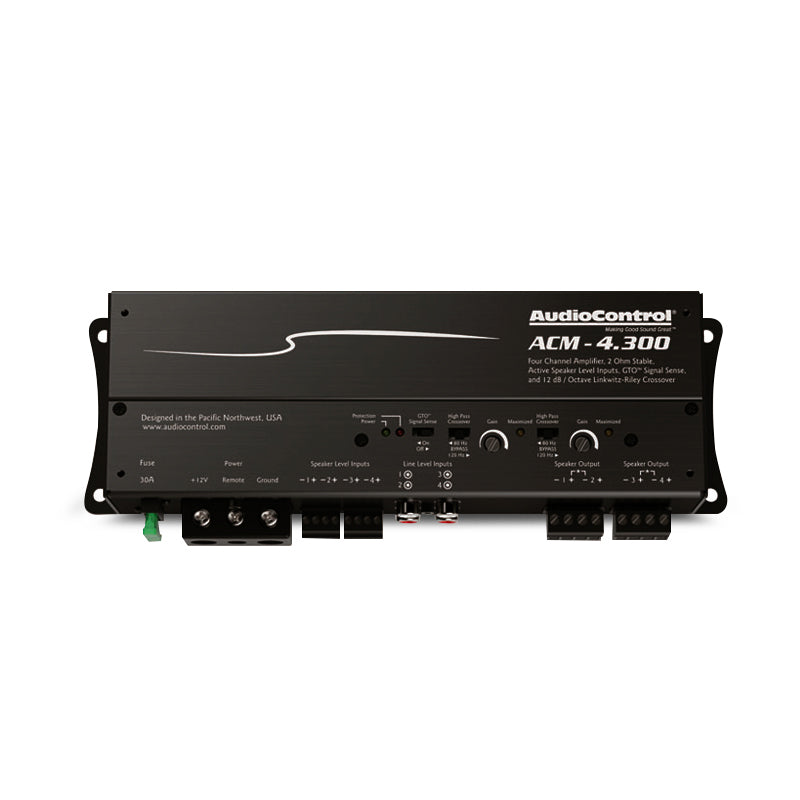

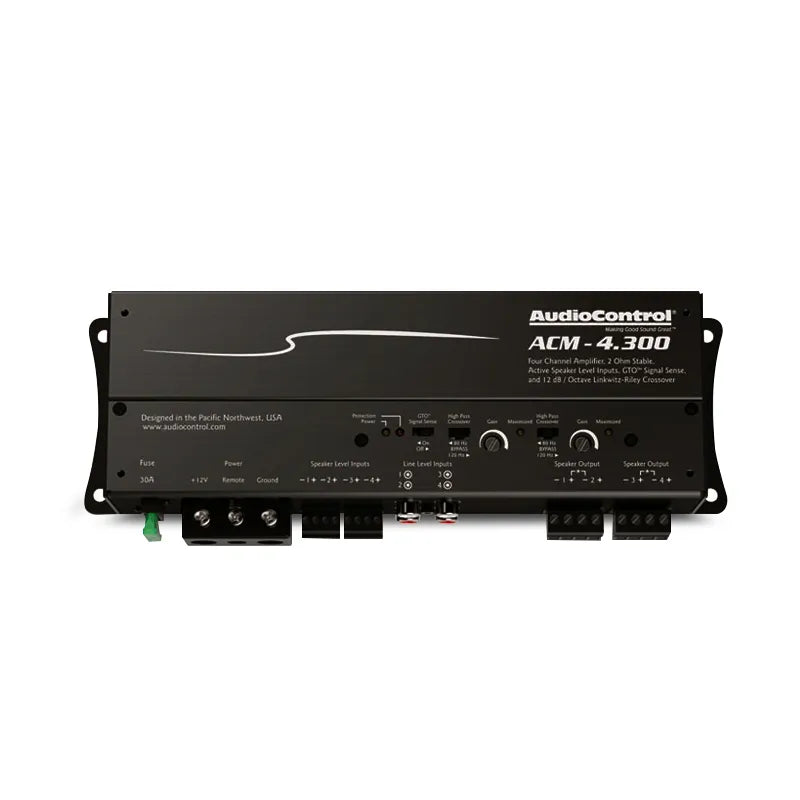

AudioControl AC-ACM-4.300 150 Watts 4-Channel Micro Amplifier

Perfect Blend of Power & Features for Car Audio Systems from Mild to Wild!

ACM-4.300 4CH Micro Amplifier
ACM series amplifiers by AudioControl are the perfect blend of power and features for car audio systems from mild to wild. Compact size, high power and the ability to help integrate with factory stereo systems are features that assure “Making Good Sound Great” can happen in any installation.

Small Foot Print
Trying to find room for an amplifier in your vehicle is always a task, especially in small vehicles. AudioControl's range of ACM Amplifiers are designed for this exact reason. This tiny, almost hand sized, fits in your back jeans pocket amplifier is designed to be fitted behind trim panels, up behind dashboards or tucked away in small areas where space is an issue.

Big On Power
Don't let the small size of the ACM Amplifiers fool you. They may be small but the ACM-4.300 packs a punch with conservative 75w RMS per channel, enough to power 4 speakers with ease. Featuring the same technology and design of its larger brother the AudioControl LC Series, the ACM Series offer smooth, clean and detailed audio output to keep any audiophile happy.

Choose Your Inputs
Designed for both OEM integration and aftermarket head unit connectivity, the ACM-4.300 features true High Level and Low Level inputs. With handling up-to 400 Watts Per Channel (40V rms) on high level and up-to 6v rms RCA low level, this versatile amplifier can be used easily in connection with OEM Amplified systems using the same technology found in the AudioControl LC2i as well as your aftermarket headunit.

Modular Design
Every ACM series amplifier features the exact same footprint and size, allowing you to mount back to back or stack ACM Amplifiers for neat tidy installation. Each amplifier includes a removable top plate which can be mounted to the top or the bottom of the amplifier as the ACM Amplifier can be mounted upside down as well for those flushed in fitment. With the optional large mounting plate, you can replace the included removable top plate for a seamless look (available separately).

Plug & Play Your Audio Away
With our wide range of Plug and Play harnesses, you can get the right connection, save time on installation and get the professional finish.

Available for A Select Wide Range of Makes and Models Including:

• Audi
• BMW
• Citroen
• Ford
• Holden
• Honda
• Hyundai
• GM
• KIA
• Mazda
• Skoda
• Subaru
• Toyota
• Volkswagen and more!
  (Available Separately. Please Check Compatibility)

Features:

• 4 x 75 Watts @ 2 Ohms
• 4 x 50 Watts @ 4 Ohms
• 150 Watts @ 4 Ohms Bridged
• GTOTM Signal Sense
• Active Speaker-Level Inputs For OEM Integration.
• RCA Line Inputs
• Linkwitz-Riley Crossover
• Reversible Cover Plate
• Bulletproof 5 Year Warranty (When Installed By An Authorized AudioControl Dealer)

Specifications:

Inputs:

• Preamp Inputs: 4 Balanced
• Preamp Input Voltage Range: 500 mV – 6 V RMS
• Speaker Level Inputs: 4

Outputs:

• Rated Continuous (RMS) Power at 14.4V:
  4 Ω – 50 W x 4 RMS
  2 Ω – 75 W x 4 RMS
  Bridged 4 Ω – 150 W RMS

Performance:

• Frequency Response: 10 Hz – 22 kHz
• Signal To Noise: 102 dBA, Ref 50 W @ 4 Ohm
• THD+N: < 0.01%
• Power / Ground Wire Gauge: 10 - 4 AWG Wire
• Fuse Rating: 1 x 30 A
• Crossover: 12 dB/Octave Linkwitz-Riley, 80 Hz, 120 Hz, Bypass
• PFM Subsonic Filter: 32 Hz

Weights & Dimensions:

• Dimensions: 9.4″W x 3.0″D x 1.75″H
• Weight: 2.2 lbs. (0.98 kg)

What's In The Box:

• ACM-4.300
• Speaker Connectors
• Fuse
• Manual
• Warranty
