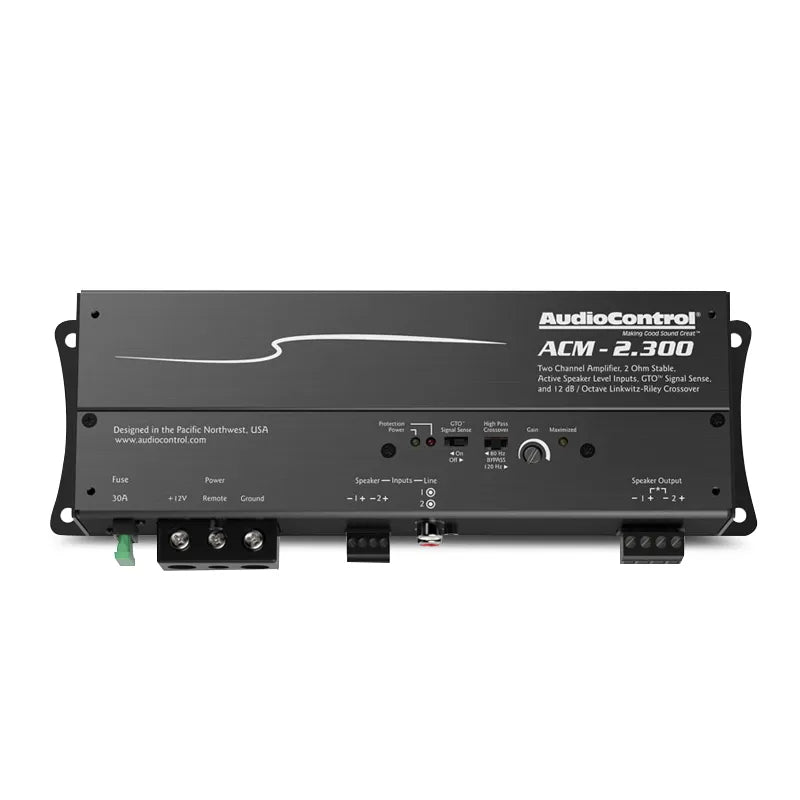

AudioControl AC-ACM-2.300 300 Watts 2-Channel Micro Amplifier

SKU: ACACM2300
Price
$849
Inc. GST. Most orders ship Australia wide for a flat $15.95. Larger or heavier items may cost more.
Buy now, pay later
  • image
  • image
  • image

Not on our shelf right now. We order this one in from our supplier.

Available soon. Call or visit us in store. (02) 4257 2636

Shipping information

Australia wide flat rate shipping is $15.95. Larger or heavier items may cost more; we will confirm when your order is processed. In stock items are dispatched within 1 to 2 business days. Report transit damage within 24 hours with photos so we can lodge a freight claim.

Product features

Adding an amplifier to a factory stereo usually means finding room for it and getting a clean signal into it. The AudioControl ACM 2.300 is a compact two channel amplifier with active speaker level inputs, so it can take signal straight off a factory head unit, plus RCA inputs for an aftermarket one.

AudioControl built the ACM series for car audio systems from mild to wild, with high power from a small chassis. Run a pair of speakers at full power, or bridge it into one channel for 300 watts RMS.

Features

  • 2 x 150 watts RMS at 2 ohms
  • 2 x 75 watts RMS at 4 ohms
  • 300 watts RMS at 4 ohms bridged
  • GTO signal sense turn on
  • Active speaker level inputs for factory stereo integration
  • RCA line inputs
  • Linkwitz Riley crossover

Specifications

  • Power ratings: RMS at 14.4 V
  • Preamp inputs: 2 balanced
  • Preamp input voltage: 500 mV to 6 V RMS
  • Speaker level inputs: 2
  • Speaker level input voltage: 3 V to 40 V RMS
  • Frequency response: 10 Hz to 22 kHz
  • Signal to noise: 102 dBA, ref 50 W at 4 ohms
  • THD+N: under 0.01%
  • Crossover: 12 dB/octave Linkwitz Riley at 80 Hz or 120 Hz, or bypass
  • PFM subsonic filter: 32 Hz
  • Size: 9.4 x 3.0 x 1.75 inches (W x D x H)
  • Weight: 0.95 kg

In the box

  • ACM 2.300 amplifier
  • Speaker connectors
  • Fuse
  • Manual
  • Warranty

Frequently asked questions

Will it fit in a tight spot?

Yes. The cover plate is reversible, so the amplifier can mount neatly beside an AudioControl DM Series processor or next to more ACM amplifiers where space is short.

What size power cable does it need?

Use 10 to 4 AWG power and ground wire, protected by a single 30 A fuse.

What warranty does it have?

Bulletproof 5 year warranty when installed by an authorised AudioControl dealer.
