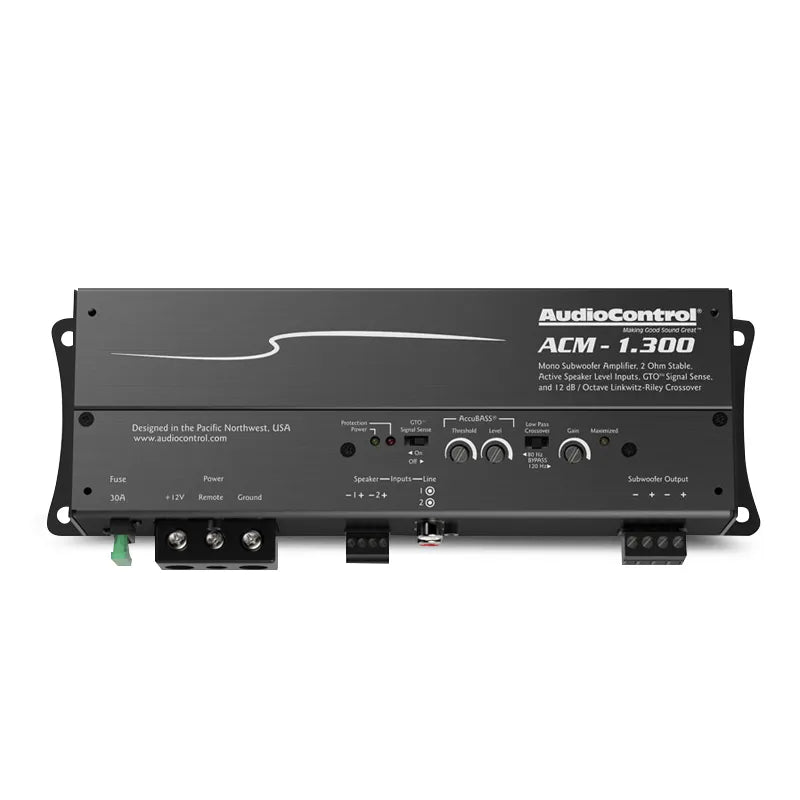

AudioControl AC-ACM-1.300 300 Watts Mono Amplifier With LC2i

Perfect Blend of Power & Features for Car Audio Systems from Mild to Wild

Monoblock Micro Amplifier With AccuBASS®
ACM series amplifiers by AudioControl are the perfect blend of power and features for car audio systems from mild to wild. Compact size, high power and the ability to help integrate with factory stereo systems are features that assure “Making Good Sound Great” can happen in any installation.

Reversible cover plates allow flexible mounting options when paired with AudioControl DM Series Processors or when using multiple ACM series amplifiers in confined spaces. Once again AudioControl comes to the rescue combining features and benefits needed to assure audio euphoria in an automotive setting.

Features:

• 300 Watts @ 2 Ohms
• 175 Watts @ 4 Ohms
• AccuBASS® Processing
• GTOTM Signal Sense
• Active Speaker-Level Inputs For OEM Integration.
• RCA Line Inputs
• Linkwitz-Riley Crossover
• Optional ACR-1 Remote Level Control
• Reversible Cover Plate
• Bulletproof 5 Year Warranty (When Installed by An Authorized AudioControl Dealer)

Specifications:

Inputs:

• Preamp Inputs: 2 Balanced
• Preamp Input Voltage Range: 500 mV – 6 V RMS
• Speaker Level Inputs: 2

Outputs:

• Rated Continuous (RMS) Power @ 14.4V:
  4 Ω – 175 W RMS
  2 Ω – 300 W RMS

Performance:

• Frequency Response: 10 Hz – 22 kHz
• Signal To Noise: 102 dBA, Ref 175 W @ 4 Ohm
• THD+N: < 0.01%
• Power / Ground Wire Gauge: 10 - 4 AWG Wire
• Fuse Rating: 1 x 30 A
• Crossover: 12 dB/Octave Linkwitz-Riley, 80 Hz, 120 Hz, Bypass
• PFM Subsonic Filter: 24 Hz

Weights & Dimensions:

• Dimensions: 9.4″W x 3.0″D x 1.75″H
• Weight: 2.1 lbs. (0.95kg)

What's In The Box:

• ACM-1.300
• Speaker Connector
• Fuse
• Manual
• Warranty
