Aerpro SWVW3V Steering Wheel Control Interface for Volkswagen

Aerpro SWVW3V Steering Wheel Control and Reverse Camera Retention Interface for Volkswagen

The Aerpro SWVW3V lets you fit an aftermarket headunit to your Volkswagen or Skoda without losing your factory steering wheel controls or reverse camera. It's a CANBUS interface built for vehicles with an RNS510, RNS315 or RCD510 original headunit and quadlock connector. The harness plugs straight into your existing wiring, so there's no cutting required.

Product overview

The SWVW3V is a steering wheel control and reverse camera retention interface from Aerpro, designed for various Volkswagen and Skoda models fitted with an RNS510, RNS315 or RCD510 original headunit and quadlock connector. It comes with a harness that has a vehicle specific plug, so it connects directly into your existing wiring without any cutting. This interface converts your factory RGB reverse camera signal into a standard CVBS output via RCA, so the picture can display on your new aftermarket headunit. That includes cameras hidden behind the motorised rear VW badge, with the badge still operating normally as the vehicle controls it. Active guidelines are also retained on vehicles that have this feature fitted from the factory. The SWVW3V is CANBUS compatible and also provides reverse trigger, park brake and speed pulse outputs, which many aftermarket headunits use for extra functions.

Features and benefits

Steering wheel control retention - keep using your buttons: you can upgrade to an aftermarket headunit and still use your factory steering wheel controls, so you don't need to reach for the dash while driving.

Reverse camera retention, including badge cameras - no lost camera view: the SWVW3V keeps your factory reverse camera working, even when it's built into the motorised rear VW badge, and the badge keeps operating as the vehicle controls it.

RGB to CVBS conversion - compatible video for your new headunit: the factory camera sends an RGB signal, which this interface converts to a CVBS signal over RCA so your new headunit's reverse camera input can display it.

Active guideline retention - keeps your parking lines: on vehicles fitted with active guidelines from the factory, those lines keep appearing on the reversing image after the upgrade.

CANBUS compatible - simpler wiring: the interface reads CANBUS data directly, so CAN equipped vehicles don't need an extra module.

Output feeds for reverse trigger, park brake and speed pulse - more functions for your headunit: these signals let a compatible aftermarket headunit trigger reverse camera switching, parking brake warnings, and speed based features like audio muting.

Vehicle specific plug - no cutting required: the harness connects directly into your existing wiring using the factory style connector, so you don't need to cut or splice any wires.

Not compatible with factory OEM amplified systems - a limitation to know before you buy: if your Volkswagen has a factory amplified audio system, this interface won't work with it, so check your vehicle's setup first.

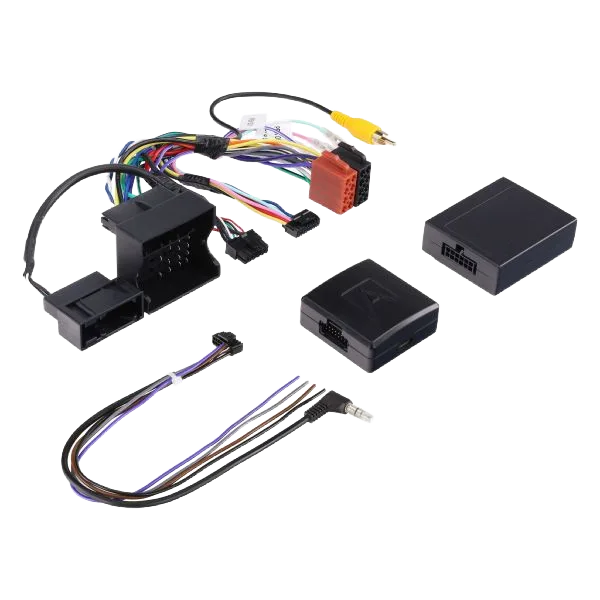

What's in the box

• Aerpro SWVW3V steering wheel control and reverse camera retention interface module
• Vehicle specific wiring harness with quadlock connector
• RCA video output lead for reverse camera connection

Technical specs

Vehicle feature retention

Compatible vehicle table

Frequently asked questions
