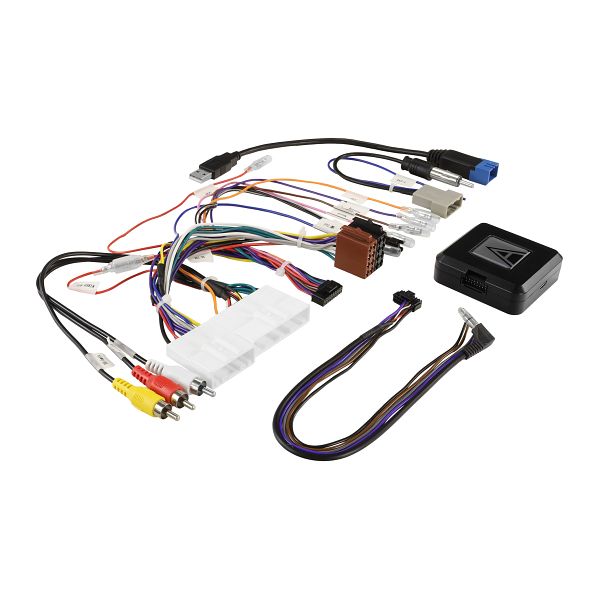

Aerpro SWNI30C Steering Wheel Control Interface to Suit Nissan Various Models (Without 360 Degree Camera Retention)

Aerpro SWNI30C Steering Wheel Control Interface to Suit Nissan Various Models (Without 360 Degree Camera Retention)

A CANBUS steering wheel control interface engineered for various Nissan vehicles without factory 360-degree cameras, retaining OEM steering wheel controls, reverse camera, USB, and AUX inputs when installing an aftermarket head unit.

Product Overview

The Aerpro SWNI30C Steering Wheel Control Interface allows you to retain full use of your factory steering wheel control buttons, AUX input, USB input, and reverse camera when installing an aftermarket head unit into compatible Nissan vehicles. Engineered specifically for Nissan models without OEM 360-degree cameras, the interface includes a vehicle-specific plug that connects directly into the existing vehicle wiring for a clean, straightforward installation.

The SWNI30C is CANBUS compatible and requires no additional modules, providing a direct integration solution with outputs for reverse trigger, park brake, and speed pulse. Retaining the factory reverse camera through this interface allows it to display on compatible aftermarket AV head units with an RCA camera input, and switchable camera viewing modes are accessible via a factory-style button included with the interface.

Installation is further simplified when paired with the optional Aerpro APP8 Headunit Secondary ISO Harness, which connects between the aftermarket head unit and the SWNI30C interface for a fully integrated, professional result.

Note: This interface is not suitable for vehicles fitted with factory 360-degree reverse cameras. It does not retain Intelligent Park Assist features or the factory compass. Use the Aerpro Vehicle Selector to confirm compatibility with your specific Nissan model before ordering. The aftermarket head unit must be SWC compatible and steering wheel control functions may vary from OEM functions.

Features & Benefits

Factory Steering Wheel Control Retention Retains full use of OEM steering wheel control buttons after aftermarket head unit installation, keeping hands on the wheel and eyes on the road for improved driver safety.

OEM Reverse Camera Retention Retains the factory reverse camera (if fitted) and enables it to display on compatible aftermarket AV head units with an RCA camera input, including switchable camera viewing modes via a factory-style button.

OEM USB and AUX Input Retention Retains factory USB and AUX inputs (if equipped) when connected to a compatible aftermarket head unit with rear USB and AUX inputs.

CANBUS Integration, No Additional Modules Required Fully CANBUS compatible and integrates directly with the vehicle's existing wiring with no additional modules needed for operation.

Vehicle-Specific Plug for Simple Installation Fitted with a vehicle-specific plug designed to connect directly into the existing vehicle wiring for a clean, no-fuss installation.

Phone Button Support Supports the OEM phone button when connected to a compatible aftermarket Bluetooth head unit.

Multiple Signal Outputs Provides dedicated output feeds for reverse trigger, park brake, and speed pulse for comprehensive system compatibility with the aftermarket head unit.

Compatible with Aerpro APP8 ISO Harness Recommended to be paired with the Aerpro APP8 Headunit Secondary ISO Harness (sold separately) for a fully streamlined and professional installation result.

Technical Specs

Compatible With / Goes Well With

The SWNI30C is designed for various Nissan vehicles without factory 360-degree cameras. Use the Aerpro Vehicle Selector to confirm compatibility with your specific Nissan make, model, and year before ordering. The interface pairs with any SWC-compatible aftermarket head unit with an RCA camera input for reverse camera retention and rear USB and AUX inputs for factory input retention. It is recommended to pair the SWNI30C with the Aerpro APP8 Headunit Secondary ISO Harness, sold separately, for the cleanest and most complete installation result.

Frequently Asked Questions

Will this interface work with my specific Nissan model?

The SWNI30C suits various Nissan models but is not compatible with all variants. Use the Aerpro Vehicle Selector to confirm compatibility with your specific Nissan model and year before purchasing, or contact F.A.E. for guidance.

Is this interface suitable for Nissan vehicles with a factory 360-degree reverse camera?

No. The SWNI30C is not suitable for vehicles fitted with a factory 360-degree reverse camera system. A different interface will be required for those vehicles. Contact F.A.E. to confirm the correct interface for your specific vehicle.

Will my factory reverse camera still work after installation?

Yes, provided the vehicle is fitted with an OEM reverse camera and the aftermarket head unit has an RCA camera input. The SWNI30C retains the factory reverse camera signal and enables it to display on compatible aftermarket AV head units. Switchable camera viewing modes are also accessible via the included factory-style button.

Does this interface retain Intelligent Park Assist or the factory compass?

No. The SWNI30C does not retain any features involving Intelligent Park Assist, and the factory compass (if equipped) is also not retained following installation.

Is the Aerpro APP8 ISO Harness required for installation?

The Aerpro APP8 Headunit Secondary ISO Harness is not included but is recommended to be used alongside the SWNI30C for the cleanest, most straightforward installation result. It connects between the aftermarket head unit and the SWNI30C interface. Contact F.A.E. to add the APP8 to your order.
