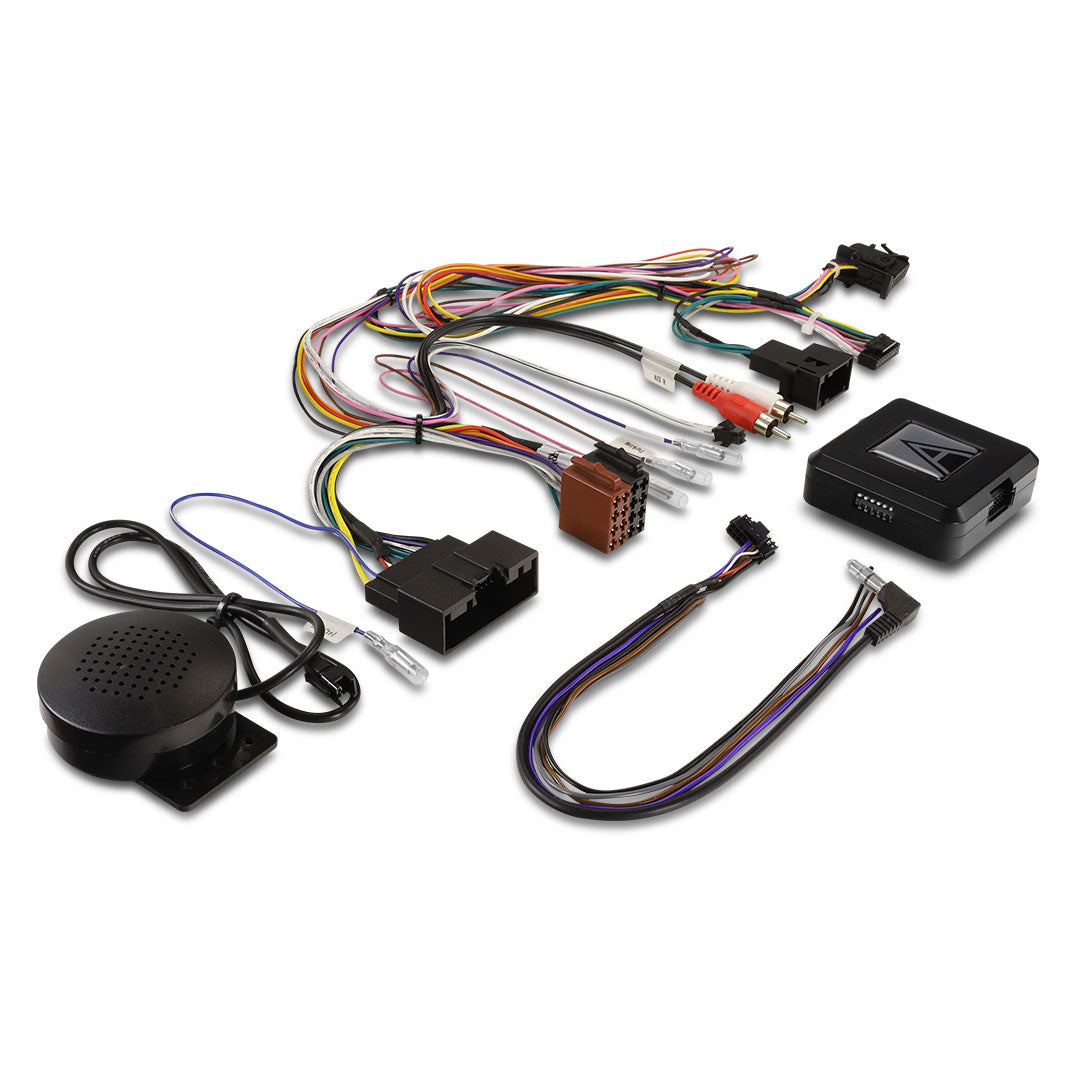

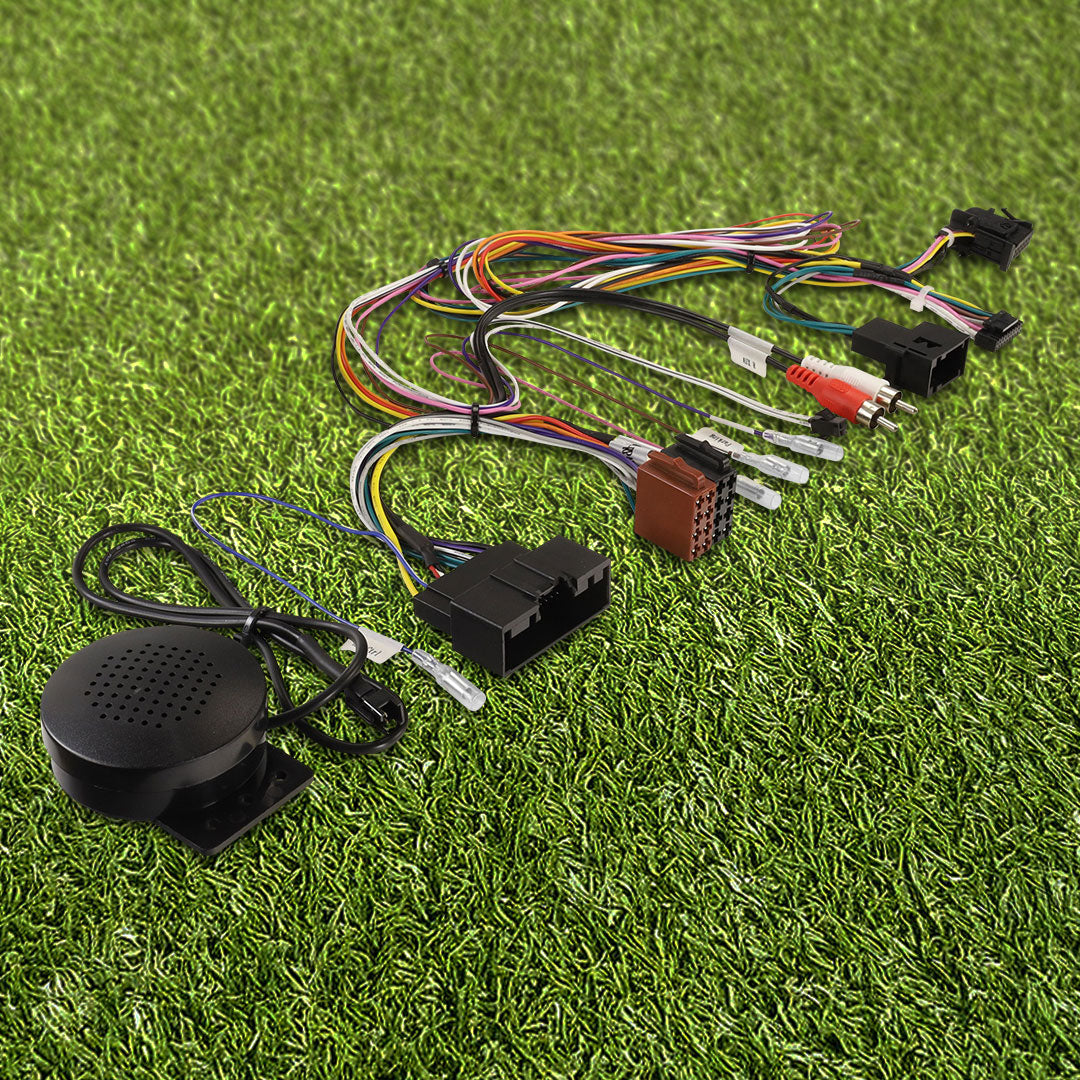

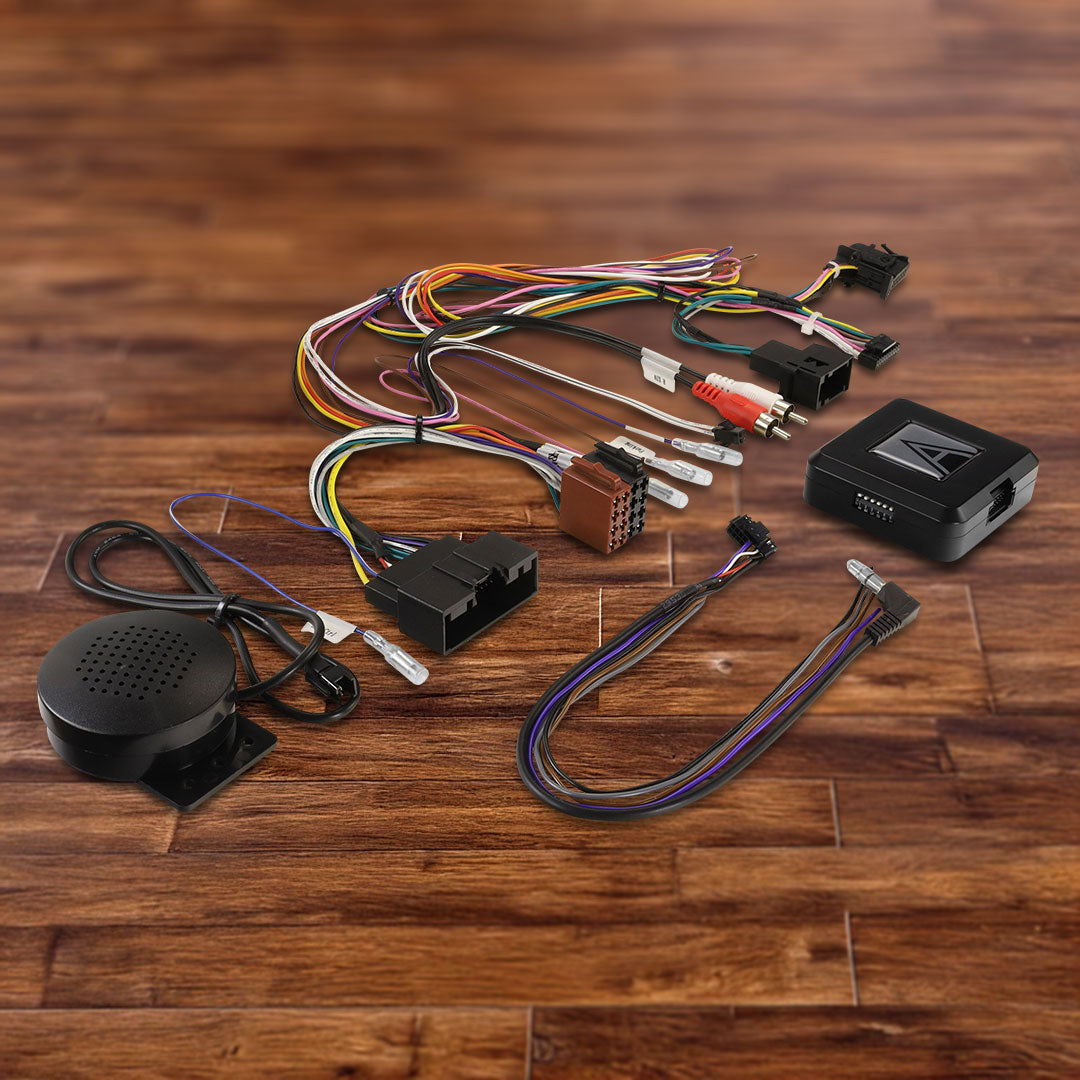

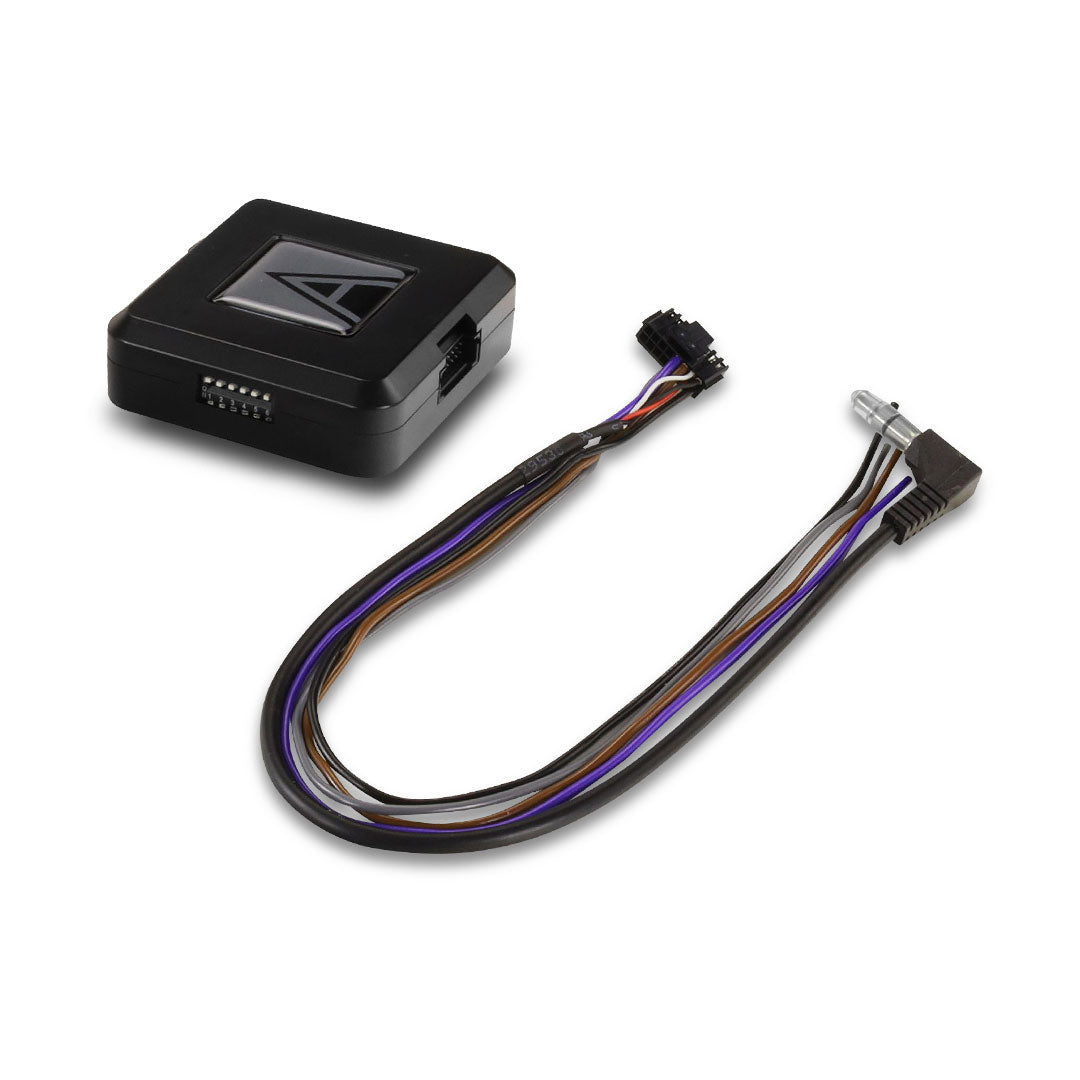

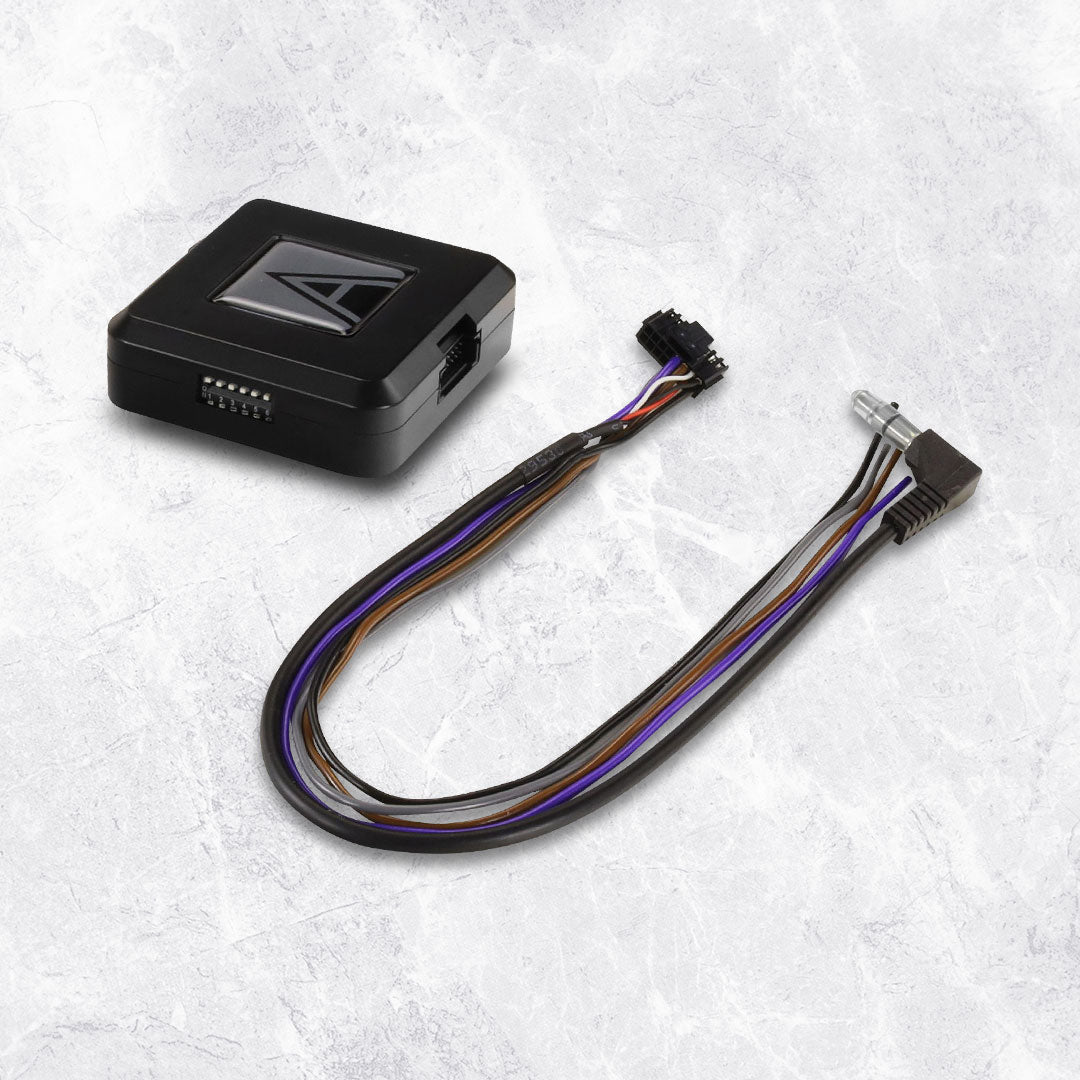

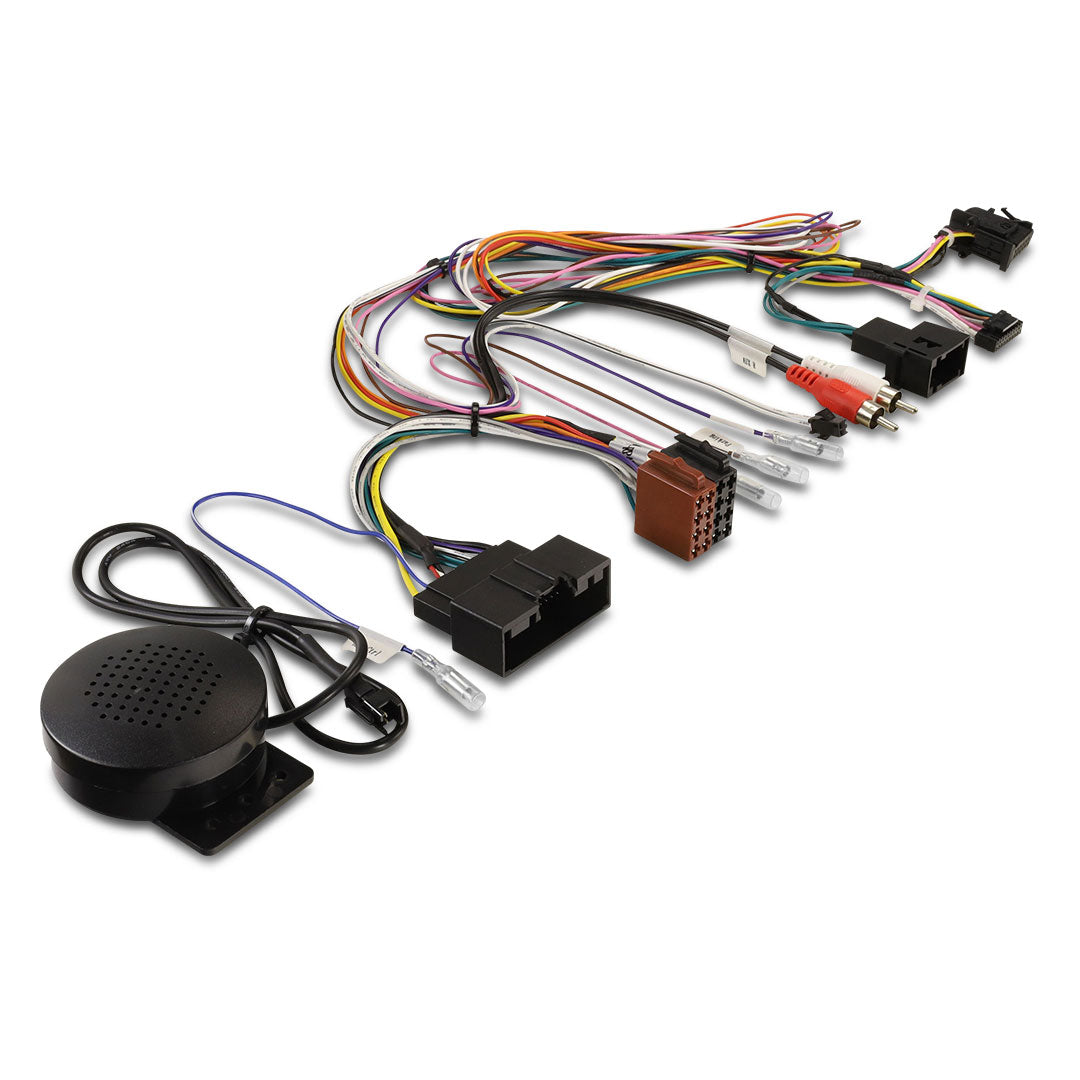

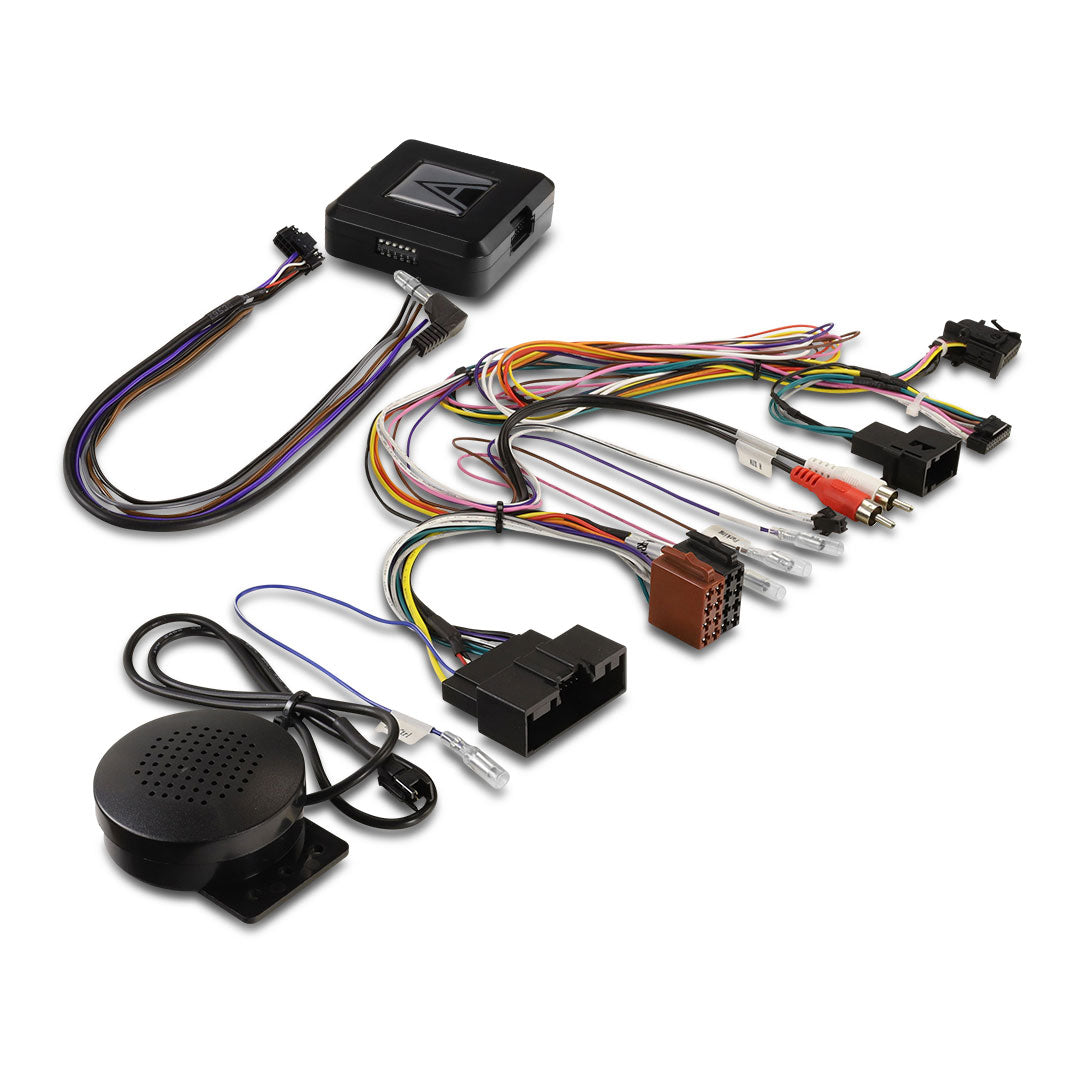

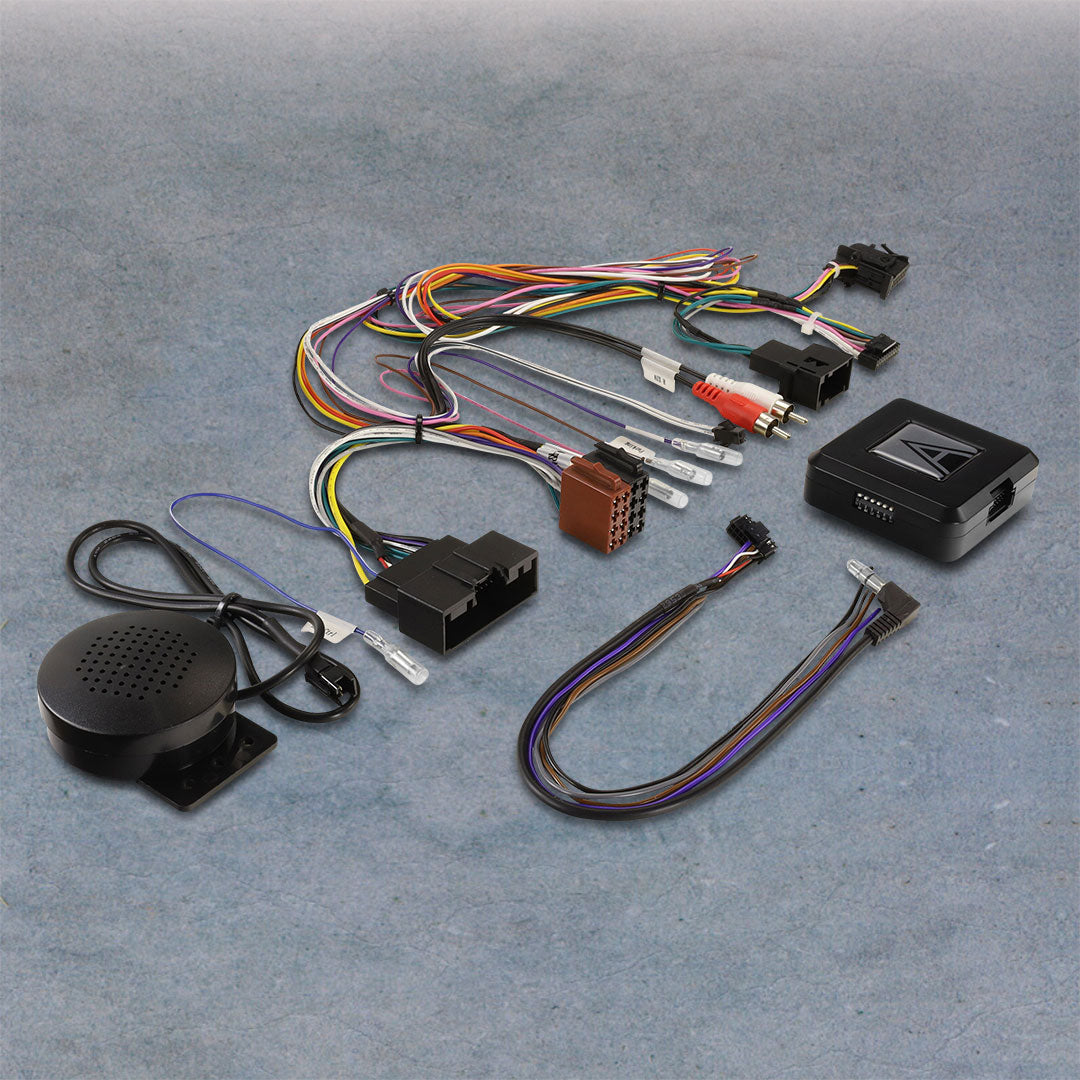

Aerpro SWMZ10C Steering Wheel Control Interface to Suit Mazda BT50

Plug & Play Steering Wheel Control for Mazda BT-50 (2012 to 2019), No Wire Cutting Needed!

The Aerpro SWMZ10C Steering Wheel Control Interface (SWC) allows you to upgrade to an aftermarket headunit whilst maintaining use of your factory steering wheel controls. Engineered to suit Mazda BT-50 (2012 to 2019) models, the steering wheel control interface includes a harness that is fitted with a vehicle specific plug designed to connect directly into the existing wiring in the vehicle with ease, no cutting of the factory wiring harness in the vehicle is required. Installation of the aftermarket headunit is simplified even further when paired with the optional Aerpro APP8 Headunit Secondary ISO Harness, which connects between the aftermarket headunit and the Aerpro Steering Wheel Control Interface. This interface is CANBUS compatible and provides various outputs including Reverse Trigger, Park Brake, Speed Pulse, Illumination and Amp Remote.

Please Note:

• Steering Wheel Control Interfaces vary between models, to find the correct part for your vehicle use the Aerpro Vehicle Selector.

• Aftermarket headunit must be SWC compatible and Steering Wheel Control
• Functions may vary from the OEM Functions.

• Allows OEM clock and trip settings to be adjusted via the steering wheel controls.

• Not compatible with 7.8" touch display or dealer fitted Alpine navigation units.

Aerpro SWMZ10C Features:

• Allows you to upgrade to an aftermarket headunit whilst maintaining use of your factory steering wheel controls

• Increases driver safety by allowing you to keep your hands on the steering wheel and eyes on the road

• Supports OEM Phone Button when connected to compatible aftermarket bluetooth headunits

• Not compatible with 7.8" touch display or dealer fitted Alpine navigation units

• Allows OEM clock and trip settings to be adjusted via the steering wheel controls

• CAN-BUS integration compatible, no additional modules required

• Provides output feeds for reverse trigger, park brake, speed pulse, illumination and amp remote

• Fitted with a vehicle specific plug, no cutting of wires required

• Recommended to be installed with an Aerpro APP8 Headunit Secondary ISO Harness (sold separately)

• Optional button remapping available to customise your steering control button configuration (requires programming)

Aerpro SWMZ10C Specifications:

• INTERFACE TYPE: CANBUS
• PATCH LEAD TYPE: SW
• PHONE BUTTON COMPATIBILITY: YES
• VOICE ASSISTANT BUTTON SUPPORT: NO
• OUTPUTS:
  • REVERSE TRIGGER: YES (PURPLE/WHITE)
  • PARK BRAKE: YES (BROWN)
  • SPEED PULSE: YES (PINK)
  • ILLUMINATION: YES (ORANGE)
  • AMP REMOTE: YES (BLUE)
  • TELEPHONE MUTE: NO
• OTHER RETENTION:
  • OEM AMPLIFIED SYSTEM: NO
• NOTES:
  • Aftermarket headunit must be SWC compatible.
  • SWC patch lead is also required to enable SWC (sold separately).
  • Allows OEM clock and trip settings to be adjusted via the steering wheel controls.
  • Not compatible with 7.8" touch display or dealer fitted Alpine navigation units without phone buttons on steering wheel.
  • Custom button remapping available, requires USB-C cable (sold separately)
• Weight:  0.27KG

FAQ

What is the Aerpro SWMZ10C?

A CANBUS steering wheel control interface for the Mazda BT50.

What does it support?

Phone button, OEM clock and trip settings from the wheel, plus reverse trigger, park brake, speed pulse, illumination and amp remote outputs. Voice assistant is not supported.

What else do I need?

It is not compatible with the 7.8 inch touch display or dealer fitted Alpine navigation, and does not keep a factory amplifier. A SW patch lead is needed and sold separately. Your head unit must be SWC compatible, and steering wheel functions may differ from the factory ones. The head unit ISO harness is not included. Kits vary between models, so check the Aerpro vehicle selector or ask us to confirm the right part. Send the F.A.E. team your make, model and year and we will confirm before you order.
