Aerpro SWMC7C Steering Wheel Control Interface Mercedes Various Models MOST 25 Amplified

A CANBUS and fibre optic steering wheel control interface engineered for various Mercedes models with MOST 25 amplified systems, the SWMC7C retains factory steering wheel controls and the MOST 25 OEM amplified system, and provides reverse trigger, park brake, speed pulse, and illumination outputs with no wire cutting required.

Product Overview

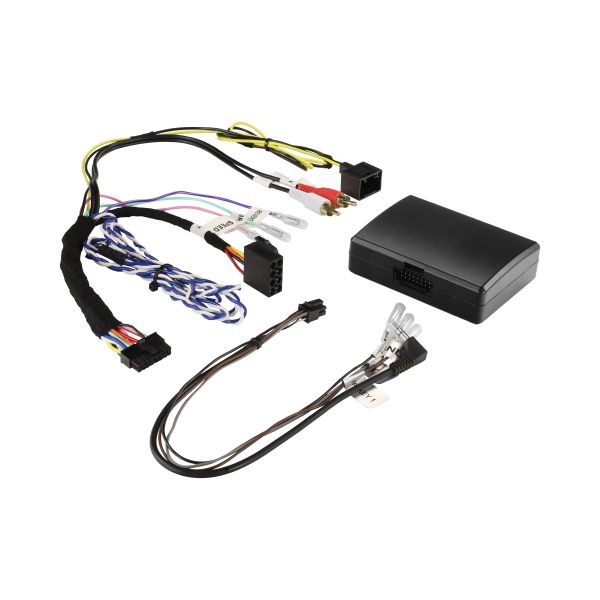

The Aerpro SWMC7C is a CANBUS and fibre optic steering wheel control interface designed for various Mercedes models fitted with MOST 25 amplified systems. It includes a harness fitted with a vehicle-specific plug that connects directly into the existing factory wiring in the vehicle without cutting or modifying the factory harness. No additional modules are required for CANBUS or fibre optic vehicles.

The SWMC7C is compatible with SW-type patch leads (sold separately), supports the OEM phone button when enabled from factory and connected to a compatible aftermarket Bluetooth head unit, and retains the MOST 25 OEM amplified system. To maintain the MOST 25 OEM amplified system, the aftermarket head unit must have RCA pre-outs. The SWMC7C is not compatible with Harman Kardon amplified systems and does not allow the OEM clock to be adjusted.

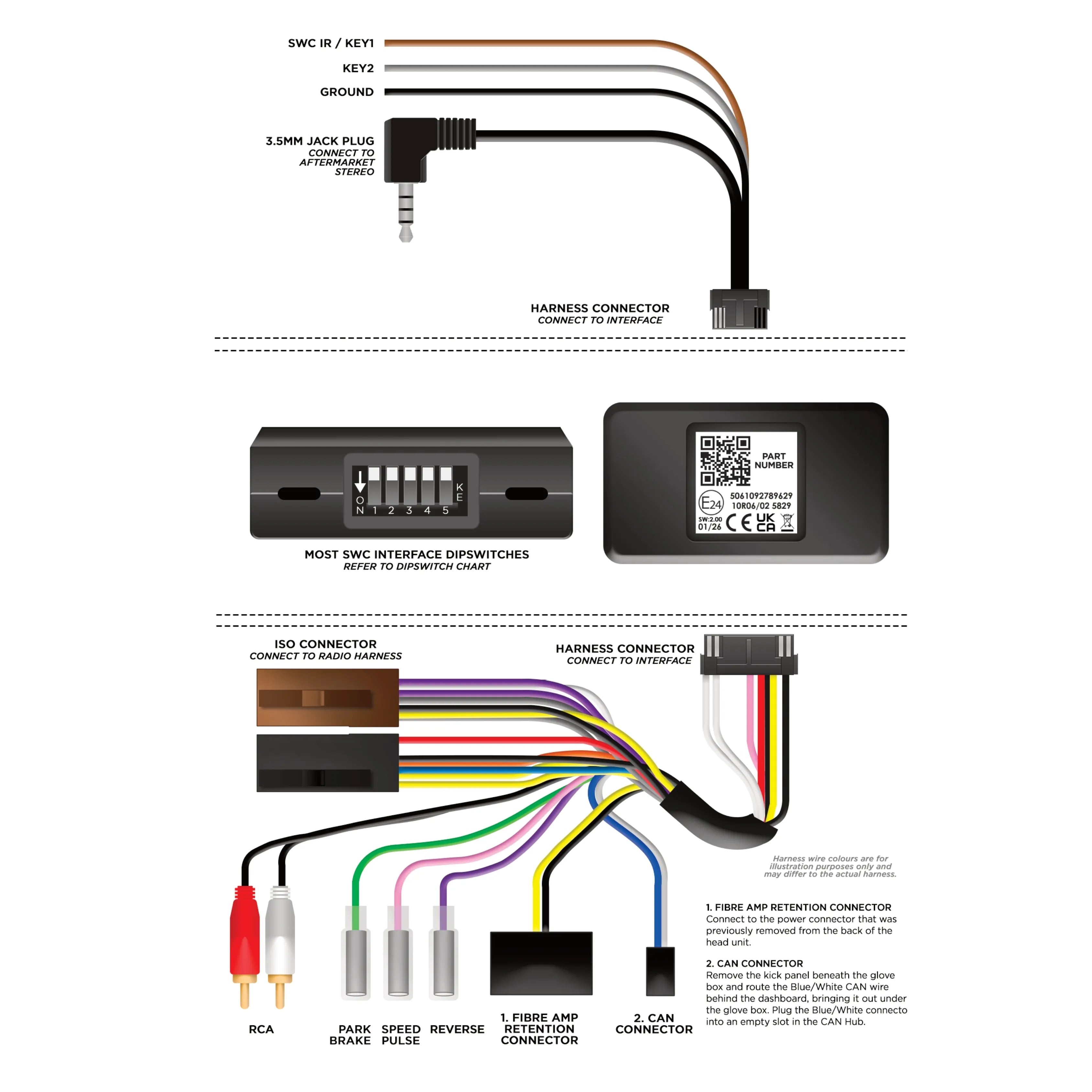

Outputs include reverse trigger (purple/white), park brake (green), speed pulse (pink), and illumination (orange). Voice Assistant support is available; if the steering wheel controls do not include a dedicated Voice Assistant button, the answer button functions as voice support instead, provided the aftermarket head unit and paired phone also support the Voice Assistant feature.

For SLK vehicles: CANBUS is also found in the quadlock to amp. The amp is located at the front passenger floor. CAN High (blue wire) connects to brown/red; CAN Low (white wire) connects to brown. The antenna is also located near the quadlock. Custom button remapping is available and requires a USB-C cable (sold separately). Installation is simplified when the SWMC7C is paired with the optional Aerpro APP8 Headunit Secondary ISO Harness (sold separately). The aftermarket head unit must be SWC compatible and steering wheel control functions may vary from OEM functions. Use the Aerpro Vehicle Selector to confirm the correct part for your specific vehicle before purchase.

Features & Benefits

Retains Factory Steering Wheel Controls with Aftermarket Head Unit: The SWMC7C allows the factory steering wheel audio controls to operate with a compatible aftermarket head unit, maintaining hands-on-the-wheel control without requiring the driver to reach for the head unit directly.

CANBUS and Fibre Optic Integration - No Additional Modules Required: The SWMC7C uses CANBUS and fibre optic integration for direct communication with the vehicle's CANBUS network and MOST 25 fibre optic audio bus, eliminating the need for additional interface modules in compatible Mercedes vehicles.

MOST 25 OEM Amplified System Retention: The SWMC7C retains the MOST 25 OEM amplified system in the vehicle. The aftermarket head unit must have RCA pre-outs for MOST 25 amplified system retention to function. The SWMC7C is not compatible with Harman Kardon amplified systems.

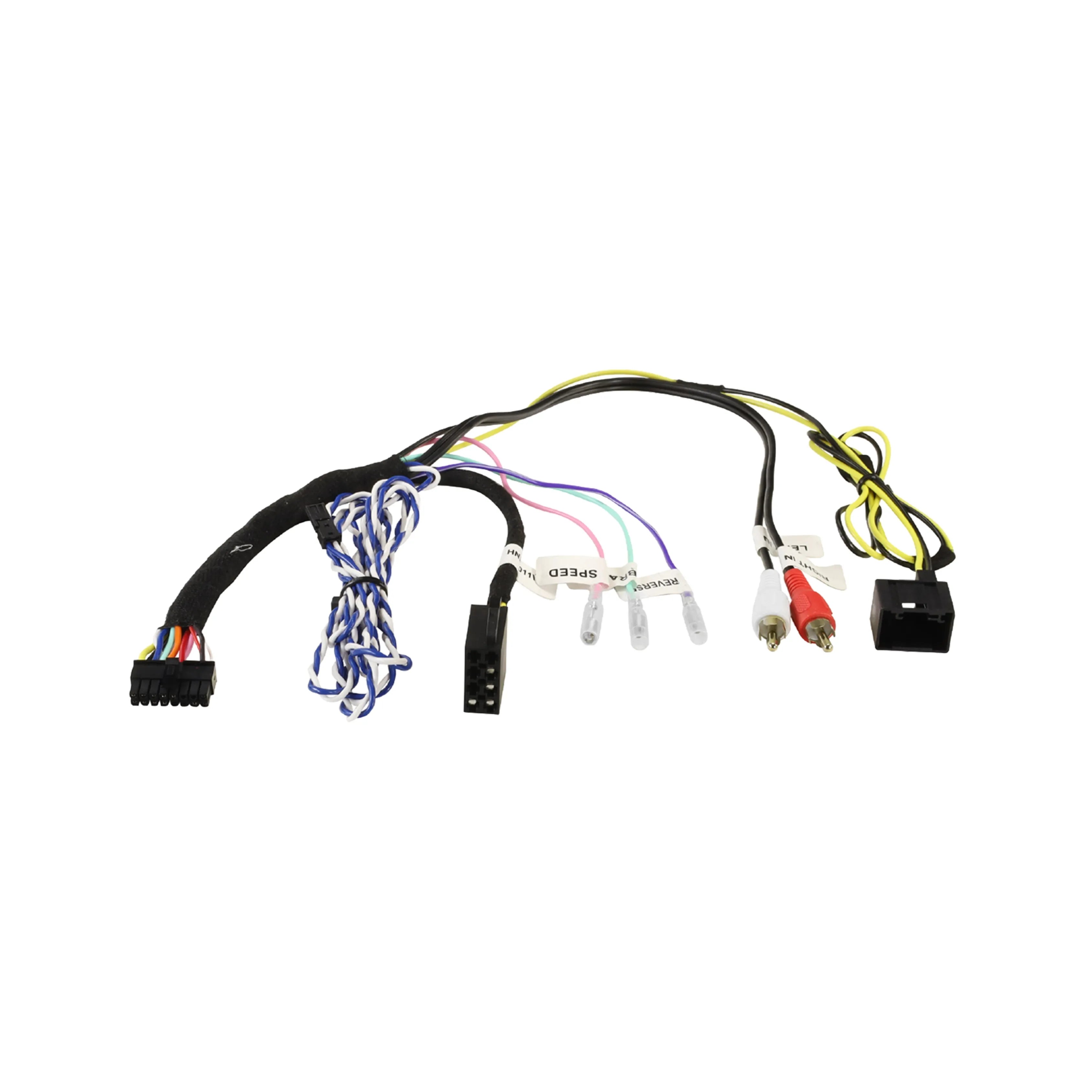

Vehicle-Specific Plug - No Wire Cutting Required: The SWMC7C harness is fitted with a vehicle-specific plug engineered to connect directly into the existing factory wiring in the vehicle. No cutting or modification of the factory wiring harness is required, simplifying installation and preserving the factory wiring integrity.

OEM Phone Button Support (When Enabled from Factory): The SWMC7C supports the OEM phone button on the steering wheel when the phone button feature is enabled from factory and connected to a compatible aftermarket Bluetooth head unit.

Voice Assistant Support: Voice Assistant support is available through the SWMC7C. If the steering wheel does not include a dedicated Voice Assistant button, the answer button functions as voice support instead. The aftermarket head unit and paired phone must also support the Voice Assistant feature for this to operate.

Reverse Trigger Output (Purple/White): A reverse trigger output via a purple/white wire enables automatic switching to the reverse camera input on the aftermarket head unit when reverse gear is selected.

Park Brake Output (Green): A park brake output is provided via a green wire, supplying the park brake signal required by compatible aftermarket head units for safety feature operation.

Speed Pulse Output (Pink): A speed pulse output is provided via a pink wire for aftermarket head units that require a vehicle speed signal for navigation or speed-dependent volume functions.

Illumination Output (Orange): An illumination output is provided via an orange wire, allowing the aftermarket head unit to automatically adjust its display brightness in response to the vehicle's instrument illumination signal.

SLK-Specific Installation Notes: For SLK vehicles, the CANBUS is also found in the quadlock to amp connection. The amp is located at the front passenger floor. CAN High (blue wire) connects to brown/red and CAN Low (white wire) connects to brown. The antenna is also located near the quadlock.

Custom Button Remapping Available: The SWMC7C supports optional custom button remapping to customise the steering wheel control button configuration. Remapping requires a USB-C cable (sold separately).

Compatible with Aerpro APP8 Secondary ISO Harness: The SWMC7C is recommended to be installed with the Aerpro APP8 Headunit Secondary ISO Harness (sold separately), which connects between the aftermarket head unit and the SWMC7C interface for a simplified and complete installation.

Technical Specs

Compatible With

The SWMC7C is engineered for various Mercedes models fitted with MOST 25 amplified systems. It is not compatible with Mercedes vehicles fitted with Harman Kardon amplified systems. To retain the MOST 25 OEM amplified system, the aftermarket head unit must have RCA pre-outs. The OEM clock cannot be adjusted after installation. For SLK vehicles, refer to the SLK-specific CANBUS and antenna wiring notes in the product overview. Use the Aerpro Vehicle Selector to confirm the correct part for your specific vehicle before purchase. The aftermarket head unit must be SWC compatible and steering wheel control functions may vary from OEM functions.

Frequently Asked Questions

Does the SWMC7C require cutting of the factory wiring harness?

No. The SWMC7C harness is fitted with a vehicle-specific plug that connects directly into the existing factory wiring in the vehicle without cutting or modifying the factory harness.

Does the SWMC7C retain the MOST 25 OEM amplified system?

Yes. The SWMC7C retains the MOST 25 OEM amplified system. The aftermarket head unit must have RCA pre-outs for the amplified system retention to function. The SWMC7C is not compatible with Harman Kardon amplified systems.

Is the SWMC7C compatible with Harman Kardon amplified Mercedes systems?

No. The SWMC7C is not compatible with Harman Kardon amplified systems. Use the Aerpro Vehicle Selector to confirm the amplifier type in your specific Mercedes before purchase.

Is a SWC patch lead included with the SWMC7C?

No. A steering wheel control patch lead is required to use the SWMC7C and must be purchased separately. Use the Aerpro Vehicle Selector to confirm the correct patch lead for your vehicle.

Are there any special installation considerations for Mercedes SLK vehicles?

Yes. For SLK vehicles, the CANBUS connection is also found in the quadlock to amp wiring. The amp is located at the front passenger floor. CAN High (blue wire) connects to brown/red and CAN Low (white wire) connects to brown. The antenna is also located near the quadlock. Confirm these wiring connections during installation on SLK models.
