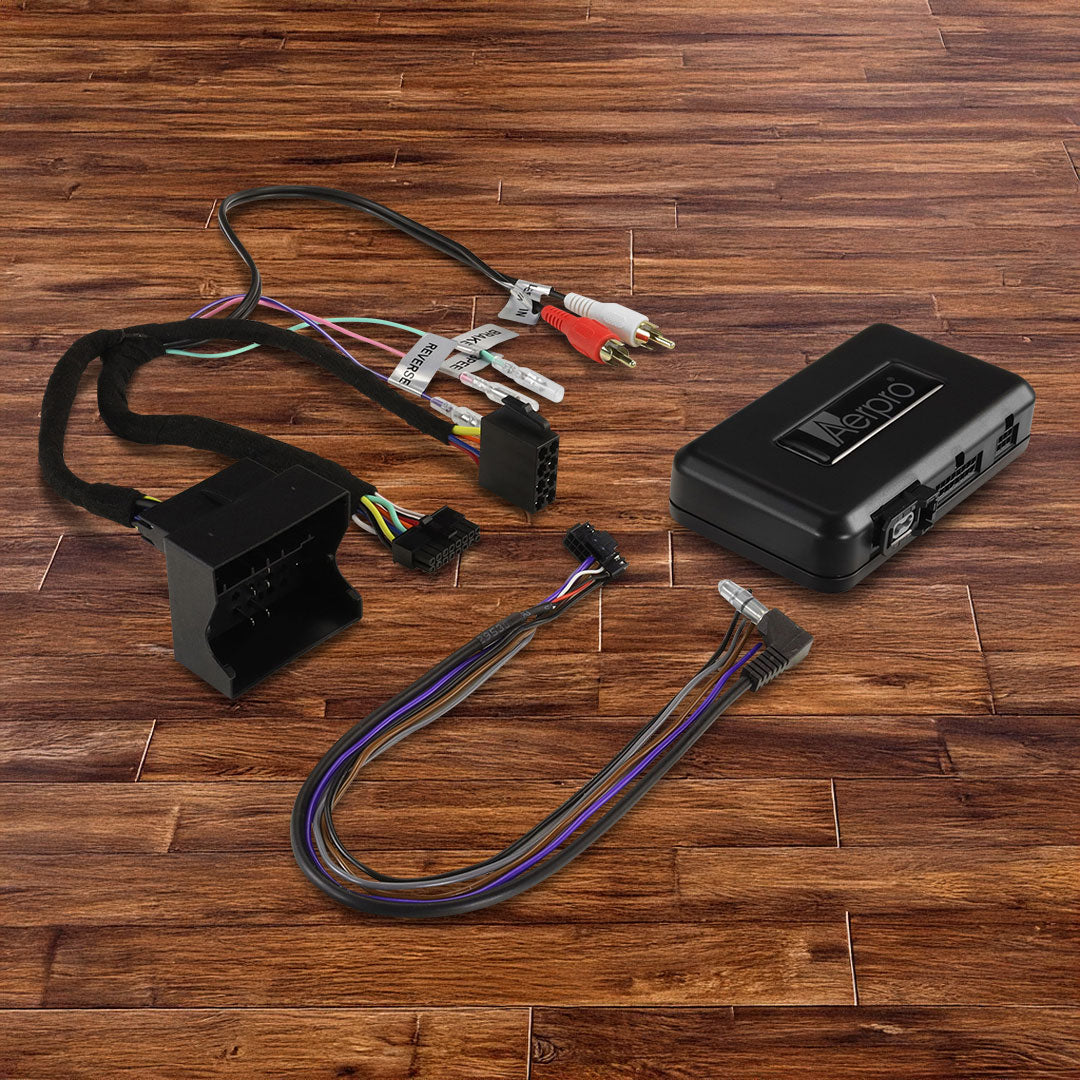

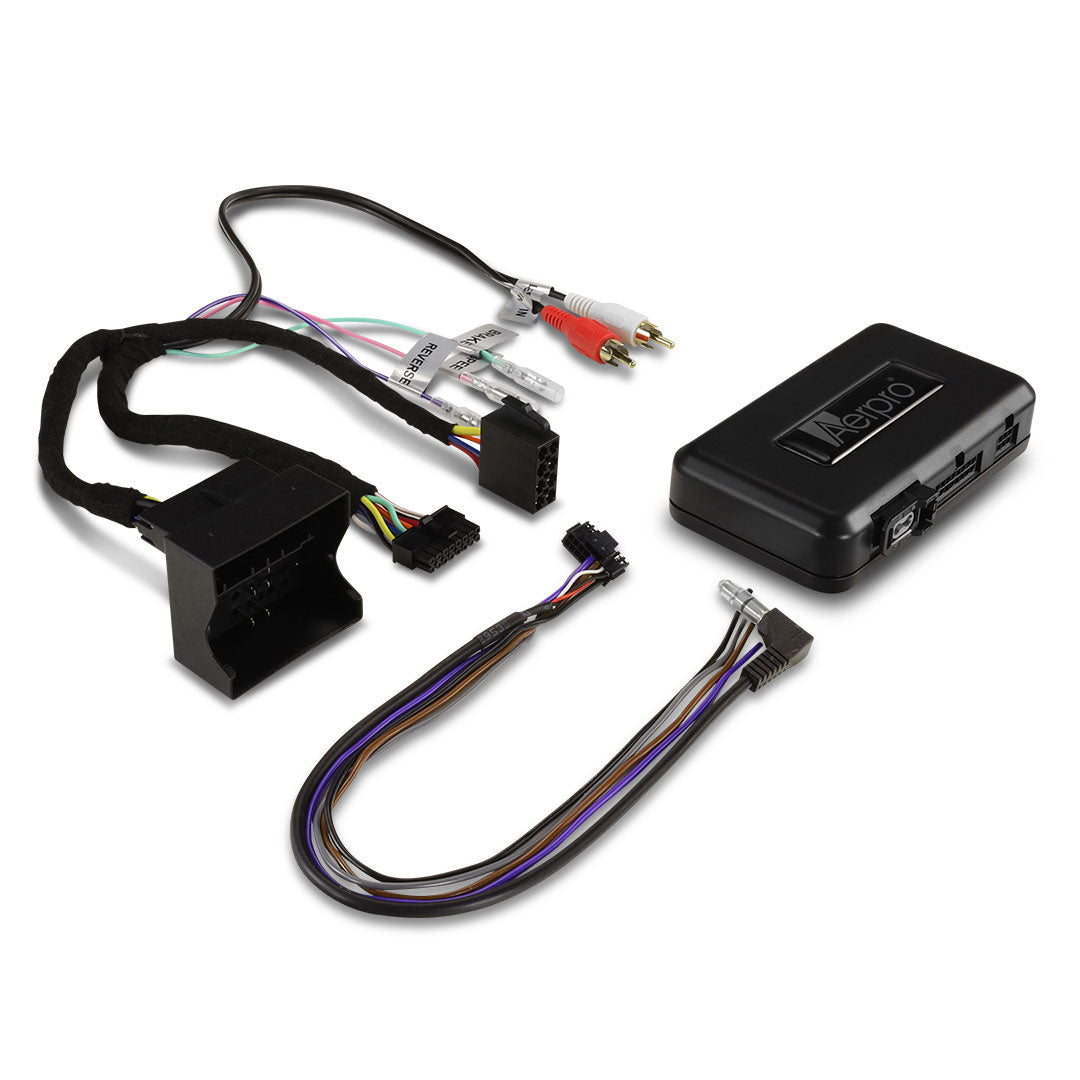

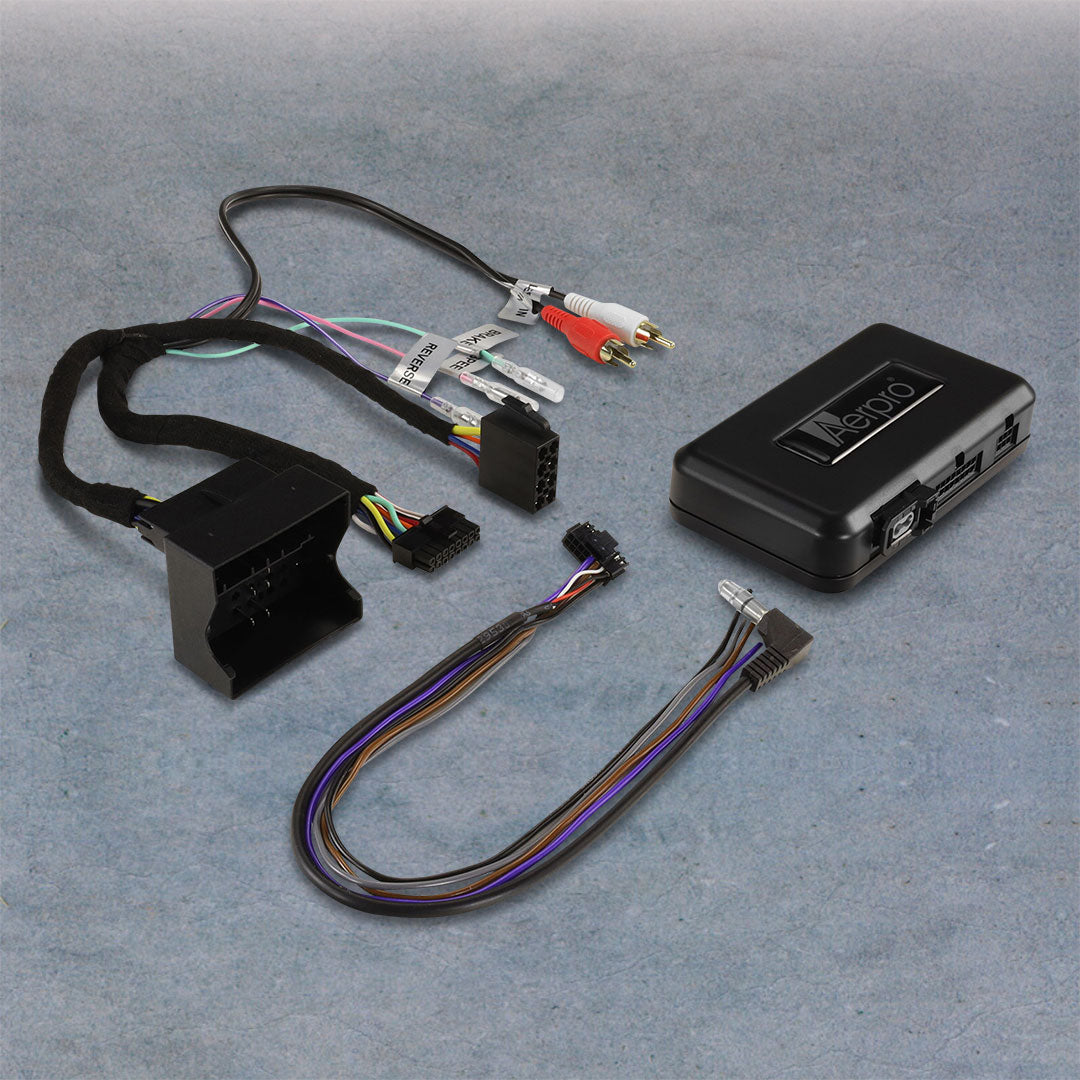

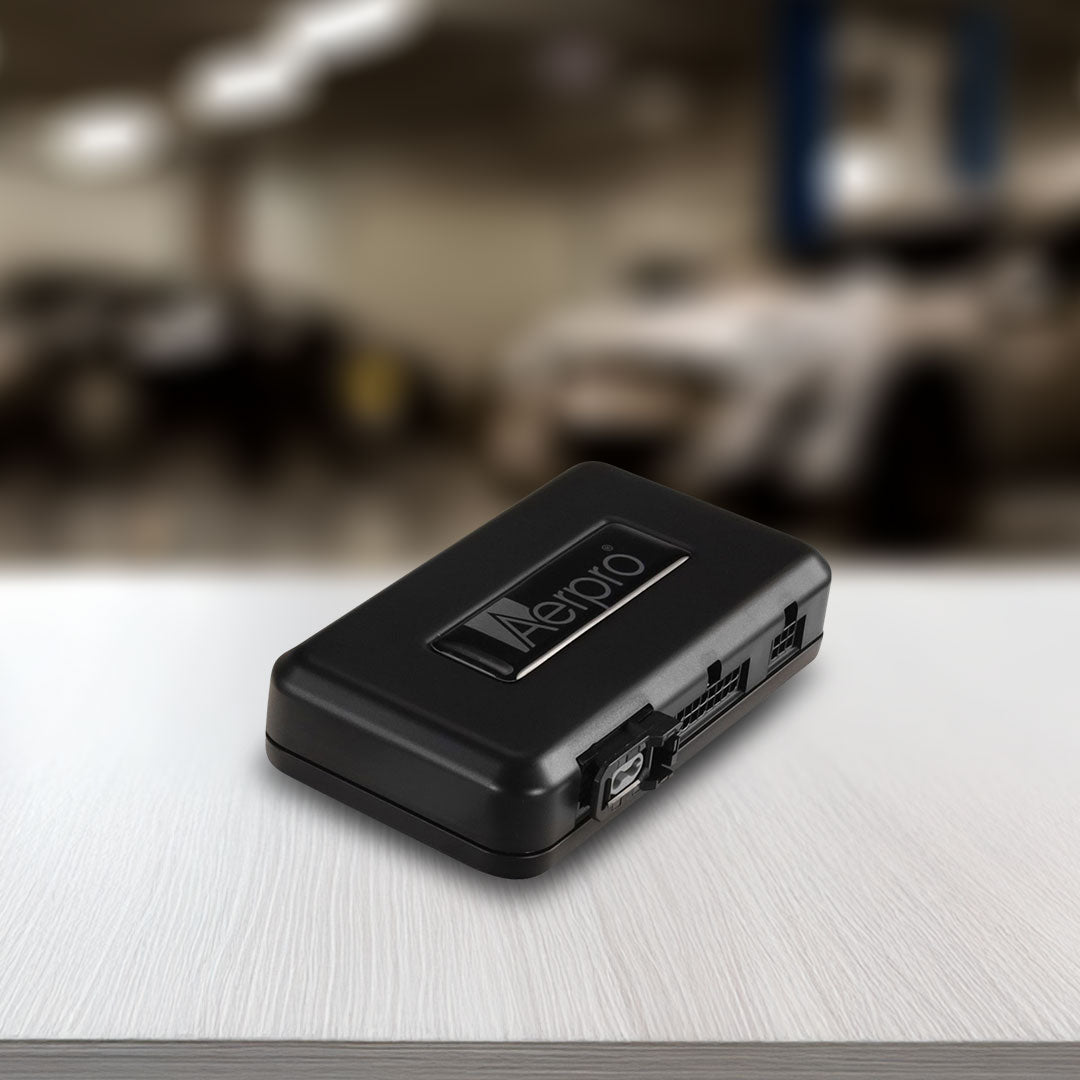

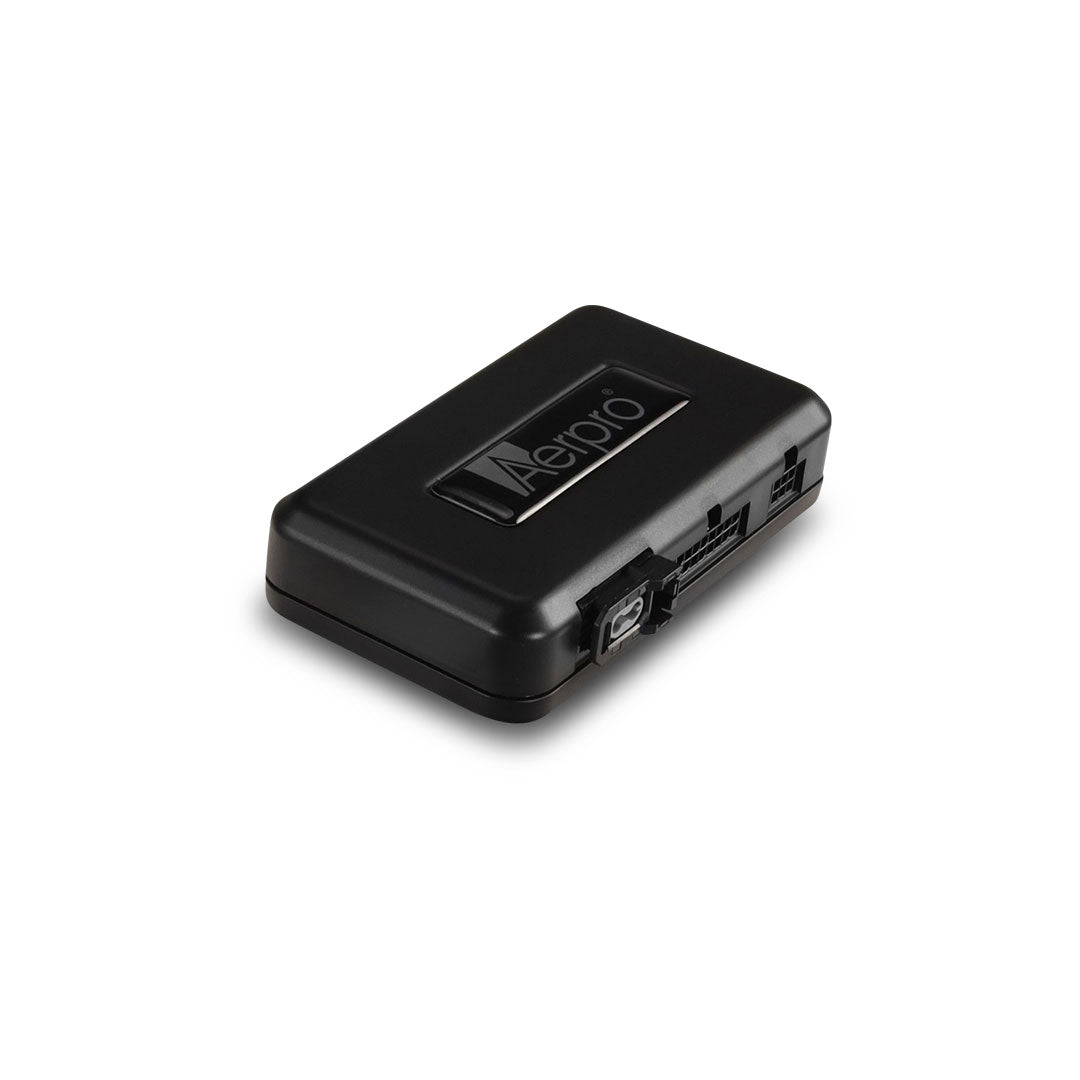

Aerpro SWMC16C Steering Wheel Control Interface to Suit Mercedes Various Models

Aerpro Steering Wheel Control Interface To Suit Mercedes Various Models

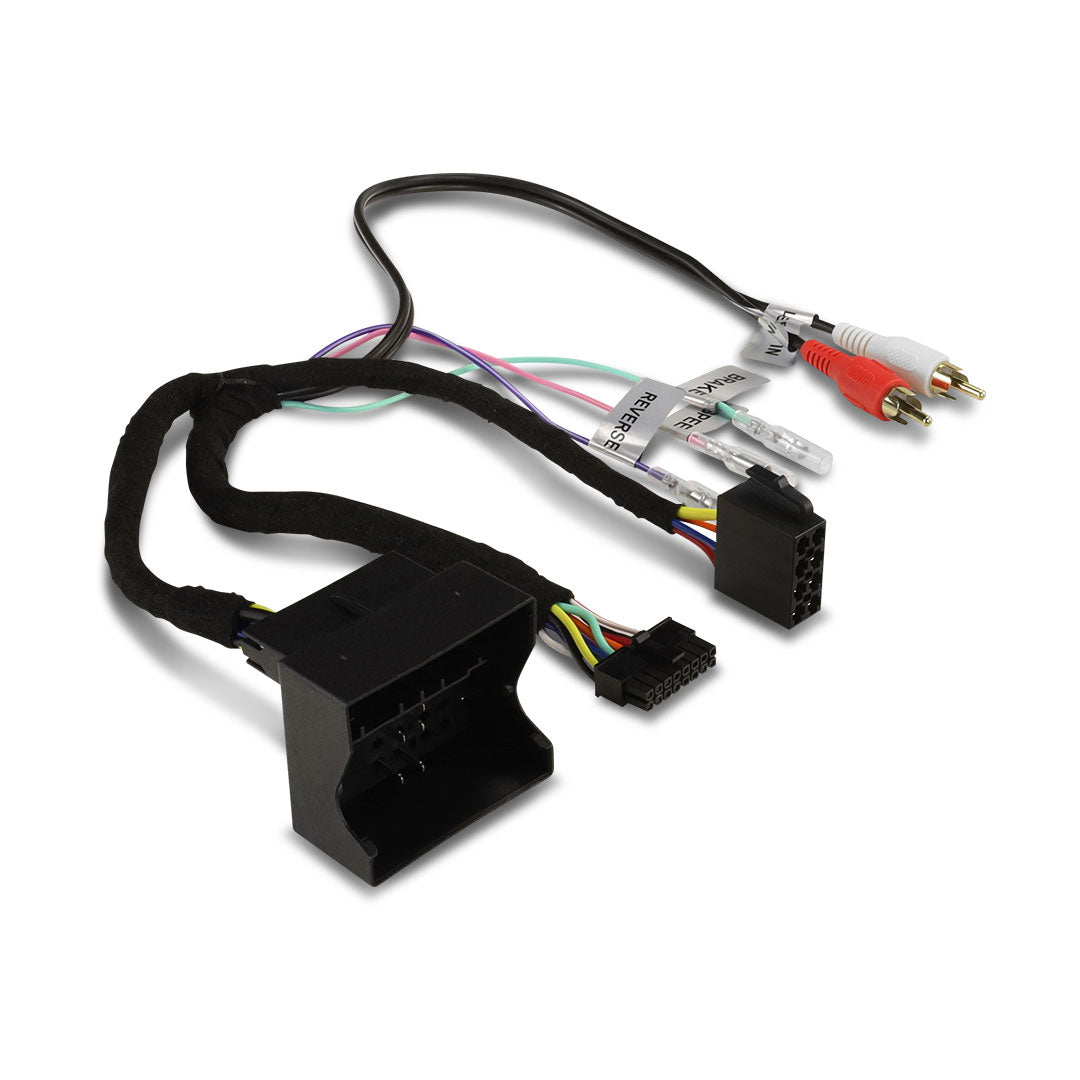

The Aerpro SWMC16C Steering Wheel Control Interface (SWC) allows you to upgrade to an aftermarket headunit whilst maintaining use of your factory steering wheel controls. Engineered to suit Mercedes C-Class (2007 to 2012) W204 and E-Class (2009 to 2012) W212 models with MOST Amplified Systems, the steering wheel control interface includes a harness that is fitted with a vehicle specific plug designed to connect directly into the existing wiring in the vehicle with ease, no cutting of the factory wiring harness in the vehicle is required. Installation of the aftermarket headunit is simplified even further when paired with the optional Aerpro APP8 Headunit Secondary ISO Harness, which connects between the aftermarket headunit and the Aerpro Steering Wheel Control Interface. This interface is CANBUS & Fibre Optic compatible and provides various outputs including Reverse Trigger, Park Brake, Speed Pulse and Illumination.

Please Note:

• Steering Wheel Control Interfaces vary between models. To find the correct part for your vehicle, use the Aerpro Vehicle Selector.

• Aftermarket headunit must be SWC compatible and Steering Wheel Control compatible
• Functions may vary from the OEM Functions.

• To maintain the MOST OEM Amplified System, the aftermarket headunit requires RCA pre-outs.

• Not compatible with Harmon Kardon amplified systems.

• Does not allow for the OEM clock to be adjusted.

Aerpro SWMC16C Features:

• Allows you to upgrade to an aftermarket headunit whilst maintaining use of your factory steering wheel controls

• Increases driver safety by allowing you to keep your hands on the steering wheel and eyes on the road

• Supports OEM Phone Button when connected to compatible aftermarket Bluetooth headunits

• Retains the MOST OEM Amplified System in the vehicle (the aftermarket headunit requires RCA pre-outs)

• CAN-BUS & Fibre Optic integration compatible, no additional modules required

• Provides output feeds for reverse trigger, park brake, speed pulse and illumination

• Fitted with a vehicle-specific plug, no cutting of wires required

• Recommended to be installed with an Aerpro APP8 Headunit Secondary ISO Harness (sold separately)

Aerpro SWMC16C Specifications:

• INTERFACE TYPE: CANBUS

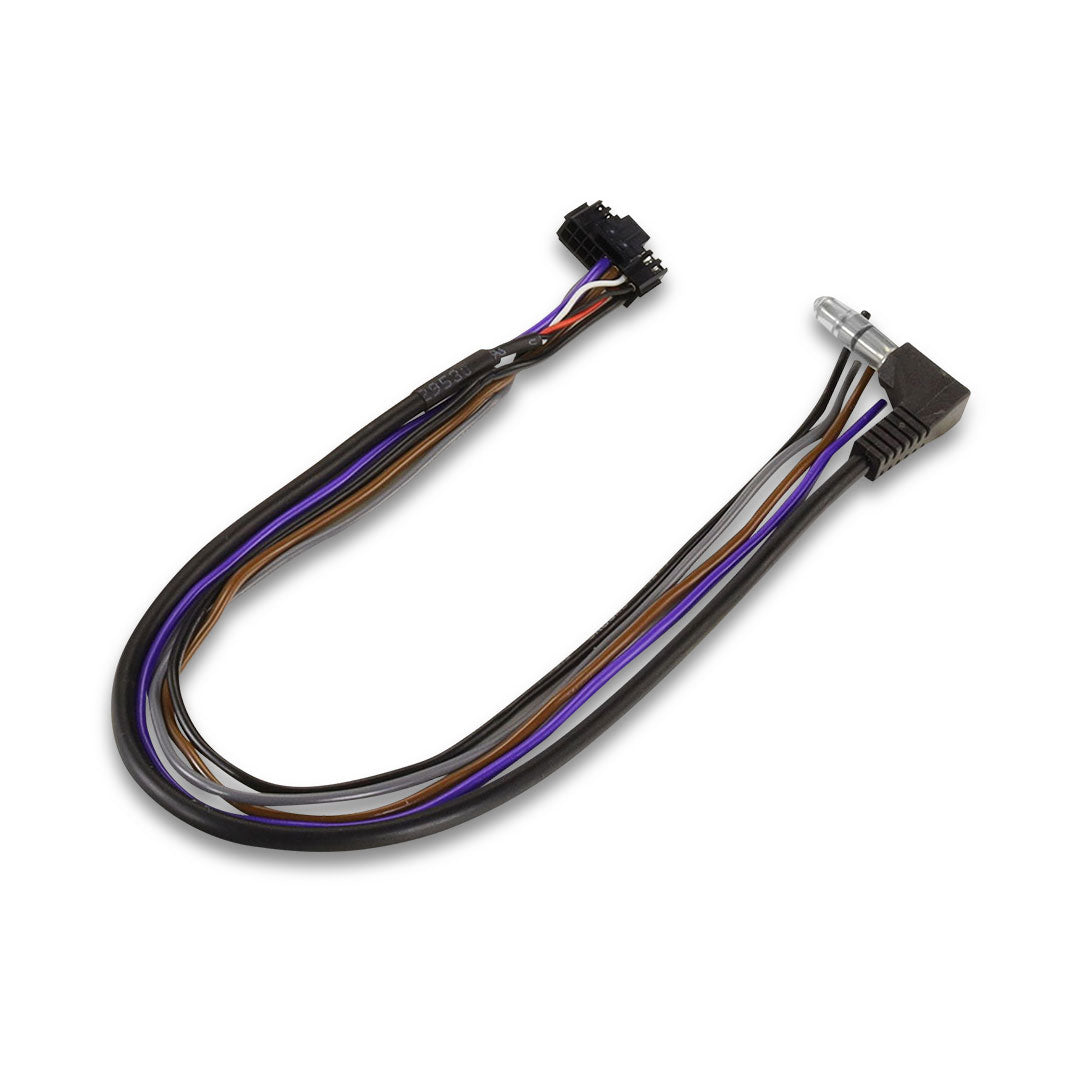

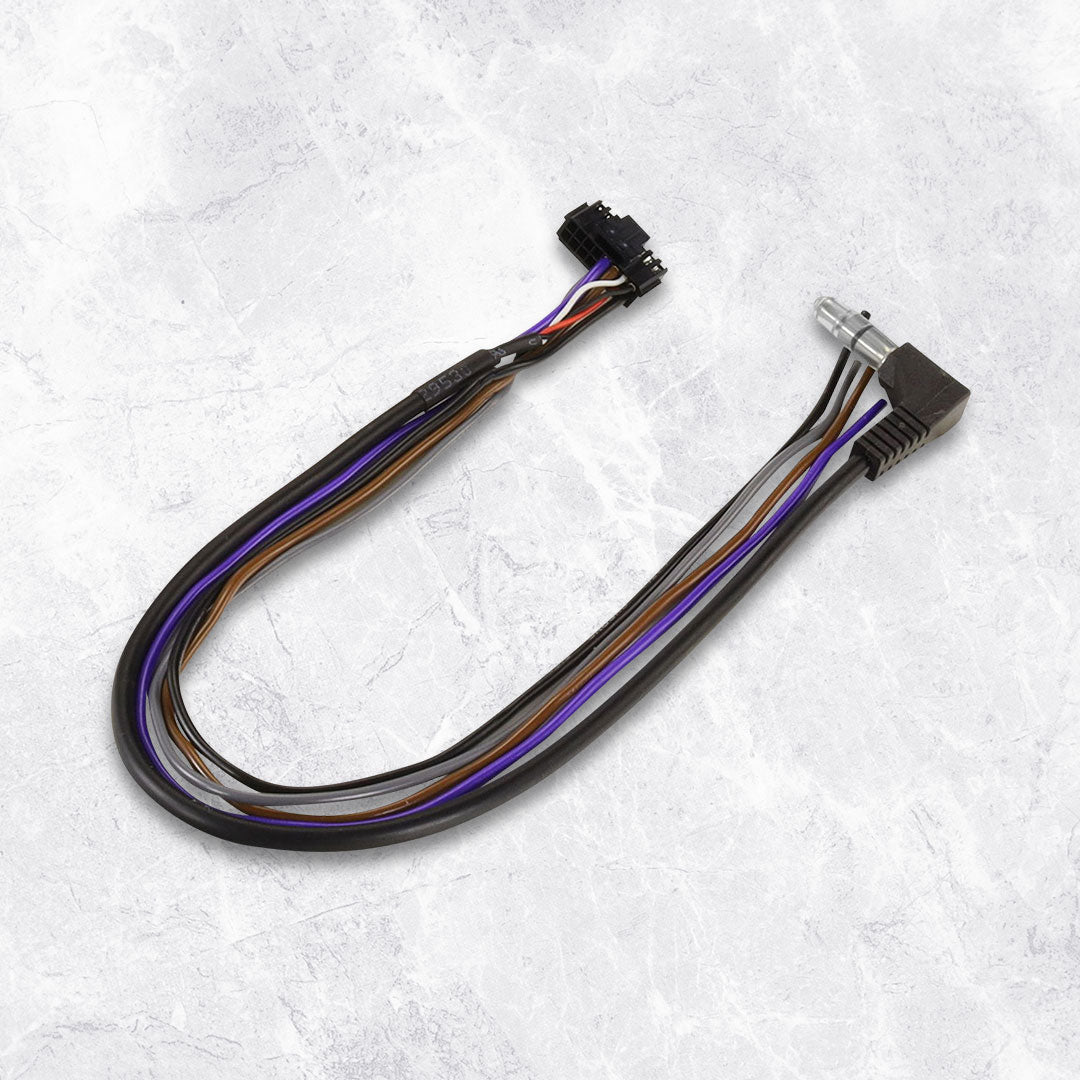

• PATCH LEAD TYPE: SW

• PHONE BUTTON COMPATIBILITY: YES (WHEN ENABLED FROM FACTORY)

• VOICE ASSISTANT SUPPORT AVAILABLE: YES
  If your steering wheel control does not have a Voice Assistant button, the answer button will function as voice support instead

• Aftermarket headunit and phone must also support Voice Assistant feature for this feature to work
  OUTPUTS:

• REVERSE TRIGGER: YES (PURPLE/WHITE)

• PARK BRAKE: YES (GREEN)

• SPEED PULSE: YES (PINK)

• ILLUMINATION: YES (ORANGE)

• AMP REMOTE: NO

• TELEPHONE MUTE: NO

• OTHER RETENTION:

• OEM AMPLIFIED SYSTEM: YES MOST AMPLIFIED

• NOTES: Aftermarket headunit must be SWC compatible.
  To maintain MOST OEM Amplified System, the aftermarket headunit requires RCA pre-outs.

FAQ

What is the Aerpro SWMC16C?

A CANBUS steering wheel control interface for various Mercedes models, including MOST amplified systems.

What does it support?

Phone button (when enabled from factory), voice assistant, plus reverse trigger, park brake, speed pulse and illumination outputs.

What else do I need?

To keep a MOST amplified system the head unit needs RCA pre outs. A SW patch lead is needed and sold separately. Your head unit must be SWC compatible, and steering wheel functions may differ from the factory ones. The head unit ISO harness is not included. Kits vary between models, so check the Aerpro vehicle selector or ask us to confirm the right part. Send the F.A.E. team your make, model and year and we will confirm before you order.
