Aerpro SAVW03 Infolink Adapter Interface Volkswagen MIB-PQ

A CANBUS Infolink adapter interface for Volkswagen vehicles with MIB-PQ factory radios, the SAVW03 retains factory steering wheel controls, OEM amplified system, and provides on-screen access to climate control, parking sensors with OPS radar overlay, and vehicle menus on the aftermarket head unit, with reverse trigger, park brake, speed pulse, illumination, and amp remote outputs.

Product Overview

The Aerpro SAVW03 is a CANBUS Infolink adapter interface designed for Volkswagen vehicles fitted with MIB-PQ factory radios. It goes beyond a standard steering wheel control interface by retaining factory SWC functions and providing on-screen access to vehicle information that would otherwise be lost when the factory radio is replaced. This includes climate control visualisation and adjustment, parking sensor monitoring with OPS radar overlay, and access to key system menus directly from the aftermarket head unit display. Multi-language support covers English, German, Spanish, Italian, and French.

The SAVW03 is compatible with SW-type patch leads, supports the OEM phone button and Voice Assistant button, retains the OEM amplified system, and provides reverse trigger (purple/white), park brake (green), speed pulse (pink), illumination, and amp remote outputs. The aftermarket head unit must have a rear camera input. Auto-detection of reverse camera signal (PAL/NTSC) simplifies setup. To retain a factory-fitted camera, an additional vehicle-specific camera retention harness is required and sold separately where available. High-definition camera resolution will be reduced when using this product. Selectable dipswitches allow precise configuration for the specific vehicle and head unit combination. Software updates are supported for long-term compatibility. Use the Aerpro Vehicle Selector to confirm the correct part for your specific vehicle before purchase.

Features & Benefits

CANBUS Infolink Interface for Volkswagen MIB-PQ Vehicles: The SAVW03 uses CANBUS integration to access and relay vehicle information beyond standard steering wheel control signals, enabling on-screen climate control visualisation, parking sensor display with OPS radar overlay, and vehicle menu access on the aftermarket head unit display.

On-Screen HVAC Visualisation and Climate Control Access: Climate control settings including temperature and fan speed can be viewed and adjusted via the aftermarket head unit display through the SAVW03, retaining the HVAC interface functionality after the factory radio is replaced.

Parking Sensor Monitoring with OPS Radar Overlay: Factory parking sensor information is displayed on the aftermarket head unit via the SAVW03 with an OPS radar overlay, providing enhanced spatial awareness during parking manoeuvres.

Vehicle Menu Access: Key system menus accessible through the factory MIB-PQ radio are retained and accessible from the aftermarket head unit display through the SAVW03 interface.

OEM Amplified System Retention: The SAVW03 retains the factory amplified system in the vehicle, preserving the factory speaker and amplifier configuration after the aftermarket head unit installation.

Factory Camera Retention - Additional Harness Required: Camera display is supported via the rear camera input with OPS radar overlay. To retain a factory-fitted camera, an additional vehicle-specific camera retention harness is required and sold separately where available. High-definition camera resolution will be reduced when using this product.

Auto-Detection of Reverse Camera Signal (PAL/NTSC): The SAVW03 automatically detects whether the camera signal is PAL or NTSC, simplifying setup without requiring manual signal type selection.

Phone Button and Voice Assistant Support: The SAVW03 supports the OEM phone button and Voice Assistant button when connected to a compatible aftermarket head unit.

Selectable Dipswitch Configuration: Onboard dipswitches allow precise configuration of the SAVW03 for the specific Volkswagen MIB-PQ vehicle and aftermarket head unit combination.

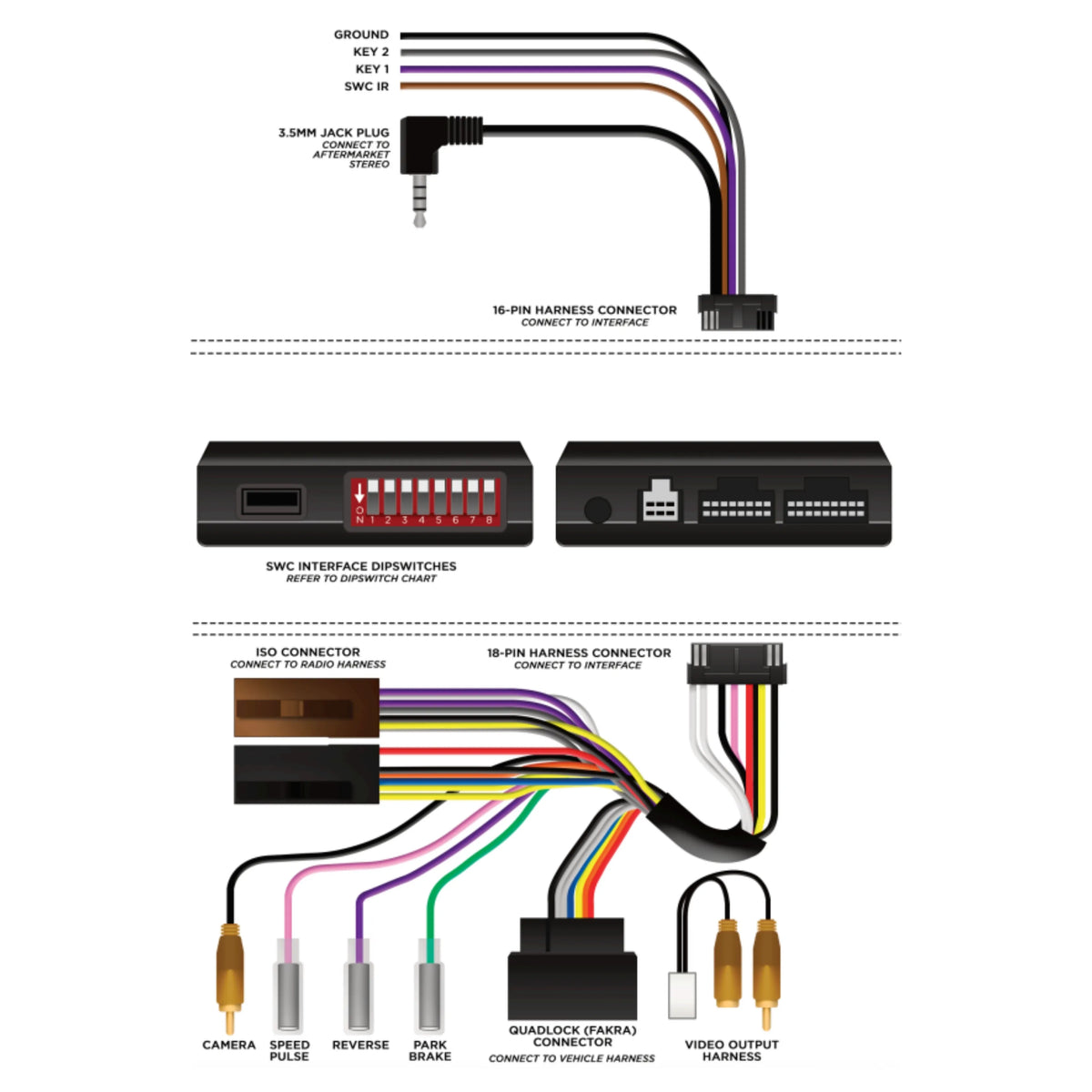

Reverse Trigger, Park Brake, Speed Pulse, Illumination, and Amp Remote Outputs: The SAVW03 provides a full suite of output signals including reverse trigger (purple/white), park brake (green), speed pulse (pink), illumination, and amp remote for complete aftermarket head unit and system integration.

Multi-Language Support: On-screen menus and vehicle information are displayed in English, German, Spanish, Italian, and French.

Software Updateable: The SAVW03 supports software updates for long-term compatibility with new vehicle applications and head unit firmware revisions.

Technical Specs

Compatible With

The SAVW03 is designed for Volkswagen vehicles fitted with MIB-PQ factory radios. The aftermarket head unit must have a rear camera input for the Infolink visual output to function. To retain a factory-fitted camera, an additional vehicle-specific camera retention harness is required and sold separately where available. High-definition camera resolution will be reduced when using this product. The aftermarket head unit must be SWC compatible and steering wheel control functions may vary from OEM functions. Use the Aerpro Vehicle Selector to confirm the correct part for your specific vehicle before purchase.

Frequently Asked Questions

Does the SAVW03 retain the factory Volkswagen climate control interface?

Yes. The SAVW03 provides on-screen climate control visualisation and adjustment on the aftermarket head unit display, retaining HVAC interface access after the factory MIB-PQ radio is removed.

Does the SAVW03 retain the factory reverse camera?

The SAVW03 does not directly retain the factory reverse camera. To retain a factory-fitted camera, an additional vehicle-specific camera retention harness is required and sold separately where available. Camera display is supported via the rear camera input with OPS radar overlay. High-definition camera resolution will be reduced when using this product.

What is the OPS radar overlay?

OPS (Object Proximity Sensor) radar overlay displays the factory parking sensor proximity information as a visual radar-style graphic on the aftermarket head unit screen when the SAVW03 is installed, providing enhanced spatial awareness during parking manoeuvres.

Is the SAVW03 suitable for all Volkswagen models?

The SAVW03 is designed for Volkswagen vehicles fitted with MIB-PQ factory radios only. Volkswagen vehicles with different factory radio systems require a different interface. Use the Aerpro Vehicle Selector to confirm the correct part for your specific vehicle before purchase.

Does the SAVW03 support software updates?

Yes. The SAVW03 supports software updates, allowing the interface to remain compatible with new vehicle applications and aftermarket head unit firmware revisions over time.
