Enhancing Safety Whilst Retaining Vehicle’s Original Aesthetics!

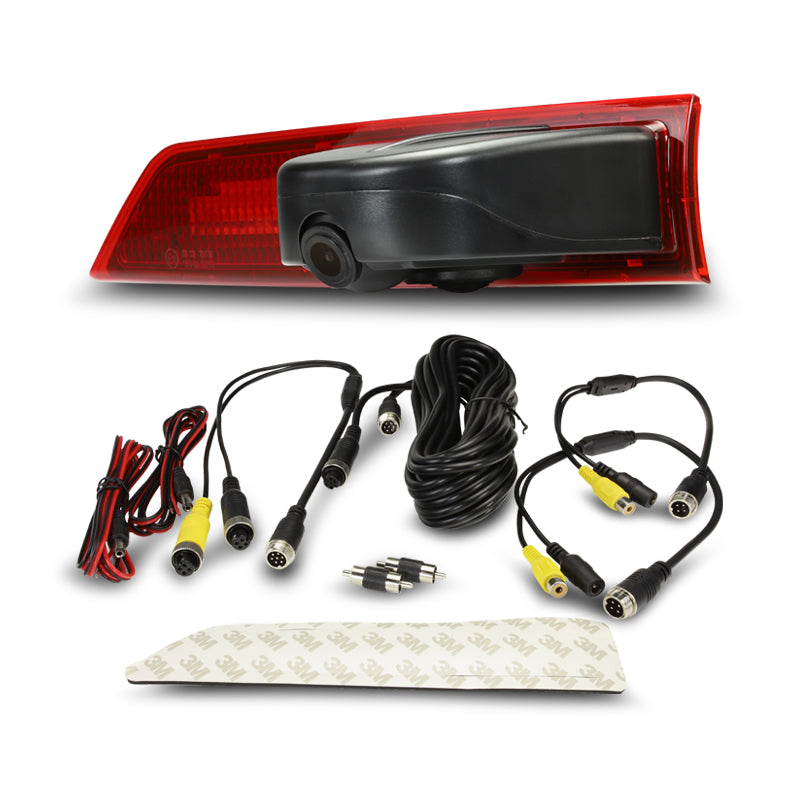

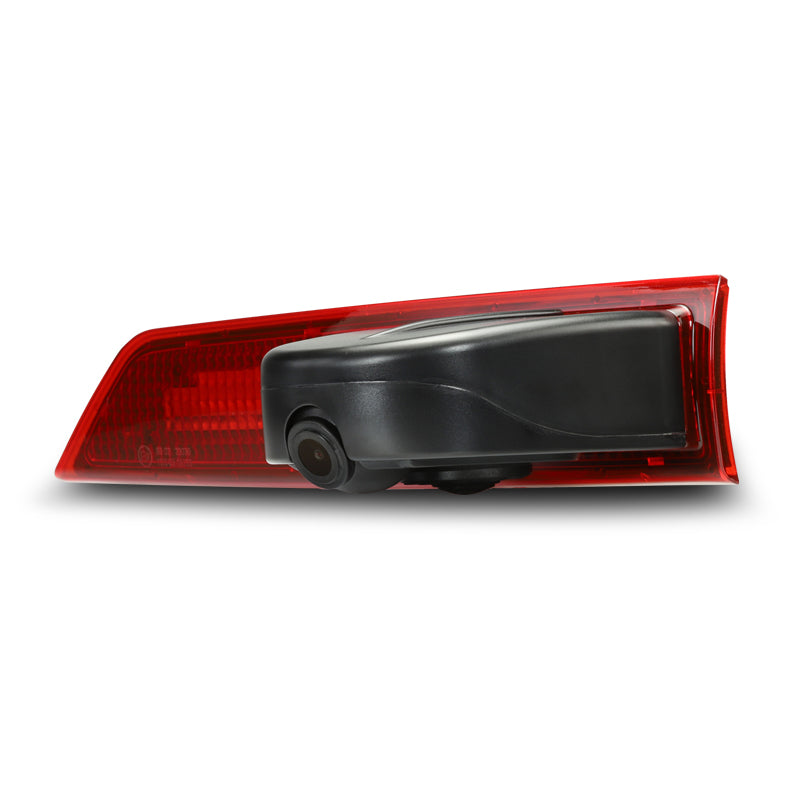

Dual-Lens Reversing & Driving Camera
The G183V is a dual-lens reversing and driving camera specially designed to suit Ford Transit 2013-2017 Custom. The camera features a special livestream feature that gives the driver a live view of the rear of the vehicle when in motion. The system replaces the original vehicle’s rear brake light enhancing safety whilst retaining the vehicle’s original aesthetics. Please note: this product is for vehicles which feature rear barn doors.
Features:
- Dual-lens reversing and driving camera featuring a special livestream feature
- Designed to replace the high level stop light at the rear of the vehicle
- No additional holes need to be drilled into the vehicle
- High quality image sensor produces clear images
- 170 Degree (diagonal) field of view minimises blind spots at the rear of the vehicle
- IP68 Rating and wide operating temperature range makes it suitable for use in the harsh Australian conditions

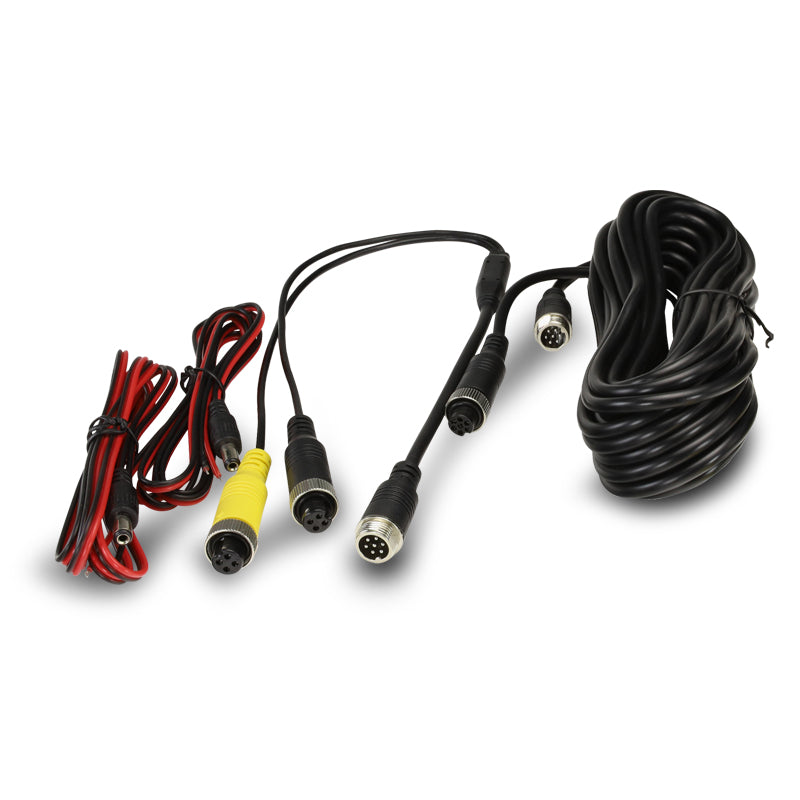

- 10m total cable length to run between the front and back of the vehicle

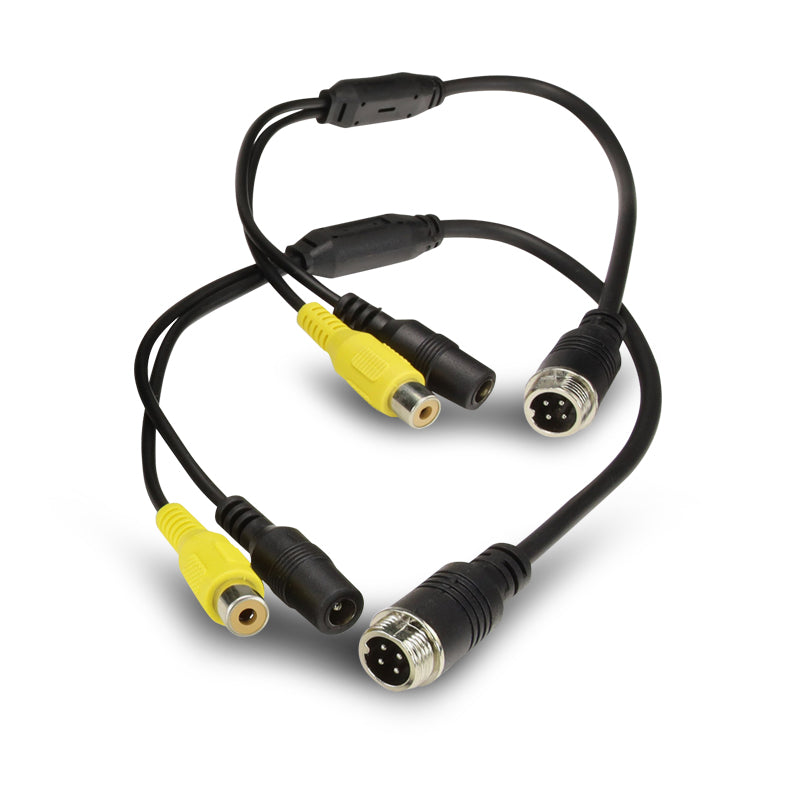

- Suitable for connection to NTSC compatible aftermarket display monitors with RCA connection
Specifications:
- Image Sensor: 1/3 CMOS
- TV Lines: 700
- Resolution: 976 x 592
- Minimum Illumination: 0.1 Lux
- TV System: NTSC
- Waterproof Rating: IP68
- Viewing Angle:
Vertical: 80° Degrees
Horizontal: 145 Degrees
Diagonal: 170 Degrees - Video Output: 1.0V p-p 75 Ohm
- Parking Lines: Yes (Removable)
- Image Adjustment: No
- Operating Voltage: 12V
- Operating Temperature: -20 Degrees C ~ +70 Degrees C
- Vehicle Compatibility: Ford Transit (2013 - 2017 Custom)
- Weight: 1.04kg
