Aerpro G182V Vehicle Specific Reverse Camera Suit Mercedes Vito 2015 to 2021

Unit Replaces The Vehicles Original Third Brake Light!

Replacement Brake Light Reversing Camera

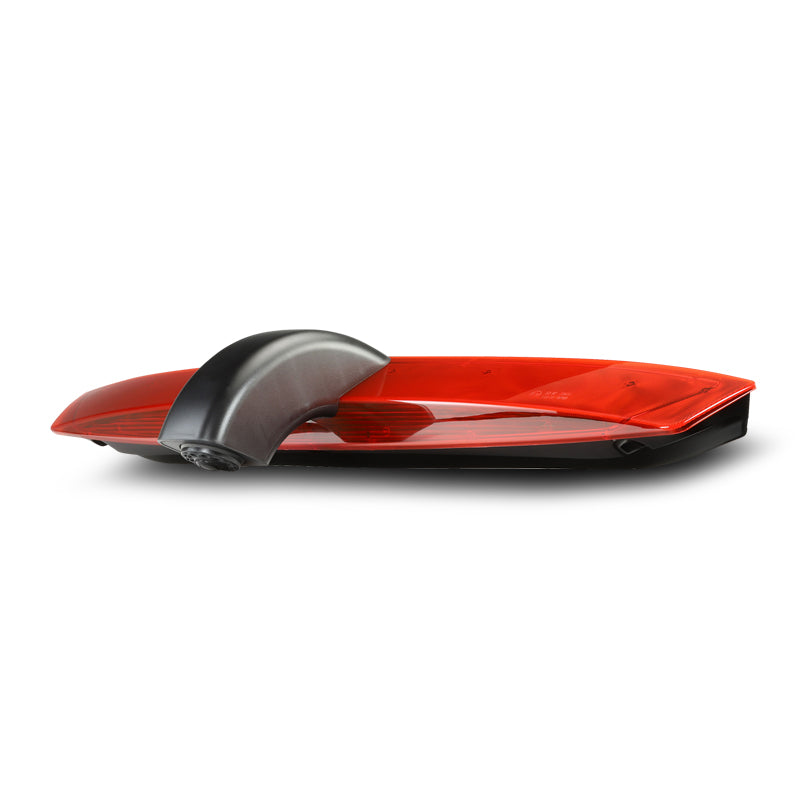

The Aerpro G182V is a Replacement Brake Light Reversing Camera designed to suit Mercedes Vito 2015 onwards. The unit replaces the vehicles original third brake light. The camera has an IP68 weatherproof rating meaning it can withstand immersion in water up to 1M deep and is completely dust tight. The camera and brake light combination not only adds visual safety to the rear of the vehicle but also keeps the original aesthetics.

Features:

• Designed to replace the high level stop light at the rear of the vehicle
• No additional holes need to be drilled into the vehicle
• High quality image sensor produces clear images
• Enhanced low light performance thanks to the integrated infrared LEDs
• 150 Degree field of view minimises blind spots at the rear of the vehicle
• IP68 Rating and wide operating temperature range makes it suitable for use in the harsh Australian conditions

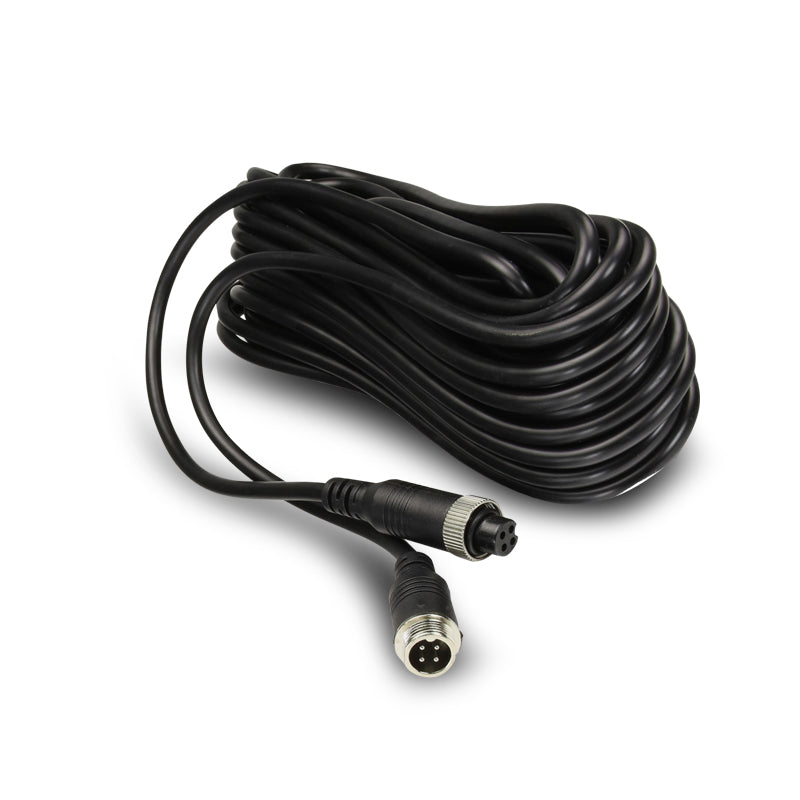

• 10m total cable length to run between the front and back of the vehicle
• Suitable for connection to NTSC compatible aftermarket display monitors with RCA connection

Specifications:

• Image Sensor: 1/3 CMOS
• TV Lines: 700
• Resolution: 976 x 592
• Minimum Illumination: 0.1 Lux (0 Lux When LED’s On)
• TV System: NTSC
• Waterproof Rating: IP68
• Infra-Red LED’s: Yes (8)
• Viewing Angle: 150 Degrees
• Video Output: 1.0V p-p 75 Ohm
• Parking Lines: Yes (Removable)
• Image Adjustment: No
• Operating Voltage: 12V DC (Negative Ground)
• Operating Temperature: -20 Degrees C ~ +70 Degrees C
• Weight: 2.00kg

Vehicle Compatibility:

• Mercedes Vito (2015 to 2021 W447)
• Mercedes Vito (2021, W447)

FAQ

What is the Aerpro G182V?

A vehicle specific reverse camera for the Mercedes Vito W447 from 2015. It is NTSC, 976 x 592 with a 150 degree viewing angle, 8 infra red LEDs, removable parking lines, IP68 rated and runs on 12V DC.

What's in the box?

Check the box contents with us before ordering.

What else do I need?

It needs a display or head unit with an NTSC camera input. Kits vary between models, so check the Aerpro vehicle selector or ask us to confirm the right part. Send the F.A.E. team your make, model and year and we will confirm before you order.
