Aerpro G1000T | Diagnostic Tool | Handheld Thermal Imaging Camera

Offers Everything You Need For A Seamless Inspection Experience!

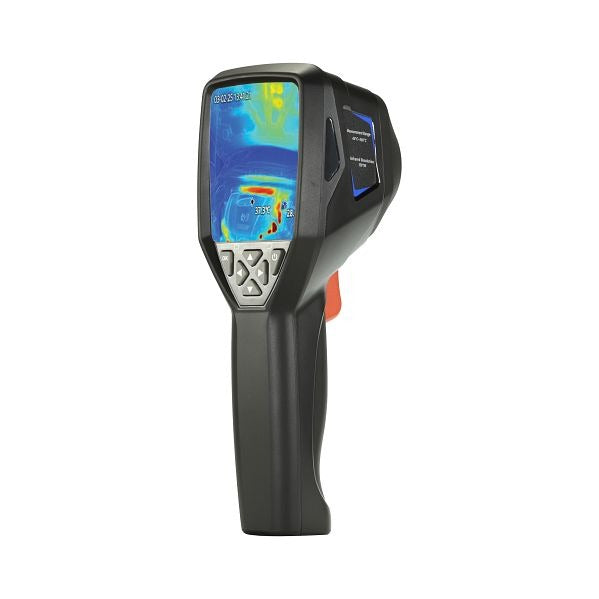

G1000T: Handheld Thermal Imaging Camera
The Aerpro G1000T Handheld Thermal Imaging Camera is an essential diagnostic tool for professionals in electrical, HVAC, automotive, plumbing, and construction industries. Designed for fast, accurate thermal detection, the G1000T simplifies complex inspections, enabling fast, non-invasive inspections without disassembling components or structures.

Equipped with an impressive temperature detection range from -20°C to 550°C, the G1000T delivers precise, real-time heat analysis with a thermal sensitivity of 60 mK (NETD). The integrated 2.8-inch colour display offers five image modes, including edge blending, infrared, and picture-in-picture, combining thermal and visible light visuals from the built-in 720p camera. With 8 selectable colour palettes (Rainbow, White Hot, Black Hot, and more), users can adjust the visual style to suit any inspection scenario.

Built for everyday field use, the G1000T is compact and rugged, rated IP54 for resistance to dust and water. The built-in 2600mAh rechargeable battery delivers up to 4 hours of continuous use, with a USB Type-C connection for reliable charging and seamless data transfer.

Capture and store your inspection data effortlessly with the 8GB built-in memory, capable of storing around 20,000 thermal images or 720p MP4 videos. The G1000T has advanced measurement modes including Max, Min, Center Point, and Full-Screen Area Measurement, ensuring thorough temperature diagnostics across any environment.

With support for multiple languages and a focus on user convenience, the Aerpro G1000T is built to meet the needs of many diverse industries.

Features:

Specifications:

• Thermal Detector Resolution: 120 x 90
• Spectral Range: 8–14μm
• Refresh Rate: 25Hz
• NETD: 60mK @ 25°C
• Field of View: 38° x 50°
• Lens: 2.3mm F1.1
• Temperature Range: -20°C to 550°C
• Measurement Accuracy: ±2°C or ±2%
• Temperature Modes: Max, Min, Central Point, Area Measurement
• Color Palettes: Iron, White Hot, Black Hot, Rainbow, Hottest, High Contrast, Green Hot, Lava
• Visible Camera Resolution: 720p
• Visible FOV: 55° x 83°
• Display: 2.8-Inch Screen
• Image Modes: Edge Blending, Overlay Blending, Picture-In-Picture, Infrared, Visible Light
• Language Support: Multi-language
• Interface: USB Type-C (Charging & Data)
• Protection Level: IP54
• Battery Capacity: 2600mAh Lithium
• Operating Time: ~4 Hours
• Operating Temperature: -10°C to +60°C
• Storage Temperature: -40°C to +85°C
• Internal Storage: 8GB (~20,000 images)
• Image Format: .jpg
• Video Format: .mp4
• Product Dimensions: 70mm x 80mm x 200mm
• Net Weight: 0.48kg
