Aerpro FP9804 Kanatechs Professional Install Kit Suit Mazda 6 2002 - 2008

Giving Your New Stereo Installation A Professional Look!

Kanatechs Professional Install Kit - Silver
The Aerpro FP9804 install kit allows you to install a Double DIN aftermarket headunit into your vehicle whilst retaining heater controls.

Please Note:

• This model is compatible with the Factory DVD car navigation system but the TV function is disabled. (The TV functions on the aftermarket car navigation system would operate properly.) Some functions such as the car navigation system sounds may be disabled.
• The clock and audio display function on the information center display become inoperative.
• The sound of the air conditioning control is disabled.
• When turning the ignition, the information center display may flicker or be delayed.
• The AMB (Ambient Temperature Indicator) switch becomes disabled and continuously displayed on the left of the information-center display.
• The dimming function, which works when either headlights or parking lights are on, is disabled.
• The air circulation switch and rear defroster turn on. But have nothing to do with the state of the light switch. Illumination is lower than before.
• Since the factory hazard lamp switch may not be relocated, the hazard lamp switch provided in this set is used.
• For installation, the Factory Heater Control Unit, the air duct, the Factory switch panel, and the cover need to be detached and reassembled on a special Panel included in this set.
• Car models with the BOSE sound system use a separate amplifier. Optional MAZDA sound system translator FP9811 is required for proper operation.
• On equipped vehicles, the installation of optional parts ASWC1 enables the operation of the audio remote control switch on the steering wheel.

CAUTION: Installation of this set involves handling electronic parts. This manual assumes that installation work is performed by a specialist with skills and knowledge.

Specifications:

• Application: Double DIN
• Colour: Silver
• Internal Dimensions: 200mm (W) x 100mm (H); Wings Reduce Width: 172mm
• Vehicle Compatibility: Mazda 6 - Atenza GG/GY (2002 - 2008)
• Weight: 1.20kg

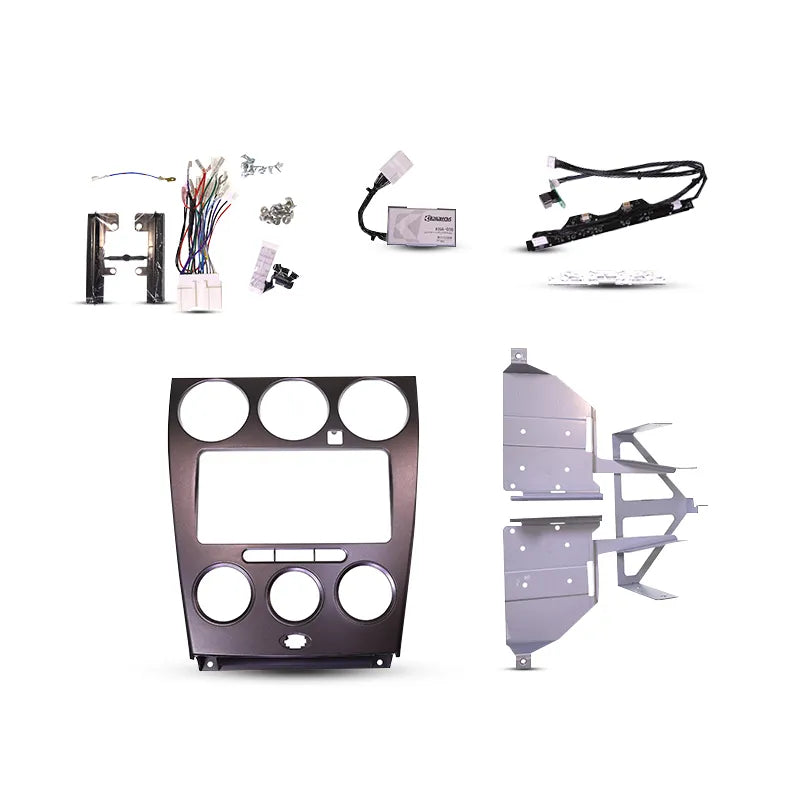

Kit Inclusions:

• Facia Kit
• Metal Brackets
• Speaker & Power Harness
• Control Box
• Hazard Switch
• Air Conditioning Switch Circuit Board Assembly
• Detailed Instructions
