Aerpro FP9680SK Double DIN Satin Black Head Unit Installation Kit Suit Ford Falcon FG-X 2014 - 2016

Contains All the Vehicle-Specific Parts Required to Complete the Installation!

Double DIN Head Unit Installation Kit (Satin Black)
The Aerpro FP9680SK Head Unit Installation Kit enables aftermarket double din AV head units to be installed into Ford Falcon FG-X (2014-2016). The kit contains all the vehicle-specific parts required to complete the installation including a satin black facia kit with built-in H-VAC controller and steering wheel control interface, a satin black top dash panel, a mounting kit, a vehicle-specific wiring loom, a video in/out loom, a reverse camera retention lead, a factory parking tone retention module, a subwoofer retention lead, a universal patch lead, an antenna adaptor and a MagMate phone plate. An Aerpro APP8 Series Aftermarket Head Unit ISO Harness is also required to complete the installation which connects from the aftermarket head unit directly into the vehicle harness supplied in this kit (sold separately).

The facia kit has integrated buttons for HVAC control and displays the HVAC settings and other vehicle settings on the aftermarket AV head unit display when in use. It also has a built-in MagMate Magnetic Phone Holder for convenient mounting of your smartphone in the vehicle. If the aftermarket head unit requires a handbrake, reverse, or speed pulse connection, these outputs can be found on the main wiring loom included in the kit. Due to the design and features of this installation kit only aftermarket double din mechless shallow mount AV head units with RCA camera input and steering wheel control capability are recommended for installation.

Important Information:

• Total Installation Kits can vary between models, to find the correct part for your vehicle use the Aerpro Vehicle Selector.
• Aftermarket head unit must be SWC compatible and Steering Wheel Control Functions may vary from the OEM Functions.
• Mechless shallow mount head units are recommended for easier installation due to their mounting depth.
• This kit is designed for aftermarket AV double din head units with an RCA camera input.
• The aftermarket head unit requires AV input for visualisation display.
• The head unit ISO harness is not included in the kit. Recommended to be installed with an Aerpro APP8 Head Unit Secondary ISO Harness (sold separately).

Features:

• Kit includes all the vehicle-specific parts required to complete the installation of an aftermarket head unit
• Suitable for double din aftermarket AV head unit installation
• Mechless shallow mount head units are recommended for easier installation due to their mounting depth
• High-quality satin black finish on the facia kit to suit the style of the vehicle interior
• Retains steering wheel control functionality and factory reverse camera when connected to compatible aftermarket head units
• Retains factory parking sensor tones with the included module
• Includes integrated buttons for adjusting climate control and various vehicle settings
• Climate control and vehicle information display on the aftermarket AV head unit
• MagMate magnetic phone holder built into facia kit for convenient phone mounting, metal phone plate included
• Provides output feeds for the reverse trigger, park brake, and speed pulse
• Suitable for vehicles with single or dual-zone climate control
• Aerpro APP8 aftermarket head unit secondary ISO harness required to complete installation (not included)

Specifications:

• Application: Double DIN
• Facia Colour: Satin Black
• Vehicle Compatibility: Ford Falcon 2014 - 2016 FG-X (Sedan)
• Weight: 1.80kg

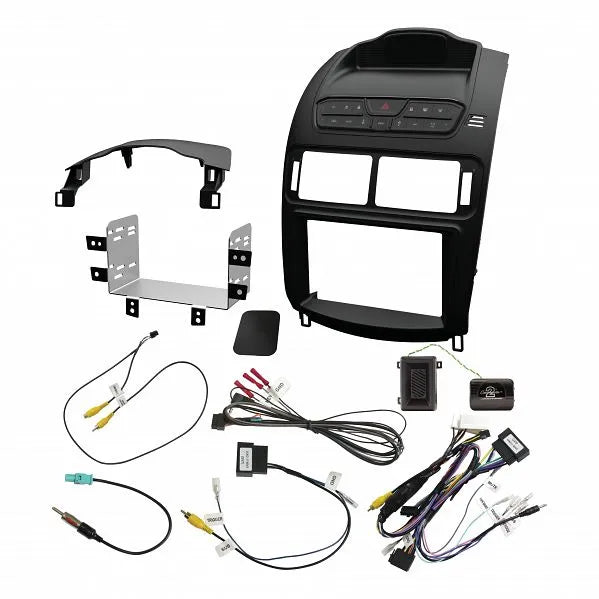

Inclusions:

• Double DIN Facia Kit
• Top Dash Panel
• Mounting Brackets and Hardware
• Vehicle-Specific Wiring Loom
• Factory Reverse Camera Retention Lead
• Factory Parking Tone Retention Module
• Factory Subwoofer Harnesses For Vehicles With Premium Sound Option
• Video In/Out Lead
• Universal SWC Patch Lead
• Antenna Adaptor
• MagMate Metal Phone Plate
