Aerpro FP9257K - Installation Kit To Suit Suzuki Swift FZ 2011-2017

Aerpro FP9257K - Installation Kit To Suit Suzuki Swift FZ 2011-2017

Complete vehicle-specific double DIN headunit installation kit for Suzuki Swift FZ (2011-2017) with black facia kit, metal brackets, trim ring, steering wheel control interface with phone button retention, speed pulse output, antenna adapter, and universal patch lead for professional installations.

Product Overview

The Aerpro FP9257K Installation Kit provides everything needed for a complete aftermarket double DIN headunit installation in Suzuki Swift FZ models from 2011-2017. This comprehensive kit includes black facia kit with 174mm x 98mm internal dimensions matching the original dashboard styling, metal mounting brackets, trim ring, steering wheel control interface with phone button retention, antenna adapter, and universal patch lead. The kit maintains factory steering wheel control functionality and provides speed pulse output feed for enhanced integration. Compatible with Aerpro APP8 and APP9 aftermarket headunit harness adapters for simplified installation process.

Important Notes: Compatibility is headunit dependent. Verify headunit compatibility before installation.

Key Features

• Complete Installation Solution - All components required for professional aftermarket double DIN headunit installation conveniently packaged in one comprehensive kit
• High-Quality Black Finish - Facia kit features black finish with 273mm top width, 233mm base width, and 135mm height matching original Suzuki Swift FZ dashboard styling
• Steering Wheel Control Retention - Maintains factory steering wheel control functionality including phone button with integrated interface and universal patch lead
• Speed Pulse Output - Provides output feed for speed pulse for complete vehicle system integration with compatible aftermarket headunits
• Dual Harness Compatibility - Compatible with both Aerpro APP8 and APP9 aftermarket headunit harness adapters for direct connection and streamlined installation

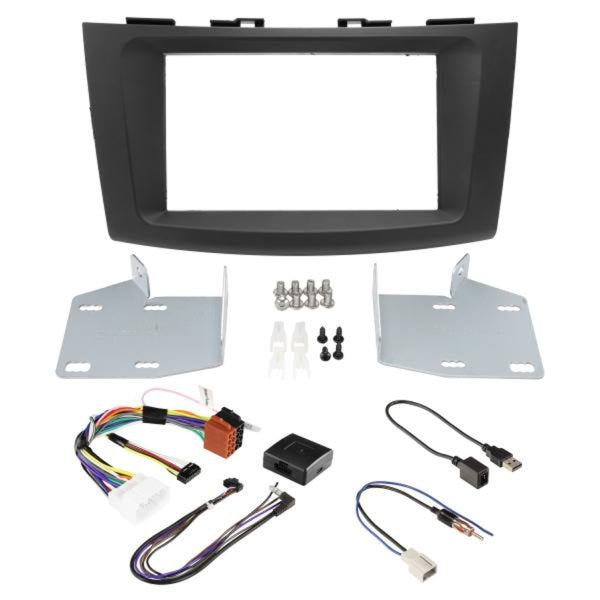

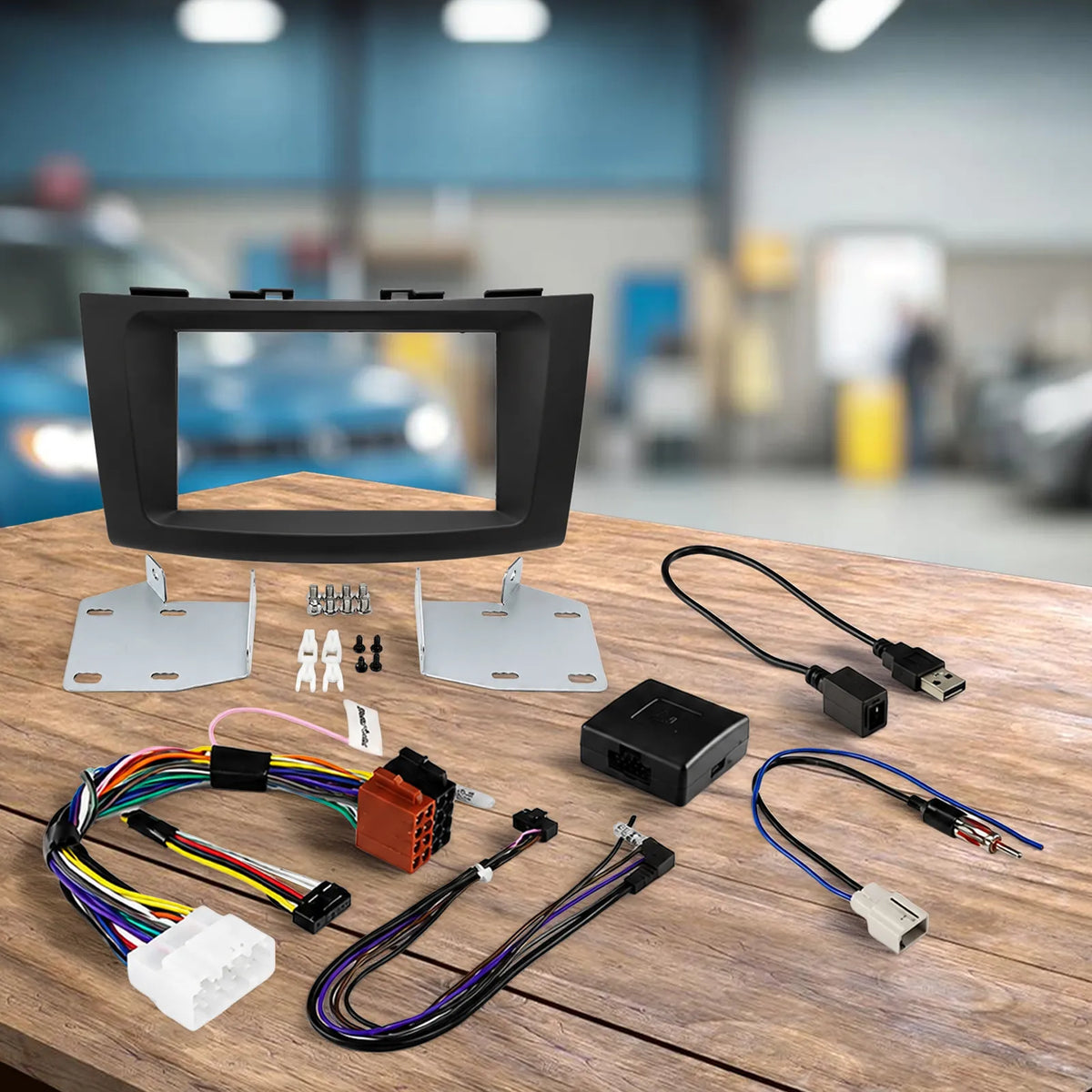

• Comprehensive Component Package - Includes facia kit, metal brackets, trim ring, steering wheel control interface with patch lead, and antenna adapter

Technical Specifications

Frequently Asked Questions

Q: Which Suzuki Swift models does this installation kit fit? A: This kit fits Suzuki Swift FZ models from 2011-2017. Compatibility is headunit dependent, so verify your aftermarket headunit compatibility before installation.

Q: Will my steering wheel controls still work after installation? A: Yes, the kit includes a steering wheel control interface that retains factory steering wheel control functionality including the phone button, with universal patch lead and speed pulse output feed provided.

Q: What type of brackets are included in this kit? A: The kit includes metal mounting brackets along with a trim ring for secure and professional double DIN headunit installation in the Suzuki Swift FZ dashboard cavity.

Q: Is this compatible with APP8 or APP9 harness adapters? A: Yes, this kit is compatible with both Aerpro APP8 and APP9 aftermarket headunit harness adapters, which connect directly from the aftermarket headunit into the steering wheel control interface harness for simplified installation.

Q: What additional parts do I need to complete the installation? A: For simplified installation, add an Aerpro APP8 or APP9 aftermarket headunit harness adapter (sold separately), which will connect directly from the aftermarket headunit into the steering wheel control interface harness supplied in this kit.
