Aerpro FP8574K Double DIN Matte Black Install Kit Suit Audi Q5 (MMI, Most Amplified)

Containing Everything You Need For A Perfect Upgrade in One Box!

Double DIN Install Kit, Matte Black
Complete a full aftermarket double din head unit installation in your Audi Q5 (2009 to 2016) MMI vehicle with factory MOST amplified system, with this Aerpro FP8574K Installation Kit. The kit will retain important factory features including steering wheel controls. Containing everything you need for a perfect upgrade in one box, this kit includes a matte black double din facia kit with integrated air vents, air vent bracket, and mount, MMI Button panel and bracket, mounting brackets, mounting hardware, infodapter interface with main wiring harness, antenna adapter, and universal steering wheel control patch lead. To simplify installation add an Aerpro APP8 or APP9 aftermarket head unit harness which will connect from the aftermarket head unit directly into the steering wheel control interface harness supplied in this kit.

Important Information:

• Install Kits can vary between vehicle models, to find the correct part for your vehicle use the Aerpro Vehicle Selector.
• This kit is intended for MMI vehicles with a factory MOST amplified system only.
• This kit is only compatible with aftermarket AV head units that have RCA reverse camera input and are SWC-compatible.
• To retain a factory-fitted camera, an additional vehicle-specific camera retention harness is also required (If available, sold separately).

Features:

• Kit includes all the parts required to complete an installation of an aftermarket head unit conveniently in one box
• Suitable for double din aftermarket head unit installation
• High-quality matte black finish on the facia kit to suit the style of the dashboard in the vehicle
• Suitable for MMI vehicles with a factory MOST amplified system only
• Retains steering wheel control functionality including phone button
• Park assist visualisation (If equipped)
• Retains access to vehicle settings, menus, and controls
• CAN bus integration compatible
• Provides output feeds for the parking brake, speed pulse, and reverse gear
• To simplify installation add an Aerpro APP8 or APP9 aftermarket head unit harness (Sold Separately)

Specifications:

• Application: Double DIN
• Colour: Matte Black
• Facia Internal Dimensions: 172mm (W) x 98mm (H)
• Facia External Dimensions: 310mm Top / 239mm Base (W) x 141mm (H)
• Vehicle Compatibility: Audi Q5 2009 to 2016 (8R)
• Weight: 1.00kg

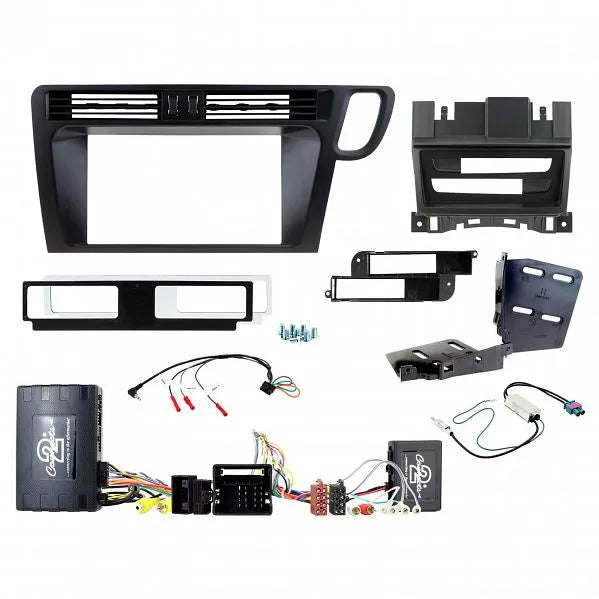

Inclusions:

• Double `Facia Kit
• Mounting Brackets
• Air Vent Bracket & Mount
• MMI Button & Bracket
• Mounting Hardware
• Steering Wheel Control Interface
• Main Wiring Harness
• Antenna Adapter
• Universal SWC Patch Lead

FAQ

What is the Aerpro FP8574K?

A matte black double DIN install kit for the Audi Q5 8R 2009 to 2016 with MMI and the MOST amplified system, with the facia, brackets and interface in one box.

What are the internal dimensions?

172 mm wide x 98 mm high.

What's in the box?

A double DIN facia kit, mounting brackets, an air vent bracket and mount, an MMI button and bracket, mounting hardware, a steering wheel control interface, a main wiring harness, an antenna adaptor and a universal SWC patch lead.

What else do I need?

Your head unit must be SWC compatible, and steering wheel functions may differ from the factory ones. The head unit ISO harness is not included. Kits vary between models, so check the Aerpro vehicle selector or ask us to confirm the right part. Send the F.A.E. team your make, model and year and we will confirm before you order.
