Aerpro FP8533K Single/Double DIN Matte Black Install Kit Suit Dodge & Fiat Various Models

Suitable For Vehicles With 4.3" OEM Factory Display Only!

Single/Double DIN Install Kit - Matte Black
Complete an aftermarket single or double din head unit installation in your Dodge Journey or Fiat Freemont (2012-2016) vehicle with an OEM 4.3" factory display, with this Aerpro vehicle-specific head unit installation kit. This kit includes a matte black double din facia kit, pocket (For single din installation), A/C button housing, console bracket, mounting brackets, factory screen retention interface, and wiring harness. To retain steering wheel controls the kit comes supplied with a pre-wired loom that connects directly to the AXSWC Universal SWC Interface (sold separately).

To retain radio reception APA58 Antenna Adaptor is required (sold separately). Vehicle information and AC controls will continue to display on the factory screen and this kit provides the additional feature of video input, allowing a reverse camera to be connected to the original display. The included wiring harness is bare wire and will need to be soldered to the aftermarket head unit's wiring loom. The kit provides various outputs including reverse trigger, park brake, and speed pulse, which are often required when installing aftermarket AV head units.

Please Note:

• Total Installation Kits can vary between models, to find the correct part for your vehicle use the Aerpro Vehicle Selector.
• To retain steering wheel controls AXSWC Steering Wheel Control Interface is required (sold separately). The aftermarket head unit must be SWC-compatible. Functions may vary from the OEM Functions.
• APA58 Antenna adaptor required to retain radio reception (sold separately).
• Bare wire harness included, this kit is not compatible with Aerpro APP8 or APP9 Harnesses.
• Does not retain sound from Driver Convenience Group.
• Suitable for vehicles with 4.3" OEM factory display only.

Features:

• Suitable for single or double din aftermarket head unit installation
• High-quality matte black finish on the facia kit to suit the style of the dashboard in the vehicle
• To retain steering wheel control functionality, AXSWC interface is required (sold separately)
• To retain FM/AM radio reception, an APA58 Antenna adaptor is required (sold separately)
• Suitable for vehicles with 4.3" OEM factory display only
• Retains the factory display screen for vehicle information and AC display
• Allows an aftermarket reverse camera to connect to the factory display screen
• Replaces and relocates A/C buttons with new button panel
• Provides output feeds for the parking brake, speed pulse, reverse gear, amp remote, and illumination
• Fitted with a vehicle-specific plug, no cutting of wires is required
• The vehicle harness included in the kit does not use the standard ISO connector system, this harness requires soldering to the aftermarket unit wiring loom

Specifications:

• Application: Single / Double DIN
• Colour: Matte Black
• Internal Dimensions: XXXmm (W) x XXXmm (H)
• External Dimensions: XXXmm (W) x XXXmm (H)
• Weight: 1.28kg

Vehicle Compatibility:

• Dodge Journey (2012 - 2016)
• Fiat Freemont (2012 - 2016)

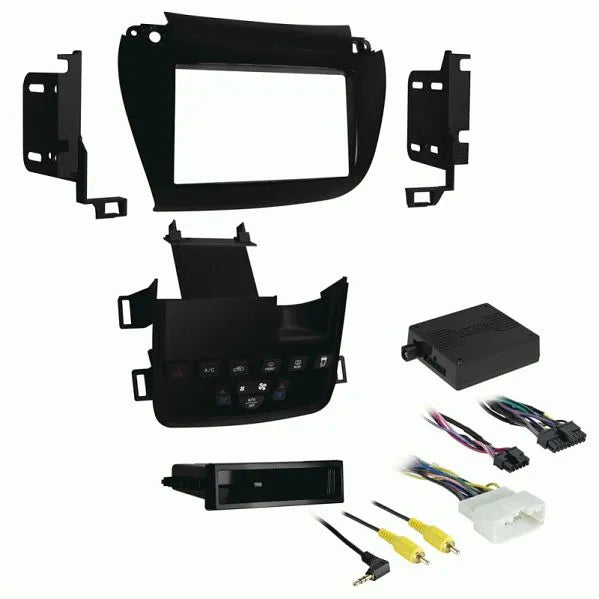

Inclusions:

• Double DIN Facia Kit
• Pocket (For Single DIN Installation)
• Console Bracket
• Mounting Brackets
• Factory Screen Retention Interface
• Wiring Harness (Bare Wire)
