Aerpro FP8324KC Double DIN Black Install Kit Suit Mercedes C-Class 2007 - 2012

Containing Everything You Need For A Perfect Upgrade in One Box!

Double DIN Install Kit - Black
Complete a full aftermarket double din headunit installation in your Mercedes C-Class W204 (2007-2012) from start to finish with this Aerpro vehicle-specific headunit installation kit, containing everything you need for a perfect upgrade in one box. This kit includes a facia kit, plastic brackets, a button relocation panel and wiring loom, a steering wheel control interface, an antenna adapter, and a universal patch lead. To make the installation process even easier, simply add Aerpro APP8 or APP9 aftermarket headunit harness adapters which will connect from the aftermarket headunit directly to the steering wheel control interface harness supplied in this kit.

Notes:

• Buttons below the stereo relocate to the top of the dash
• Retains Factory Amplifier

Features:

• Kit includes all the parts required to complete an installation of an aftermarket headunit conveniently in one box
• Suitable for double din aftermarket headunit installation
• High-quality black finish on the facia kit to suit the style of the dashboard in the vehicle
• Retains steering wheel control functionality including phone button
• CAN-BUS integration compatible, no additional modules required for CAN-BUS vehicles
• Provides output feeds for the parking brake, speed pulse, reverse gear, and mute
• Button relocation panel allowing factory buttons to be re-positioned to the top of the dash - allowing enough space for a double din headunit to be installed
• To simplify installation, this kit is compatible with Aerpro APP8 and APP9 aftermarket headunit harness adapters

Specifications:

• Application: Double DIN
• Colour: Black
• Internal Dimensions: 172mm (W) x 99mm (H)
• External Dimensions: 237mm (W) Top / 220mm (W) Base x 120mm (H)
• Vehicle Compatibility: Mercedes C-Class (2007 - 2012 W204)
• Weight: 0.80kg

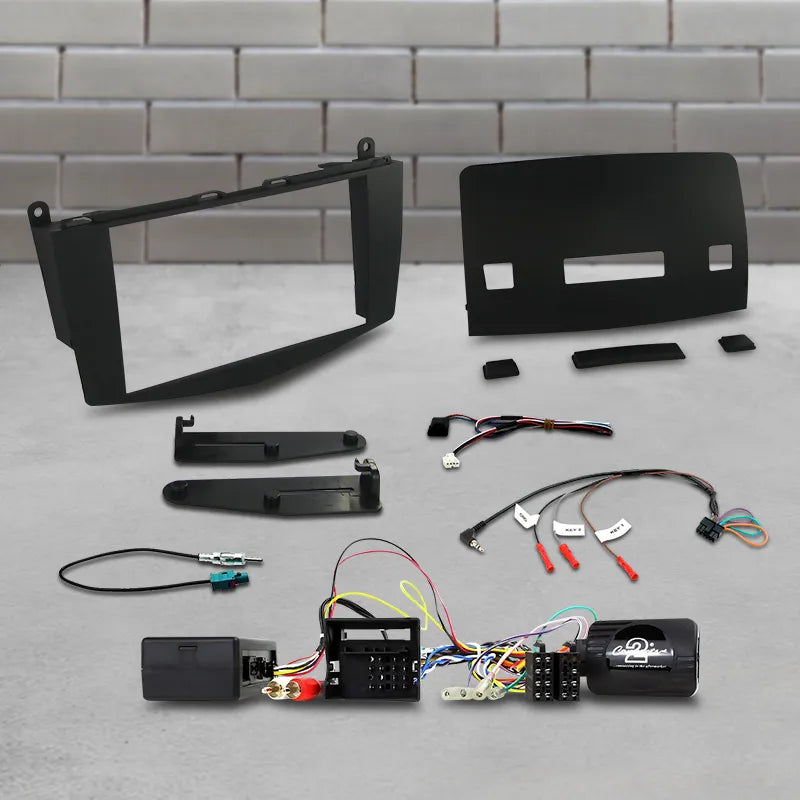

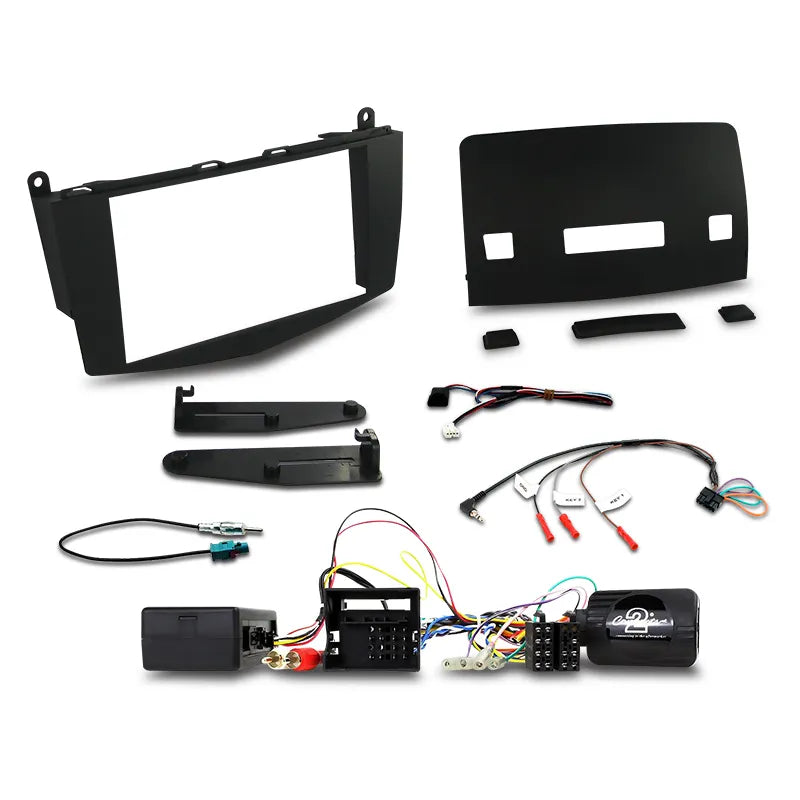

Kit Inclusions:

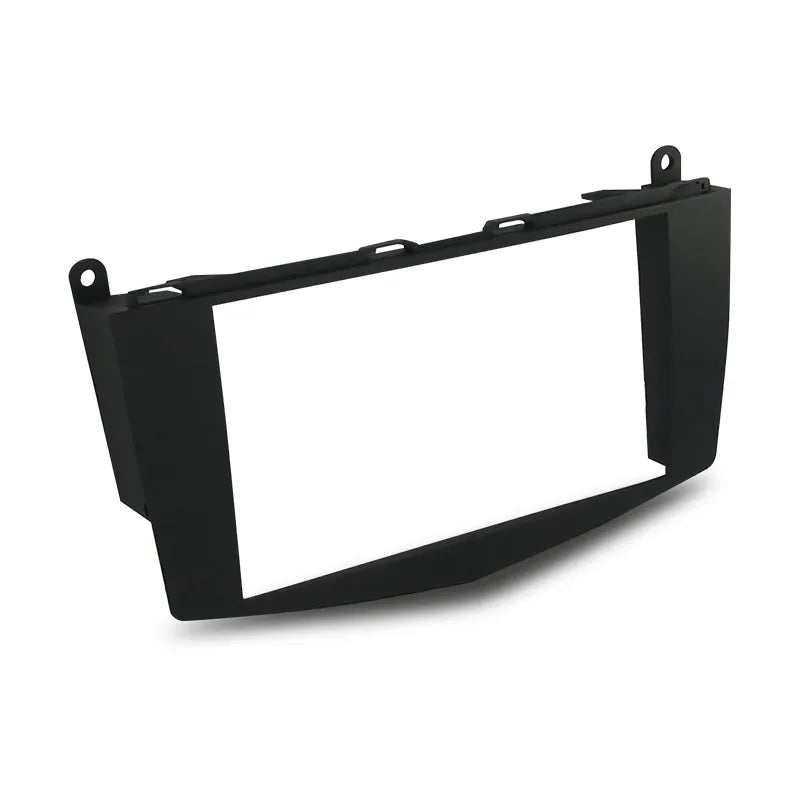

• Facia Kit
• Plastic Brackets
• Button Relocation Panel & Wiring Loom
• Steering Wheel Control & Amplifier Interface
• Universal Patch Lead
• Antenna Adapter
