Aerpro FP8228KM Double DIN Black Install Kit Suit BMW 1 Series 2004 - 2011 (With Manual Climate Control)

Containing Everything You Need For A Perfect Upgrade in One Box!

Double DIN Install Kit - Black
Complete a full aftermarket double din headunit installation in your BMW 1 Series (2004 - 2011), models with manual climate control, from start to finish with this Aerpro vehicle specific headunit installation kit, containing everything you need for a perfect upgrade in one box. This kit includes: a black double din facia kit, metal mounting brackets, blanking cover panel, ribbon cable, steering wheel control interface, warning tone interface with chime speaker, antenna adaptor, and universal SWC patch lead.

Installation of the aftermarket headunit is simplified even further when paired with the optional Aerpro APP9 Headunit Secondary ISO Harness & SWC Patch Lead, which connects the aftermarket headunit and the Aerpro Steering Wheel Control Interface. The included interface is CANBUS compatible and provides various outputs including Reverse Trigger, Park Brake, Speed Pulse, and Illumination. It also has a yellow constant power cable that needs to be wired directly to the vehicle's battery. The interface includes a chime speaker that retains audible vehicle alerts including Oil/Washer Fluid Level, Door Open, Seat Bel,t and Parking Sensor Audio.

Please Note:

• Total Installation Kits can vary between models, to find the correct part for your vehicle use the Aerpro Vehicle Selector.
• The aftermarket headunit must be SWC compatible and Steering Wheel Control Functions may vary from the OEM Functions.
• Headunit ISO harness not included in the kit. Recommended to be installed with an Aerpro APP9 Headunit Secondary ISO Harness & SWC Patch Lead (Sold Separately).
• Includes yellow power cable that needs to be wired directly to the vehicle battery
• Not suitable for vehicles with amplified, iDrive, or navigation systems from the factory.
• Only suitable for listed vehicles with Manual Climate Control.

Features:

• The kit includes all the parts required to complete the installation of an aftermarket headunit conveniently in one box.
• Suitable for double din aftermarket headunit installation.
• High-quality black finish on the facia kit to suit the style of the dashboard in the vehicle.
• Retains steering wheel control functionality in the vehicle including the phone button.
• Retains OEM parking sensors and warning tones such as oil/washer fluid level, door open, and seat belt.
• CAN-BUS integration is compatible, no additional modules are required for CAN-BUS vehicles.
• Provides output feeds for the reverse trigger, park brake, and speed pulse, & illumination.
• Fitted with a vehicle-specific plug, no cutting of wires is required.
• Includes yellow power cable that needs to be wired directly to the vehicle battery.
• Recommended to be installed with an Aerpro APP9 Headunit Secondary ISO Harness & SWC Patch Lead (Sold Separately).

Specifications:

• Application: Double DIN
• Colour: Black
• Internal Dimensions: 172mm (W) x 99mm (H)
• External Dimensions: 335mm (W) Top / 240mm (W) Base x 166mm (H)
• Vehicle Compatibility: BMW 1 Series (2004 - 2011)
• Weight: 1.20kg

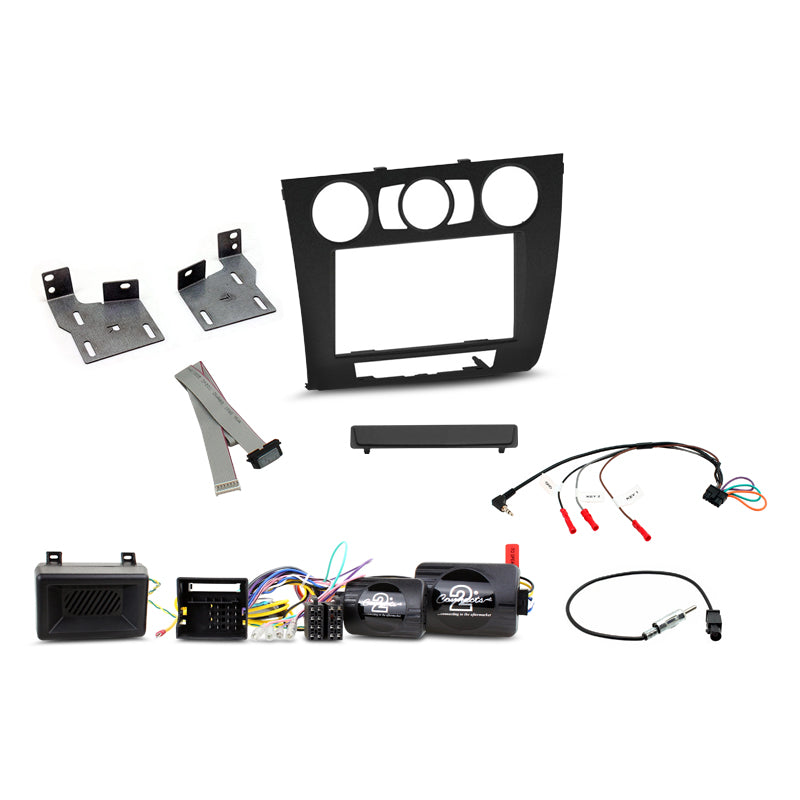

Inclusions:

• Double DIN Facia Kit
• Metal Mounting Brackets
• Blanking Cover Panel
• Ribbon Cable
• Steering Wheel Control Interface
• Warning Tone Interface With Chime Speaker
• Antenna Adaptor
• Universal SWC Patch Lead
