Aerpro FP7514K Install Kit to Suit Mazda 3 BL 2009-2013 (Black)

Everything you need to install an aftermarket headunit in your Mazda 3 BL — the Aerpro FP7514K is a complete vehicle-specific installation kit with facia, steering wheel control interface, antenna adaptor, and all mounting hardware for a clean, professional single or double DIN upgrade from start to finish.

Product Overview

The Aerpro FP7514K is a vehicle-specific headunit installation kit designed for the Mazda 3 (Axela) BL 2009-2013. Containing everything required for a complete aftermarket headunit installation in a single box, the FP7514K eliminates the need to source individual components separately and ensures full compatibility with the Mazda 3 BL's factory wiring, CAN-BUS system, and steering wheel controls.

The kit supports both single and double DIN headunit installations and includes a matte black facia kit matched to the Mazda 3 BL dashboard finish, plastic mounting brackets, screws, a steering wheel control interface, a universal SWC patch lead, and an antenna adaptor. The steering wheel control interface retains full factory SWC functionality without additional CAN-BUS modules, and also provides output feeds for park brake, speed pulse, reverse gear, and illumination signals — supporting all major aftermarket headunit integration requirements.

For simplified wiring, the FP7514K is compatible with Aerpro APP8 and APP9 aftermarket headunit harness adaptors, which connect directly from the aftermarket headunit into the steering wheel control interface harness supplied in this kit.

Note: Not compatible with Mazda 3 BL models fitted with a BOSE amplified audio system. Confirm your vehicle's audio system configuration before purchase.

Features & Benefits

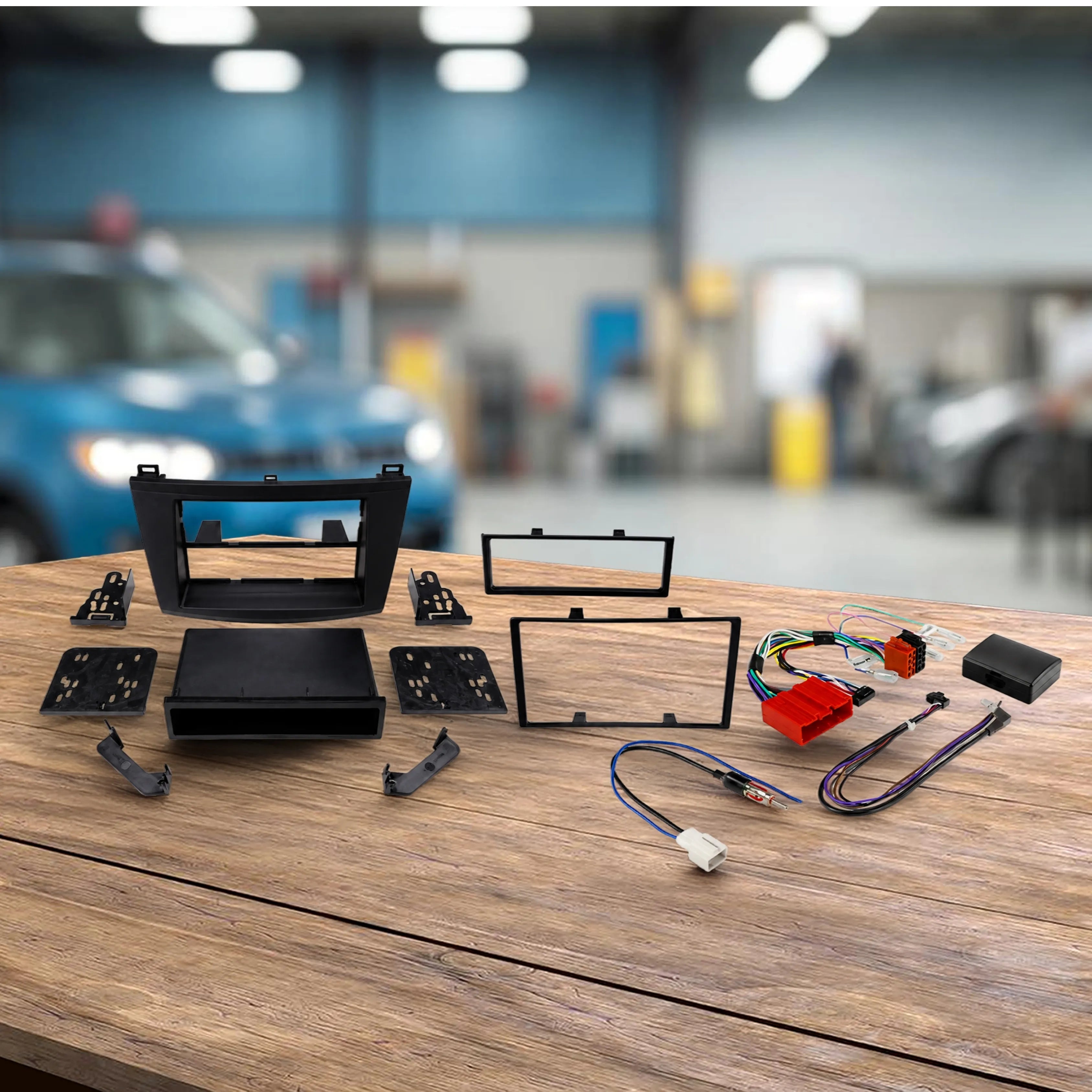

• Complete single and double DIN installation kit containing all components required for a full aftermarket headunit upgrade in one box

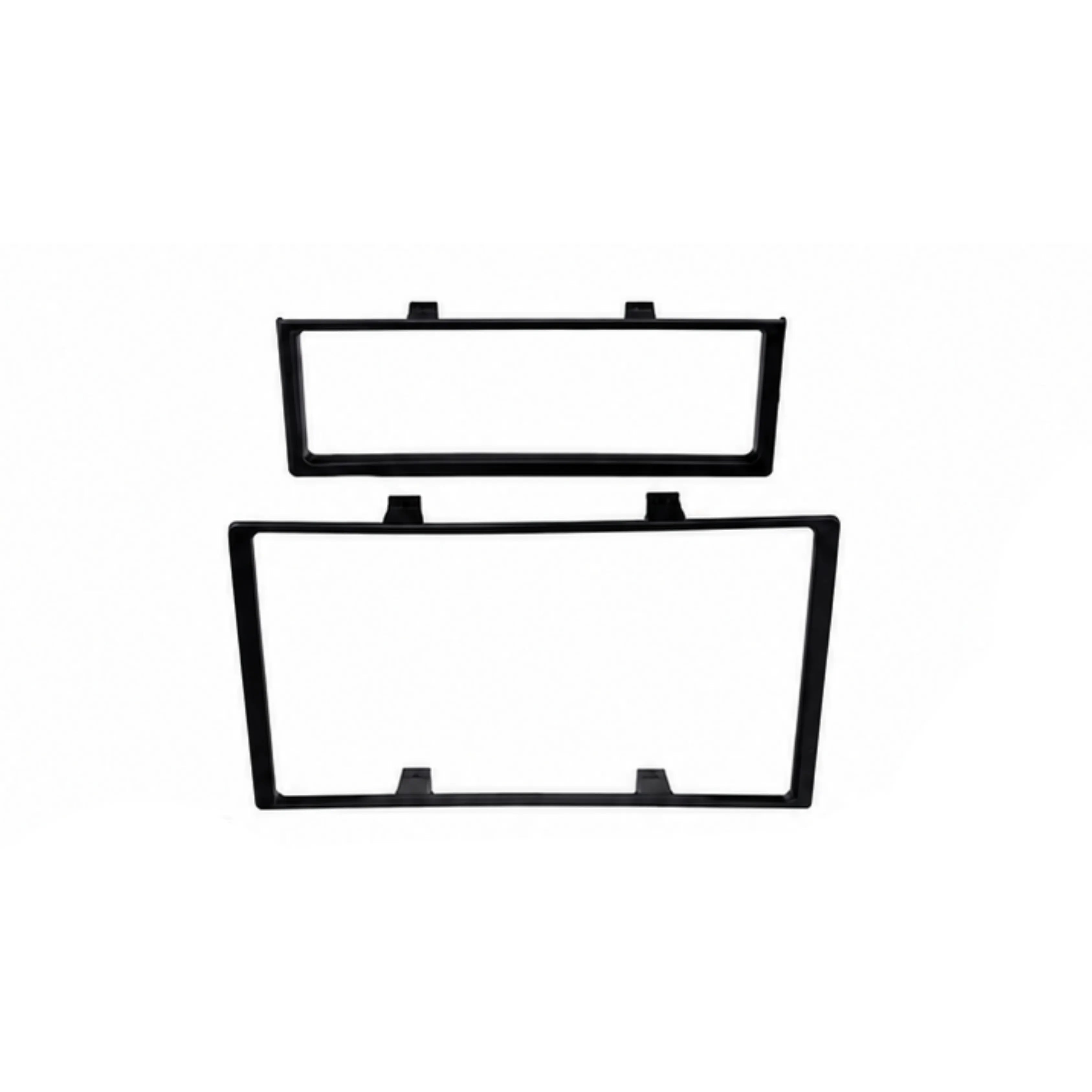

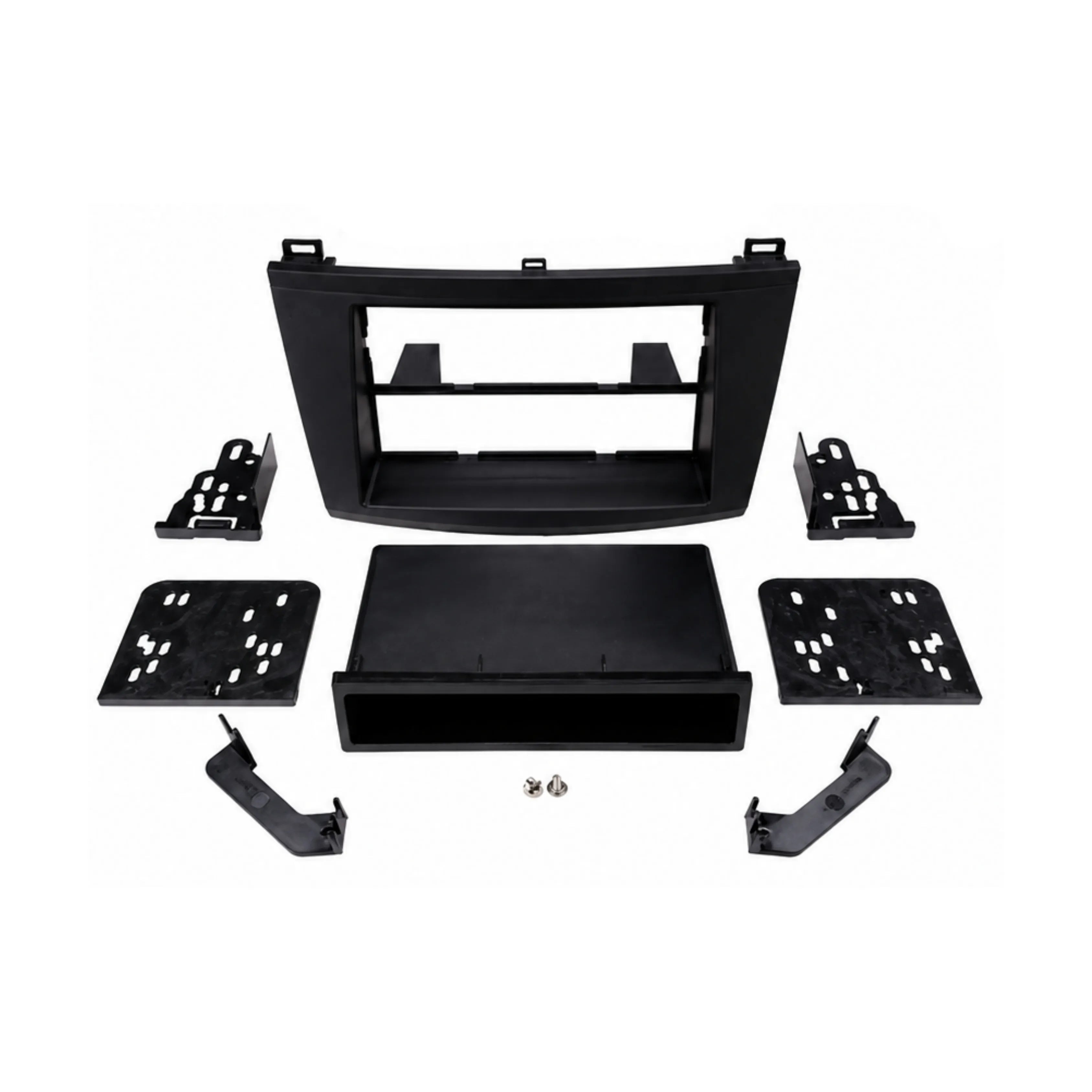

• Vehicle-specific matte black facia kit matched to the Mazda 3 BL dashboard for a factory-quality finish

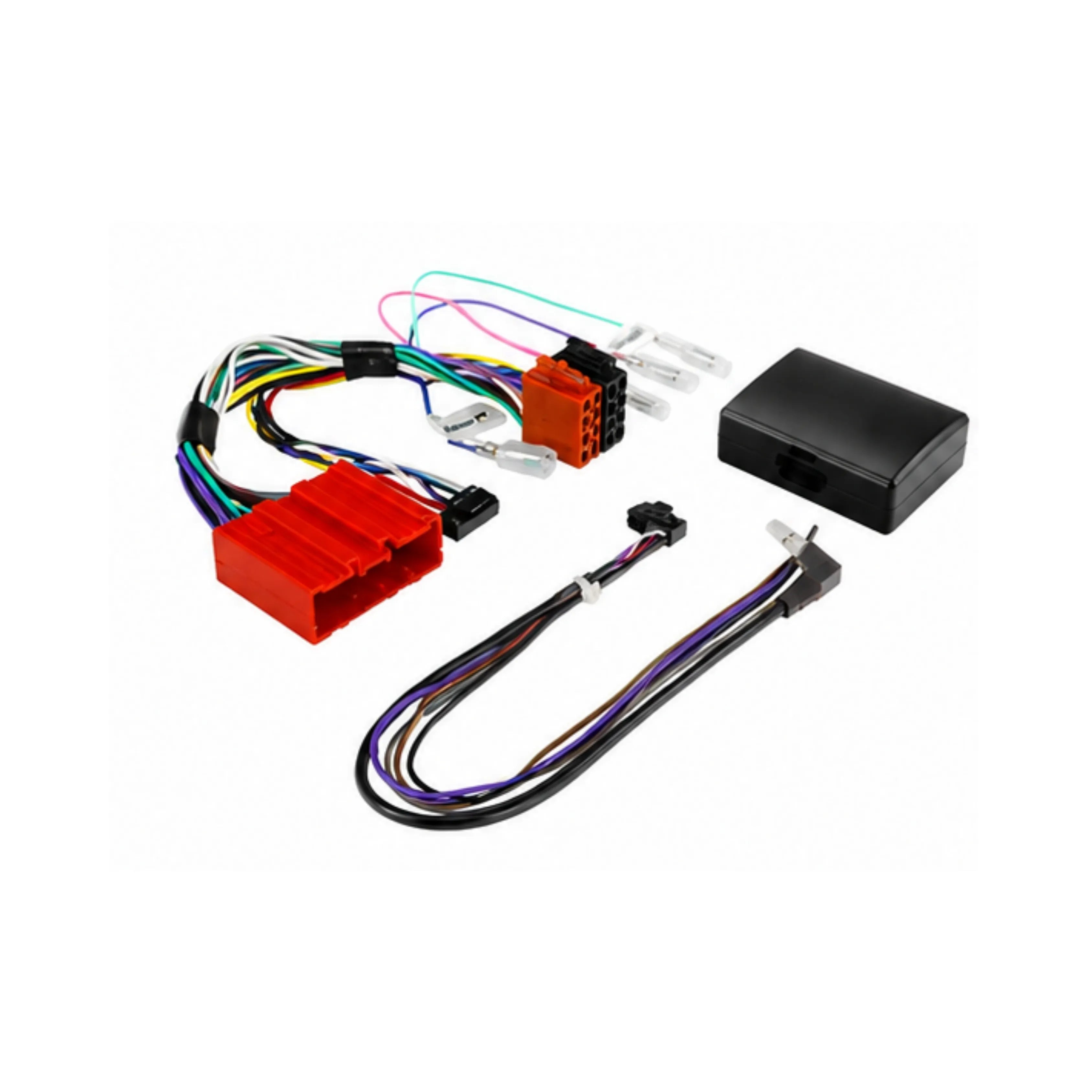

• Steering wheel control interface retaining full factory SWC functionality without requiring additional CAN-BUS modules
• CAN-BUS integration compatible providing plug-and-play SWC retention for Mazda 3 BL CAN-BUS vehicles
• Universal SWC patch lead included for connection between the SWC interface and compatible aftermarket headunits
• Provides output feeds for park brake, speed pulse, reverse gear, and illumination supporting full aftermarket headunit integration requirements

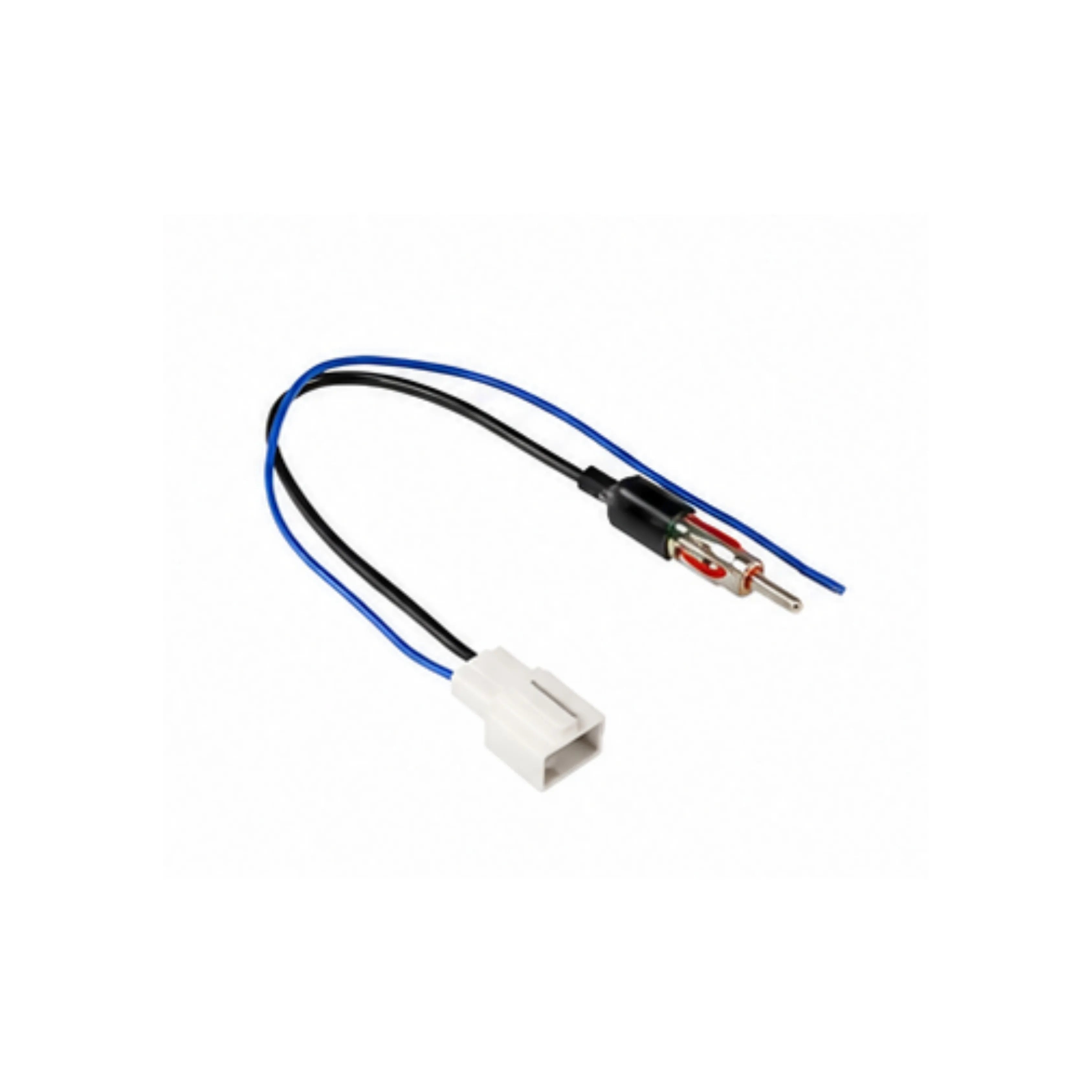

• Antenna adaptor included for seamless connection between the vehicle's factory antenna and the aftermarket headunit
• Plastic mounting brackets and screws included for secure double DIN chassis installation
• Compatible with Aerpro APP8 and APP9 harness adaptors for simplified wiring directly into the SWC interface harness
• Internal DIN opening dimensions of 173mm (W) x 97mm (H) suited to standard single and double DIN headunit chassis sizes

Technical Specs

Compatible With / Goes Well With

The Aerpro FP7514K is specifically designed for:

• Mazda 3 (Axela) BL 2009-2013 (non-BOSE systems only)

Important: This kit is not compatible with Mazda 3 BL models fitted with the factory BOSE amplified audio system. If your vehicle has a BOSE system, contact F.A.E. for guidance on the correct installation solution before purchasing.

Goes well with:

• Aerpro APP8 or APP9 aftermarket headunit harness adaptors (for direct wiring from headunit to the supplied SWC interface harness)
• Aerpro AM7X or AM7514K multimedia receiver (for a complete plug-and-play Mazda 3 BL headunit upgrade)
• Any single or double DIN aftermarket headunit with a standard 173mm x 97mm DIN opening requirement

Frequently Asked Questions

Q: What is included in the Aerpro FP7514K install kit?

A: The FP7514K includes a matte black vehicle-specific facia kit, plastic mounting brackets, screws, a steering wheel control interface, a universal SWC patch lead, and an antenna adaptor. All components required for a complete single or double DIN aftermarket headunit installation in a Mazda 3 BL 2009-2013 are included in one box.

Q: Does this kit work with CAN-BUS vehicles without any additional modules?

A: Yes. The FP7514K is CAN-BUS integration compatible and retains steering wheel control functionality on the Mazda 3 BL without requiring any additional CAN-BUS modules. The included SWC interface handles the CAN-BUS integration directly, simplifying the installation process significantly.

Q: What are the APP8 and APP9 adaptors and do I need them?

A: The Aerpro APP8 and APP9 are aftermarket headunit harness adaptors that connect from the aftermarket headunit's wiring harness directly into the steering wheel control interface harness supplied in this kit. They are not included in the FP7514K but are strongly recommended to simplify and clean up the wiring installation. Contact F.A.E. to confirm which APP harness adaptor is correct for your specific aftermarket headunit.

Q: Is this kit compatible with BOSE audio systems in the Mazda 3 BL?

A: No. The FP7514K is not compatible with Mazda 3 BL models fitted with the factory BOSE amplified audio system. BOSE-equipped vehicles use a different wiring configuration that requires a specific integration solution. If your vehicle has a BOSE system, contact F.A.E. for the correct kit before purchasing.

Q: Will this kit suit both single DIN and double DIN aftermarket headunits?

A: Yes. The FP7514K supports both single and double DIN aftermarket headunit installations. The internal DIN opening dimensions are 173mm (W) x 97mm (H), which is the standard double DIN opening size. Single DIN headunits can also be fitted using a single DIN pocket or appropriate mounting adaptor within the same facia opening.
