Product features

Aerpro FP7504K Double DIN Head Unit Install Kit Mazda 3 BK 2004-2009

A complete vehicle-specific Double DIN head unit installation kit for the Mazda 3 BK (2004-2009), the FP7504K includes a black fascia kit, plastic brackets, screws, steering wheel control interface, and universal patch lead, with CANBUS compatibility and park brake, speed pulse, reverse, and illumination outputs.

Product Overview

The Aerpro FP7504K is a complete Double DIN head unit installation kit designed specifically for the Mazda 3 BK from 2004-2009. It includes all the components required to complete a full aftermarket Double DIN head unit installation in one box: a black fascia kit, plastic brackets, screws, a steering wheel control interface, and a universal patch lead. The SWC interface is CANBUS compatible and requires no additional modules for CANBUS vehicles.

The internal aperture measures 174mm wide by 98mm high, accommodating standard Double DIN head unit face dimensions. Outputs from the SWC interface include park brake, speed pulse, reverse gear, and illumination. To further simplify the installation, the FP7504K is compatible with the Aerpro APP8 aftermarket head unit harness adaptor (sold separately), which connects from the aftermarket head unit directly into the steering wheel control interface harness supplied in this kit. The FP7504K is not compatible with BOSE amplified systems. The aftermarket head unit must be SWC compatible and steering wheel control functions may vary from OEM functions.

Features & Benefits

Complete Double DIN Installation Kit for Mazda 3 BK 2004-2009: The FP7504K includes all the parts required to complete an aftermarket Double DIN head unit installation in the Mazda 3 BK from 2004-2009 in a single purchase, eliminating the need to source components individually.

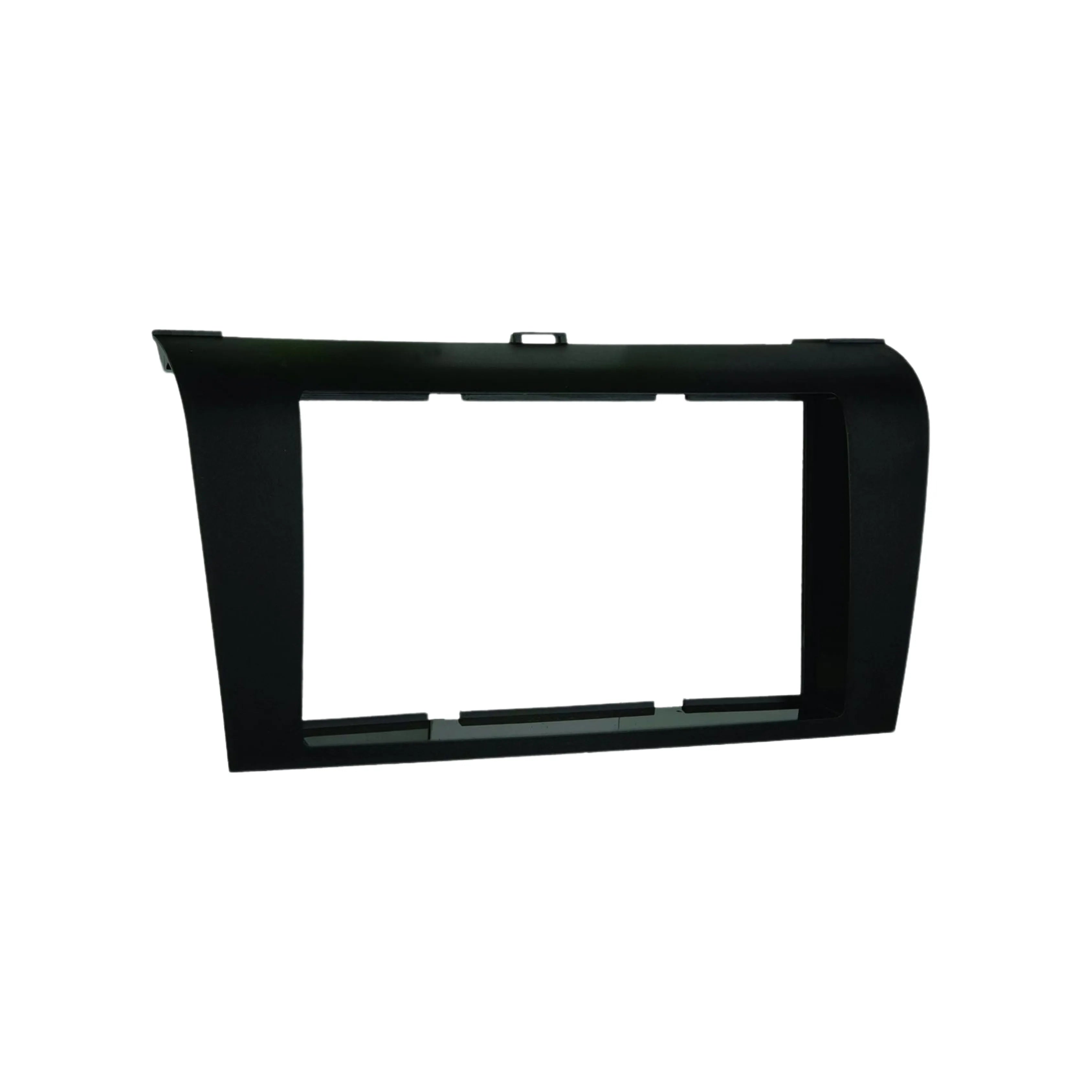

Black Fascia Kit for Mazda 3 BK Dashboard Integration: The included black fascia kit is designed specifically for the Mazda 3 BK (2004-2009) dashboard profile, providing a high-quality black finish that complements the interior styling of this Mazda 3 generation.

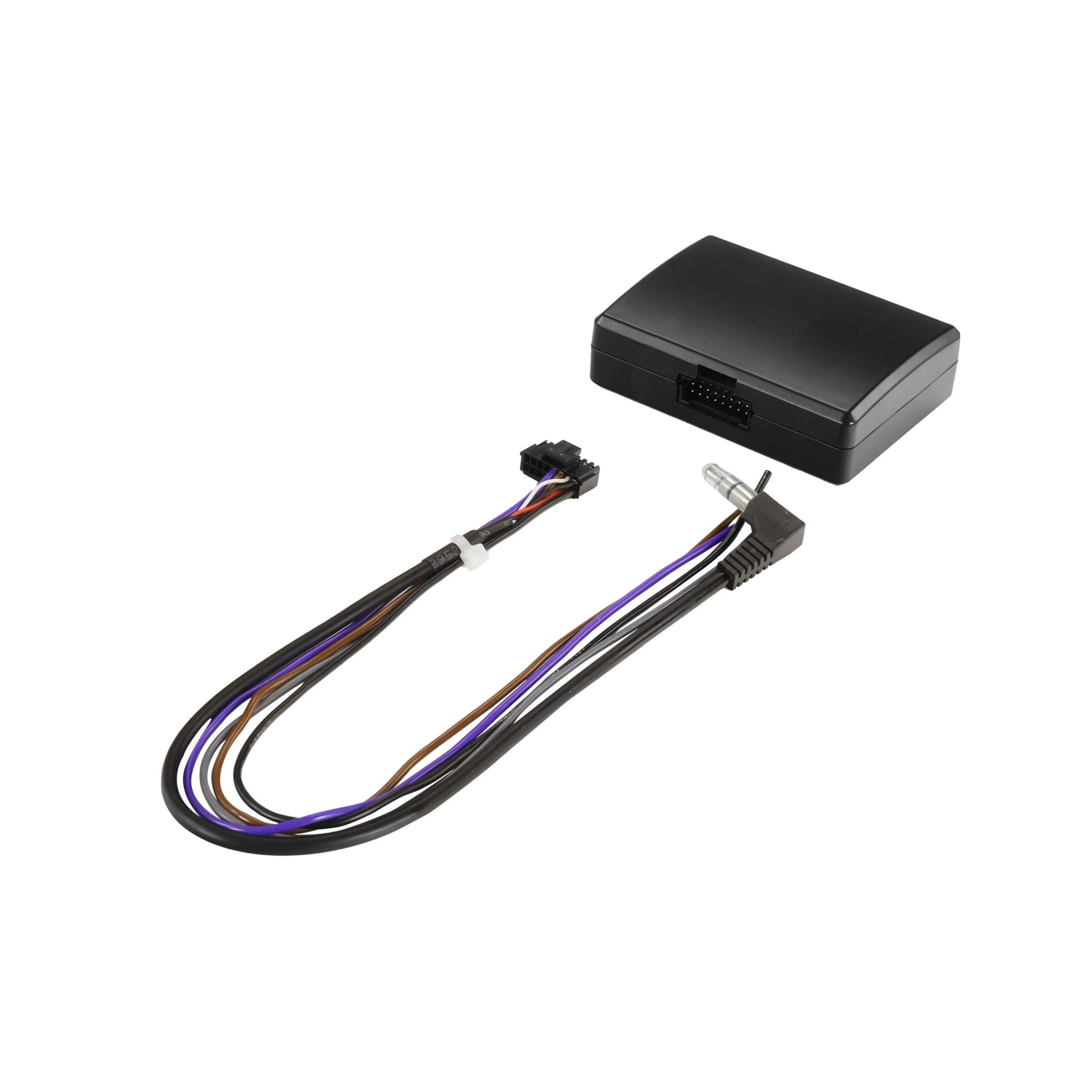

Steering Wheel Control Interface Included: The FP7504K includes a vehicle-specific steering wheel control interface, retaining the factory steering wheel audio controls with the aftermarket head unit after installation and calibration.

CANBUS Integration - No Additional Modules Required: The SWC interface is CANBUS compatible, providing direct integration with the Mazda 3 BK's CANBUS network without requiring additional interface modules.

Park Brake, Speed Pulse, Reverse, and Illumination Outputs: The SWC interface provides park brake, speed pulse, reverse gear, and illumination output feeds for compatible aftermarket head units that utilise these signals for safety, navigation, and display functions.

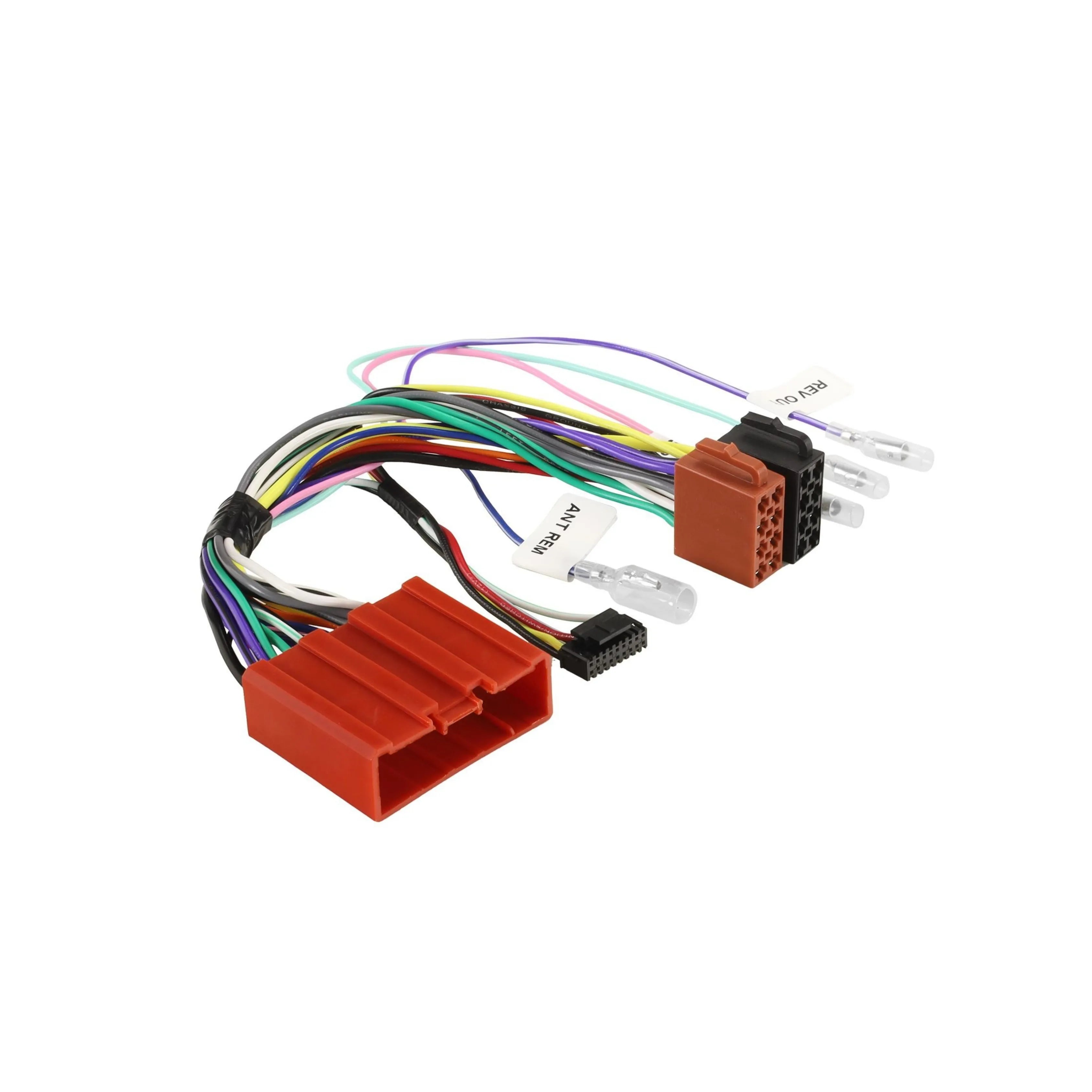

Universal Patch Lead Included: A universal patch lead is included to connect the SWC interface to the aftermarket head unit's SWC input.

Compatible with Aerpro APP8 Head Unit Harness Adaptor: The FP7504K is compatible with the Aerpro APP8 aftermarket head unit harness adaptor (sold separately), which connects directly from the aftermarket head unit to the SWC interface harness supplied in the kit, simplifying the overall installation wiring.

Not Compatible with BOSE Amplified Systems: The FP7504K is not compatible with Mazda 3 BK vehicles fitted with BOSE amplified sound systems. Confirm whether your specific vehicle has a BOSE amplified system before purchase.

Technical Specs

Specification Detail
SKU FP7504K
Brand Aerpro
Compatible Vehicles Mazda 3 BK, 2004-2009
Application Double DIN
Colour Black
Material ABS Plastic
Internal Dimensions 174mm W x 98mm H
SWC Interface Included
SWC Interface Type CANBUS
Park Brake Output Yes
Speed Pulse Output Yes
Reverse Output Yes
Illumination Output Yes
Universal Patch Lead Included

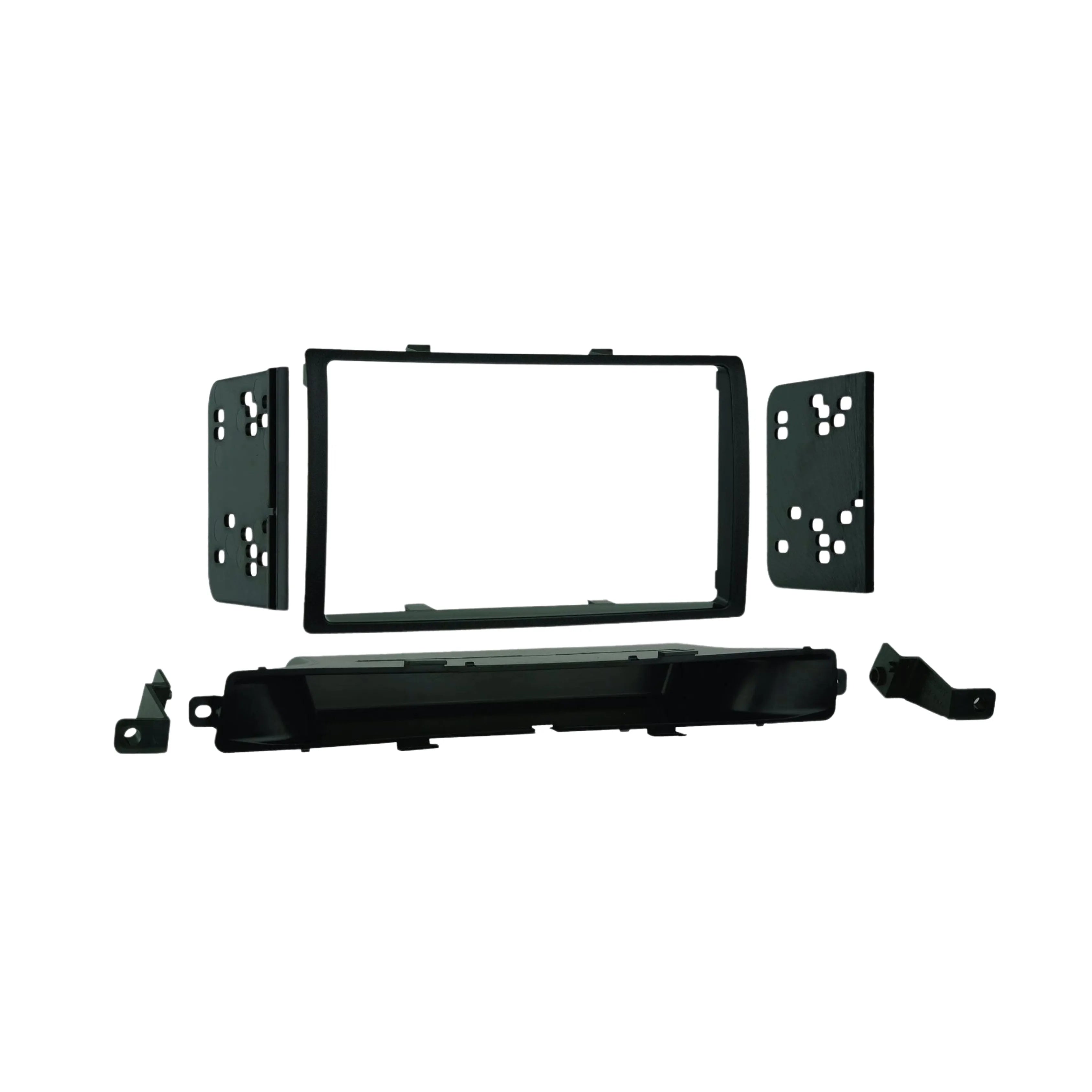

Plastic Brackets Included
Screws Included
BOSE Amplified Systems Not compatible
Recommended Accessory Aerpro APP8 Head Unit Harness Adaptor (sold separately)

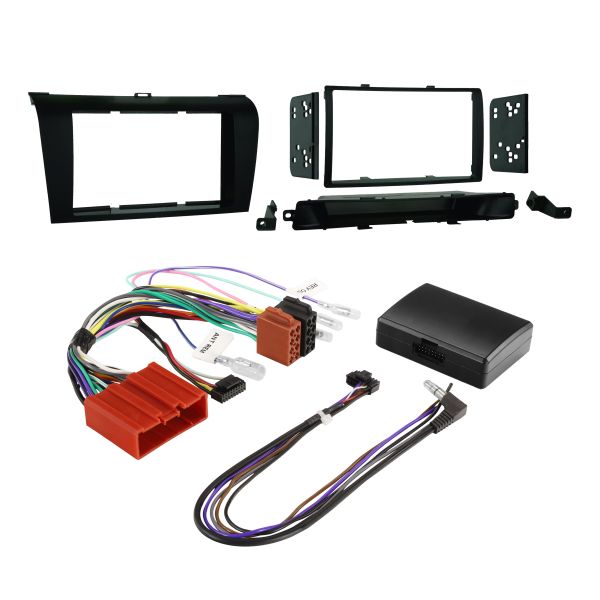

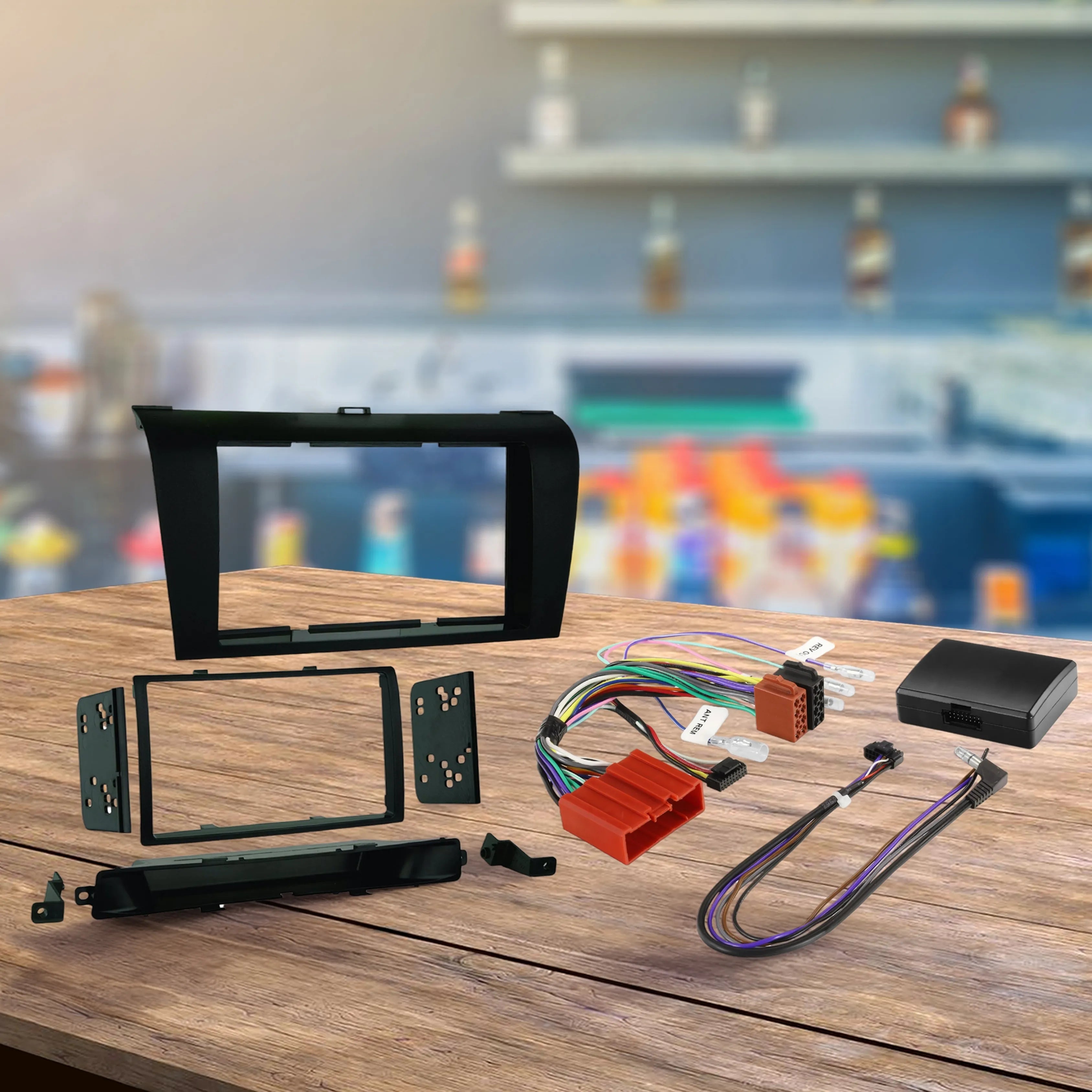

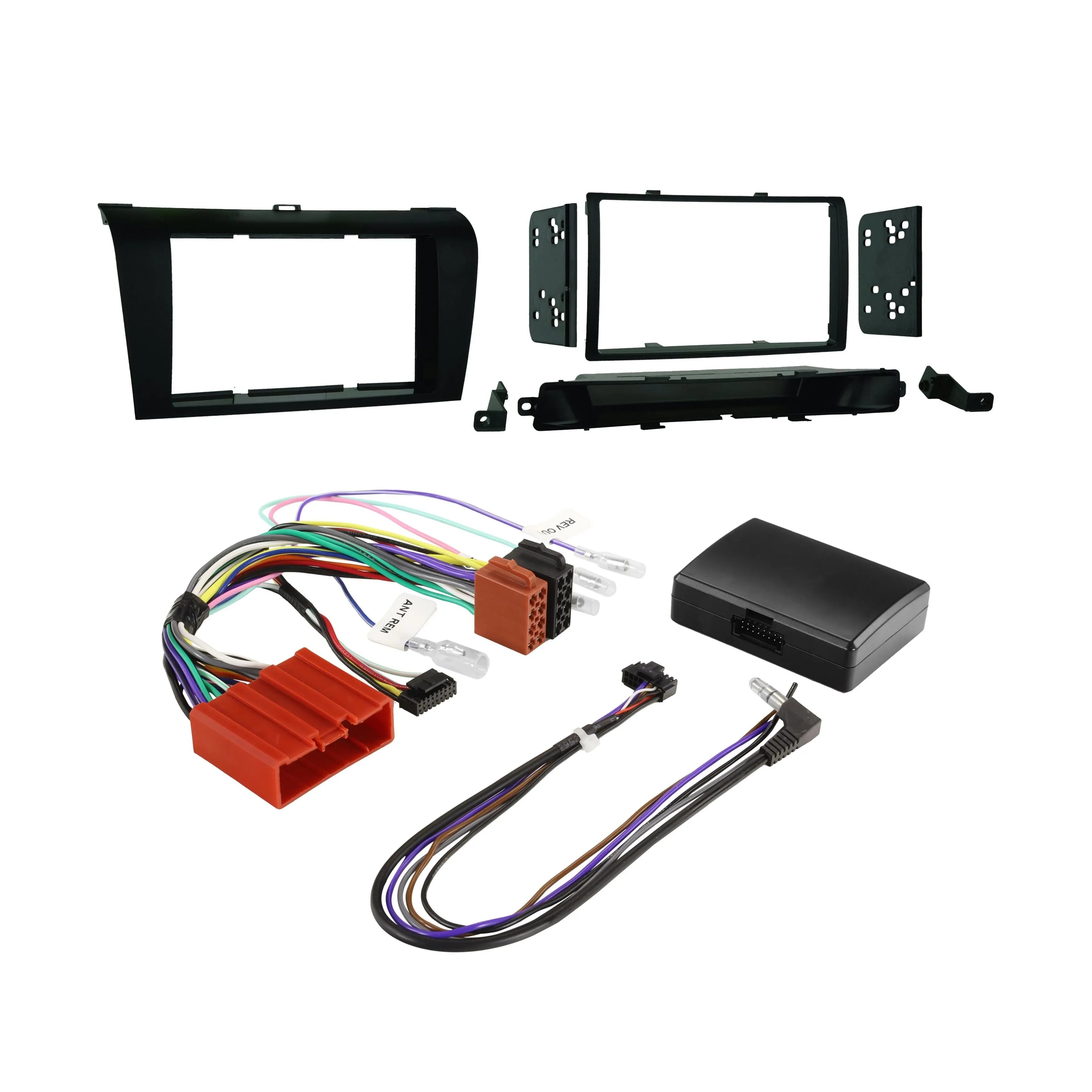

What's in the Box

  • Black Fascia Kit
  • Plastic Brackets
  • Screws
  • Steering Wheel Control Interface
  • Universal Patch Lead

Compatible With

The FP7504K is designed for the Mazda 3 BK from 2004-2009 with a Double DIN head unit installation. It is not compatible with Mazda 3 BK vehicles fitted with BOSE amplified sound systems. The internal aperture of 174mm wide by 98mm high suits standard Double DIN aftermarket head units. The aftermarket head unit must be SWC compatible and steering wheel control functions may vary from OEM functions. Compatible with the Aerpro APP8 head unit harness adaptor (sold separately) for a simplified wiring installation.

Frequently Asked Questions

Does the FP7504K include everything needed for a complete head unit installation?

Yes. The FP7504K includes the fascia kit, plastic brackets, screws, steering wheel control interface, and universal patch lead required for a complete Double DIN head unit installation in the Mazda 3 BK (2004-2009). To simplify the wiring connection between the aftermarket head unit and the SWC interface, the Aerpro APP8 head unit harness adaptor is available separately.

Is the FP7504K compatible with Mazda 3 BK vehicles with BOSE audio?

No. The FP7504K is not compatible with Mazda 3 BK vehicles fitted with BOSE amplified sound systems. Confirm whether your specific vehicle has BOSE audio before purchase.

Does the FP7504K retain the factory Mazda 3 steering wheel controls?

Yes. The included SWC interface retains the factory steering wheel audio controls with a compatible aftermarket head unit after installation and calibration. The aftermarket head unit must be SWC compatible and steering wheel control functions may vary from OEM functions.

What is the Aerpro APP8 and is it required?

The Aerpro APP8 is an aftermarket head unit harness adaptor that connects directly from the aftermarket head unit to the SWC interface harness supplied in the FP7504K kit. It is not included in the FP7504K but is available separately and recommended to simplify the wiring installation process.

Does the FP7504K support CANBUS vehicles?

Yes. The SWC interface included in the FP7504K is CANBUS compatible and requires no additional interface modules for CANBUS-equipped Mazda 3 BK vehicles.
