Aerpro CHVW3C Steering Wheel Control Interface Suit Volkswagen Various Models

Designed to Connect Directly to the Existing Wiring in the Vehicle with Ease!

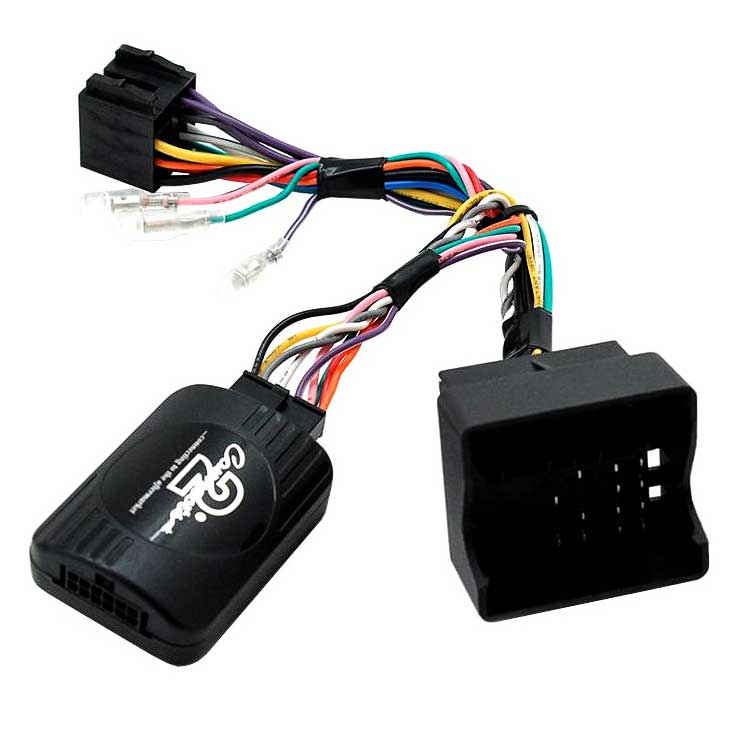

Steering Wheel Control Interface (SWC)
The Aerpro CHVW3C allows you to upgrade to an aftermarket headunit whilst maintaining use of your factory steering wheel controls. Engineered to suit various Volkswagen vehicles with RCD200/300/310/500/510 original headunit and quadlock connector, the steering wheel control interface includes a harness that is fitted with a vehicle specific plug designed to connect directly into the existing wiring in the vehicle with ease, no cutting of the factory wiring harness in the vehicle is required.

Installation of the aftermarket headunit is simplified even further when paired with the optional Aerpro APP9 Headunit Secondary ISO Harness & SWC Patch Lead, which connects between the aftermarket headunit and the Aerpro Steering Wheel Control Interface. This interface is CANBUS compatible and provides various outputs including Reverse Trigger, Park Brake and Speed Pulse.

Please Note:

• Steering Wheel Control Interfaces vary between models, to find the correct part for your vehicle use the Aerpro Vehicle Selector.
• A Steering Wheel Control Patch Lead is required to be used in conjunction with this part to enable Steering Wheel Controls to function (Sold Separately).
• Aftermarket headunit must be SWC compatible and Steering Wheel Control Functions may vary from the OEM Functions.
• Not compatible with factory OEM amplified systems.
• In some vehicles, factory Bluetooth module may need to be disconnected to enable steering wheel phone buttons to function.

Features:

• Allows you to upgrade to an aftermarket headunit whilst maintaining use of your factory steering wheel controls
• Increases driver safety by allowing you to keep your hands on the steering wheel and eyes on the road
• Supports OEM Phone Button* when connected to compatible aftermarket Bluetooth headunits
• Provides output feeds for park brake, reverse gear and speed pulse
• CAN-BUS integration compatible, no additional modules required for CAN-BUS vehicles
• Not compatible with factory OEM amplified systems
• In some vehicles, factory Bluetooth module may need to be disconnected to enable steering wheel phone buttons to function
• Fitted with a vehicle specific plug, no cutting of wires required
• To simplify installation, this interface is compatible with Aerpro APP9 aftermarket headunit harness adapter with SWC patch lead
• Requires SWC patch lead (Available Separately) to provide compatibility with the aftermarket headunit

Specifications:

• Interface Type: CANBUS
• Patch Lead Type: C
• Phone Button Compatibility: Yes*
  • *Compatibility can differ between vehicles.
• Voice Assistant Button Support: No
• Outputs:
  • Reverse Trigger: Yes (Purple/White)
  • Park Brake: Yes (Green)
  • Speed Pulse: Yes (Pink)
  • Illumination: Yes (Orange)
  • Amp Remote: No
  • Telephone Mute: No
• Other Retention:
  • OEM Amplified System: No
• Packaging Type: Side Blister
• Weight: 0.01kg

Vehicle Compatibility:

• Volkswagen Amarok (2011 - 2016)
• Volkswagen Beetle (2012)
• Volkswagen Caddy (2005 - 2015)
• Volkswagen EOS (2007 - 2014)
• Volkswagen Golf (2004 - 2009 MK5)
• Volkswagen Golf (2009 - 2013 MK6)
• Volkswagen Jetta (2006 - 2015)
• Volkswagen Passat (2006 - 2015)
• Volkswagen Polo (2006 - 2009)
• Volkswagen Polo (2010 - 2014)
• Volkswagen Scirocco (2009 - 2014)
• Volkswagen Tiguan (2008 - 2014)
• Volkswagen Touareg (2004 - 2010)
• Volkswagen Transporter T5 (2010 - 2015)
• Volkswagen Up! (2012 - 2015)
