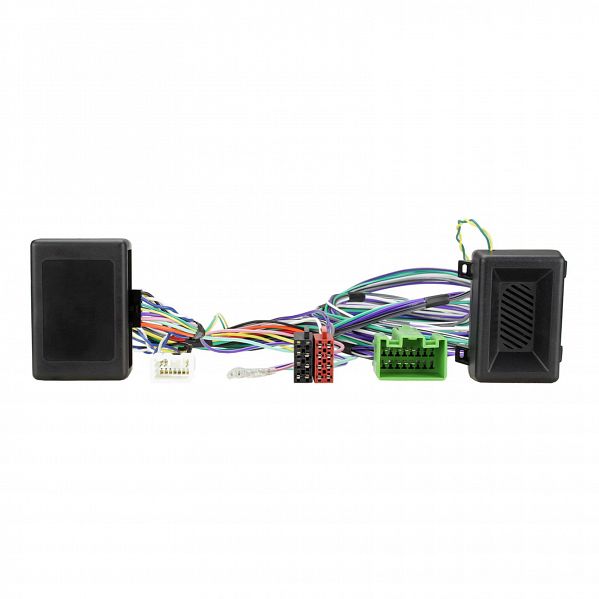

Aerpro CHVL5C Steering Wheel Control Interface Suit Volvo Various Models

Designed to Connect Directly Into the Existing Wiring in the Vehicle with Ease!

Steering Wheel Control Interface (SWC)
The Aerpro CHVL5C Steering Wheel Control Interface (SWC) allows you to upgrade to an aftermarket head unit whilst maintaining the use of your factory steering wheel controls. Engineered to suit Volvo C30 (2006 to 2013), C70 (2006 to 2013), S40 (2004 to 2012), and V50 (2004 to 2012) factory-amplified vehicles, the steering wheel control interface includes a harness that is fitted with a vehicle-specific plug designed to connect directly into the existing wiring in the vehicle with ease, no cutting of the factory wiring harness in the vehicle is required.

Installation of the aftermarket head unit is simplified even further when paired with the optional Aerpro APP9 Head Unit Secondary ISO Harness & SWC Patch Lead, which connects the aftermarket head unit and the Aerpro Steering Wheel Control Interface. This interface is CANBUS compatible and provides various outputs including reverse trigger, park brake, and speed pulse.

Important Information:

• Steering Wheel Control Interfaces vary between models, to find the correct part for your vehicle use the Aerpro Vehicle Selector.
• A Steering Wheel Control Patch Lead is required to be used in conjunction with this part to enable Steering Wheel Controls to function (sold separately).
• Aftermarket head unit must be SWC compatible and Steering Wheel Control Functions may vary from the OEM Functions.
• Does not retain display features, including vehicle menus, climate temperature, or climate fan speed.
• Suitable for factory-amplified vehicles only. Bypass factory amplifier.

Features:

• Allows you to upgrade to an aftermarket head unit whilst maintaining use of your factory steering wheel controls
• Increases driver safety by allowing you to keep your hands on the steering wheel and eyes on the road
• Retains factory phone buttons (steering wheel only) when connected to compatible aftermarket Bluetooth head units
• Retains warning chimes/parking sensor audio (via integrated speaker)
• Bypasses original vehicle amplifier
• Provides output feeds for the reverse trigger, park brake, and speed pulse
• Fitted with a vehicle-specific plug, no cutting of wires is required
• Recommended to be installed with an Aerpro APP9 Head Unit Secondary ISO Harness & SWC Patch Lead (sold separately)
• Requires SWC patch lead to provide compatibility with the aftermarket head unit (sold separately)

Specification

• Interface Type: CANBUS
• Patch Lead Type: C
• Phone Button Compatibility: Yes
• Outputs:
  Reverse Trigger: Yes (Purple/White)
  Park Brake: Yes (Green)
  Speed Pulse: Yes (Pink)
• Other Retention:
  Bypasses Amplified System: Yes
  Retains Original Climate Button Functionality: Yes
  Retains Warning Chimes/Parking Sensor Audio: Yes
• Weight: 0.24kg

Vehicle Compatibility:

• Volvo C30 (2006 to 2013)
• Volvo C70 (2006 to 2013)
• Volvo S40 (2004 to 2012)
• Volvo V50 (2004 to 2012)

FAQ

What is the Aerpro CHVL5C?

A steering wheel control interface that lets you keep your factory steering wheel controls when you fit an aftermarket head unit.

What else do I need?

It needs a steering wheel control patch lead to suit your head unit. An Aerpro APP9 head unit harness adaptor with SWC patch lead makes the install easier.

Will it fit my vehicle?

Built for the vehicles named in the title and description. Send the F.A.E. team your make, model and year and we will confirm before you order.
