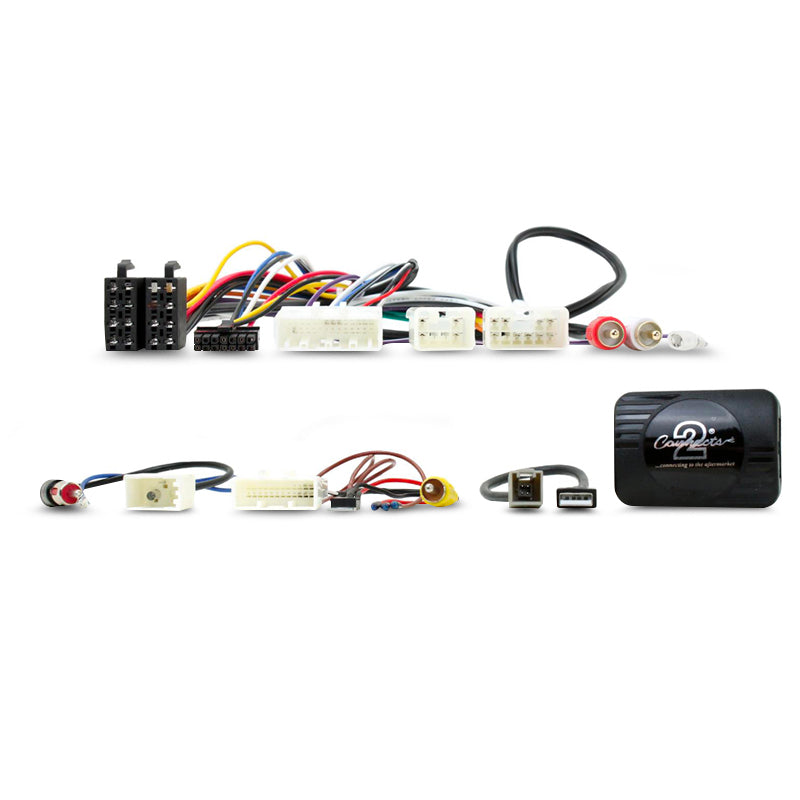

Aerpro CHTO15C Steering Wheel Control Interface Suit Toyota Various Models (Includes Antenna, USB & Camera Retention Adaptors)

Designed to Connect Directly to the Existing Wiring in the Vehicle With Ease!

Steering Wheel Control Interface (SWC)
The Aerpro CHTO15C Steering Wheel Control Interface (SWC) allows you to upgrade to an aftermarket headunit whilst maintaining the use of your factory steering wheel controls. Engineered to suit various Toyota vehicles with 28 28-pin connectors, the steering wheel control interface includes a harness that is fitted with a vehicle-specific plug designed to connect directly to the existing wiring in the vehicle with ease, with no cutting of the factory wiring harness in the vehicle is required.

This interface also includes an antenna adaptor, reverse camera retention adaptor, and USB retention lead. Installation of the aftermarket headunit is simplified even further when paired with the optional Aerpro APP9 Headunit Secondary ISO Harness & SWC Patch Lead, which connects the aftermarket headunit and the Aerpro Steering Wheel Control Interface. This interface retains the Factory Antenna, USB Input, AUX Input, and Reverse Camera when connected to compatible aftermarket headunits. It also provides outputs for the Reverse Trigger, Park Brake, and Speed Pulse.

Please Note:

• Steering Wheel Control Interfaces vary between models, to find the correct part for your vehicle use the Aerpro Vehicle Selector.
• A Steering Wheel Control Patch Lead is required to be used in conjunction with this part to enable Steering Wheel Controls to function (Sold Separately).
• The aftermarket headunit must be SWC compatible and Steering Wheel Control Functions may vary from the OEM Functions.
• Retains USB and AUX if originally fitted in the vehicle, aftermarket headunit requires rear USB and AUX (RCA) inputs.
• Retains factory reverse camera if originally fitted to the vehicle, aftermarket headunit requires RCA reverse camera input (Includes 24,16, and 4 pin adapters).
• Compatible with listed vehicles that have 28-pin connectors.

Features:

• Allows you to upgrade to an aftermarket headunit whilst maintaining the use of your factory steering wheel controls.
• Increases driver safety by allowing you to keep your hands on the steering wheel and eyes on the road.
• Supports OEM Phone Button when connected to compatible aftermarket Bluetooth headunits.
• Retains USB and AUX if originally fitted in the vehicle, aftermarket headunit requires rear USB and AUX (RCA) inputs.
• Retains factory reverse camera if originally fitted to the vehicle, aftermarket headunit requires RCA reverse camera input (Includes 24,16 and 4 pin adapters)
• Includes an antenna adapter that converts the vehicle antenna plugs into a universal DIN plug suitable for aftermarket radios.
• Provides output feed for the reverse trigger, park brake, and speed pulse.
• Fitted with a vehicle-specific plug, no cutting of wires is required.
• Recommended to be installed with an Aerpro APP9 Headunit Secondary ISO Harness & SWC Patch Lead (Sold Separately)
• Requires SWC patch lead to provide compatibility with the aftermarket headunit (Sold Separately)

Specifications:

• Interface Type: Analogue
• Patch Lead Type: C
• Phone Button Compatibility: Yes
• Voice Assistant Button Support: No
• Outputs:
  Reverse Trigger: Yes (Purple/White)
  Park Brake: Yes (Green)
  Speed Pulse: Yes (Pink)
  Illumination: No
  AMP Remote: No
  Telephone Mute: No
• Other Retention:
  OEM Amplifier: No
  OEM Reverse Camera: Yes
  OEM AUX Input: Yes
  OEM USB Input: Yes
  OEM Antenna: Yes

Vehicle Compatibility:

• Toyota 86 2016 -
• Toyota Aurion 2012 - 2015
• Toyota Aurion 2015 - 2018
• Toyota C-HR 2016 - 2019
• Toyota Camry 2012 - 2017
• Toyota Corolla 2012 - 2015 Hatch
• Toyota Corolla 2013 - 2016 Sedan
• Toyota Corolla 2015 - 2018 Hatch
• Toyota Corolla 2017 - 2019 Sedan
• Toyota Fortuner 2015 - 2020
• Toyota HiAce 2012 - 2019
• Toyota Hilux 2012 - 2013
• Toyota Hilux 2014
• Toyota Hilux 2015 - 2020
• Toyota Kluger 2014 - 2019
• Toyota Landcruiser 2012 - 2015 200 Series
• Toyota Landcruiser 2016 - 2021 200 Series
• Toyota Prado 2014 - 2017 150 Series
• Toyota Prius C 2009 -
• Toyota Prius V 2012 - 2019
• Toyota RAV4 2013 - 2018
• Toyota Tundra 2007 - 2013
• Toyota Tundra 2014 -
• Toyota Yaris 2011 - 2013
