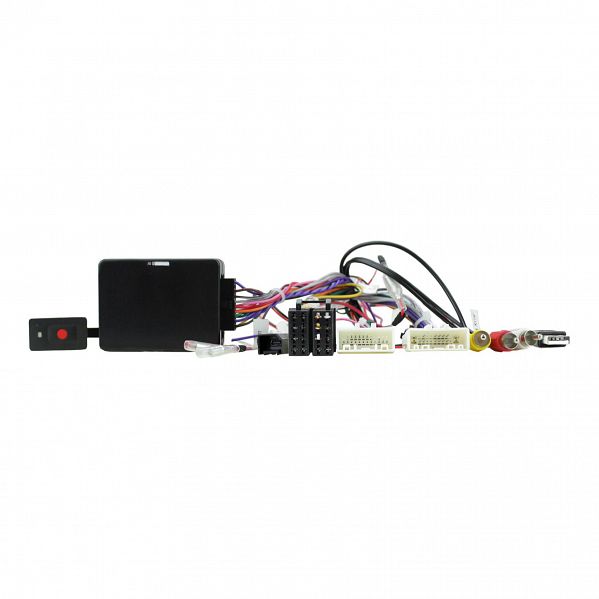

Aerpro CHNI28C Steering Wheel Control Interface Suit Nissan Juke (With 360° Camera Retention)

Designed to Connect Directly to the Existing Wiring in the Vehicle with Ease!

Steering Wheel Control Interface (SWC)
The Aerpro CHNI28C allows you to retain use of the OEM steering wheel control buttons, AUX input, USB input, time/date vehicle settings, and 360-degree camera functionality when installing an aftermarket head unit into your vehicle. Engineered to suit various Nissan Juke F15 (2014-2018) vehicles with factory 360-degree cameras, the steering wheel control interface includes a harness that is fitted with a vehicle-specific plug designed to connect directly to the existing wiring in the vehicle with ease.

Installation of the aftermarket head unit is simplified even further when paired with the optional Aerpro APP9 Head Unit Secondary ISO Harness & SWC Patch Lead, which connects the aftermarket head unit and the Aerpro Steering Wheel Control Interface. This interface provides various outputs including reverse, park brake, and speed pulse.

Please Note:

• Steering Wheel Control Interfaces vary between models, to find the correct part for your vehicle use the Aerpro Vehicle Selector.
• A Steering Wheel Control Patch Lead is required to be used in conjunction with this part to enable Steering Wheel Controls to function (Sold Separately).
• Aftermarket head unit must be SWC compatible and Steering Wheel Control Functions may vary from the OEM Functions.
• Retains OEM AUX and USB Input (If equipped), when connected to compatible aftermarket head units with rear USB and AUX inputs.
• Retains the OEM 360-degree Reverse Camera (If fitted to the vehicle) and enables it to display on compatible aftermarket AV head units (With an RCA camera input).
• 360 Camera system is controlled using the included wired 360 button controller.
• Vehicle Connection: 20-pin main plug, 24-pin secondary plug.

Features:

• Allows you to upgrade to an aftermarket head unit whilst maintaining use of your factory steering wheel controls
• Increases driver safety by allowing you to keep your hands on the steering wheel and eyes on the road
• Supports OEM Phone Button when connected to compatible aftermarket Bluetooth head units
• Retains OEM USB and AUX Inputs (If equipped), when connected to compatible aftermarket head units
• Retains OEM 360-Degree Reverse Camera (If equipped) when connected to a compatible aftermarket AV head unit
• Includes switchable camera viewing modes with the handy factory-style button
• Retains time/date vehicle settings
• Provides output feeds for reverse, park brake, and speed pulse
• Fitted with a vehicle-specific plug, for simple installation
• Recommended to be installed with an Aerpro APP9 Head Unit Secondary ISO Harness & SWC Patch Lead (Sold Separately)
• Requires SWC patch lead to provide compatibility with the aftermarket head unit (Sold Separately)

Specifications:

• Interface Type: CANBUS
• Patch Lead Type: C
• Phone Button Compatibility: Yes
• Voice Assistant Button Support: No
• Outputs:
  Reverse Trigger: Purple/White
  Park Brake: Green
  Speed Pulse: Pink
• Retention:
  OEM Amplified System: No
  OEM USB: Yes
  OEM Aux: Yes
  OEM Reverse Camera: Yes, 360-Degree
• Vehicle Compatibility: Nissan Juke (2014 - 2018 F15)
• Weight: 0.24kg
